Disassembly and Reassembly
3.4 Fuser Ass'y

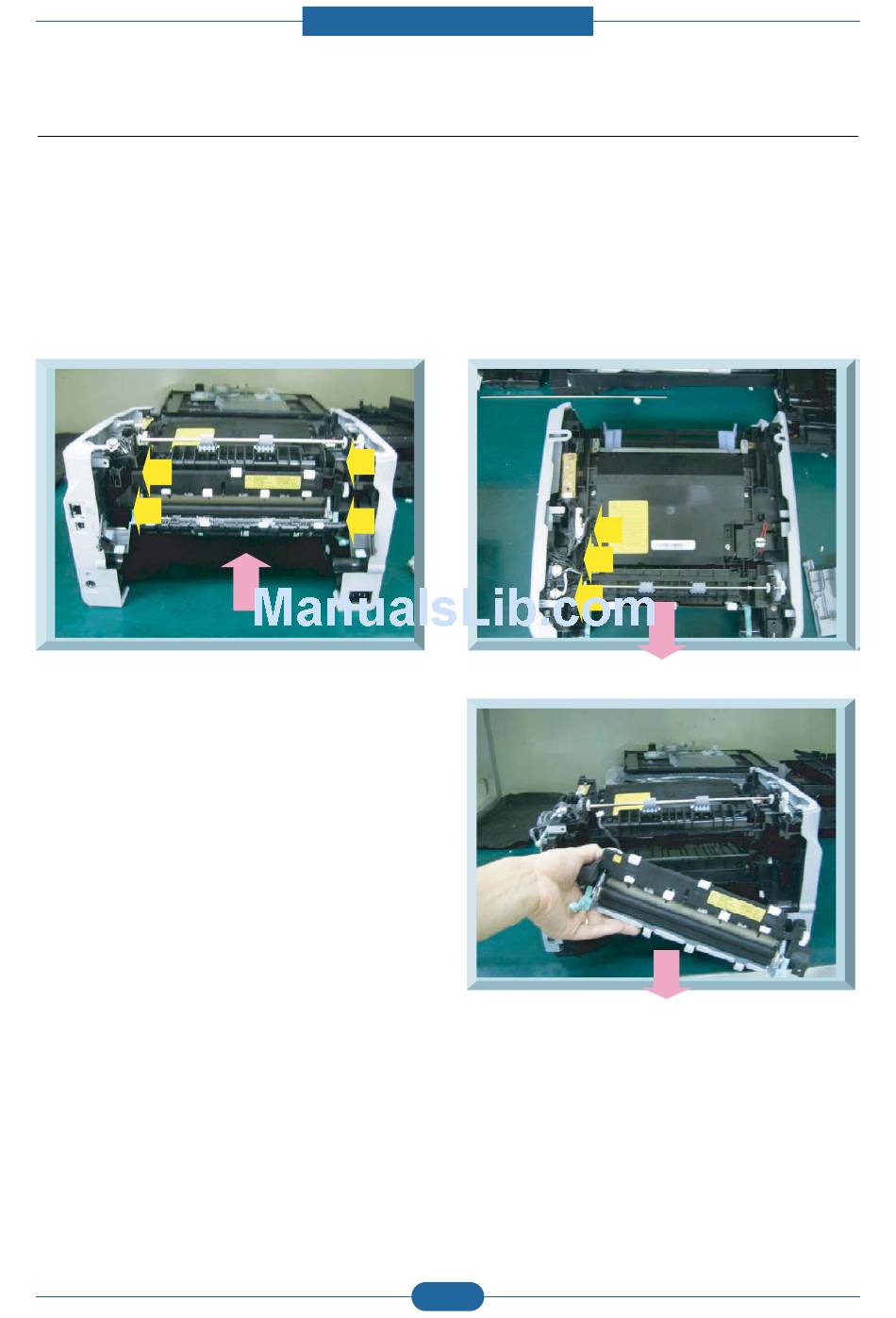

1. Before fuser ass'y removal, Remove COVER-TOP/DUPLEX/COVER-REAR.
2. After remove guide-rear assy like below figure, remove four screws of fuser assy.
3. In upper view, remove the three harness connected to fuser.
4. Remove fuser carefully not to damage HARNESSes.
3-6
Service Manual
Samsung Electronics
