Disassembly and Reassembly
3.3.2 DUPLEX UNIT & COVER-TOP/COVER-REAR

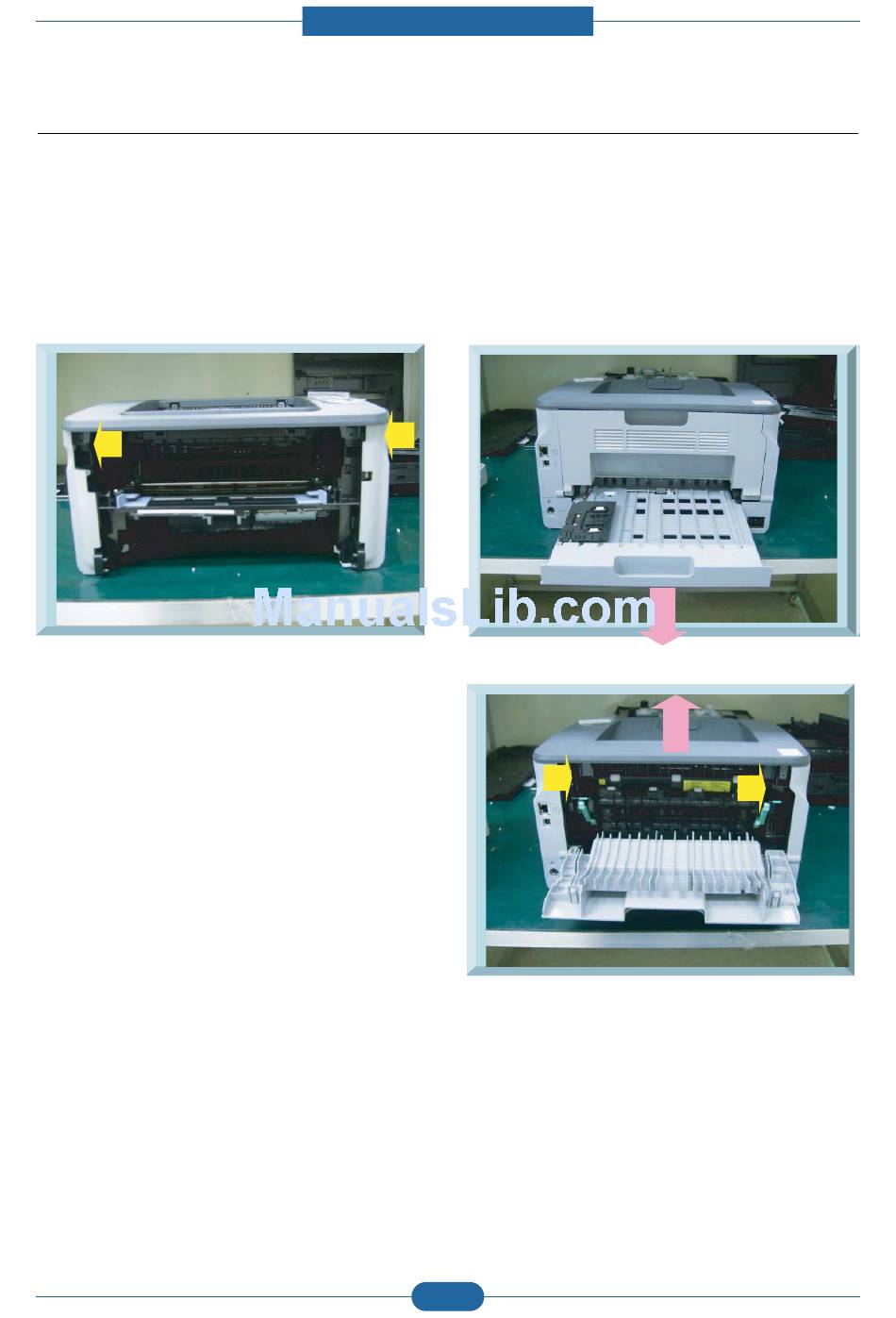

1. Remove two SCREW in front view
2. Turning back of SET, remove DUPLEX UNIT like below figure.
3. After open the COVER-REAR, remove two SCREWs, then disassemble the Cover-Top up.
4. Remove COVER-REAR.
3-4
Service Manual
Samsung Electronics
