Quick Start Guide
3
5
13
17
21
25
En

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COOLPIX AW120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nikon COOLPIX AW120

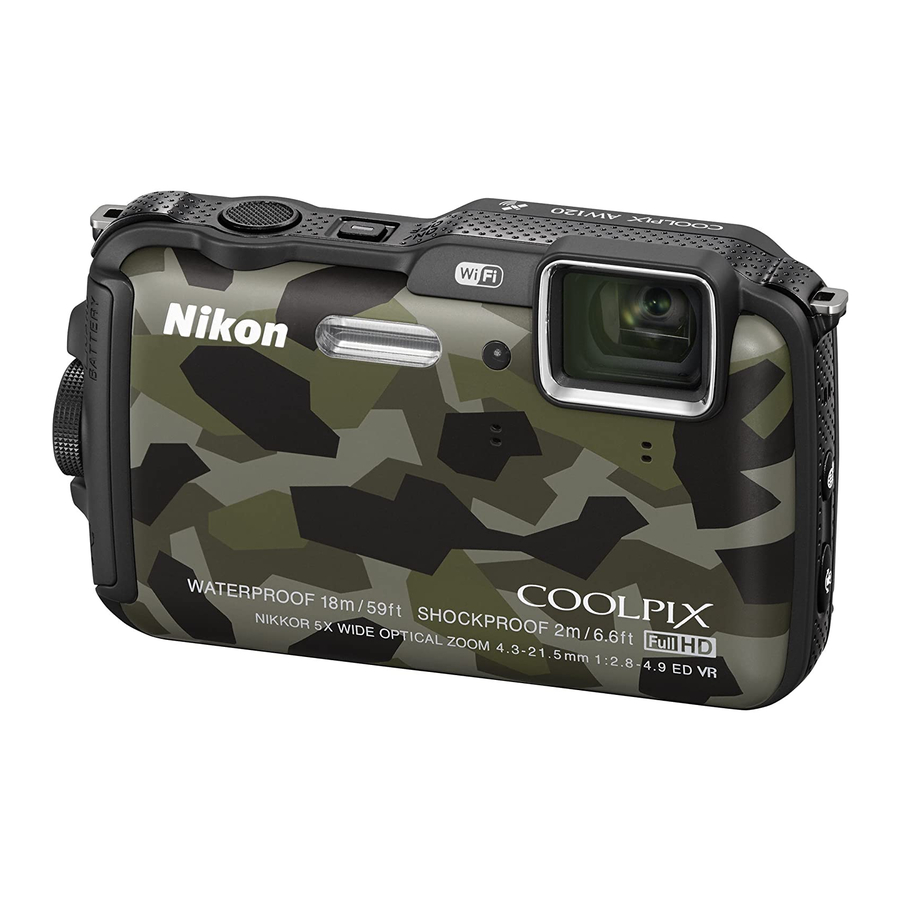

Summary of Contents for Nikon COOLPIX AW120

  • Page 1: Table Of Contents

    Quick Start Guide Confirming the Package Contents First Steps Shooting and Playback Using ViewNX 2 Other Functions For Your Safety...
  • Page 2 Search Nikon’s continuously updated Knowledge Database for the latest technical support information. Use “Ask Nikon a Question” to receive a prompt reply from a Nikon professional advisor to your e-mail. Download the latest versions of Nikon software or firmware updates for your product, or register to receive e-mail notification for software or firmware updates.

  • Page 3: Confirming The Package Contents

    Confirming the Package Contents In the event that any items are missing, please contact the store where you purchased the camera. COOLPIX AW120 Camera strap for land use Rechargeable Li-ion Battery Digital Camera EN-EL12 Charging AC Adapter USB Cable UC-E21...

  • Page 4: Parts Of The Camera

    Parts of the Camera 7 8 9 10 11 Shutter-release button Flash lamp b (e movie-record) button Power switch/power-on lamp c (playback) button Flash k (apply selection) button Battery-chamber/memory card slot cover latch release Multi selector U (map) button Battery-chamber/memory card slot cover latch V (action) button OLED monitor (monitor)

  • Page 5: First Steps

    First Steps 1 Attaching the Camera Strap for Land Step Remove the strap for land use before using the camera underwater. 2 Insert the Battery and Memory Card Step If a memory card is inserted, images will be saved on the memory card when you take images.
  • Page 6 .2 Insert the battery. Battery latch Push the orange battery latch in the direction indicated by the arrow (1), and fully insert the battery (2). The battery locks into place when inserted correctly. Be Careful to Insert the Battery in Correct Direction Inserting the battery upside down or backwards could damage the camera.

  • Page 7: Removing The Battery And Memory Card

    .4 Push the battery-chamber/memory card slot cover to the camera (1) and rotate the battery-chamber/memory card slot cover latch until the cover is locked (2). Rotate the battery-chamber/memory card slot cover latch until it clicks into place. Removing the Battery and Memory Card Turn the camera off and make sure that the power-on lamp and the monitor have turned off, and then open the battery-chamber/ memory card slot cover.

  • Page 8: Charge The Battery

    Charge the Battery Step Use the included charging AC adapter and USB cable to charge the battery while it is in the camera. .1 Prepare the included charging AC adapter. If a plug adapter* is included with your camera, attach the plug adapter to the plug on the charging AC adapter.

  • Page 9: Turn On The Camera

    Charge lamp Electrical outlet USB cable (included) The charge lamp slowly flashes green to indicate that the battery is charging. About 2 hours and 20 minutes are required to charge a fully exhausted battery. .3 Disconnect the charging AC adapter from the electrical outlet and then disconnect the USB cable.
  • Page 10 Select a Language and Set the Camera Step Clock When the camera is turned on for the first time, the language- selection screen and the date and time setting screen for the camera clock are displayed. Use the multi selector to make the settings. If you exit without setting the date and time, O will flash when the shooting screen is displayed.
  • Page 11 .4 Select the date format and press the Date format k button. Year/Month/Day Month/Day/Year Day/Month/Year .5 Set the date and time, and press the Date and time k button. Select a field: Press JK (changes 05 15 2014 15 30 between M, D, Y, h, and m).
  • Page 12 .8 When you have read the message After drying thoroughly, use a shown on the right, press the k cloth to remove any droplets remaining on the areas button. indicated. The camera switches to shooting mode. Exit Imprinting the Date and Time on Images While Taking Images After setting the date and time, enable the Print date option in the z (setup) menu (A22).

  • Page 13: Shooting And Playback

    Shooting and Playback Check the Battery Level and the Number Step of Exposures Remaining 1010hPa 1010hPa 1010hPa Battery level indicator 25m 0s 25m 0s Number of exposures remaining Battery level indicator Display Description The battery level is high. The battery level is low. The camera cannot capture images.

  • Page 14: Using The Zoom

    .2 Frame the picture. Shooting mode icon When the camera automatically determines the scene mode, the shooting mode icon changes. 1010hPa 1010hPa 1010hPa 25m 0s 25m 0s Using the Zoom Move the zoom control. Zoom in To zoom in closer to the subject, move the zoom control toward g (telephoto).

  • Page 15: Flash Lamp

    When human faces are detected: The camera focuses on one of them. When no human faces are detected: If the main subject is detected, the camera focuses on it. If no main subject is detected, the camera automatically selects one or more of the 9 focus areas containing the subject closest to the camera.

  • Page 16: Deleting Unwanted Images

    Use the multi selector HIJK to display Display previous image previous or next images. To return to shooting mode, press the A button or shutter-release button. When the k button is pressed, you can do one of the following operations, depending Display next image on the type of image that is played back.
  • Page 17 Your Imaging Toolbox Installing ViewNX 2 Step An Internet connection is required. For system requirements and other information, see the Nikon website for your region. .1 Download the ViewNX 2 installer. Start the computer and download the installer from: http://nikonimglib.com/nvnx/ .2 Double-click the downloaded file.

  • Page 18: Using Viewnx

    Transferring Images to the Computer Step .1 Choose how images will be copied to the computer. Choose one of the following methods: Direct USB connection: Turn the camera off and ensure that the memory card is inserted in the camera. Connect the camera to the computer using the USB cable.
  • Page 19 2 Double-click Import File. If the memory card contains a large number of images, it may take a while for Nikon Transfer 2 to start. Wait until Nikon Transfer 2 starts. Connecting the USB Cable The connection may not be recognized if the camera is connected to the computer via a USB hub.

  • Page 20: Viewing Images

    .3 Terminate the connection. If the camera is connected to the computer, turn the camera off and disconnect the USB cable. If you are using a card reader or card slot, choose the appropriate option in the computer operating system to eject the removable disk corresponding to the memory card and then remove the card from the card reader or card slot.

  • Page 21: Other Functions

    Other Functions Flash Mode, Self-Timer, Macro Mode, and Exposure Compensation Use the multi selector in shooting mode to apply the following settings. Function Description The flash modes available are U (auto), V 1 m Flash mode (auto with red-eye reduction), W (off ), X (fill flash), and Y (slow sync) modes.

  • Page 22: Selecting A Shooting Mode

    Selecting a Shooting Mode Press the A button in shooting mode to display the shooting- mode selection menu. Use the multi selector to select a shooting mode, and press the k button to change to that mode. 1. G Easy auto mode Easy auto mode 2.
  • Page 23 Press the d button to display the menu for the current mode and use the multi selector to select an item (A10). Press the d button again to exit the menu. Switching Between Menu Icons Set up Image mode Welcome screen Welcome screen White balance Time zone and date...
  • Page 24 To obtain location data, press the d button, select the z (location data options) menu icon (A22), and set Record location data in Location data options to On. Using the V (Action) Button (Action Control) When the V (action) button is pressed, you can perform the function by shaking the camera.

  • Page 25: For Your Safety

    For Your Safety To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equipment. Keep these safety instructions where all those who use the product will read them.
  • Page 26 Failure to observe this precaution could cause damage or fire. Use the appropriate power supply (battery, charging AC adapter, AC adapter, USB cable) Using a power supply other than those provided or sold by Nikon could result in damage or malfunction. Observe caution when handling the battery The battery may leak, overheat, or explode if improperly handled.
  • Page 27 Use appropriate cables When connecting cables to the input and output jacks, use only the cables provided or sold by Nikon for the purpose, to maintain compliance with product regulations. For Your Safety...
  • Page 28 Handle moving parts with care Be careful that your fingers or other objects are not pinched by the lens cover or other moving parts. Using the flash close to your subject’s eyes could cause temporary visual impairment The flash should be no less than 1 m (3 ft 4 in.) from the subject. Particular care should be observed when photographing infants.
  • Page 29 Notices Notices for Customers in the U.S.A. IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS. DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet if needed.

  • Page 30: Caring For The Camera

    Nikon Corporation may void the user’s authority to operate the equipment. Interface Cables Use the interface cables sold or provided by Nikon for your equipment. Using other interface cables may exceed the limits of Class B Part 15 of the FCC Rules.
  • Page 31 Do not place a heavy object on the camera, drop the camera, or apply excessive force on the camera. If water seeps inside the camera, immediately stop using the camera. Wipe off moisture from the camera, and at once take the camera to your Nikon- authorized service representative. Shock and Vibration Do not drop the camera, strike it against a hard object such as a rock, or throw it at a water surface.
  • Page 32 Maximum Depth This camera is designed to withstand water pressure up to a depth of 18 m (59 ft) for approximately 60 minutes. At greater depth, water could seep inside the camera, resulting in camera malfunction. Precautions on Handling the Camera in Cold Locations The operation of this camera has been confirmed at temperatures of –10°C (14°F).
  • Page 33 The monitor is lit by an LED backlight. Should the monitor begin to dim or flicker, contact your Nikon-authorized service representative. About the Manuals Nikon will not be held liable for any damages resulting from the use of this product. Notices...
  • Page 34 Care should be taken to avoid injury or damage to property when physically destroying data storage devices. For the COOLPIX AW120, the log data saved on the memory card is handled in the same way as other data. To erase the log data that is obtained but not stored on the memory card, select Create log ➝...
  • Page 35 Notes About Shockproof Performance This camera has passed Nikon’s in-house test (drop test from a height of 202 cm (6 ft 6 in.) on a 5 cm (2 in.) thick plywood panel) compliant with MIL-STD 810F Method 516.5-Shock*. This test does not guarantee the waterproof performance of the camera or that the camera will be free from damage or trouble under all conditions.
  • Page 36 Make sure to read “Disposing of Data Storage Devices” (A34). b Notes about measurement functions The COOLPIX AW120 is a camera. Do not use this camera as a navigation device or measuring instrument. Use information (such as direction, altitude and water depth) measured by the camera as a guideline only.
  • Page 37 b Using the camera overseas Before taking the camera with location data functions overseas for travel, consult your travel agency or embassy of the country you are visiting to confirm whether there is any restriction on use. For example, you cannot record location data logs without permission from the government in China.
  • Page 38 (products purchased in the EU or EFTA can be used anywhere within the EU and EFTA). Nikon does not accept liability for use in other countries. Users who are unsure as to the original country of sale should consult with their local Nikon service center or Nikon-authorized service representative.
  • Page 39 Precautions when Using Radio Transmissions Always keep in mind that radio transmission or reception of data is subject to interception by third parties. Note that Nikon is not responsible for data or information leaks that may occur during data transfer.

  • Page 40: Trademark Information

    Fi Alliance. Android and Google Play are trademarks or registered trademarks of Google, Inc. All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders. Notices...
  • Page 41 (“Data”) is provided for your personal, internal use only and not for resale. It is protected by copyright, and is subject to the following terms and conditions which are agreed to by you, on the one hand, and Nikon Corporation (“Nikon”) and its licensors (including their licensors and suppliers) on the other hand.
  • Page 42 No Warranty. This Data is provided to you “as is,” and you agree to use it at your own risk. Nikon and its licensors (and their licensors and suppliers) make no guarantees, representations or warranties of any kind, express or implied,...
  • Page 43 Agreement. Entire Agreement. These terms and conditions constitute the entire agreement between Nikon (and its licensors, including their licensors and suppliers) and you pertaining to the subject matter hereof, and supersedes in their entirety any and all written or oral agreements previously existing between us with respect to such subject matter.
  • Page 44 If the Contracting Officer, federal government agency, or any federal official refuses to use the legend provided herein, the Contracting Officer, federal government agency, or any federal official must notify HERE prior to seeking additional or alternative rights in the Data. Notices related to licensed software copyright holders.
  • Page 45 Greece Copyright Geomatics Ltd. Hungary Copyright © 2003; Top-Map Ltd. La Banca Dati Italiana è stata prodotta usando quale Italy riferimento anche cartografia numerica ed al tratto prodotta e fornita dalla Regione Toscana. Norway Copyright © 2000; Norwegian Mapping Authority Portugal Source: IgeoE - Portugal Spain...
  • Page 46 Copyright. Based on data provided under license from PSMA Australia Limited (www.psma.com.au). Australia Product incorporates data which is © 2013 Telstra Corporation Limited, Intelematics Australia Pty Ltd and HERE International LLC. Nepal Copyright © Survey Department, Government of Nepal. This product incorporates original source digital data obtained from the Survey Department of Sri Lanka Sri Lanka ©...
  • Page 48 Waterproofing The following are important notes about the camera's waterproofing. Waterproofing-related Messages The camera will display messages related to its waterproof capabilities when you select certain settings or perform certain operations. Read and follow the information displayed in the messages when they are displayed. Do not open the covers by the Remove any foreign matter with water or in sandy locations, as...
