Washing (Td50) - clenaware Advanced SD50 Mark 5 Owner's Manual

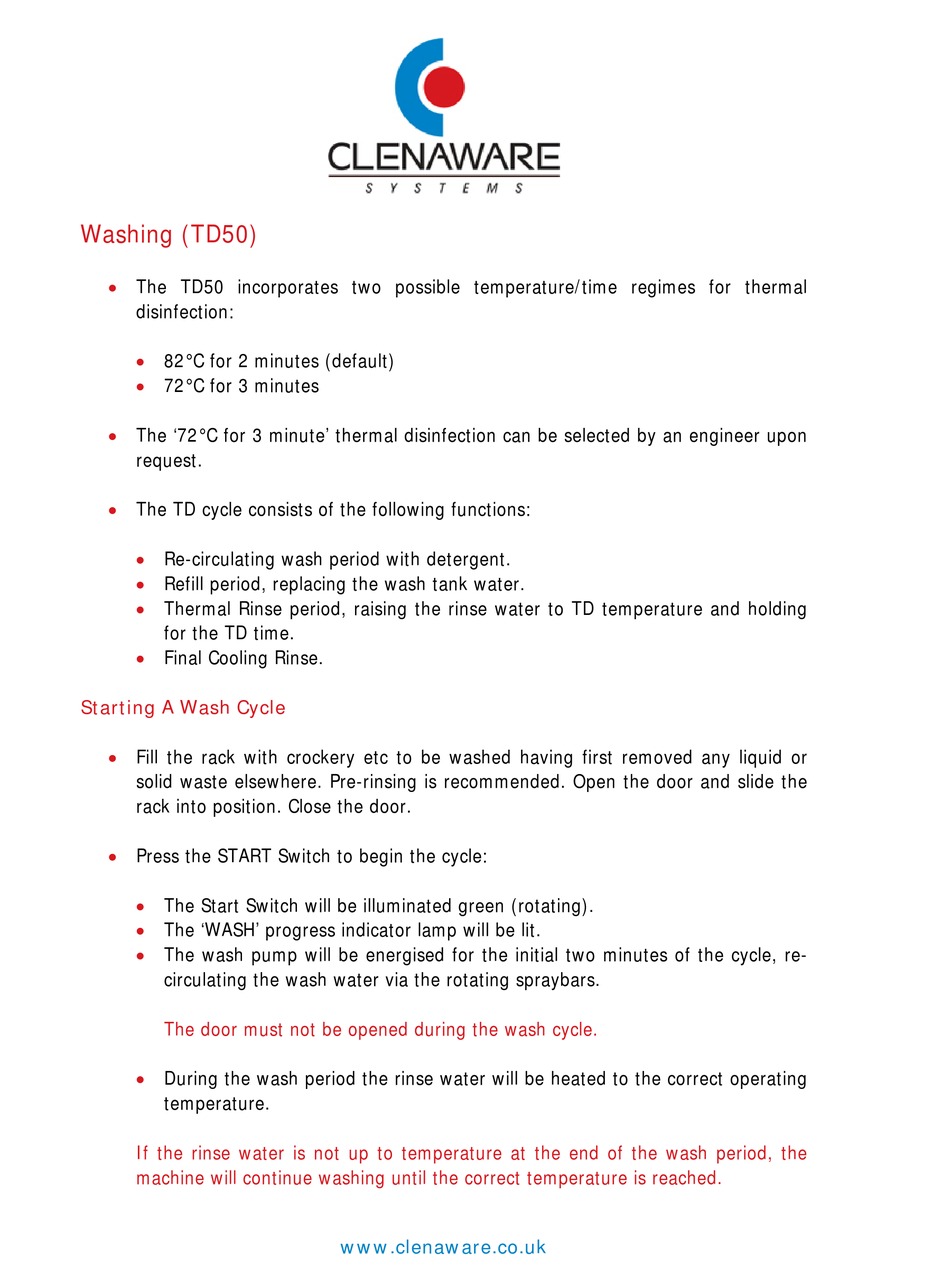

Washing (TD50)

 The TD50 incorporates two possible temperature/time regimes for thermal
disinfection:
 82°C for 2 minutes (default)
 72°C for 3 minutes
 The '72°C for 3 minute' thermal disinfection can be selected by an engineer upon
request.
 The TD cycle consists of the following functions:
 Re-circulating wash period with detergent.

Refill period, replacing the wash tank water.
 Thermal Rinse period, raising the rinse water to TD temperature and holding
for the TD time.
 Final Cooling Rinse.
Starting A Wash Cycle
 Fill the rack with crockery etc to be washed having first removed any liquid or
solid waste elsewhere. Pre-rinsing is recommended. Open the door and slide the
rack into position. Close the door.
 Press the START Switch to begin the cycle:
 The Start Switch will be illuminated green (rotating).
 The 'WASH' progress indicator lamp will be lit.

The wash pump will be energised for the initial two minutes of the cycle, re-
circulating the wash water via the rotating spraybars.
The door must not be opened during the wash cycle.

During the wash period the rinse water will be heated to the correct operating
temperature.
If the rinse water is not up to temperature at the end of the wash period, the
machine will continue washing until the correct temperature is reached.
