Four stroke gasoline engine

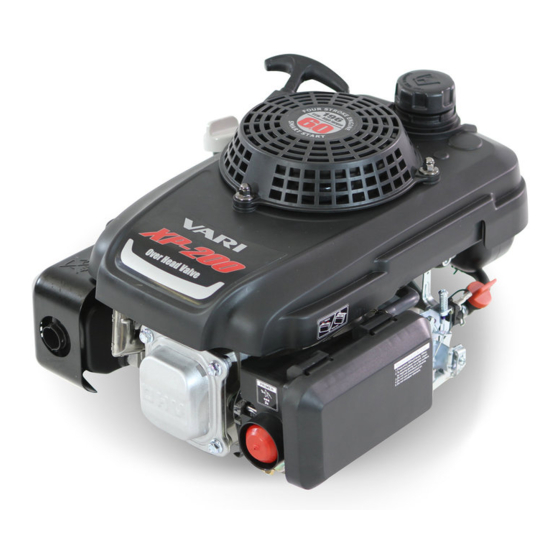

VARI XP-200
 User manual
EN
English – original user manual for the original engine type ZONGSHEN XP200 (1P70F/P-H)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the xp-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vari xp-200

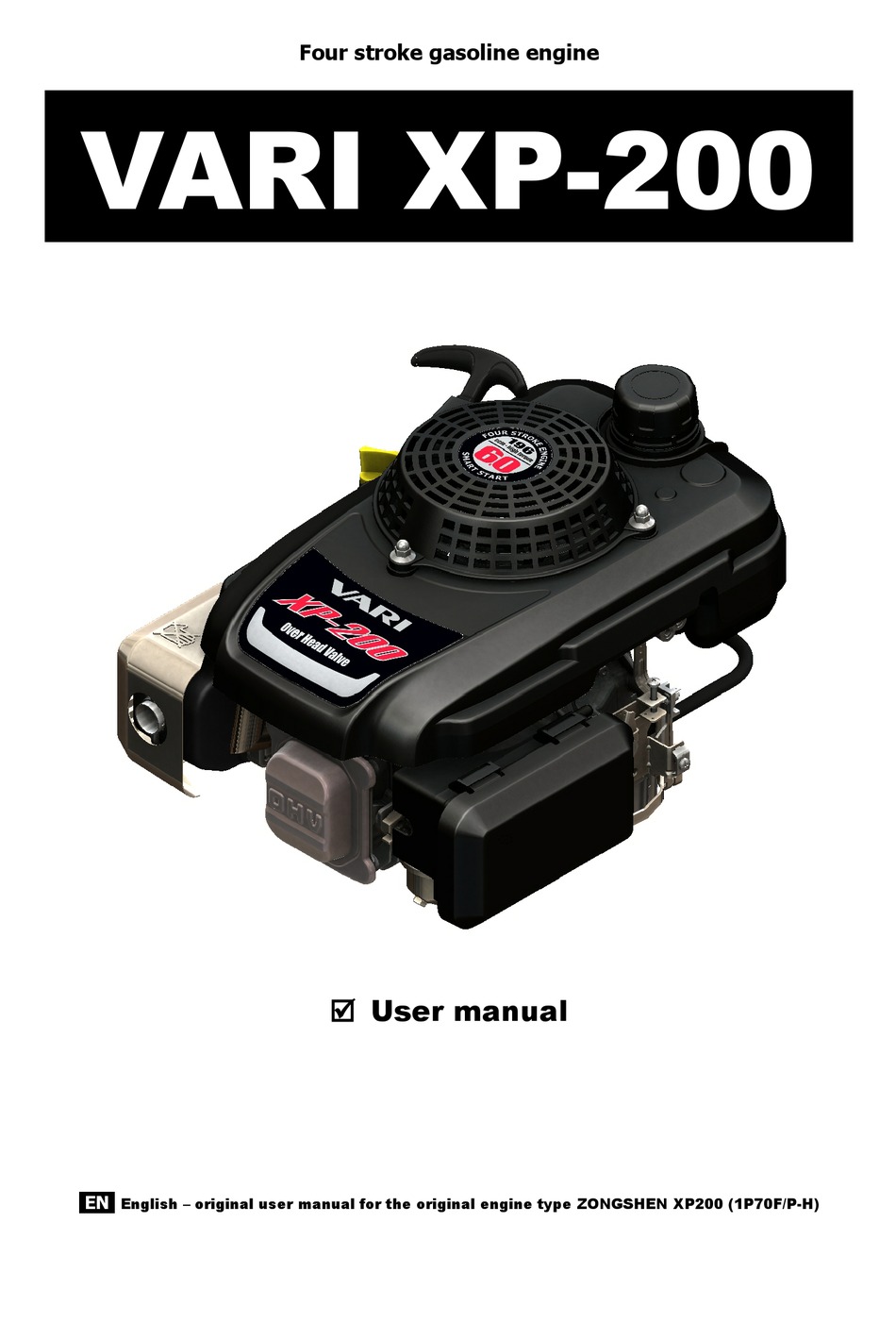

  • Page 1 Four stroke gasoline engine VARI XP-200  User manual English – original user manual for the original engine type ZONGSHEN XP200 (1P70F/P-H)
  • Page 3: Table Of Contents

    VARI XP-200 Content 1 Basic notice 5.6.3.2 Half-bath types............13 2 General information 5.6.4 Sediment cup cleaning............13 3 Components & Principle 5.6.5 Spark plug service...............14 3.1 Configuration..................5 5.6.6 Idle speed adjustment............14 3.1.1 Fuel switch................6 5.6.7 Spark arrester service (optional equipment)......14 3.1.2 PRIMER................6 6 Helpful tips &...
  • Page 4: Basic Notice

    VARI XP-200 1 Basic notice Read this manual carefully before operation. All rights reserved. Copy or transcribe this manual or any part of this manual is strict prohibited without written authorization. Please pay attention to the following safety labels that indicates personal safety is required.
  • Page 5: Components & Principle

    VARI XP-200 3 Components & Principle 3.1 Configuration Starter Muffler Starter grip (only model with recoil startre) Spark plug Fuel tank cap Cylinder head cover Fuel tank Air filter Oil drain plug Throtle lever Oil filler cap/dipstick Serial number Elektric starter (only model with el. starter)
  • Page 6: Fuel Switch

    VARI XP-200 3.1.1 Fuel switch The fuel switch the passage between the fuel tank and the carburetor. The fuel switch must be in the position for the engine to run. When the engine is not in use, leave the fuel switch in the position to prevent carburetor flooding and to reduce the possibility of fuel leakage.
  • Page 7: Brake Flywheel

    VARI XP-200 3.1.4 Brake flywheel Brake flywheel off the engine. In order to start the engine, the lever must brake the flywheel in position . To stop the engine must be the flywheel brake lever in position 3.1.5 Recoil starter grip Pulling the starter grip operates the recoil starter to crank the engine.
  • Page 8: Specifications Of The Engine

    VARI XP-200 3.4 Specifications of the engine Description Unit Value Engine type XP200 (1P70F/P-H) Bore x Stroke 70 x 51 Displacement Zapalovací systém Tranzistor magneto Ignition system Recoil starter Maximum Outout power/Speed kW/min 3,6/3800 Maximum Torque/Speed Nm/min 10/3000 Idle speed 1520±152...
  • Page 9: Check The Equipment Powered By This Engine

    VARI XP-200 4.1.3 Check the equipment powered by this engine Review the instructions provided with the equipment powered by this engine for any precautions and procedures that should be followed before engine startup. 4.2 Operation Safe operating precautions Safety operating the engine for the first time, please review the important safety information and the chapter titled before operation.
  • Page 10: Maintenance Safety

    VARI XP-200 To help you properly care for your engine, the following pages include a maintenance schedule, routine inspection procedures, and simple maintenance procedures using basic hand tools. Other service tasks that are more difficult, or require special tools, are best handled by professionals and are normally performed by a technician or other qualified mechanic.
  • Page 11: Fuel

    VARI XP-200 5.4 Fuel 5.4.1 Refueling Fuel tank capacity: 1,3 l With the engine stopped, remove the fuel tank cap and check the fuel level, refill the tank if the fuel level is low. Gasoline is highly flammable and explosive You can be burned or seriously injured when handling fuel.
  • Page 12: Engine Oil Change

    VARI XP-200 Oil dipstick Lower oil level Upper oil level Oildrain 5.5.2 Engine oil change Drain the used oil while the engine is warm, warm oil drains quickly and completely. • Place a suitable container below the engine to catch the used oil, then remove the filler cap/dipstick and the drain plug.
  • Page 13: Air Filter Inspection

    VARI XP-200 5.6.2 Air filter inspection Gasked plate Air filter base Foam filter element Air filter cover Remove the air cleaner cover and inspect the filter, clean or replace dirty filter elements, always replace damaged filter elements, if equipped with an oil-bath air cleaner, also check the oil level.
  • Page 14: Spark Plug Service

    VARI XP-200 5.6.5 Spark plug service Recommended spark plugs: F6RTC and F7RTC NOTE: An incorrect spark plug can cause engine damage. Special spark plug wrench is provided and should be use 0,7 – 0,8 mm • Disconnect the spark plug cap, and remove any dirt from around the spark plug area.
  • Page 15: Helpful Tips & Suggestions

    VARI XP-200 • Turn the twos nut from the exhaust deflector. • Remove the muffler protector • Remove the spark arrester from the muffler . Use a brush to remove carbon deposits from the spark arrester screen, be careful to avoid damaging the screen.
  • Page 16: Draining The Fuel Tank And Carburetor

    VARI XP-200 6.3 Draining the fuel tank and carburetor • Place approved gasoline container below carburetor, and use a funnel to avoid spilling fuel. • Remove the carburetor drain bolt and sediment cup, them move the fuel valve lever to the position - see chapter 3.1.1...
  • Page 17: Transporting

    VARI XP-200 6.6 Transporting If the engine has been running , allow it to cool for at least 15 minutes before loading the engine-powered equipment on the transport vehicle. A hot engine and exhaust system can burn you and can ignite some materials. Keep the engine level when transporting to reduce the possibility of fuel leakage.
  • Page 18: Oxygenated Fuels

    VARI XP-200 8.3 Oxygenated fuels Some conventional gasoline are being blended with alcohol or an ether compound, these gasoline are collectively referred to as oxygenated fuels, to meet clean air standard, some areas use oxygenated fuels to help reduce emissions.
  • Page 19: Valve Lash Adjustment

    VARI XP-200 8.5.1.1 Valve lash adjustment Intake: 0,1-0,15 mm, Exhaust: 0,15-0,2 mm. • Grasp adjust nut and release lock nut • Turn adjust nut to specified lash. • Grasp adjust nut and screw down lock nut (torque 9-12 N.m). •...
  • Page 20: Mounting Dimensions

    VARI XP-200 9 Mounting dimensions 10 Manufacturer's address On the back cover of the manual. 11 Warranty Dear consumer: Thank you for choose the engine, the company must warranty following service upon you provide the receipts and warranty card. 11.1 Subject of the warranty •...
  • Page 21: Declaration Of Incorporation

    VARI XP-200 12 Declaration of Incorporation EC Declaration of Incorporation Name of manufacturer: Chongqing Zongshen General Power Machine Co., Ltd. Address of manufacturer : Zongshen Industrial Zone, Ba’nan District, Chongqing 400054, P.R. China In accordance with the following Directive: 2006/42/EC The Machinery Directive...
  • Page 22 VARI XP-200 CHONGQING ZONGSHEN GENERAL POWER MACHINE CO.,LTD Adresa: Zongshen Industry Zone, Ba Nan District, ChongQing 400054, P.R. China Telefon: 023-66372578 Fax: 023-66372566 Hot Line: 4007003088 023-66372519 Standard: Q/ZS 1184-2010 Q/ZS 1185-2010 Q/ZS 1004-2010 Q/ZS 1154-2010 Q/ZS 1093-2010 Engines Factory License: XK06-002-00110 http: //www.zongshenpower.com...
