- Page 1 Rev. 1.1.1 IPD SERIES Item no. QSG-IPD Touring and Installation Amplifiers Quick Start Guide...
-
Page 2: Important Safety Instructions

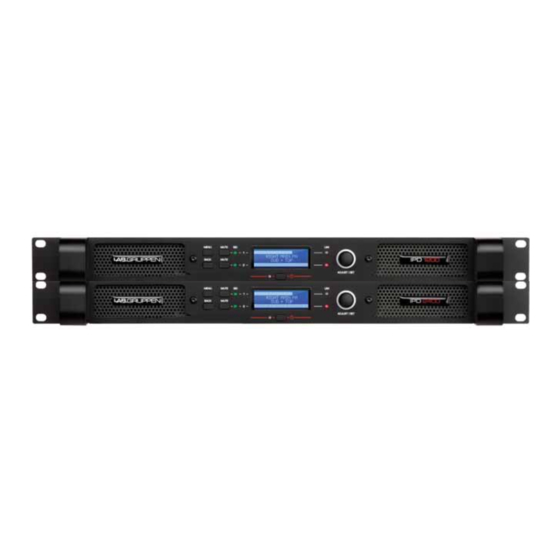

Lab.gruppen IPD Series amplifiers provide exceptionally high power density and powerful integrated DSP features, making them suitable for a broad range of installed and touring sound applications. All IPD Series amplifiers feature both analog and AES3 inputs with link outputs; input mixing;... -
Page 3: Operating Voltage
être placé sur l’appareil. This apparatus must be connected to a mains socket outlet with a All IPD Series amplifiers have a universal power supply that operates protective earthing connection. on mains from 100 – 240 V at 50 or 60 Hz. The IEC receptacle on Français: Cet appareil doi t être raccordé... -
Page 4: Front Panel
Front panel 7 ADJUST/SET (Rotary Encoder) – Rotation moves through the menu The following indicators and controls are available on the front panel: and adjusts the currently selected parameter when in setup mode. 1 MENU – Selects MENU mode and confirms a given preset name. Pressing down on the knob selects a given parameter or advances further into the menu. -
Page 5: Input Connections
Bridge Mode AES3 is a stereo digital format, and therefore both inputs are fed via a The IPD Series employs an inherently bridged Class D output topology; single connector. Selection of the analog or digital inputs is made via Under no circumstances should the IPD Amplifier be bridged, this may the front panel display or IntelliDrive Controller software. -
Page 6: Dsp Configuration
Default configuration Signal flow block diagram IPD Series amplifiers are shipped with default DSP settings that allow The block diagram below shows the signal flow from inputs to outputs. immediate use in many common applications with no need for further *see fig 2 DSP configuration. -
Page 7: Network Configuration
For more detailed information on network configuration, please refer to The IntelliDrive Controller app for iPad Is available from Apple in the the IPD Series Operation Manual. App Store. Input mixing/routing and DSP configuration using IntelliDrive Controller... - Page 8 Global Input Mixer The Global view shows all devices on the network and accesses the The Input Mixer view accesses the following functions: following functions: • Device set-up (stereo or 2-way mode) • Naming devices (amplifiers) and groups • Input mixing •...
- Page 9 Input EQ Crossover (X-Over) Input EQ view is selectable per channel. Input EQ accesses the The Crossover view accesses the following functions for each output: following functions: • High pass filter • Parametric equalizer (up to 10 bands) • High pass filter type •...
- Page 10 Notes...
- Page 11 Notes...
- Page 12 Intellidrive™, IPD™ and Intelligent Power Drive™ are trademarks of Lab.gruppen AB. All other trademarks remain the property of their respective owners. Copyright © 2013 Lab.gruppen AB. All rights reserved.
