GKB 5017 User Manual

Ultra high 700tvl ir bullet camera with fixed lens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual


Before operating this unit, please read this manual
thoroughly and retain it for future reference.

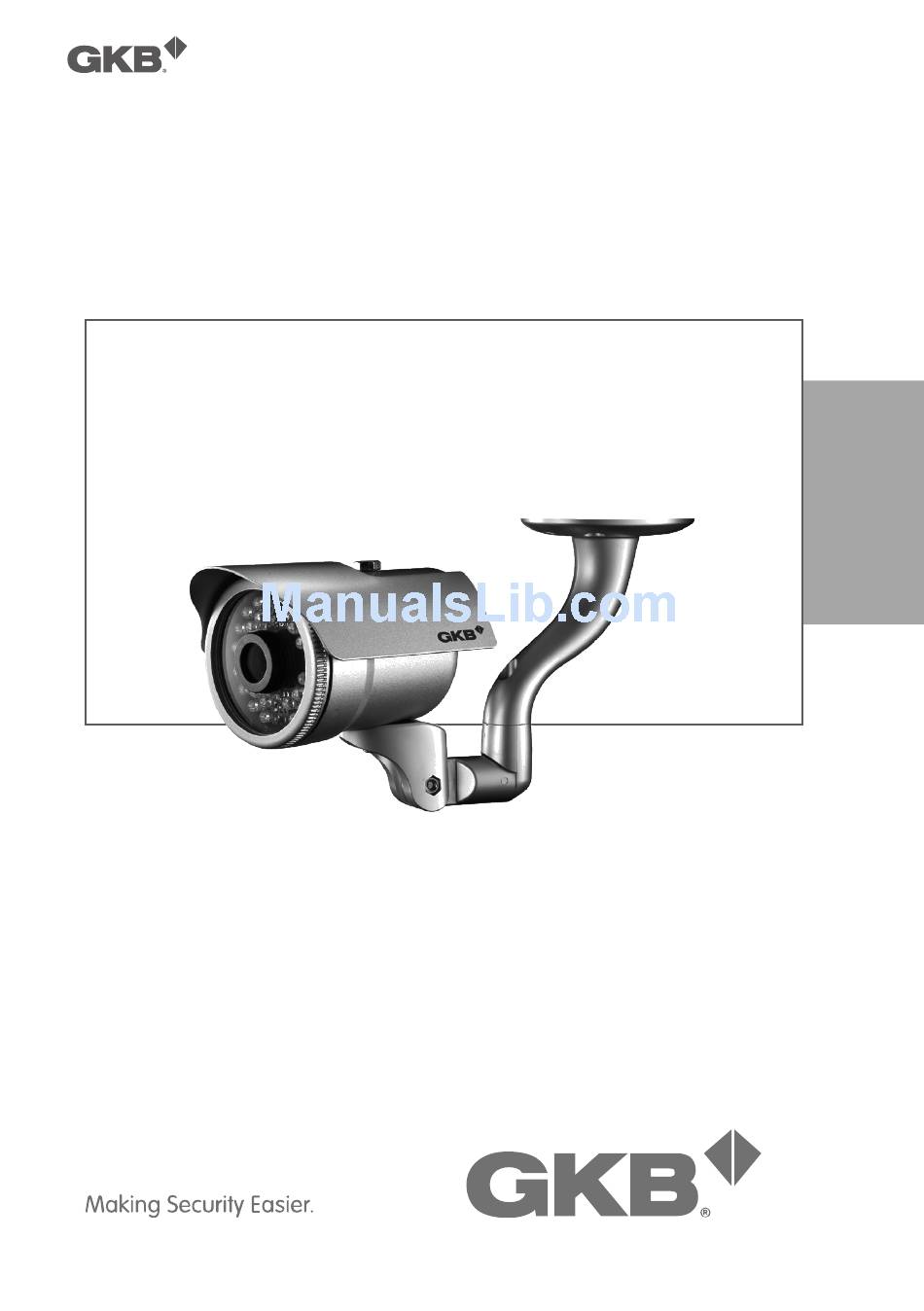

Ultra High 700TVL IR Bullet Camera with Fixed Lens

GKB 5017 Analog Camera



GKB 5017 Analog Camera
User's Manual
Bracket is Licensed by Hwan Ming
Enterprise Co., Ltd



Advertisement

Table of Contents
loading

Related Manuals for GKB 5017

Summary of Contents for GKB 5017

  • Page 1   GKB 5017 Analog Camera   Before operating this unit, please read this manual thoroughly and retain it for future reference. User’s Manual GKB 5017 Analog Camera   Ultra High 700TVL IR Bullet Camera with Fixed Lens              ...

  • Page 2: About This Manual

    GKB 5017 Analog Camera   About this Manual This user manual is for use with the GKB 5017 Analog Camera. This document contains important information and instructions detailing proper operation and maintenance of GKB 5017 Analog Camera. Be aware that GKB 5017 Analog Camera must be installed and used in accordance with the instructions given in this manual.

  • Page 3: Warning And Precaution

      GKB 5017 Analog Camera   Warning and Precaution Warning This information is provided to ensure your safety and to prevent loss either physical or financial. Read carefully before using the product. Read all sections of this manual where the following marks are shown.
  • Page 4       Do not supply voltage higher than 12V DC. GKB 5017 Analog Camera regulates power within this   range. Higher voltages will damage the camera’s     electronic components.

  • Page 5: Package Content

        GKB 5017 Analog Camera   Package Content User’s Manual*1 Bullet Camera*1 Screw Driver Pack*1 Product Overview...

  • Page 6: Installation Instructions

      GKB 5017 Analog Camera   Installation Instructions 1. Place the bullet camera on the place you desired. 2. Connect power supply jack to DC 12V and the BNC Video Output to the desired video line. 3. Adjust lens in correct focus, so the camera will point to the desired direction.

  • Page 7: Specification

        GKB 5017 Analog Camera   Specification GKB 5017 Analog Camera Model Number GKB 5017 Image Sensor 1/3” Sony Super HAD CCD II Number of Pixels <NTSC>: 976(H)*494(V); <PAL>:976(H)*582(V) Resolution 700 TV Line Color:0.01lux Min. Illumination B/W:0.0001lux Shutter Control...

  • Page 8: Warranty Policy

    GKB 5017 Analog Camera   Warranty Policy Warranty Period For detailed information on product warranties and warranty claim, please contact your local GKB distributor or agent.   CR100000302 © 2013 GKB Security Corporation. Specifications are subject to change without prior notice.
