Summary of Contents for Hyundai HY2164

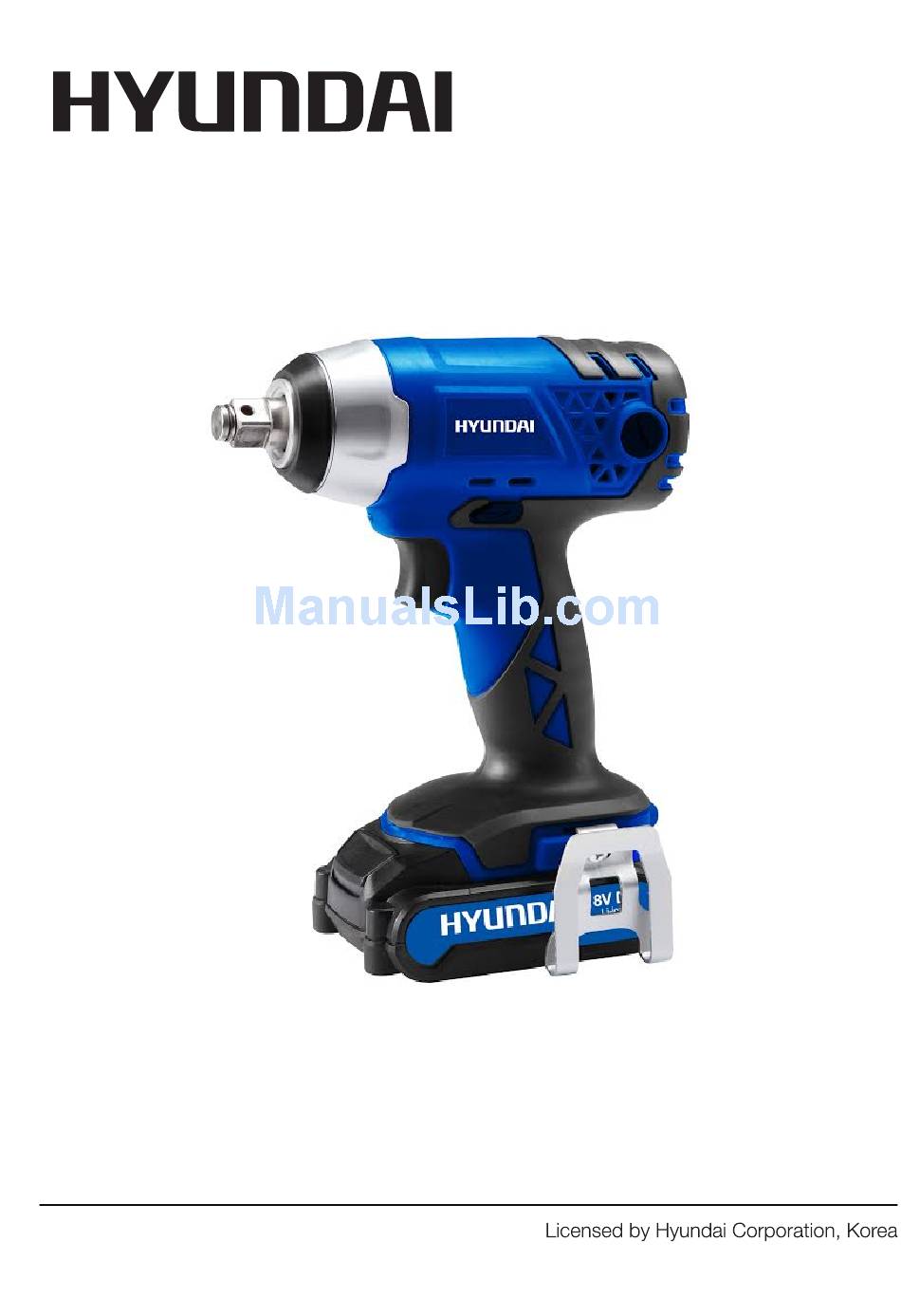

- Page 1 18V IMPACT WRENCH Model HY2164 User Manual...
-
Page 2: Table Of Contents
CONTENTS o’s Page N Section Description 1. OWNER’S MANUAL & SAFETY INSTRUCTIONS 2. GENERAL SAFETY 3 – 5 3. BATTERY PACK 5 – 6 4. CHARGING 6 – 7 5. INSERTING/REMOVING BATTERY 7 – 8 6. QUICK REFERENCE 8 – 9 7. -
Page 3: Owner's Manual & Safety Instructions
1. OWNER’S MANUAL & SAFETY INSTRUCTIONS 1.1. How to read the manual. 1.1.1. Keep this manual for the safety warnings and precautions, assembly, operation, inspection, maintenance and cleaning procedures. 1.1.2. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). - Page 4 2.2.4. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 2.2.5. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
-
Page 5: Battery Pack
2.4.7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. 2.4.8. Use of the power tool for operations different from those intended could result in a hazardous situation. - Page 6 3.1.7. Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. 3.1.8. Do not expose battery cartridge to water or rain. Battery short circuit can cause a large current flow, which may result in an explosion, overheating, possible burns and even a breakdown.
-
Page 7: Charging
Led Indicator Battery Pack Red Led Green Led Action Charging will begin when Hot/Cold battery Flashing Flashing battery returns to 5°C-40°C Battery pack or Defective Flashing charger is defective Charging Flashing Charging Charging is complete Fully charged Maintenance charging 5. INSERTING / REMOVING BATTERY PACK Always switch off the tool before installing or removing of the battery cartridge. -
Page 8: Quick Reference
5.2. Battery protection system. 5.2.1. The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions; 5.2.1.1. Overloaded: The tool is operated in a manner that causes it to draw an abnormally high current. - Page 9 6.2. Turning on. Before inserting the battery into the tool, always check to see that the switch trigger returns to the "OFF" position when released. 6.2.1. To start the tool, simply pull the switch trigger (1). Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.
-
Page 10: General Maintenance
7. GENERAL MAINTENANCE To reduce the risk of personal injury and damage. Never immerse your power tool, battery pack or charger in liquid or allow a liquid to flow inside them. To reduce the risk of injury always unplug the charger remove the battery pack from the charger or power tool before performing any maintenance. -
Page 11: Genpower Contact Details
10.4. Web site; www.hyundaipowerequipment.co.uk 11. DECLARATIONS OF CONFORMITY 11.1. Genpower Ltd confirms that this Hyundai product conform to the following CE Directives; 11.1.1. 2006/42/EC Machinery Directive 11.1.2. 2004/108/EC EMC Directive 11.1.3. 2006/95/EC Low Voltage Directive find an error, omission or something you find unclear please contact your dealer for assistance. - Page 12 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
