Page 1: Installation Manual
Installation Manual Installation Manual SuperSail Marine Alarm Marine Alarm Wireless Page 1 of 8... -
Page 2: Table Of Contents
..........................4 LACEMENT ......................4 NERGY CONSUMPTION 12V C ........................4 ONNECTION ......................... 5 IRECT CONNECTION 2.4.1 Connection with SuperSail Fuse Box ................5 ..............5 ONNECTING WITH UPER ONNECTION BOX ....................... 6 UTBOARD MOTOR LARM ..................6 ABLE CONNECTED... -
Page 3: Contents Of The Package

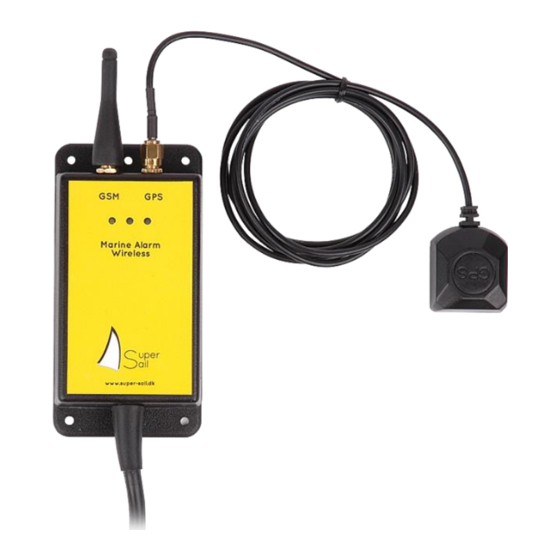

Installation Manual Contents of the package The complete Supersail Marine Alarm basic package consists of the following: SuperSail Marine Alarm base (note the serial number of the unit) GPS antenna Mobile (GSM) antenna Quick guide Add-ons: Alarm connection box for cable connection of e.g. 12V and external sensors. Contains also fuse for protection. -
Page 4: Installation
Installation Manual Installation SuperSail Marine Alarm is delivered in a box containing the Alarm unit with associated antennas and cables. The Alarm unit must be connected to 12V external power supply and additional different alarm sensors can be connected. Keep the packaging in case the Alarm unit has to be sent. -
Page 5: Onnection Box
Since the connection of the alarm system happens on the primary side, the power supply of the Alarm unit must be secured by a 2,5A(T) fuse. SuperSail Fuse box contains both fuse and connection for 12V battery. +12V connects to the terminal marked with 12V and 0V to the terminal marked with GND. -
Page 6: Alarm
+12V is registered at the input and thus an alarm is activated. If SuperSail Connection box is used the 1KOhm pull-up resistor is supplied within the box and is connected as shown in the Installation Manual for the Connection box. -
Page 7: S Pecifications
Installation Manual 2.13 Technical Specifications Power supply 8-36V DC Internal backup battery 1000 mAh Lithium Power use during operation 75 mA ex. possible use from external units connected to digital outputs Power use energy mode 0.6 mA Power use while charging 500 mA Digital outputs +12V, max. - Page 8 Installation Manual Service The Alarm system is on the front equipped with 3 LED. LED 1 and LED 2 is solely for service purpose and is used in connection with troubleshooting on the unit. LED 3 can with advantage be used to verify the GPS signal after installation. LED 1: Pattern Description...
