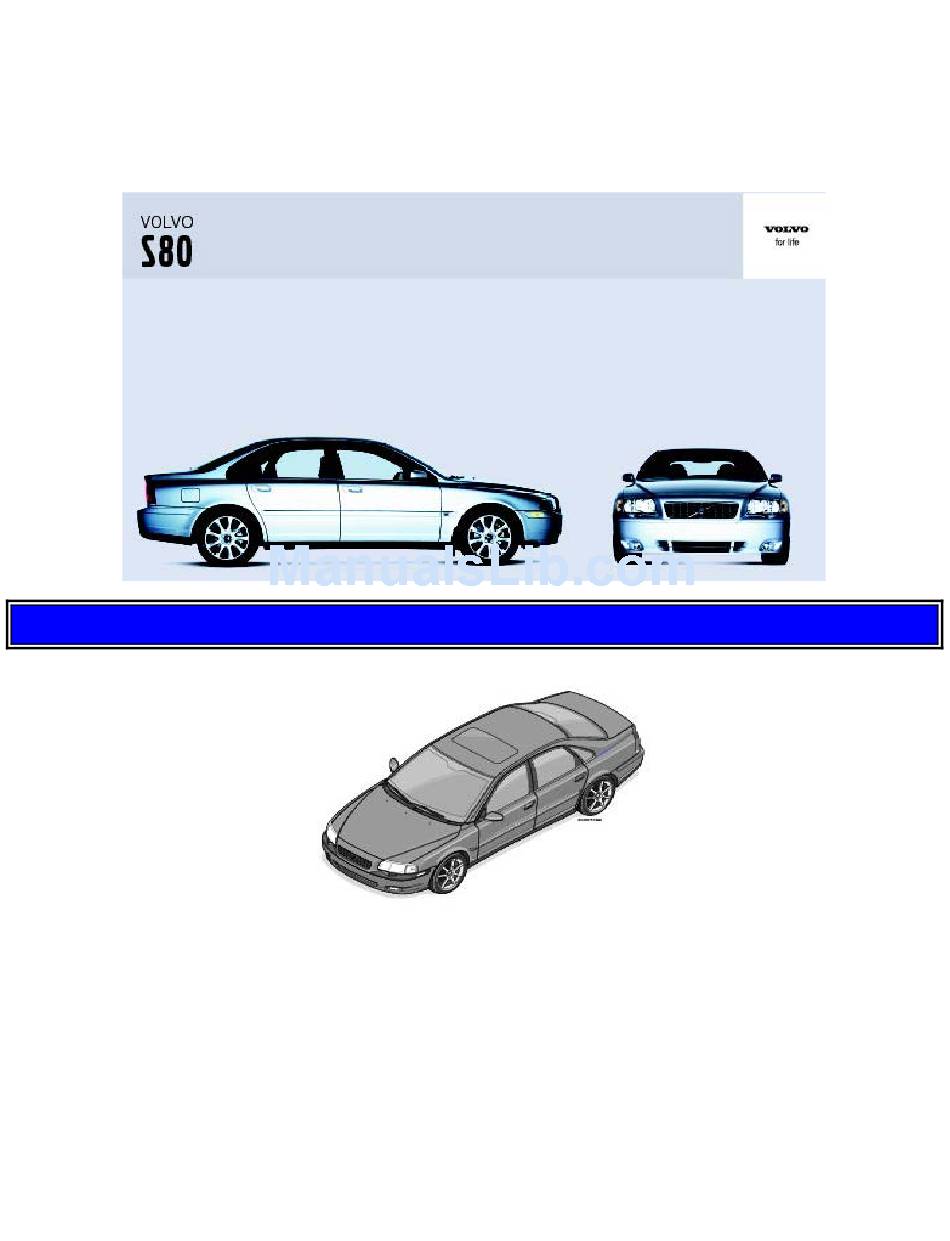

2 0 0 4
VOLVO
S80
This manual deals with the operation and care of your Volvo.
Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your
Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this
vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and
maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts
at all times in this (or any other) automobile. And, of course, please do not operate a vehicle if you may be affected by
alcohol, medication or any impairment that could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels
attached to the driver's door opening and on the left wheel housing in the engine compartment.
For further information please contact your
retailer, or:
In the USA:
In Canada:

Advertisement

Table of Contents
loading

Related Manuals for Volvo 2004 S80

Summary of Contents for Volvo 2004 S80

  • Page 1 This manual deals with the operation and care of your Volvo. Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual.
  • Page 2 Chapter 10 - Audio systems HomeLink® Universal Transceiver (option) Index Back Cover © 2003 Volvo Cars of North America LLC. General information Shiftlock When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the gear selector and move the selector from (P)ark.
  • Page 3 Volvo and the environment Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our...
  • Page 4 After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of a car, which makes the car among the most recycled industrial products.
  • Page 5 Volvo also believes no child should sit in the front seat of a car.
  • Page 6 To buckle: Pull the belt out far enough to insert the latch plate into the receptacle until a distinct click is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far. The retractor will lock up as follows: if the belt is pulled out rapidly during braking and acceleration...
  • Page 7 Never repair the belt on your own; have this work done by an authorized Volvo retailer only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection available to you in the event of a collision.
  • Page 8 As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS). The Volvo SRS consists of an airbag (2) on both the driver's and passenger's sides and seat belt tensioners in both front door pillars (4). The system is designed to supplement the protection provided by the three-point seat belt system.
  • Page 9 SRS yourself. Attempting to do so may result in serious personal injury. If a problem arises, take your car to the nearest authorized Volvo retailer for inspection as soon as possible. pg. 5 Front airbags - SRS A self-diagnostic system incorporated in the sensor monitors the SRS.
  • Page 10 Volvo retailer for specific servicing or replacement of airbags and seatbelt tensioners. This service must be performed by an authorized Volvo retailer. Should you have any questions about the SRS system, please contact your authorized Volvo retailer or Volvo...
  • Page 11 Collisions can occur where only one of the airbags deploys. NOTE: Volvo's dual-stage airbags: If the impact is less severe, but severe enough to present a clear injury risk, the dual-stage airbags are triggered at just 70% of its total capacity. If the impact is more severe, the dual-stage airbags are triggered with full capacity.
  • Page 12 Seat belts - the heart of the Volvo safety system The heart of the Volvo safety system is the three-point seat belt (a Volvo invention)! In order for the SRS system to provide the protection intended, seat belts must be worn at all times by everyone in the car. The SRS system is a supplement to the seat belts.
  • Page 13 Never try to open or repair any components of the SIPS airbag system. This should only be done by an authorized Volvo service technician. In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an upright position with the seat belt properly fastened.
  • Page 14 The IC system is a supplement to the Side Impact Protection System. It is not designed to deploy during collisions from the front or rear of the car or in rollover situations. Never try to open or repair any components of the IC system. This should only be done by an authorized Volvo service technician.
  • Page 15 severity, angle, speed and impact. The inflatable curtains are not designed to deploy in all side impact situations. In order for the IC to provide its best protection, both front seat occupants and both outboard rear seat occupants should sit in an upright position with the seat belt properly fastened; adults using the seat belt and children using the proper child restraint system.

  • Page 16: Instruments, Switches And Controls

    2 0 0 4 VOLVO Chapter 2 - Instruments, switches and controls pg. 19 Instruments, switches and controls Interior 22 Exterior 23 Instruments 24 Instrument panel 25 Indicator and warning lights 26 Text information window 28 Switches in center console 29...
  • Page 17 Locking and unlocking the car 63/64 Alarm Power windows Sideview mirror controls Glove compartment Automatic transmission Geartronic Parking brake Center console switches Power seat adjustment Heated seats (option) Cleaning upholstery Folding rear seat Panel for long loads Folding down head restraint Adjusting center head restraint Child safety locks Integrated booster cushion...
  • Page 18 Moonroof (option) Fuel filler door Refuelling Economical driving Replacing a back-up light Replacing a brake light Replacing a tail light Replacing a direction indicator Replacing a rear fog light Replacing license plate lights Tires Wheels Brake system Spare tire Changing wheels Replacing a high beam Replacing a low beam Replacing a parking light...
  • Page 19 Temperature gauge Speedometer Odometer Trip odometer Warning lights Text window Tachometer Clock Ambient temperature sensor Fuel gauge Hazard warning flashers Audio system Electronic climate control Heated seats (option) Heated rear window/rearview mirrors Steering wheel adjustment Airbag Cruise control Windshield wipers/washer Turn signal lever Trip computer Audio system controls...
  • Page 20 Instrument panel lighting Button to unlock fuel filler door pg. 25 Instrument panel 1 Turn signals 2 Text window 3 Temperature gauge The pointer should be approximately midway on the gauge when driving. Do not drive the car if the warning light is on. The text window will provide you with additional information. If the engine temperature remains high, check coolant level - see page 118.
  • Page 21 If the light comes on (or stays on after the vehicle has started), the SRS diagnostic system has detected a fault. Drive to an authorized Volvo retailer for an inspection of the system. See the SRS section for more information.
  • Page 22 123. If the light stays on after restart, have the car towed to the nearest authorized Volvo retailer. After hard driving, the light may come on occasionally when the engine is idling. This is normal, provided it goes off when the engine speed is increased.
  • Page 23 Turn signal indicator - trailer (certain models) If you are towing a trailer, this light will flash simultaneously with the turn signals on the trailer. If the light does not flash when signaling, neither the trailer's turn signals nor the car's turn signals are functioning. Seat belt reminder This symbol lights up to indicate that the driver has not fastened his/her seat belt.

  • Page 24: Climate Control System

    2 0 0 4 VOLVO Chapter 3 - Climate control system pg. 43 Climate control system Ventilation 44 Electronic Climate Control (ECC) 45 Climate control system - general information 48 pg. 44 Ventilation Air vents in dash Air vents (dash)
  • Page 25 Air flow The air that is drawn into the passenger compartment is distributed from 14 ventilation points. Air vents in door pillars Air vents in door pillars A Open B Closed C Horizontal air flow D Vertical air flow Direct the air vents toward the rear side windows to demist. Direct the air vents toward the rear seat for the best heating/cooling effect.
  • Page 26 pg. 46 Electronic Climate Control (ECC) AUTO This function automatically regulates the Electronic Climate Control system so that the selected temperatures are maintained. The blower, heating, air distribution (air flow) and air conditioning are controlled. If you prefer to manually set any of these functions, the remaining functions will still be controlled automatically. Pressing the AUTO button overrides any settings that were previously made manually.

  • Page 27: Interior

    that the heating function is engaged. See page 37 for additional information on this function. CAUTION: Never use ice scrapers made of metal as they can easily scratch the mirror surface. pg. 47 Electronic Climate Control (ECC) - manual settings Recirculation (see also page Press this switch to engage the recirculation function (air in the passenger compartment recirculates - no fresh air...
  • Page 28 Replace the cabin air filter with a new one at the recommended intervals. Please refer to your Warranty and Service Records Information booklet, or consult your Volvo retailer for these intervals. The filter should be replaced more often when driving under dirty and dusty conditions. The filter cannot be cleaned and therefore should always be replaced with a new one.
  • Page 29 All maintenance on the climate control systems should be carried out by an authorized Volvo service technician only. Refrigerant Volvo cares about the environment. The air conditioning system in your car contains a CFC-free refrigerant - R134a. This substance will not deplete the ozone layer. The system contains 2.2 lbs (1000 g) R134a and uses PAG oil.
  • Page 30 Contents Top of Page...
  • Page 31 2 0 0 4 VOLVO Chapter 4 - Interior pg. 51 Interior Front seats 52 Coat hanger 53 Interior lighting 54 Storage compartments 55 Storage compartments in center console 56 Spare tire, Cargo net in trunk 57 Folding rear seat backrests, Carrying long loads 58 pg.
  • Page 32 Electrically operated seats with memory function (option)* Power seat control panel A Front edge of seat (raise/lower) B Forward - rearward C Rear edge of seat (raise/lower) D Backrest tilt WARNING! Because the driver's seat can be adjusted with the ignition off, children should never be left unattended in the car. Movement of the seat can be STOPPED at any time by pressing any button on the power seat control panel.
  • Page 33 Passengers's seat: The passenger's seat can only be adjusted if the ignition key is in position I or II (see page 36). Driver's seat: The driver's seat can be adjusted if the ignition key is in position I or II (see page 36).
  • Page 34 When switched on with the engine off, the light will stay on for 10 minutes. When switched on with the engine running, the light will stay on indefinitely. The light may be switched off at any time by pressing the center button a second time. The courtesy light timer periods can be changed. Consult your Volvo retailer.
  • Page 35 Overriding the Interior and Trunk Courtesy Lights Normally if a car door is left open with the engine turned off, the interior courtesy light will stay on for 10 minutes. Normally, if the trunk is left open with the engine turned off, the trunk courtesy lights will stay on for 10 minutes. If a car door is left open or the interior courtesy lights are turned on while the engine is left running, the interior courtesy lights will stay on indefinitely.
  • Page 36 WARNING! Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a sudden stop or an accident. Anchor any heavy objects to help prevent them from moving during sudden stops. pg. 56 Storage compartment in center console, Long loads Storage compartment in center console/cup holders Press button A to pop open the cup holder.
  • Page 37 Press button B to open the storage space in the center console for cassettes, change holder, etc. Secure long loads with the seat belt Carry long loads The center backrest cushion folds forward, allowing you to transport long, light cargo such as skis in the trunk of your car.
  • Page 38 these components in place in the event of a sudden stop. NOTE: See page 98 for information on how the jack should be used. Cargo net in the trunk The cargo net in the trunk can be used to secure light objects. Pull the net out and slide the runner in the handle down into one of the two slots provided at the rear edge of the trunk.
  • Page 39 long objects. To fold down the backrest(s): Pull the release control handle(s) in the trunk to release the backrest(s) (see illustration above). If the outboard rear head restraints are folded down, they should be returned to the upright position before folding the backrest down. It may be necessary to manually adjust the center head restraint.

  • Page 40: Keys, Locks, Alarm

    2 0 0 4 VOLVO Chapter 5 - Keys, Locks, Alarm pg. 59 Keys, Locks, Alarm Keys, Exterior courtesy lights, Locking and unlocking the car 60 Remote keyless entry system 61 Unlocking the trunk with the master key, Central locking buttons, "Trunk lock" function 63...
  • Page 41 The headlights, parking lights, license plate lights and the lights in the sideview mirrors will now come on and remain on for 30, 60 or 90 seconds (the time interval is at your discretion and can be changed by an authorized Volvo retailer).
  • Page 42 The car can also be locked/unlocked with the key. If one of the transmitters is misplaced, contact your nearest authorized Volvo retailer for replacement. 1 - Fold key in/out, 2 - Lock, 3 - Approach lighting, 4 - "Panic"...
  • Page 43 If the doors are unlocked with the remote, the locks will automatically reengage (re-lock) and the alarm will rearm after 2 minutes unless a door has been opened. The lock/unlock and alarm features can also be utilized by using the keys. FCC ID:LQNP2T-APU This device complies with part 15 of the FCC rules.
  • Page 44 Press the cover back into place. Ensure that the rubber seal seats correctly to help prevent moisture from entering the unit. NOTE: The old battery should be disposed of properly at a recycling center or at your Volvo retailer pg. 63 Locking and unlocking the car...
  • Page 45 Opening the trunk from the inside - (U.S. models only) The S80 is equipped with a florescent handle on the inside of the trunk lid, which can be used in an emergency situation to open the trunk from the inside. Pull the handle down to release the trunk lid.
  • Page 46 Valet security locking The security locking feature of your car allow you to prevent unwanted access to your trunk and glove compartment, while still allowing a parking attendant to unlock, start, and relock the rest of your car. To prevent unwanted access to the trunk and glove compartment do the following: Give your service key to the parking attendant.
  • Page 47 "Panic" function In an emergency situation, this feature can be used to attract attention. Activate the "panic" function by pressing the red button on the remote control (see illustration on page 61) for at least 3 seconds or by pressing this button twice within 3 seconds. The turn signals will flash, the interior lights will go on and the car's horn will sound.
  • Page 48 LED flashes rapidly before the ignition is switched on - the alarm has been triggered Fault in the alarm system: If a fault has been detected in the alarm system, a message will be displayed in the text window. Contact a Volvo retailer. Automatic re-lock/re-arm function If the car is unlocked with the remote, the car will re-lock and the alarm will re-arm after 2 minutes unless a door or the trunk has been opened.
  • Page 49 Contents Top of Page...

  • Page 50: Starting And Driving

    Jump starting 88 Winter driving 89 Long distance trips 90 Three-way catalytic converter 91 pg. 70 Fuel requirements Fuel requirements Octane rating Volvo engines are designed for optimum performance on unleaded premium gasoline with an octane rating AKI of 91,...

  • Page 51: Index

    To meet seasonal air quality standards, some areas require the use of "oxygenated" fuel. Volvo allows the use of the following "oxygenated" fuels; however, the octane ratings listed on this page must still be met.
  • Page 52 Many fuels contain benzene as a solvent. Unburned benzene has been strongly linked to certain forms of cancer. If you live in an area where you must fill your own gas tank, take precautions. These may include: standing upwind away from the filler nozzle while refueling refueling only at gas stations with vapor recovery systems that fully seal the mouth of the filler neck during refueling wear neoprene gloves while handling a fuel filler nozzle.
  • Page 53 * If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Check Engine Light (Malfunction Indicator Lamp) may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps. pg. 73 Starting the engine Starting the engine 1.
  • Page 54 When starting in cold weather, the transmission may shift up at slightly higher engine speeds than normal until the automatic transmission fluid reaches normal operating temperature. CAUTION: The engine should be idling when you move the gear selector. Never accelerate until after you feel the transmission engage! Accelerating immediately after selecting a gear will cause harsh gear engagement and premature transmission wear.
  • Page 55 R (Reverse) Never engage R while the car is moving forward. N (Neutral) Neutral - no gear engaged. Use the parking brake. D (Drive) D is the normal driving position and should be used as often as possible to help improve fuel economy. The car should not be moving when shifting from R to the D position.
  • Page 56 Automatic transmission - shift gate positions The gear selector can be moved freely between N and D. Depressing the selector knob enables you to move the gear selector to positions P, R, N, D, 3, 2 and 1. W Winter/Wet driving mode - enhanced vehicle traction Mode W will only function if the gear selector is in the (D)rive position.
  • Page 57 Use this position when starting the engine or parking the car. Never use P while the car is in motion. The parking brake should also be set whenever the car is parked. The gear selector is mechanically locked in the P position (SHIFTLOCK). To release the gear selector from this position, the engine must be running (or the ignition key must be in position II) and the brake pedal must be depressed.
  • Page 58 Manual shifting - Geartronic You can move the gear selector freely between the (MAN)ual and (D)rive positions while driving. Gears 2, 3, and 4 have a "lock-up" function which reduces engine speed and helps save fuel. The currently selected gear will be displayed in the instrument panel (see page 25).
  • Page 59 The button in the center console (see the illustration on page 29) can be used at any time to switch between the two driving modes: Comfort or Sport. The system then adjusts the stiffness of the shock absorbers accordingly, for example when the type of road changes, or if the driver wishes to change driving style.
  • Page 60 To temporarily deactivate the system: Press the button in the center control panel (see illustration on page 29). The LED in the button will go out to indicate that the system is not in active mode. Press the button again to reactivate the system. Faults in the system If a fault should occur in the system, the LED in the button will be switched off and a message will be displayed in the text window.
  • Page 61 "kickdown" to help improve fuel economy. Cooling system The risk for engine overheating is greatest, especially in hot weather, when: Towing a trailer up steep inclines for prolonged periods at wide open throttle and low engine rpm. Stopping the engine suddenly after high speed driving (so-called "after-boiling" can occur). To avoid overheating, the following rules should be followed: Do not drive for prolonged periods at engine speeds above 4500 rpm if you are towing a trailer in hilly terrain.

  • Page 62: Wheels And Tires

    2 0 0 4 VOLVO Chapter 7 - Wheels and tires pg. 93 Wheels and tires General information, Wear indicator, Tire economy, Flat spots 94 Snow chains, Snow tires/studded tires 95 Inflation pressure, Spare tire 96 Uniform tire quality grading 97 Changing wheels 98 pg.
  • Page 63 Snow chains can be used on your Volvo with the following restrictions: Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. Special snow chains must be mounted on 215/55 R16, 225/55 R16 and 225/50 R17 tires. Consult your Volvo retailer.
  • Page 64 Vehicle loading The tires on your Volvo will perform to specifications at all normal loads when inflated as recommended on the tire information label located on the inside of the fuel filler door*. This label lists both tire and vehicle design limits. Do...
  • Page 65 Recommended tire pressure (see decal on fuel filler door) should be maintained irrespective of which position on the car the Temporary Spare tire is used on. In the event of damage to this tire, a new one can be purchased from your Volvo retailer. WARNING! Current legislation prohibits the use of the "Temporary Spare"...
  • Page 66 temperature can lead to sudden tire failure. The grade C corresponds to a minimum level of performance that all passenger car tires must meet under the Federal Motor Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law. WARNING! The temperature grade for this tire is established for a tire that is properly inflated and not overloaded.
  • Page 67 raising the car, check that the jack is still correctly positioned in the attachment. Raise the vehicle until the wheel to be changed is lifted off the ground. Unscrew the wheel bolts completely and carefully remove the wheel so as not to damage the thread on the studs. Attaching the jack NOTE: To avoid excessive wear and the necessity of rebalancing, mark and reinstall wheels in the same location and position as before removal.
  • Page 68 Block the wheels standing on the ground, use rigid wooden blocks or large stones. The jack should be kept well-greased. CAUTION: The car must not be driven with wheels of different dimensions or with a spare tire other than the one that came with the car.

  • Page 69: Maintenance/Servicing

    2 0 0 4 VOLVO Chapter 8 - Maintenance/Servicing pg. 101 Maintenance/Servicing Fuses 102 Replacing bulbs 106 Paint touch up 113 Washing the car 114 Cleaning the upholstery 115 Maintenance service, Warranty 116 Fuel/emissions systems 117 Drive belt, Coolant 118...
  • Page 70 If so, put in a new fuse of the same color and amperage (written on the fuse). Spare fuses are stored in the fuse box in the passenger compartment. If fuses burn out repeatedly, have the electrical system inspected by an authorized Volvo retailer. WARNING! Never use fuses with higher amperage than those stated on the following pages.
  • Page 71 Ordinary fuses Location Amperage Accessories Auxiliary lamps (option) Oxygen sensors Crankcase ventilation heater, solenoid valves Mass airflow sensor, engine control module, injectors Throttle module AC compressor, accelerator pedal position sensor, E-box fan 10A Horn AC compressor, ignition coils Brake light switch Windshield wipers ABS/STC/DSTC Windshield washers, headlight wiper/washers (certain models) 15A...
  • Page 72 Fuse box in the passenger compartment This fuse box is located at the far left side of the instrument panel. Extra fuses and the fuse removal tool are also stored here. When replacing a blown fuse, be sure to replace it with a new one of the same color and amperage (written on the fuse).
  • Page 73 Alarm siren* * Please be aware that if this fuse is not intact, or if it is removed, the alarm will sound. pg. 105 Fuses in the trunk Fuses in the trunk The fuses in the trunk are located behind the left panel. When replacing a blown fuse, be sure to replace it with a new one of the same color and amperage (written on the fuse).
  • Page 74 pg. 106 Replacing bulbs Replacing high/low beam headlight bulbs The headlight bulbs must be replaced from the engine compartment. CAUTION: Do not touch the glass on halogen bulbs with your fingers. Grease, oil or any other impurities can be carbonized onto the bulb and cause damage to the reflector.
  • Page 75 Reinstall the plastic cover and turn it clockwise until it is correctly in place (4). "TOP" must be upward. NOTE: If the vertical aim of your headlights needs to be adjusted for any reason (e.g., towing a trailer for extended periods), this should be done by an authorized Volvo retailer. pg. 107 Replacing bulbs...
  • Page 76 Front direction indicator Front direction indicators Switch off the ignition. Open the hood. Press down the retaining catch with a screwdriver and pull out the lamp housing. Press the retaining spring downward and pull the connector out of the lamp housing. Turn the bulb holder counterclockwise and remove it.
  • Page 77 Tail lights 1. Tail light 2. Tail light/fog light (left side only) 3. Direction indicator 4. Back-up light All tail light bulbs are accessed from inside the trunk. Switch off the ignition and open the trunk. Fold the covering panel inward to access the bulbs. When replacing right tail light bulbs, access is made easier if you pull out the cargo net in the trunk completely before folding down the panel.
  • Page 78 Avoid touching the glass on the bulb with your fingers. Switch off the ignition. Turn the bulb holder slightly counterclockwise to release it. Replace the bulb. The shape of the foot of the bulb corresponds to the shape of the bulb holder. Reinstall the bulb holder by turning it slightly clockwise.
  • Page 79 Door step courtesy lights The door step courtesy lights are located under the dash on the driver's and passenger's sides. To replace a bulb: Carefully insert a screwdriver and pry out the lens. Replace the defective bulb. Reinstall the lens. Rear door step lights Carefully insert a screwdriver and pry out the lens.

  • Page 80: Specifications

    6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
  • Page 81 7 Child safety latch label * The Vehicle Identification Number (VIN) should always be quoted in all correspondence concerning your vehicle with the retailer and when ordering parts. All specifications are subject to change without prior notice. pg. 131 Dimensions and weights Dimensions Length 189.8 in.
  • Page 82 *** See also section "Trailer towing" All specifications are subject to change without prior notice. pg. 132 Engine/transmission specifications Engine specifications Designation: Volvo B 6294 T Output 268 hp at 5200 rpm (200 KW/87 rps) Max torque 280 ft. lbs. at 1800-5000 rpm (380 Nm at 35-83 rps)
  • Page 83 Cooling system Type: Positive pressure, closed system. The thermostat begins to open at 194 °F (90 °C). Coolant: Volvo original coolant/antifreeze. Volume: Normally-aspirated 6-cylinder engine - 9.3 US qts (8.8 liters). Turbo 6-cylinder engine - 10.1 US qts (9.6 liters).
  • Page 84 Vehicle loading The tires on your Volvo should perform to specifications at all normal loads when inflated as recommended on the tire information label. The label is located on the inside of the fuel filler door and lists vehicle design limits. Do not load your car beyond the load limits indicated.
  • Page 85 Voltage: 12 Volt, capacity: 600 A/115 min. reverse capacity The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of correctly. Your Volvo retailer can assist you in this matter. Generator Rated output: max. current: 140 A Starter motor: Output: 1.7 kW...
  • Page 86 Volvo On Call Roadside Assistance Your new Volvo comes with a four-year On Call Roadside Assistance program. Additional information, features, and benefits are described in a separate information package in your glove compartment. If you have misplaced your package, dial: In the U.S.A.

  • Page 87: Audio Systems

    2 0 0 4 VOLVO Chapter 10 - Audio systems pg. 137 Audio systems HU-611 overview 138 HU-801 overview 139 Functions 140 Specifications 151 General information 152 HomeLink® Universal Transceiver (option) 153 NOTE: The text on the face of the radio, describing the button functions, may vary slightly depending on which audio system you have in your car.
  • Page 88 Cassette CD changer TV (option on certain models) 4. Fader - press and turn Balance - press, pull and turn 5. Radio - Station seek up/down Cassette - selecting next/previous track CD - Selecting next/previous track 6. Radio - Manual station selection Cassette - Fast winding forward/backward CD - Fast forwards/backward 7.
  • Page 89 6. Selector knob: Radio Internal CD changer Station scan - press TV (option on certain models) External CD changer (option) 7. Radio - Station seek up/down CD - Selecting next/previous track 8. Radio - Manual station selection CD - Fast forward/backward 9.
  • Page 90 bass). A "detent" indicates "equalized" bass. Press the button back in when you have made the adjustment. Treble Adjust the treble by pressing the button to extend the control, pulling it out as far as possible, and then turning it to the left (less treble) or to the right (more treble).
  • Page 91 A - Setting station Press the left side of the button to select lower frequencies and the right side for higher frequencies. Set frequencies are displayed. B - Station seek up/down Press the left side (lower frequency) or right side (higher frequency) of the button to start the seek function. The radio seeks the next audible station and tunes it in.
  • Page 92 Volvo was among the first to pioneer this technology throughout Europe and it is slowly making its way to North America. Coverage by local broadcasters may be limited at this time, but as the technology and benefits grow, you will find the radio in your car is equipped to take advantage of this system.
  • Page 93 Traffic information can only be heard when is displayed. If only TP is displayed, this indicates that no traffic information is being received at the time. If you do not wish to listen to an ongoing traffic bulletin, press the "TP" button. The TP function will remain active and the radio will continue to monitor traffic information.
  • Page 94 Religious talk Rel_Talk Personality Persnlty Public Public College College Weather Weather Program type - HU-801 only The PTY function enables you to select specific types of programs. To search for a particular program type: 1. Press "PTY" button to initiate the function. The currently tuned station's program type is displayed. 2.
  • Page 95 Contents Top of Page...
  • Page 96 2 0 0 4 VOLVO HomeLink® Universal Transceiver (option) pg. 153 HomeLink® Universal Transceiver (option) HomeLink® Universal Transceiver HomeLink® is an advanced system that can be programmed to learn the codes of three different remote controlled- devices (e.g., garage door openers, remote lighting, entry door lock). HomeLink®'s sun visor-mounted transceiver, powered by your car's electrical system, may then be used in place of your hand-held remote controls.
  • Page 97 Repeat steps 3 and 4 to program the other two transceiver buttons. If, after several attempts, you are unable to successfully train the HomeLink® Universal Transceiver to learn your hand-held transmitter's signal, contact HomeLink® toll-free 1-800-355-3515 (Internet: www.HomeLink.com). pg. 154 HomeLink® Universal Transceiver (option) WARNING! If you use HomeLink®...
  • Page 98 programming the HomeLink® Universal Transceiver, call toll-free 1-800-355-3515 (Internet: www.HomeLink.com). Operating the HomeLink® Universal Transceiver Once programmed, the HomeLink® Universal Transceiver can be used in place of hand-held transmitters. To operate, the key must be turned to the "accessory" position (II) or the engine must be running. Press the programmed HomeLink®...

  • Page 99: Index

    2 0 0 4 VOLVO Index pg. 157 Index ABS..17 ABS - warning light..27 Accessory lights..29 Active chassis system (Four-C)..78 Adjusting the steering wheel..36 Advanced User Mode (AUM) - radio..145 Air conditioning..45- 49 Air filter - engine..119 Air vents..44 Airbag (SIPS)..8 Airbag (SRS)..4...
  • Page 100 Geartronic..76, 77 Kickdown..76 Automatic transmission - cold starts..75 Auxiliary socket..29, Backrests, rear seat - folding..58 Battery..89, Battery maintenance..125 -126 Replacing the battery..126 Ventilation hose..126 Blinds - rear/side rear windows..42 Booster cushion..13, 15 Booster cushion - integrated..13 Brake failure warning light ..26 Brake fluid..124, Brake system..16...
  • Page 101 Cup holder - opening..56 Dimensions..131 Direction indicator bulbs (front)..107 Direction indicators..35 Distributor ignition system..134 Door step courtesy lights - replacing..110 Doors and locks..60 Drive belt..118 Driver's seat and remote keyless entry system..53 Driving economy..80 Driving mode indicator..25 Driving mode W..75, Driving with trunk open..81 Economical driving..80 Electrical system..135...
  • Page 102 Front courtesy lights - replacing..112 Front fog lights..32 Front fog lights - replacing ..109 Front reading lights..54 Front seats - adjusting..52 Front seats - heated..37 Front suspension..134 Fuel..70, Fuel filler cap..72 Fuel filler door..72 Fuel filler door - unlocking manually..33 Fuel filter ..119 Fuel gauge..25 Fuel requirements..70...
  • Page 103 Indicator lights..26, 27 Inflatable curtain (IC)..9 Instrument illumination..32 Instrument panel..25 Instruments..24 Integrated booster cushion ..13 Interior Air Quality system ..49 Interior features - overview..22 Interior lighting..54 Jack..57, 98, 99 Jump starting..88 Key - removing from ignition switch..73 Keyless entry system..61, 62 Keyless entry system - replacing batteries..62 Keylock..73 Keys..60...
  • Page 104 Opening the trunk from the inside..63 Paint touch-up..113 Panic function (alarm)..65 Parking Assistance, rear..79 Parking brake..38 Parking brake reminder light..26 Parking lights..32 Passenger's seat backrest - folding..53 PCV system..119 Polishing..115 Power moonroof..41 Power seats..52 Power steering - speed-sensitive..81 Power steering fluid ..124, Power windows..39 PROPOSITION 65 WARNING..125...

  • Page 105: Seat Belts

    Safety defects - reporting..11 Safety locks - child..67 Seat belt maintenance..11 Seat belts..2, Seat belts - cleaning..115 Seats - front..52 Servicing..119, 120 Shiftlock..73, 74, 76 Side direction indicator - replacing..111 Side impact airbag system (SIPS)..8 Side marker lights - replacing..111 Sideview mirrors..40 Sideview mirrors - heated..37 Sideview mirrors - memory function..40...

  • Page 106: Whiplash Protection System (Whips)

    Upholstery - cleaning..115 Vanity mirror lights - replacing..109 Vehicle Identification Number (VIN)..130 Vehicle loading..134 Ventilation..44 Volumes (oils and fluids) ..133 Volvo On Call..136 Warning light - center..26 Warning lights..26, 27 Warranty..116 Washer fluid reservoir..120 Washer fluid solvent..89 Washing the car..114, 115 Waxing..115...
  • Page 107 Windshield wipers/washers..35 Winter driving..89 Winter tires..95 Winter/Wet driving mode..75, Wiper blades - replacing..127 Contents Top of Page...

  • Page 108: Back Cover

    When used properly and safely, they enrich the driving experience. Improperly used, any of these could cause a distraction. For all of these systems, we want to provide the following warning that reflects the strong Volvo concern for your safety: Never use these devices or any feature of your vehicle in a way that distracts you from the task of driving safely.
  • Page 109 the vehicle and others sharing the roadway. Avoiding distractions is part of that responsibility. The following should be checked regularly: * 1 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze). See page 120. 2 Power steering - When cold, the level must not be above the COLD mark and when hot it must not be above the HOT mark.
  • Page 110 Bulbs Power Socket US no. Bulb Power Socket US no. 55 W H 7 21 W BAU 15s 21 W BA 15s 1156 W 2.1x9.5d - 55 W H 1 BA 15s Contents Top of Page...
