Siemens RDE100.1RF Operating Instructions

s

Operating Instructions

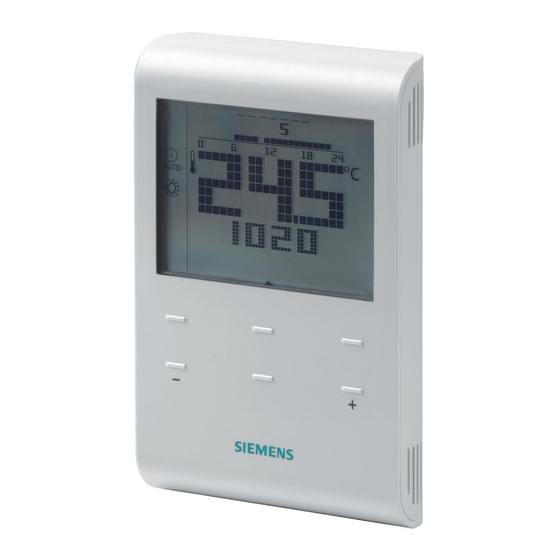

The RDE100.1RF consists of a wireless room thermostat RDE100.1RF which operates in connection with an
RDE-MZ6 receiver. These units allow you to set the ideal room temperature at the time you want.
There are several switching patterns available that can be set to meet your individual needs.
RDE-MZ6
Do you want to set the time of day and the weekday?
Proceed as follows:
Set
Ok • Press Set and select
+ • Press Ok and the time of day flashes for setting
+ –
– • Press or to adjust the time of day
• Press Ok to confirm
Mode
• The weekday flashes; press
• Press Ok to save the setting
• Press Mode to exit or wait for the program to exit automatically
1/4 Operating Instructions
1 Display
Indicates that batteries
need to be replaced
Frost protection (heating)
active
Auto Timer mode
View and set Auto Timer
Comfort mode
Economy mode
Escape
External input enabled
Permanent setpoint
setting
Weekday and time of day
setting
Holiday mode setting
2 Change operating mode
3 Set
4 Ok
5 Decrease value
6 Increase value
7 Battery holder
To be purchased separately
+ –
or to select the desired day
CB1B1432en_01 / 2013-07-05
RDE100.1RF
Time of day
Morning: 12-hour format
Afternoon: 12-hour format
Confirmation
Room temperature in
F
degrees Fahrenheit
Room temperature in
C
degrees Celsius
Button lock activated
Room temperature,
setpoint, etc
Display of zone
(default = 1)
Heating On
Weekday 1 = Monday
Weekday 7 = Sunday
Timer bar
Current room temperature
