This manual deals with the operation and care of your Volvo.
Welcome to the worldwide family of Volvo owners. We trust that you will enjoy many years of safe driving in your
Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this
vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and
maintenance requirements/ recommendations in this manual. We also urge you and your passengers to wear seat belts
at all times in this or any other automobile. And, of course, please do not operate a vehicle if you may be affected by
alcohol, medication or any impairment that could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels
attached to the driver's door opening and on the left wheel housing in the engine compartment
For further information please contact your retailer, or:
2 0 0 5
VOLVO
V70

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2005 V70R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volvo 2005 V70R

Summary of Contents for Volvo 2005 V70R

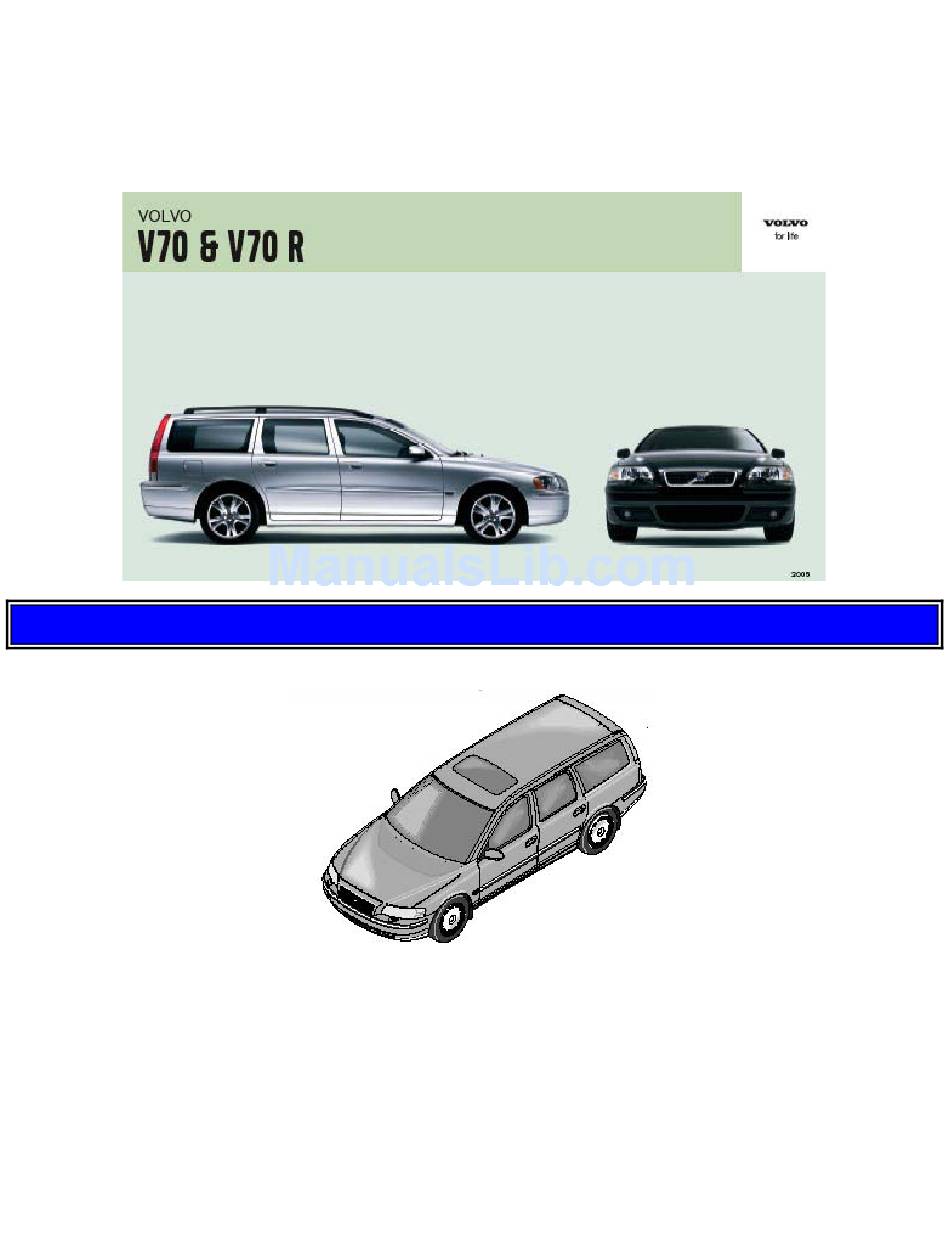

  • Page 1 This manual deals with the operation and care of your Volvo. Welcome to the worldwide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/ recommendations in this manual.

  • Page 2: Table Of Contents

    In the USA: In Canada: Volvo Cars of North America Volvo Cars of Canada Ltd. Customer Care Center National Customer Service P.O. Box 914 175 Gordon Baker Road Rockleigh, New Jersey 07647-0914 North York, Ontario M2H 2N7 800-458-1552 800-663-8255 http://www.volvocars.com...
  • Page 3 Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation.
  • Page 4 Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.
  • Page 5 Volvo also believes no child should sit in the front seat of a car.
  • Page 6 Always fasten the seat belts before you drive or ride. A chime will sound several times if the driver's seat belt is not fastened. To buckle: Pull the belt out far enough to insert the latch plate into the receptacle until a distinct click is heard. The seat belt retractor is normally "unlocked"...

  • Page 7: Center Head Restraint

    Never repair the belt on your own; have this work done by an authorized Volvo retailer only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection available to you in the event of a collision.

  • Page 8: Front Airbags (Srs)

    As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS). The Volvo SRS consists of an airbag (2) on both the driver's and passenger's sides and seat belt tensioners in both front door pillars (4). The system is designed to supplement the protection provided by the three-point seat belt system.
  • Page 9 SRS yourself. Attempting to do so may result in serious personal injury. If a problem arises, take your car to the nearest authorized Volvo retailer for inspection as soon as possible. pg. 5 Front airbags - SRS Safety system warning light in the instrument panel A self-diagnostic system incorporated in the sensor monitors certain safety system components.
  • Page 10 There is no maintenance to perform on the SRS yourself. The month and year shown on the decal on the door pillar indicate when you should contact your Volvo retailer for specific servicing or replacement of airbags and seat belt tensioners.
  • Page 11 WARNING! Children must never be allowed in the front passenger seat. Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a passenger-side front airbag.
  • Page 12 Seat belts - the heart of the Volvo safety system The heart of the Volvo safety system is the three-point seat belt (a Volvo invention)! In order for the SRS system to provide the protection intended, seat belts must be worn at all times by everyone in the car. The SRS system is a supplement to the seat belts.

  • Page 13: Occupant Weight Sensor

    Disabling the passenger's side front airbag Volvo recommends ALL occupants (adults and children) shorter than four feet seven inches (140 cm) be seated in the back of any vehicle with a front passenger side airbag, and be properly restrained for their size and weight. See also...
  • Page 14 If a fault in the system is detected and indicated as explained above, be aware that the passenger's side front airbag will not deploy in the event of a collision. In this case, the safety systems and Occupant Weight Sensor should be inspected by an authorized Volvo retailer as soon as possible.

  • Page 15: Side Impact Airbags (Sips)

    WARNING! Never try to open, remove, or repair any components in the OWS system. This could result in system malfunction. Maintenance or repairs should only be carried out by an authorized Volvo service technician. *NOTE: Not available on the V70R.
  • Page 16 Never try to open or repair any components of the SIPS airbag system. This should be done only by an authorized Volvo service technician. In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an upright position with the seat belt properly fastened.

  • Page 17: Volvo Inflatable Curtain (Vic)

    The IC system is a supplement to the Side Impact Protection System. It is not designed to deploy during collisions from the front or rear of the car or in rollover situations. Never try to open or repair any components of the IC system. This should be done only by an authorized Volvo service technician.

  • Page 18: Whiplash Protection System (Whips)

    The inflatable curtains are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed and impact. The inflatable curtains are not designed to deploy in all side impact situations. In order for the IC to provide its best protection, both front seat occupants and both outboard rear seat occupants should sit in an upright position with the seat belt properly fastened;...
  • Page 19 If your car has been involved in a collision, the front seat backrests must be inspected by an authorized Volvo retailer even if the seats appear to be undamaged. Certain components in the WHIPS system may need to be replaced.

  • Page 20: Instruments, Switches And Controls

    2 0 0 5 VOLVO Chapter 2 - Instruments, switches and controls pg. 25 Instruments, switches and controls Interior 26 Exterior 27 Instruments 28 Instrument panel 29 Indicator and warning lights 30 Text information window 32 Switches in the center console 33...

  • Page 21: Instruments

    pg. 27 Exterior pg. 28 Instruments...

  • Page 22: Instrument Panel

    pg. 29 Instrument panel 1 Turn signals 2 Text window 3 Temperature gauge The pointer should be approximately midway on the gauge when driving. Do not drive the car if the warning light is on. The text window will provide you with additional information. If the engine temperature remains high, check coolant level - see page 148.

  • Page 23: Indicator And Warning Lights

    7 General warning light (see page 30). 8 High beam indicator light 9 Tachometer Indicates engine speed in thousands of rpm. Do not drive for long with the needle in the red section. The engine has an built-in function preventing too high engine speed. When this function operates, you may discern some pulsation, which is normal.
  • Page 24 153. If the light stays on after restart, have the car towed to the nearest authorized Volvo retailer. After hard driving, the light may come on occasionally when the engine is idling. This is normal, provided it goes off when the engine speed is increased.
  • Page 25 On-Board Diagnostic II (OBDII): As you drive, a computer called "OBDII" monitors your car's engine, transmission, electrical and emission systems. The CHECK ENGINE light will light up if the computer senses a condition that potentially may need correcting. When this happens, please have your car checked by a Volvo retailer as soon as possible.

  • Page 26: Text Information Window

    STOP ENGINE: Stop and switch off the engine - to help prevent serious risk of damage. SERVICE URGENT: Take your car to an authorized Volvo retailer for inspection as soon as possible. SEE MANUAL: Refer to your owner's manual. For additional information, please contact your Volvo retailer.

  • Page 27: Switches In The Center Console

    top up if necessary. See page 151, 153. 2) OIL LEVEL LOW/SEE MANUAL* Stop as soon as possible and switch off the engine, check the oil level and top up if necessary. See page 151, 153. * These messages apply to R-models only. 1) Orange warning triangle, see page 2) Red warning triangle, see...

  • Page 28: Trip Computer

    Auxiliary socket This 12 volt socket can be used to plug in certain accessories. The ignition key must be in position 1 (or higher) for the auxiliary socket to function. See also page 43 for more information. Front/rear park assist (option/accessory) page 100 for more information on this function.
  • Page 29 The four* trip computer functions can be accessed by twisting control B one step at a time in either direction. Twisting the control a fifth time** returns you to the original function. The trip computer can be reset (current data will be erased from system memory) by pressing RESET (button C). 1.

  • Page 30: Climate Control System

    2 0 0 5 VOLVO Chapter 3 - Climate control system pg. 49 Climate control system Ventilation 50 Climate control system - general information 51 Electronic Climate Control (ECC) 52 Manual climate control with air conditioning, A/C 56 pg. 50 Ventilation...

  • Page 31: General Information

    Replace the cabin air filter with a new one at the recommended intervals. Please refer to your Warranty and Service Records Information booklet, or consult your Volvo retailer for these intervals. The filter should be replaced more often when driving under dirty and dusty conditions. The filter cannot be cleaned and therefore should always be...
  • Page 32 The air conditioning is momentarily disengaged during full-throttle acceleration. ECC maintenance All maintenance on the climate control systems should be carried out by an authorized Volvo service technician only. Refrigerant Volvo cares about the environment. The air conditioning system in your car contains a CFC-free refrigerant - R134a (HFC134a).

  • Page 33: Interior

    AUTO This function automatically regulates the Electronic Climate Control system so that the selected temperatures are maintained. The blower, heating, air distribution (air flow) and air conditioning are controlled. If you prefer to manually set any of these functions, the remaining functions will still be controlled automatically. Pressing the AUTO button overrides any settings that were previously made manually.
  • Page 34 on the outside air and then revert back to fresh air. Timer mode deactivation: Press and hold the recirculation button for at least 3 seconds. The amber LED in the recirculation button will illuminate steadily for 5 seconds to show a return to "normal" mode. In normal mode, when the recirculation button is pressed, the climate control system will recirculate the air in the passenger compartment until the recirculation button is pressed again.
  • Page 35 Operation: Press to activate the Air quality sensor (normal setting). Or select one of three functions by pressing 1. Press : the LED AUT comes on. The Air quality sensor is now activated. 2. Press : no LED is lighted. Recirculation not activated. 3.
  • Page 36 pg. 57 Manual climate control with air conditioning, A/C A/C - ON/OFF The air conditioning function is engaged by pressing ON and disengaged by pressing OFF. When you select Defroster , the air conditioning is automatically engaged if the fan is not set to position 0. Heated front seats (option) Please see page 42...
  • Page 37 Temperature Turn the control to set the temperature for the driver's and passenger's sides of the car. For cooler air, the air conditioning function must be engaged. Air distribution Use the air distribution control positions (marked with dots) between the different symbols to fine-tune air distribution for the maximum comfort.
  • Page 38 2 0 0 5 VOLVO Chapter 4 - Interior pg. 59 Interior Front seats (electrically operated) 60 Front seats (manually operated) 61 Storage compartments 63 Front storage compartments, coat hanger 65 Folding table in rear seat 66 Rear seat and cargo area 67...
  • Page 39 Seat adjustment Adjust the power seat(s) with the controls at the side of the seat as follows: 1 Front edge of seat (raise/lower) 2 Forward - rearward 3 Rear edge of seat (raise/lower) 4 Backrest tilt Power seat adjustment controls NOTE: The power seats have an overload protector that activates if a seat is blocked by any object.
  • Page 40 Programming the memory Programming the driver's seat memory (option)* Three different seating and door mirror positions can be stored in the driver seat's memory. The following example explains how button 1 can be programmed. Buttons 2 and 3 can be programmed in the same way. To program (store) a seat position in button 1: 1.
  • Page 41 Check that the seat is securely locked into position after adjusting. pg. 62 Front seats Folding front seat backrest The passenger seat backrest can be folded down to the horizontal position for carrying long loads. To fold down the backrest: Move the seat as far rearward as possible Adjust the backrest tilt to the most upright position Lift the catches on the lower rear side of the backrest...
  • Page 42 1. Storage compartment in door 2. Storage pocket in edge of front seat 3. Ticket clip 4. Glove compartment 5. Storage compartment and cup holders in center console (see the following page for more information) 6. Storage space and cupholders in rear seat armrest 7.
  • Page 43 Cup holder for rear seat passengers · To access the storage compartment, press the button on the left side of the armrest and fold the entire cover rearward. · To open the rear seat cup holder, press the button on the right side of the armrest. Fold the upper section of the cover rearward.
  • Page 44 Storage in the glove compartment The glove compartment has storage spaces designed specifically to hold credit cards, pens, and pencils. Coat hanger Use the coat hanger for light jackets, etc. pg. 66 Folding table in rear seat Folding Table (option) Pull the tab and fold the table section forward.
  • Page 45 Fold the armrest in the backrest forward. Fold out the table so that it rests on the armrest. Press to release the cup holder. You do not have to fold the backrest forward, if you only want to use the cup holder. To close: Fold the table section upward into place.

  • Page 46: Keys, Locks, Alarm

    2 0 0 5 VOLVO Chapter 5 - Keys, Locks, Alarm pg.79 Keys, Locks, Alarm Keys, Immobilizer, Exterior courtesy lights 80 Remote keyless entry system 81 Unlocking the tailgate, Central locking buttons 83 Alarm 84 Child safety locks - rear doors 86 pg.
  • Page 47 The headlights, parking lights, license plate lights and the lights in the sideview mirrors will now come on and remain on for 30, 60 or 90 seconds (the time interval is at your discretion and can be changed by an authorized Volvo retailer).
  • Page 48 The car can also be locked/unlocked with the key. If one of the transmitters is misplaced, contact your nearest authorized Volvo retailer for replacement. Buttons in remote control 1 - Fold key in/out, 2 - Lock, 3 - Approach lighting 4 - "Panic"...
  • Page 49 NOTE: The old battery should be disposed of properly at a recycling center or at your Volvo retailer. WARNING! Volvo does not recommend using the transmitter to lock the doors from inside the car. The alarm would be activated...
  • Page 50 and would sound when one of the doors is opened. The doors must not be locked using the remote transmitter while the vehicle is occupied. In case of an accident, this may hinder rapid access to the occupants of the vehicle. The alarm will also sound.
  • Page 51 A door is forced open. The ignition switch is tampered with. If there is movement in the passenger compartment (if the car is equipped with the optional movement sensor). The car is lifted or towed (if the car is equipped with the optional inclination sensor). The battery is disconnected (while the alarm is armed).
  • Page 52 LED flashes rapidly before the ignition is switched on - the alarm has been triggered Fault in the alarm system: If a fault has been detected in the alarm system, a message will be displayed in the text window. Contact a Volvo retailer. Automatic re-lock/re-arm system If the car is unlocked with the remote, the car will re-lock and the alarm will re-arm after 2 minutes unless a door or the tailgate has been opened.
  • Page 53 Child safety lock control in left rear door Child safety lock control in right rear door Child safety locks - rear doors The controls are located on the rear door jambs*. Use the ignition key or a screwdriver to adjust these controls. A The door cannot be opened from the inside.
  • Page 54 Contents Top of Page...

  • Page 55: Starting And Driving

    2 0 0 5 VOLVO Chapter 6 - Starting and driving pg. 87 Starting and driving Fuel requirements 88 Fuel Formulations 89 Refueling 90 Starting the engine 91 Manual transmission 93 Automatic transmission (AW5) 94 Automatic transmission (Geartronic) 96 All Wheel Drive 98...

  • Page 56: Fuel Requirements

    To meet seasonal air quality standards, some areas require the use of "oxygenated" fuel. Volvo allows the use of the following "oxygenated fuels; however, the octane ratings listed on this page must still be met.

  • Page 57: Fuel Formulations

    Fuel Formulations Do not use gasoline that contains lead as a knock inhibitor, and do not use lead additives. Besides damaging the exhaust emission control systems on your car, lead has been strongly linked to certain forms of cancer. Many fuels contain benzene as a solvent. Unburned benzene has been strongly linked to certain forms of cancer. If you live in an area where you must fill your own gas tank, take precautions.

  • Page 58: Starting The Engine

    * If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Check Engine light (malfunction indicator lamp) may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps. pg. 91 Starting the engine Starting the engine 1.

  • Page 59: Manual Transmission

    5. Select the desired gear. The gear engages after a very slight delay which is especially noticeable when selecting R. NOTE: Your car is equipped with a KEYLOCK system. When the engine is switched off, the gear selector must be in the (P)ark position before the key can be removed from the ignition switch.
  • Page 60 5-speed manual transmission Depress the clutch pedal completely when changing gears*. Remove your foot from the clutch pedal while driving. The shift pattern should be followed. Overdrive (5th gear) should be used as often as possible to help improve fuel economy. This gear should be engaged at speeds above approx.

  • Page 61: Automatic Transmission Aw5

    Engaging reverse gear Never engage R while the car is moving. CAUTION: Be careful that you do not inadvertently engage reverse while moving forward. pg. 94 Automatic transmission AW5 P (Park) Use this position when starting the engine or parking the car. Never use P while the car is in motion.
  • Page 62 L (Low gears) The transmission is locked in gears 1 and 2 when the selector is in this position. NOTE: Gears 4, 3, or L can be used if you are driving in a mountainous area, towing a trailer or to increase engine braking effect.

  • Page 63: Automatic Transmission (Geartronic)

    This mode may be selected for starting/moving off on slippery roads. NOTE: R-models are not equipped with this button. Kickdown Automatic shift to a lower gear (kickdown) is achieved by depressing the accelerator pedal fully and briskly. An upshift will occur when approaching the top speed for a particular gear or by releasing the accelerator pedal slightly. Kickdown can be used for maximum acceleration or when passing at highway speeds.
  • Page 64 upshift will occur when approaching the top speed for a particular gear or by releasing the accelerator pedal slightly. Kickdown can be used for maximum acceleration or when passing at highway speeds. Kickdown does not function when the transmission is in the manual shift (geartronic) mode (see next page). Automatic transmission - adaptive system The automatic transmission is controlled by an adaptive control system that constantly monitors the way in which the transmission functions.

  • Page 65: All Wheel Drive

    Tire dimensions Volvo recommends that you always drive on tires of the same brand, size, construction (radial), tread pattern, load-, speed-, traction-, temperature-, and treadwear rating. Never drive on mixed tires, except for brief periods when the temporary spare tire is in use.
  • Page 66 Four-C R-models are equipped with the Four-C (Continuously Controlled Chassis Concept) system. This system is based on a number of sensors that continuously monitor factors such as the car's lateral and vertical movements, speed, and movements of the wheels. The sensors receive data up to 500 times per second, which is used to provide extremely fast and precise adjustment of each shock absorber.

  • Page 67: Front/Rear Park Assist (Option/Accessory)

    pg. 100 Front/rear park assist (option/accessory) A - front (accessory as available), B - rear (option) Front/rear park assist The park assist system(s) are designed to assist you when driving into parking spaces, garages, etc. They utilize ultrasound sensors located in the bumpers to measure the distance to a vehicle or other object, or a person who may be close to the front or rear of the vehicle.

  • Page 68: Driving Economy, Handling

    Front park assist: it may not be possible to combine auxiliary headlights and front park assist since these lights could trigger the system's sensors. Faults in the system If a fault should occur in the system, the LED in the button will be switched off and a message will be displayed in the text window.

  • Page 69: Points To Remember

    Speed-sensitive power steering (Option on certain models) With this feature, the steering is most responsive at lower speeds to make parking, driving in city traffic, etc., easier. The effect of the power steering diminishes as you accelerate for greater stability at highway speeds. Weight distribution affects handling At the specified curb weight your car has a tendency to understeer, which means that the steering wheel has to be turned more than might seem appropriate for the curvature of a bend.

  • Page 70: Roof Racks/Load Carriers

    Volvo has developed especially for your car. Volvo-approved removable roof racks are designed to carry the maximum allowable roof load for this vehicle: 220 lbs (100 kg). For Non-Volvo roof racks, check the manufacturer's weight limits for the rack.
  • Page 71 8 Press down the covers. Check periodically that the load carriers and load are properly secured. Reducing wind noise and improving fuel economy To maximize fuel efficiency and minimize wind noise, Volvo recommends that load carriers be removed when not in use. WARNING! Loads carried on the vehicle's roof should not exceed 220 lbs (100 kg), including the weight of the load carriers and any other load carrying equipment (ski boxes, bicycle racks, etc).
  • Page 72 Fitting the load carriers (accessory) Make sure that the load carrier is pressed firmly out against the roof rail. Screw the load carrier in place. Use the supplied torque wrench and tighten to the mark on the wrench (corresponding to 6 Nm). See illustration. Load carrier cover The car's ignition key or the stud on the edge of the supplied torque wrench can be used to undo or tighten the cover.

  • Page 73: Wheels And Tires

    2 0 0 5 VOLVO Chapter 7 - Wheels and tires pg.113 Wheels and tires General information 114 Tire inflation 115 Tire inflation pressure tables 117 Tire Pressure Monitoring System (TPMS) 118 Self supporting run flat tires 119 Tire designations 120...
  • Page 74 Tread wear indicator The tires have wear indicator strips running across or parallel to the tread. The letters TWI are printed on the side of the tire. When approximately 1/16" (1.6 mm) is left on the tread, these strips become visible and indicate that the tire should be replaced.

  • Page 75: Tire Inflation

    Tire inflation Check tire inflation pressure regularly. A table listing the recommended inflation pressure for your vehicle can be found on page 117. Tire inflation pressure placards are also located on the driver's side B-pillar (the structural member at the side of the vehicle, at the rear of the driver's door opening), or on the inside of the fuel filler door on Canadian models.

  • Page 76: Tire Inflation Pressure Tables

    117 Wheels and tires Tire inflation pressure tables Tire pressures recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory. Cold tire pressure for vehicle loads up to 930 lbs (420 kg)

  • Page 77: Self Supporting Run Flat Tires

    215/65R16 38 (260) 38 (260) Temporary spare tire 61 (420) 61 (420) T135/90R17 These weights include the weight of all occupants of the car plus cargo. Self supporting run flat tires. See page 119 for more information. Optional tire pressure. These inflation pressures may only be used when the vehicle is not fully loaded. Optional cold tire pressure that may only be used for vehicle loads up to 495 lbs (225 kg).
  • Page 78 This message will remain on until wheels with TPMS sensors are mounted on the vehicle and it has been driven for at least one minute at a speed of 20 mph (30 km/h) or faster. TPMS valves can be fitted on winter wheels or full-size spare wheels/tires. Consult your Volvo retailer. CAUTION! When inflating tires with TPMS valves, press the pump's mouthpiece straight onto the valve to help avoid bending or otherwise damaging the valve.

  • Page 79: Tire Designations

    If this occurs, reduce vehicle speed to a maximum of 50 mph (80 km/h). The vehicle can be driven approximately 50 miles (80 km), or somewhat farther if the vehicle is not heavily loaded. The tire should be replaced as soon as possible.

  • Page 80: Glossary Of Tire Terminology

    time, carrying a permissible load for the vehicle, and with correct inflation pressure. For example, H indicates a speed rating of 130 mph (210 km/h). NOTE: This information may not appear on the tire because it is not required by law. 7.

  • Page 81: Vehicle Loading

    This limit is set by the tire manufacturer. • Recommended tire inflation pressure: inflation pressure, established by Volvo, which is based on the type of tires that are mounted on a vehicle at the factory. This inflation pressure is affected by the number of occupants in the car, the amount of cargo, and the speed at which the vehicle will be driven for a prolonged period.

  • Page 82: Uniform Tire Quality Grading

    - Exceeding the permissible axle weight, gross vehicle weight, or any other weight rating limits can cause tire overheating resulting in permanent deformation or catastrophic failure. - Do not use replacement tires with lower load carrying capacities than the tires that were original equipment on the vehicle because this will lower the vehicle's GVW rating.

  • Page 83: Snow Chains, Snow Tires, Studded Tires

    Snow chains can be used on your Volvo with the following restrictions: • Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. • If accessory, aftermarket or "custom" tires and wheels are installed and are of a size different than the original tires and wheels, chains in some cases CANNOT be used.

  • Page 84: Changing A Wheel

    Recommended tire pressure (see the placard on the B-pillar or on the fuel filler door) should be maintained irrespective of which position on the car the temporary spare tire is used on. In the event of damage to this tire, a new one can be purchased from your Volvo retailer. WARNING! Current legislation prohibits the use of the "Temporary Spare"...
  • Page 85 Loosen wheel bolts There is a jack attachment located in the center on each side of the car. Position the jack on the bar in the attachment as shown in illustration above and crank while simultaneously guiding the base of the jack to the ground. The base of the jack must be flat on a level, firm, non-slippery surface.
  • Page 86 Jack for AWD models CAUTION: The car must not be driven with wheels of different dimensions or with a spare tire other than the one that came with the car. The use of different size wheels can seriously damage your car's transmission. WARNING! •...
  • Page 87 Contents Top of Page...

  • Page 88: Maintenance/Servicing

    2 0 0 5 VOLVO Chapter 8 - Maintenance/Servicing pg. 129 Maintenance/Servicing Fuses 130 Replacing bulbs 135 Paint touch up 142 Washing the car 143 Cleaning the upholstery 145 Maintenance service, Warranty 146 Fuel/emissions systems 147 Drive belt, Coolant 148...

  • Page 89: Fuses

    If so, put in a new fuse of the same color and amperage (written on the fuse). Spare fuses are stored in the fuse box in the passenger compartment. If fuses burn out repeatedly, have the electrical system inspected by an authorized Volvo retailer. WARNING! Never use fuses with higher amperage than those stated on the following pages.
  • Page 90 A - To open, press the plastic catches on the rear side of the fuse box cover and lift Ordinary fuses Location Amperage 2 Auxiliary lights (option) 3 Throttle module (non-turbo models) 4 Oxygen sensors 5 Crankcase ventilation heater, solenoid valves, fuel tank leakage monitor 10A 6 Mass air flow sensor, engine control module, injectors 8 A/C compressor, accelerator pedal position sensor, E-box fan 10 -...
  • Page 91 Location Amperage 1 Power driver's seat (option) 2 Power passenger's seat (option) 3 Climate system blower 4 Control module - front passenger's door 5 Control module - driver's door 6 Ceiling lighting, upper electrical control module 7 Moon roof (option) 8 Ignition switch, SRS system, engine control module, immobilizer 7.5A 9 Onboard diagnostics, headlight switch, steering wheel angle sensor, steering wheel control module 5A...
  • Page 92 35 - 36 - 37 - 38 - pg. 133 Fuses in the passenger compartment Fuse box in the passenger compartment, behind the plastic cover Location Amperage 1 Heated passenger's seat (option) 2 Heated driver's seat (option) 3 Horn 8 Alarm siren 9 Brake light switch feed 10 Instrument panel, climate system, power driver's seat (option), Occupant Weight Sensor (US models only)
  • Page 93 24 - 25 - 26 - 27 - 28 Power passenger's seat (option), audio system 29 - 30 - 31 - 32 - 33 Vacuum pump 34 Washer pump - headlight wipers (V70 R) 35 - 36 - pg. 134 Fuses in the cargo compartment Fuses in the cargo compartment The fuses in the cargo area are located behind the panel on the driver's side of the cargo compartment.

  • Page 94: Replacing Bulbs

    • The optional Bi-Xenon headlight bulbs contain trace amounts of mercury. These bulbs should always be disposed of by an authorized Volvo retailer. • Certain bulbs not listed here should only be replaced by an authorized Volvo service technician.
  • Page 95 All front bulbs (except the optional front fog lights) are replaced from the engine compartment. WARNING! Bi-Xenon headlights (option) - due to the high voltage used by these headlights, these bulbs should only be replaced by an authorized Volvo service technician. Location of the bulbs in the headlight housing 1. Side marker light 2.
  • Page 96 3. Reconnect the wiring connector. 4. Reinstall the plastic cover. NOTE: If the vertical aim of your headlights needs to be adjusted for any reason (e.g., towing a trailer for extended periods), this should be done by an authorized Volvo retailer.
  • Page 97 High beam bulb High beam headlight Removing the defective bulb: 1. Switch off the headlights and turn the ignition switch to position 0. 2. Remove the cover to access the bulb assembly. 3. Pull out the bulb. 4. Disconnect the wiring connector. 5.
  • Page 98 Turn signal, driver's side Removing the defective bulb: 1. Switch off the headlights and turn the ignition switch to position 0. 2. Pull out the bulb holder by twisting it counterclockwise. 3. Remove the bulb from the holder by pressing it in and turning it counterclockwise. Installing the new bulb: 1.
  • Page 99 Side marker light 1. Turn the lamp holder counterclockwise and pull it out. 2. Pull out the defective bulb and insert a new one. 3. Reinsert the lamp holder and turn it clockwise until it seats properly. Front fog light Front fog lights (option) Removing the defective bulb: 1.
  • Page 100 Replacement of backup lights, rear parking lights and rear fog light 1. Switch off all lights and turn the ignition switch to position 0. 2. Open the access panel. 3. Twist the bulb holder counterclockwise and remove it. 4. Press the bulb inward, twist it counterclockwise and extract it. 5.
  • Page 101 License plate lights 1. Switch off the ignition. 2. Loosen the screws with a Torx screwdriver. 3. Carefully pull out the lamp housing. 4. Turn the bulb holder counterclockwise and pull it out. 5. Pull out the defective bulb and insert a new one. 6.

  • Page 102: Paint Touch Up

    These bulbs may be difficult for you to replace yourself. We recommend that you let an authorized Volvo retailer replace these bulbs if necessary. NOTE: Other bulbs may be difficult for you to replace yourself. Let an authorized Volvo retailer replace these bulbs if necessary.

  • Page 103: Washing The Car

    NOTE: When ordering touch-up paint from your Volvo retailer, use the paint code indicated on the model plate. The plate is located in the engine compartment. Minor stone chips and scratches Material: Primer - can Paint - touch-up bottle Brush Masking tape NOTE: When touching up the car, it should be clean and dry.
  • Page 104 A detergent can be used to facilitate the softening of dirt and oil. A water-soluble grease solvent may be used in cases of sticky dirt. However, use a wash place equipped with a drainage separator. Remove dirt from the drain holes in the doors and rocker panels. Dry the car with a clean chamois.
  • Page 105 Volvo also offers a special leather softener that should be applied after the cleaner and protectant. It leaves leather soft and smooth, and reduces friction between leather and other finishes in the vehicle.

  • Page 106: Maintenance Service, Warranty

    146 Maintenance service, Warranty Maintenance service Volvo advises you to follow the service program outlined in the Warranty and Service Records Information booklet. This maintenance program contains inspections and services necessary for the proper function of your car. The maintenance services contain several checks which require special instruments and tools and therefore must be performed by a qualified technician.
  • Page 107 One or more of these computers may store what they monitor, either during normal vehicle operation or in a crash or near-crash event. Stored information may be read and used by: Volvo Car Corporation service and repair facilities law enforcement or government agencies others who may assert a legal right to know, or who obtain your consent to know such information.
  • Page 108 6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
  • Page 109 8 Loads and Tire Pressures - U.S. models only Certain models will only have one decal, depending on the specifications of the vehicle. * The Vehicle Identification Number (VIN) should always be quoted in all correspondence concerning your vehicle with the retailer and when ordering parts. All specifications are subject to change without prior notice.
  • Page 110 - 58.0 cu. ft. (1.64 m 1) Rear seat backrest up, load height - upper edge of backrest 2) Rear seat backrest folded down, load height - upper edge of front seat backrests/lower edge of rear window 3) Rear seat backrest folded down, load height - head lining (ceiling) All specifications are subject to change without prior notice.
  • Page 111 2000 lbs (900 kg). ***See also section "Trailer towing" pg. 163 Engine specifications Engine specifications Designation: Volvo B 5244 T5 Output 257 hp at 5500 rpm (191 kW/92 rps) Max. torque 258 ft. lbs. at 2100-5000 rpm (330 Nm/42-87 rps)

  • Page 112: Engine Oil

    Type: Positive pressure, closed system. The thermostat begins to open at 194 °F (90 °C) Coolant: Volvo original coolant/antifreeze Power steering fluid Volvo synthetic power steering fluid (Pentosin CHF 11S) P/N 1161529 or equivalent. Volume: 0.95 US qts (0.9 liters) Brake fluid DOT 4+ boiling point >536°F(280°C), P/N 9437433...
  • Page 113 Oil: PAG Volume: 2.2 lbs (1,000 g) R134a Fuel Minimum octane requirement - AKI 87 (RON 91) Fuel tank volume: Front wheel drive, non-turbo models - 18.5 US gal. (70 liters) All turbo models - 18 US gal. (68 liters) Washer fluid reservoir Volume: 6.8 US qts (6.4 liters) or 4.8 US qts (4.5 liters) on the V70 R.
  • Page 114 The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of correctly. Your Volvo retailer can assist you in this matter. Generator Rated output: max. current: 140 A Starter motor: Output: 1.7 kW...

  • Page 115: In Canada

    Volvo On Call Roadside Assistance Your new Volvo comes with a four-year On Call Roadside Assistance program. Additional information, features, and benefits are described in a separate information package in your glove compartment. If you have misplaced your package, dial: In the U.S.A.

  • Page 116: Audio Systems

    Features: AM/FM radio, integrated 6-disc CD changer, 4x50W or 4x70W output plus 25W Dolby Pro Logic II, eleven speakers. A subwoofer mounted under the floor in the cargo area is available as an option. Consult your Volvo retailer. Compact disc care •...
  • Page 117 • Do not put tape or labels on the disc itself. • Volvo does not recommend the use of plastic outer rings on the disc. • Condensation may occur on discs/optical components of the changer in cold winter weather. The disc can be dried with a clean, lint-free cloth.
  • Page 118 12. CD slot 13. CD random play 14. FM (select FM1, FM2, FM3) 15. AM (select AM1 or AM2) 16. CD player 17. AUTO - automatically search for radio stations 18. Display pg. 172 Audio system HU-850 - overview 1. On/off - press Volume - turn 2.
  • Page 119 12. Dolby Surround Pro Logic II 13. 2-channel stereo 14. 3-channel stereo 15. CD slot 16. CD random play 17. FM (select FM1, FM2, FM3) 18. AM (select AM1 or AM2) 19. CD player 20. AUTO - automatically search for radio stations 21.
  • Page 120 Volume control - Subwoofer Turn the knob clockwise to increase volume. Turn the knob counterclockwise to lower volume or switch off the subwoofer. When the knob is in the middle, bass effect is "equalized". pg. 174 Radio functions HU-650/HU-850 Sound settings Bass Adjust the bass by pressing the button to extend the control and turning it to the left (less bass) or to the right (more bass).
  • Page 121 This function is used to fine-tune the balance of sound in the speakers. To set the level: 1. Press SOURCE. 2. Turn the SOURCE knob, select ADVANCED MENU and press SOURCE. 3. Turn the SOURCE knob, select AUDIO SETTINGS and press SOURCE. 4.
  • Page 122 will increase the scanning speed after a few seconds. Release the button when the desired frequency appears in the display. The frequency can be fine-tuned by short presses on the keys. The system will remain in manual search mode for 5 seconds after the button is released, after which it will return to seek mode.
  • Page 123 This function automatically searches for and stores up to 10 strong AM or FM stations in a separate memory. If more than ten stations are found, the ten strongest ones are stored. This function is especially useful in areas in which you are not familiar with radio stations or their frequencies.
  • Page 124 2 0 0 5 VOLVO HomeLink® Universal Transceiver (option) pg. 186 HomeLink® Universal Transceiver (option) HomeLink® Universal Transceiver HomeLink® is an advanced system that can be programmed to learn the codes of three different remote controlled- devices (e.g., garage door openers, remote lighting, entry door lock). HomeLink®'s sun visor-mounted transceiver, powered by your car's electrical system, may then be used in place of your hand-held remote controls.
  • Page 125 been successfully programmed. Release both buttons. 5. If you are programming a rolling code-equipped device (e.g., garage door opener or entry door lock), refer to "Programming rolling codes" on the next page to complete the programming process. Repeat steps 3 and 4 to program the other two transceiver buttons. If, after several attempts, you are unable to successfully train the HomeLink®...
  • Page 126 original hand-held transmitter can also be used, as desired, to operate the garage door. The remaining two HomeLink® buttons can be programmed in the same way. In the event of any problems in programming the HomeLink® Universal Transceiver, call toll-free 1-800-355-3515 (Internet: www.HomeLink.com). Operating the HomeLink®...
  • Page 127 Contents Top of Page...

  • Page 128: Index

    2 0 0 5 VOLVO INDEX pg. 189 - 192 Index ABS - warning light Active chassis system Adjusting the steering wheel Air conditioning 52 - 55 Air filter - engine Air vents Airbag (SIPS) Airbag (SRS) Alarm 84, 85 Alarm - "panic"...

  • Page 129: General Information

    - general information Backrest (center) - 3-section rear seat Battery 110, - maintenance - replacing - ventilation hose Booster cushion Brake failure warning light Brake fluid Brake system Bulbs (list) Bulbs - replacing 135-141 Capacities (oils and fluids) 159, Cargo compartment cover Cargo compartment lighting Cargo eyelets Cargo net...

  • Page 130: General Information

    Courtesy light Courtesy lights (front) - replacing Courtesy lights - exterior Cruise control Detachable trailer hitch - installing Dimensions Direction indicators Distributor ignition system Door step courtesy lights - replacing Doors and locks Drive belt Driving economy Driving mode indicator Driving mode W 95, 97, Driving with trunk open...
  • Page 131 Four-C active chassis system Front airbags - SRS 4 - 9 Front airbags - SRS - warning light Front courtesy lights - replacing Front fog lights Front park assist (accessory) Front reading lights Front seats - adjusting 60, 61 Front seats - heated Front suspension Fuel Fuel filler cap...

  • Page 132: Keylock

    HomeLink® 186, 187, 188 Hood - opening HU-650 - overview HU-850 - overview Ignition switch 38, 39 Immobilizer (start inhibitor) Indicator lights 30, 31 Inflatable curtain (IC) Instrument illumination Instrument panel Instruments Integrated booster cushion Interior Air Quality system Interior features - overview Interior lighting ISOFIX child seat anchors Jack...
  • Page 133 Moonroof Net - cargo Nylon cargo net Occupant safety Octane rating Odometer Oil - engine 110, 152, 153 Oil -level (R-models) Oil pressure warning light Opening the hood Paint touch-up Panic function (alarm) Park Assist Parking brake Parking brake reminder light Parking lights Passenger's seat backrest - folding PCV system...

  • Page 134: Seat Belts

    Remote control - Homelink® Universal Transceiver Remote keyless entry system Remote keyless entry system - replacing batteries Removing the seat cushion Replacing bulbs 135-141 Replacing fuses Replacing the battery Replacing wiper blades Road assistance Roadholding Roof load - maximum Roof racks Run flat tires Safety locks - child Seat belt maintenance...
  • Page 135 Trip computer Trip odometer Turn signals Unlocking the tailgate Upholstery - cleaning Vehicle Identification Number (VIN) Ventilation Ventilation hose, battery Volvo On Call Volumes (oils and fluids) Warning flashers Warning light - center Warning lights 30, 31 Warranty Washer fluid reservoir...
  • Page 136 Waxing Weight distribution Wheels and tires 114-127 Whiplash Protection System (WHIPS) Windows - electrically operated Windshield washer solvent Windshield wiper blades - replacing Windshield wipers/washers Winter driving Winter/Wet driving mode 95, 97, Wiper blades - replacing Contents Top of Page...

  • Page 137: Back Cover

    When used properly and safely, they enrich the driving experience. Improperly used, any of these could cause a distraction. For all of these systems, we want to provide the following warning that reflects the strong Volvo concern for your safety: Never use these devices or any feature of your vehicle in a way that distracts you from the task of driving safely.
  • Page 138 the vehicle and others sharing the roadway. Avoiding distractions is part of that responsibility. The following should be checked regularly: * 1 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze). See page 150. 2 Power steering - When cold, the level must not be above the COLD mark and when hot it must not be above the HOT mark.

  • Page 139: Child Safety

    Supplement - SAFETY - AIRBAG LABELS For the V70 and XC70, excluding the V70R, page 6 of your owner's manual shows outdated airbag labels. This supplement shows the correct positions and text of airbag warning labels located on your vehicle's dashboard and sunvisors.
