Orbis

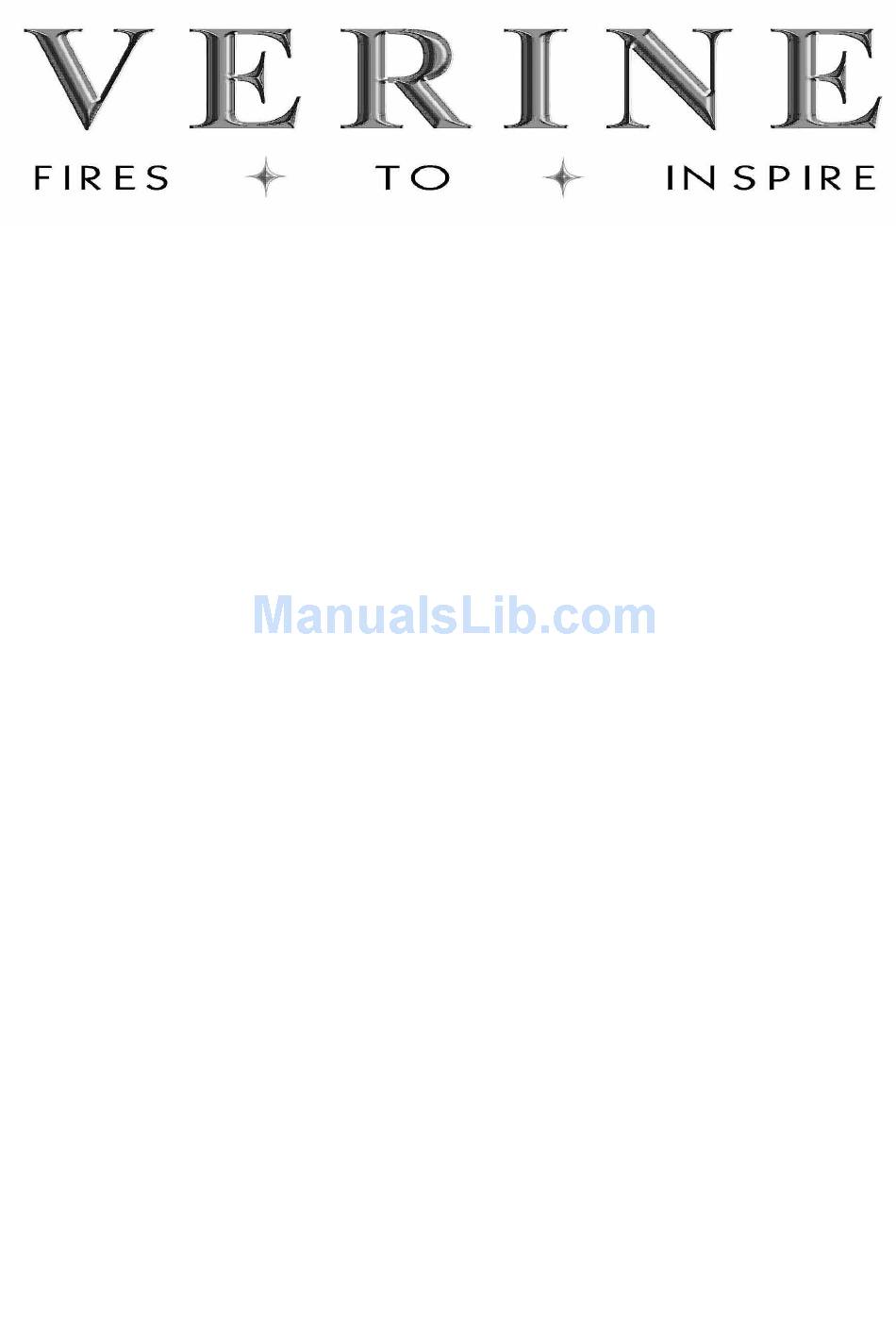

INSET LIVE FUEL-EFFECT GAS FIRES
User Instructions
These instructions should be read by the user before operating the
appliance and retained for future reference
Model No's NVICC**MN, NVICC**SN & NVICC**RN are only for use on
Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.
** denotes trim and fret variant fitted to product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orbis NVICC**RN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Verine Orbis NVICC**RN

Summary of Contents for Verine Orbis NVICC**RN

  • Page 1 Orbis INSET LIVE FUEL-EFFECT GAS FIRES User Instructions These instructions should be read by the user before operating the appliance and retained for future reference Model No’s NVICC**MN, NVICC**SN & NVICC**RN are only for use on Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E. ** denotes trim and fret variant fitted to product...

  • Page 2: Installation Information

    INSTALLATION INFORMATION CONDITIONS OF INSTALLATION It is the law that all gas appliances are installed only by a competent (e.g. CORGI Registered) Installer, in accordance with the installation instructions and the Gas Safety (Installation and Use) Regulations 1998. Failure to install appliances correctly could lead to prosecution.

  • Page 3: Important Safety Information

    ABOUT YOUR NEW VERINE ORBIS GAS FIRE The Verine Orbis coal effect gas fire incorporates a unique and highly developed fuel bed which gives the realism of a loose coal layout combined with realistic flames and glow. The use of durable ceramic material in the construction of the fuelbed components ensures long and trouble free operation.

  • Page 4: Operating The Fire (Manual Control Models)

    The fire must only be operated with a fender which meets the criteria described in the rear of this book. OPERATING THE FIRE (MANUAL CONTROL MODELS) The controls are located behind the ashpan cover which is situated behind the Ashpan / Fender. The controls, comprise a control valve to adjust the gas flow and a push button piezo igniter.

  • Page 5: Operating The Fire (Slide Control Models)

    OPERATING THE FIRE (SLIDE CONTROL MODELS) The controls comprise a control lever, to turn the fire on and off and adjust the gas rate. The control lever is located at the top right hand side of the fire. Depressing the control lever fully operates the igniter and lights the pilot flame and ignition rate gas.
  • Page 6 OPERATING THE FIRE USING THE REMOTE CONTROL HANDSET The Remote control handset generates an infrared signal, which will be received by the sensor situated at the front right of your fire, behind the ashpan cover. This infrared signal requires direct line of sight from the handset to the sensor on the fire to ensure good operation.

  • Page 7: Remote Handset Malfunction

    TURNING THE PRODUCT OFF IN THE UNLIKELY EVENT OF A REMOTE HANDSET MALFUNCTION. In the unlikely event of the remote control handset malfunctioning (or if lost or broken) after the appliance has been turned on, the fire can be turned off via the emergency shut off switch on the control panel. To turn the product off, firstly remove the ashpan from the fire.

  • Page 8: Spillage Monitoring System

    None of these parts must be washed or exposed to any cleaning agents or water. Any damaged parts must be replaced by contacting your dealer or telephoning Verine Fires on the number stated on the rear cover of this book. Coals must only be replaced with a complete and genuine replacement set and the fire must never be run with the wrong number or damaged coals.
  • Page 9 RE-ASSEMBLING FUEL BED AND COMMISSIONING Place the ribbed ceramic fuelbed base on top of the fuelbed support and pull fully forwards to the burner. Make sure that the fuelbed base is located centrally in the fire box. Ensure that the fuelbed base fit fully down onto the fuel bed support and is not lodged on the burner.
  • Page 10 Fit three of the large sized square coals onto the front ceramic rail, and two of the random shaped coals as shown below ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. (See fig. 5 below) Fig.
  • Page 11 Select three of the large random coals and two of the large square coals and arrange as shown behind the second row of coals, using the ribs in the fuelbed matrix as a guide for placement. (See fig. 7 below) Fig.
  • Page 12 The exact position and fit of the coals may be finely adjusted to give the most pleasing and random appearance. This appliance uses fuel effect pieces containing Refractory Ceramic Fibres (R.C.F.), which are man-made vitreous silicate fibres. Excessive exposure to these materials may cause temporary irritation to eyes, skin and respiratory tract.

  • Page 13: User-Replaceable Parts

    CORGI registered gas installer. The part numbers of the user replaceable parts are as follows, these are available from Verine Fires who may be contacted at the address shown on the rear cover. Fuelbed base B-58690 Fuelbed front rails (L/H &...
