Summary of Contents for Stirling XQB75-570

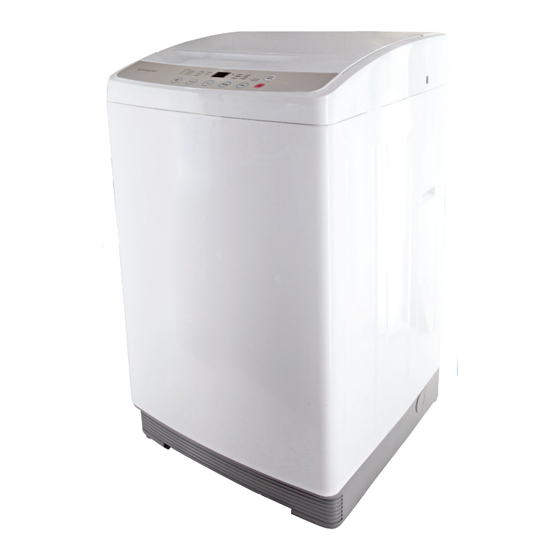

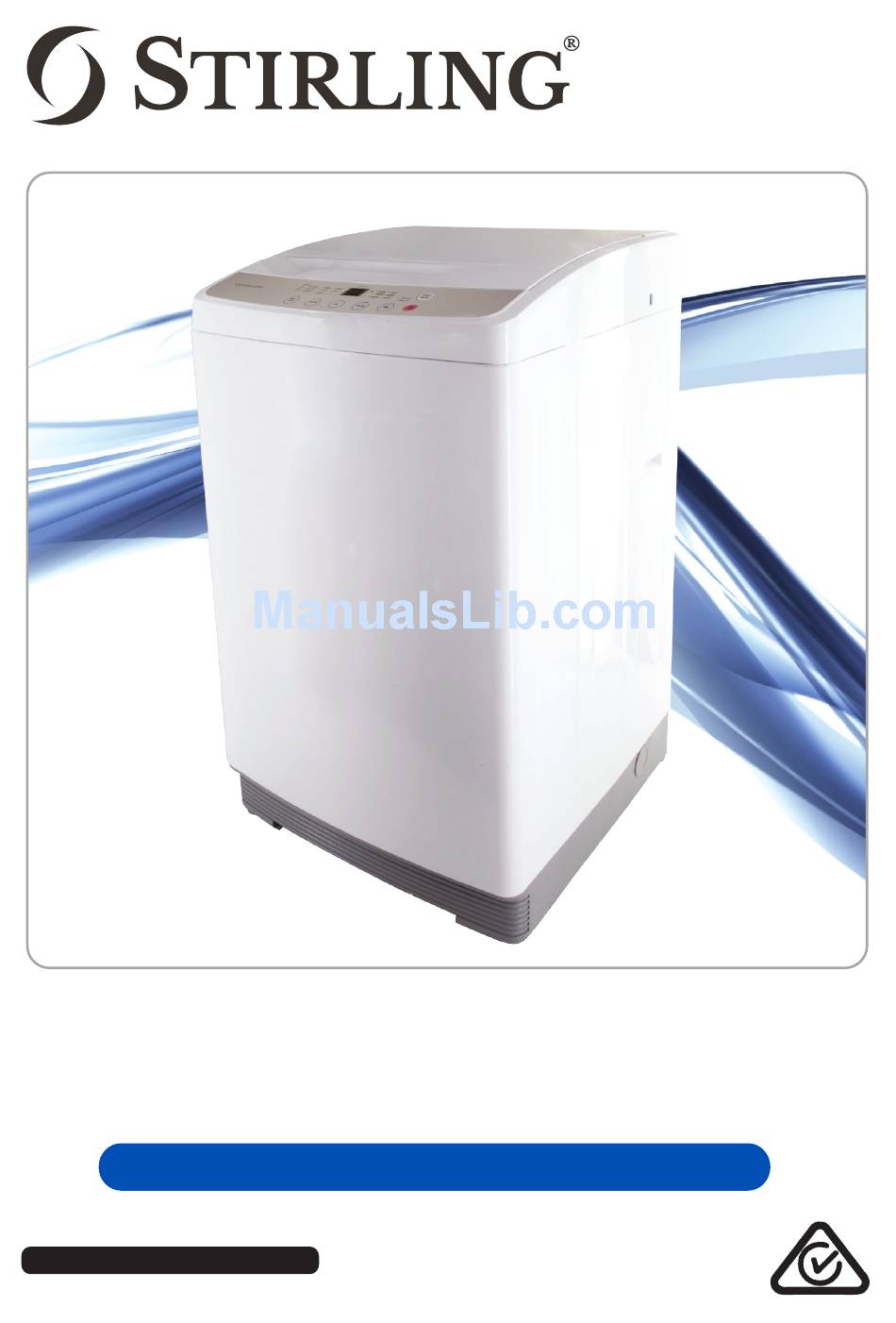

- Page 1 6.5kg Top Load Washing Machine Model Number XQB75-570 INSTRUCTION MANUAL After Sales Support Telephone: 1300 886 649 N13275 Email: info@tempoaustralia.com.au...
-
Page 2: Table Of Contents
Contents Warranty Details Welcome General Safety Instructions Product Overview Getting Started: Installation Features Instructions Other Useful Information Repair and Refurbished Goods or Parts Notice After Sales Support Telephone: 1300 886 649 Email: info@tempoaustralia.com.au... -
Page 3: Warranty Details
6.5kg Top Load Washing Machine Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 4: Welcome
Welcome ® Congratulations on choosing to buy a STIRLING product. ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. We hope you will enjoy using your purchase for many years to come. -
Page 5: General Safety Instructions
General Safety Instructions Warning This heading indicates that there is a serious risk of injury if you do not adhere to the warning(s). This heading indicates that care should be taken to Caution avoid injury to persons or damage to property. A tick in a circle accompanies a measure or action that you should do or follow. -
Page 6: Cleaning And Maintenance
General Safety Instructions (Cont.) Installation • Install the washing machine on a flat surface to avoid overturning during use. • If the machine must be placed on carpet, make sure the ventilation openings in the base are not obstructed. • Connect the washing machine to the water mains using new hose sets. Do not reuse old hose sets. - Page 7 General Safety Instructions (Cont.) Warnings Do not let children climb into the Do not wash clothes that have washing machine or peer into the residue of any flammable rotating spin barrel. materials. Do not use the appliance if the Regularly clean the power plug power cord or plug is damaged to remove dust and dirt and to avoid an electric shock, short...
- Page 8 General Safety Instructions (Cont.) To avoid electric shock, fire and Do not pull out or insert the plug malfunction, do not install this with wet hands to avoid electric machine shock. in a damp place. No wet hands No dampness Cautions Do not allow children to lay or sit Ensure the water inlet hoses...
-
Page 9: Product Overview
Product Overview Front view Front and inside view 1 Lid 2 Bleach inlet 3 Wash/spin tub 4 Softener dispenser 5 Control panel 6 Housing 7 Detergent box 8 Lint filter 9 Pulsator 10 Adjustable leg (1) Back view 11 Water supply hose connections 12 Drain hose connection 13 Drain pump filter... -
Page 10: Getting Started: Installation
Getting Started: Installation Unpacking • Unpack the appliance but keep all packaging materials until you have made sure your new washing machine is undamaged and in good working order. Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach. - Page 11 Getting Started: Installation (Cont.) Connecting the water inlet hoses Install the water inlet hoses to your hot and cold water taps, following the instructions below. • Check and ensure that the sealing washers are firmly in place. • Attach the straight end of the hose to your water taps. Make sure to attach the hot water supply hose (with red markings) to the hot water tap and the cold water supply hose (with blue markings) to the cold water tap.
- Page 12 Getting Started: Installation (Cont.) CAUTION! When tightening the clamping nut, take care not to damage the water inlet valve joint. Apply force evenly and do not twist the water inlet valve. CAUTION! Use only the new (supplied) hoses with your new appliance. Do not use a hose from an existing machine, or one that has been used previously.
- Page 13 Getting Started: Installation (Cont.) CAUTION! • While the washer is in use, make sure the height of the drain hose is at least 70cm, otherwise the washer will not work well, or the water may flow out in the course of washing.
-
Page 14: Features
Features The control panel Detergent indicators Time and preset indicators • These indicate how This indicator shows the This indicator shows during much powder detergent presetting when the washing will remaining time during washing. to use. be finished. • See ‘Detergent and load recommendations’, page 17, for details. - Page 15 Features (Cont.) Start/Pause button Power On/Off button • Press this button to switch the power on; • Press this button to start the press it again to switch the power off. washer operation. • At the end of a washing program, the power •...
-
Page 16: Instructions
Instructions Before you start washing A Make sure the washer is stable and level. If necessary, adjust the On the back adjustable leg to stabilise the washer (see page 10). B Make sure the water inlet hoses are properly installed (see ... - Page 17 Instructions (Cont.) Program selection guide Default settings for individual wash processes Program Suitable items Washing time * Rinse type Spin time (minutes) Normally soiled Soak: 20 minutes Cotton ** 4x Shower rinse cotton clothing/items Wash: 15 minutes Lightly soiled cloth- 2x Water saver rinse 5–12 minutes *** Standard...
- Page 18 Instructions (Cont.) Customising a program This washing machine is equipped with a sensor that will automatically choose the correct water power and level, wash and spin time and rinse type for the STANDARD and HEAVY DUTY programs, you do not have to adjust anything. However, if you want to adjust these values yourself, proceed as follows: ...
- Page 19 Instructions (Cont.) The blanket program Use this program for washing blankets or other bulky items. It will automatically select the highest water level (60L), but you can adjust this manually down to 42L according to the size of your bulky item(s). 1.
- Page 20 Instructions (Cont.) Preset washing (delayed start) This washing machine has a 0 - 24 hour preset function you can set to determine the time when the washing program will finish. (It is, in effect, similar to a ‘delayed start’ function, but you set the time you want the wash to finish rather than to start.) NOTES: * This function is not available for the COTTON and DELICATE programs.
-
Page 21: Other Functions
Instructions (Cont.) Other functions Hot / cold / warm water wash If this top load washing machine is connected to both a cold and a hot water tap, you can set it to use either just cold water for a cold water wash, or just hot water for a hot water wash, or both hot and cold water for a warm water wash. -
Page 22: Memory Function
Instructions (Cont.) Fuzzy control For the STANDARD and HEAVY DUTY programs, the machine automatically detects the weight of your wash load and selects the appropriate water level, wash and spin time and rinse type. For the QUICK program, the machine will automatically choose the water level. -
Page 23: Other Useful Information
Other Useful Information Cleaning and care To prolong the service life of the washing machine, keep it in good condition and perform regular maintenance. For any type of cleaning and maintenance, make sure the washing machine is disconnected from the mains power supply. Cleaning the washing machine (when required) Use a soft cloth to wipe any water or dirt off the washer lid and housing. - Page 24 Other Useful Information (Cont.) Drain pump maintenance We recommend that you clean the drain pump filter regularly (at least once a month) to avoid blockages created by bobby pins, coins and excess lint. Proceed as follows: Disconnect the washer from the power source. If necessary, wait until the water has cooled down.
-
Page 25: Frequently Asked Questions
Other Useful Information (Cont.) Frequently asked questions Not all unusual incidents you may encounter with your washing machine are faults, or cause for concern. Check in the list below what issues may arise and why. Also check in the table on the following page for solutions to other common problems. •... -
Page 26: Error Messages
Other Useful Information (Cont.) Error messages When the following problems occur, the microcomputer inside the washer will detect the abnormal condition. An electronic buzzer will sound for approximately 10 seconds, an error message will flash as shown below and the washer will stop operating. Type of problem Error message Where to check •... - Page 27 Other Useful Information (Cont.) Specifications and technical parameters Unit dimensions 57cm (W) x 59.2cm (D) x 95cm (H) Maximum weight of dry wash load 6.5kg Unit weight 37kg Water quantity (HIGH) 60litres Power source 230-240V, 50Hz Power consumption 400W Required water pressure 0.03MPa –...
-
Page 28: Repair And Refurbished Goods Or Parts Notice
6.5kg Top Load Washing Machine Repair and Refurbished Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of...
