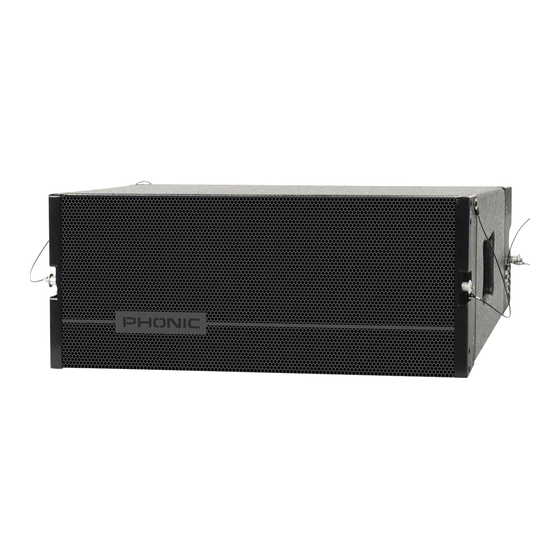

Phonic KT-210A User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KT-8A
KT-210A
User's Manual
Manual del Usuario

Advertisement

Chapters

Table of Contents
loading

Related Manuals for Phonic KT-210A

Summary of Contents for Phonic KT-210A

  • Page 1 KT-8A User's Manual Manual del Usuario KT-210A...
  • Page 2 ESPAÑOL ........II APPENDIX ........III V1.0 06/30/2015 KT-8A / KT-210A...

  • Page 3: Table Of Contents

    USER'S MANUAL CONTENTS INTRODUCTION FEATURES ACCESSORIES CONNECTORS CONFIGURATION W I R I N G ASSEMBLY SUGGESTED CONFIGURATION SAFETY CONSIDERATIONS APPENDIX APPLICATIONS DIMENSIONS Phonic preserves the right to improve or alter any information within this document without prior notice KT-8A / KT-210A...
  • Page 4 , such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or m oisture, does not operate normally , or has been dropped. KT-8A / KT-210A...

  • Page 5: Introduction

    KT- The KT-8A’s tri-amp system provides three amplifier 8A or KT-210A. Remember that safe operation of a channels to drive each of the individual drivers. The speaker is of the utmost importance, so we strongly...

  • Page 6: Assembly

    DIP 8 being set to ON will enable ‘Initialization Mode’ narrower, yet more focused, dispersion. At 10° the for the KT-8A or KT-210A. When in this mode, the sys- array will create a much wider vertical dispersion. tem can be restored and/or new firmware installed.

  • Page 7: Suggested Configuration

    FLIGHT PIN FLIGHT PIN JOINT BAR FLIGHT FRAME (MODEL # FF640) FLIGHT PIN FLIGHT PIN JOINT BAR 0° FLIGHT PIN 10° FLIGHT PIN FLIGHT PIN 10° FLIGHT PIN FLIGHT PIN 10° FLIGHT PIN FLIGHT PIN 10° FLIGHT PIN KT-8A / KT-210A...

  • Page 8: Safety Considerations

    4. Using the included power cable, the ‘MAINS other suspension materials. INPUT’ connection should be connected to an Phonic suggests a safety ratio of 5:1. With this in appropriate power supply. The ‘LINK’ connectors mind, a total load of 200 kg should be the aim when should be connected to the ‘MAINS INPUT’...
  • Page 9 “LF” (low frequency), “MF” (middle frequency) or “HF” (high frequency) controls will cut off their respective frequency ranges. Please note that the KT-210A only features HF and LF while the KT-8A features HF, MF and LF. KT-8A / KT-210A...
  • Page 10 Oct but other slopes are available. FREQUENCY: The frequency is displayed within this window located beside the TYPE pull-down menu. The frequency is adjusted using the icon within the display graph and can be set anywhere between 20Hz and 20kHz. KT-8A / KT-210A...

  • Page 11: Graphic Equalizer

    GEQ BANDS: Each of the 31 bands can be adjusted here. Frequencies available range between 20Hz and 20kHz. Simply click the virtual control and drag it up or down to adjust. The adjustment made will be visible within the display graph. KT-8A / KT-210A...
  • Page 12 LOAD: Selecting load will allow you to recall any of the corresponding band will no longer appear in the the previously saved EQ settings. display graph. RESET: The reset button will return the EQ back to its default settings. KT-8A / KT-210A...
  • Page 13 CROSSOVER Both the KT-8A and KT-210A have an internal cross- LOW PASS FILTER (LPF) FREQUENCY: This field over. This essentially separates the high, mid and low determines the cut-off frequency of the corresponding frequency audio from your main signal to be sent to crossover’s LFP.
  • Page 14 RATIO: This can be used to adjust the compressor input/output signal ratio. This essentially determines the level at which the signal will be cut after the threshold is surpassed. KT-8A / KT-210A...
  • Page 15 SAVE: Push the save button to save the current set- tings of the LIMITER. These are saved locally on the computer and can be recalled at a later time. LOAD: Selecting load will allow you to recall any of the previously saved LIMITER settings. KT-8A / KT-210A...
  • Page 16 DELAY Both the KT-8A and KT-210A feature a delay function. TEMPERATURE: The temperature option allows the An output delay can be applied to the entire speaker user to set the ambient temperature of the current or individual frequency outputs (high, mid and low).
  • Page 17 The “Connect” button When requiring identical settings on multiple speak- should be pushed to establish a connection. ers within the array, Phonic suggests saving the scene after everything is set, then reloading these POWER SETTINGS: The power settings provide scenes on all subsequent speakers.

  • Page 18: Protection Circuitry

    +/- voltage provided to channel groups (1 to 4 and 5 to 8). When the supply voltage exceeds +/- 20%, the power is automatically turned off. When the supply voltage returns within +/- 20%, the power is automati- cally activated. KT-8A / KT-210A...

  • Page 19: Dimensions

    Power Connectors 2 x PowerCON 2 x PowerCON 270 x 580 x 400 mm 300 x 760 x 460 mm Dimensions (HxWxD) (10.6" x 22.8" x 15.7") (11.8" x 29.9" x 18.1") Weight 25 kg (55.1 lbs) KT-8A / KT-210A...

  • Page 20: Manual Del Usuario

    Manual del Usuario CONTENIDO INTRODUCCIÓN CARACTERÍSTICAS ACCESORIOS CONFIGURACIÓN CONECTORES CABLEADO..................2 MONTAJE................2 CONFIGURACIÓN SUGERIDA..........3 CONSIDERACIONES DE SEGURIDAD ESPECIFICACIONES APÉNDICE APLICACIONES DIMENSIONES Phonic se reserva el derecho de mejorar o alterar cualquier información provista dentro de este documento sin previo aviso. KT-8A / KT-210A...
  • Page 21 No usar materiales de suspensión viejos o defectuosos. Lea este manual atentamente y guárdelo para futuras consultas. El uso inapropiado del sistema de suspensión puede provocar lesiones graves o daño crítico a la propiedad. KT-8A / KT-210A...

  • Page 22: Introducción

    Le damos la enhorabuena por comprar otro gran producto Para operar el sistema bi-amp requiere dos canales de Phonic. Los altavoces line array KT-8 lineares fueron de amplificación. Es posible conectar el Tweeter / de cuidadosamente diseñados para proporcionar un ren- gama media y el Woofer, a sus respectivos canales dimiento fenomenal.

  • Page 23: Cableado

    A los 10° las unidades crearán una se recomienda el uso de un cable de altavoz extra- dispersión vertical mucho más amplia. fuerte (calibre 12 mínimo). Phonic sugiere un cable de calibre 10 para distancias más largas. Tenga en cuenta que muy largas distancias pueden resultar 10°...

  • Page 24: Configuración Sugerida

    INSERTOS DE PINES DE CONEXIÓN INSERTOS DE PINES DE CONEXIÓN 10° INSERTOS DE PINES DE CONEXIÓN INSERTOS DE PINES DE CONEXIÓN 10° INSERTOS DE PINES DE CONEXIÓN INSERTOS DE PINES DE CONEXIÓN 10° INSERTOS DE PINES DE CONEXIÓN KT-8A / KT-210A...

  • Page 25: Consideraciones De Seguridad

    Mientras que el marco de construcción de suspensión mejor de 500 Hz a 20 kHz. de los altavoces KT-8 de Phonic tiene una capacidad de resistencia máxima de 1.000 kg, el examen de otros elementos de la instalación debe ser tomado en consideración.

  • Page 26: Especificaciones

    8 mm con espuma acústica especial Color Negro Sistema Aparejo Incluido (0° to 10°) Conectores 2 x Neutrik NL4 Dimensiones (HxWxD) 640 x 380 x 240 mm (25.2" x 15" x 9.4") Peso 26 Kg (57 lbs) KT-8A / KT-210A...

  • Page 27: Aplicaciones

    Array se pueden montar en un ángulo de 0 grados, mientras que los altavoces inferiores pueden ajustar en 8 o 10 grados. Vea la sección “Configuraciones sugeridas” para observar este ejemplo. KT-8A / KT-210A KT-8 KT-8A / KT-210A...
  • Page 28 DIMENSIONS DIMENSIONES 380 / 15 640 / 25.2 380 / 15 640 / 25.2 240 / 9.4 240 / 9.4 8° Measurements are shown in mm/inches Todas las medidas están mostradas en mm/pulgadas KT-8A / KT-210A...
  • Page 29 NOTES KT-8A / KT-210A...
