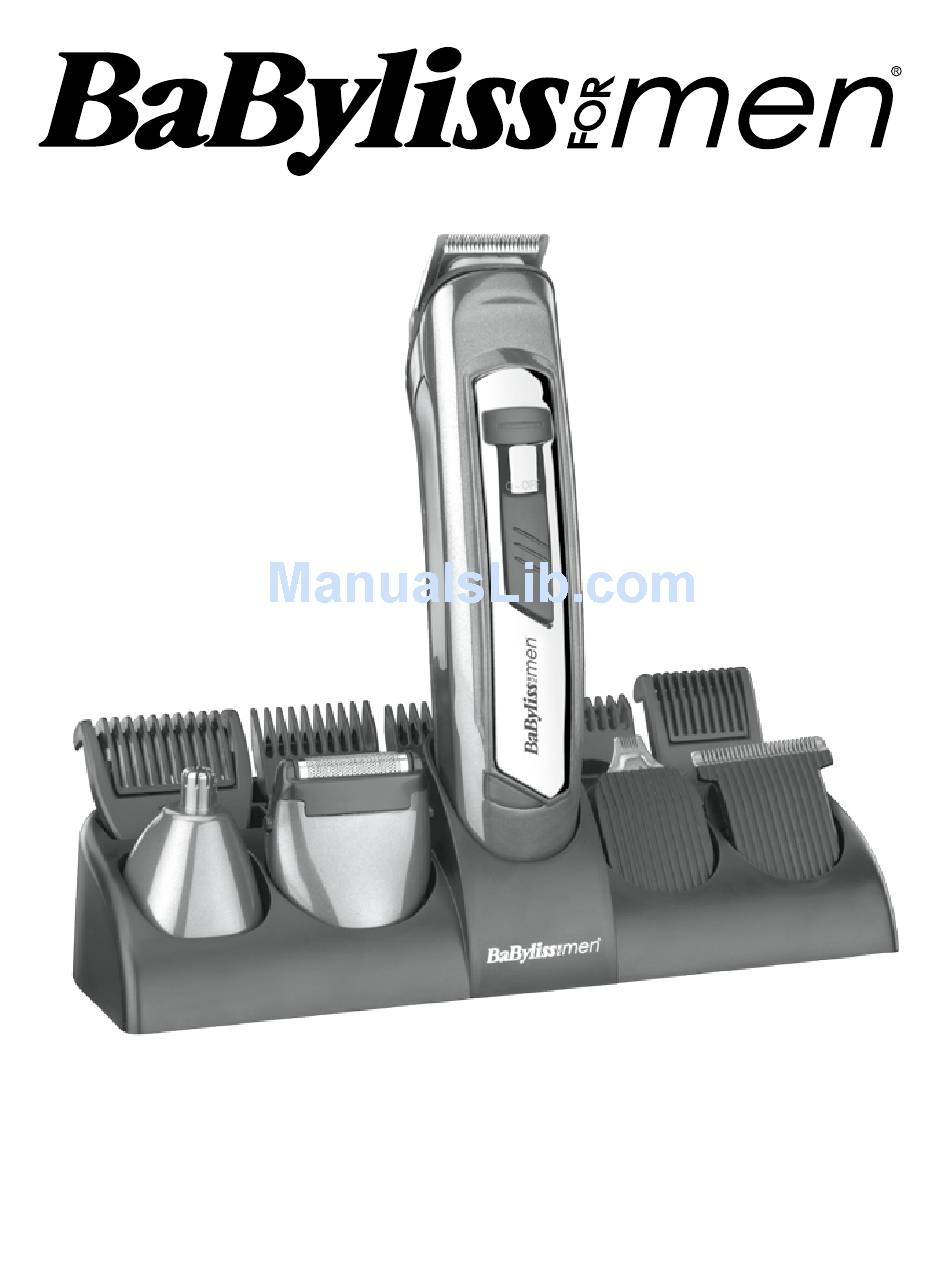

- Page 1 10-in-1 TiTanium GroominG SySTem Model 7235U...
- Page 2 10-in-1 TiTanium GroominG SySTem The BaByliss For Men 10-in-1 Titanium Grooming System is a professional grade rechargeable trimmer with titanium blade technology and 5 interchangeable cutting heads for all over trimming and grooming. Two 5-position comb guides offer a variety of cutting lengths (3-15mm) and the taper control provides super fine cut adjustment (0.5-1.5mm), whilst the...
- Page 3 inSTruCTionS For uSe imPorTanT! Only use the adaptor and attachments supplied with this appliance. inserting the adaptor Cord into the Stand • Remove the trimmer and accessories from the stand. • Insert the adaptor plug into the hole on the base of the stand and push firmly into position.
- Page 4 Preparation for use • Always inspect the appliance before use for noticeable signs of damage. Do not use if damaged. • Ensure the heads are free from hair and debris and that the blades are properly oiled (refer to Cleaning & Maintenance section for further information).
- Page 5 Comb Guides 5-Position Comb Guide For Precision Trimmer: • Ensure the appliance is switched off. • Attach the Precision Trimmer head. • Slide the smaller of the 2 comb guides onto the front of the Precision Trimmer head and push down at the rear to lock into place – you will hear a clicking noise when it’s in position.
- Page 6 5-Position Comb Guide Body Groomer: • Ensure the appliance is switched off. • Attach the Body Groomer head. • Slide the larger of the 2 comb guides onto the front of the Body Groomer head and push down at the rear to lock into place – you will hear a clicking noise when it’s in position.
- Page 7 noTe: The taper control function can only be used with the Precision Trimmer and Body Groomer heads. TrimminG Precision Trimmer using the Precision Trimmer with 5-position comb guide: • Attach the smaller of the 5-position comb guides and select the required length (3-15mm).
- Page 8 using the Precision Trimmer with jaw line blending combs: • Attach one of the three jaw line blending combs (I = 3mm, II = 5mm and III = 7mm). • If you require more than one cutting length, start with the longest length first (7mm).
- Page 9 Body Groomer using the Body Groomer with 5-position comb guide: • Attach the larger of the 5-position comb guides and select the required length (3- 15mm). • Adjust the taper control for super fine cut adjustment as required. • Switch the trimmer on. •...
- Page 10 applying minimal pressure and shaving in the direction of hair growth. • Make sure to be particularly careful when trimming sensitive areas. • For increased trimming performance, press and hold the turbo button, this is often necessary for thicker areas of hair.
- Page 11 Detail Trimmer using the Detail Trimmer: • For accurate tramlines and detailed effects, attach the Detail Trimmer head. • Switch the trimmer on. • Gently move the blade through the area of hair you wish to trim. • The trimmer will work most efficiently when cutting through hair at its own speed.
- Page 12 blades using a few drops of the lubricating oil supplied. Only use the lubricating oil supplied with the appliance as this is specifically formulated for high speed trimmers and does not evaporate or slow the blades. • For instructions on how to re-attach the head, please refer to ‘‘Changing the Heads’’...
- Page 13 • Do not connect the appliance to the mains with wet hands. • Always inspect the appliance before use for noticeable signs of damage. Do not use if damaged, or if the appliance has been dropped. In the event of damage, contact the Conair Customer Care Line (refer to UK After Sales Service section for further information).
- Page 14 Directives 2006/95/EC (Electromagnetic Compatibility) and 2004/108/EC (Electrical Safety of Domestic Appliances). uK GuaranTee This BaByliss For Men appliance is guaranteed for consumer use for 3 years. This guarantee covers defects under normal use from date of purchase and ceases to be valid in the event of alteration or repair by unauthorised persons.
- Page 15 in Guarantee Return the product to the Conair Service Centre at the following address: Conair Service Centre PO Box 506 Wigan WN1 9AA Enclose your name and address, together with proof of purchase and details of the fault. Conair will either repair or replace the product as appropriate.
