73-4602-250
10/11
Rev. 1
Lionel Conventional
Lionel Conventional
GP30 Diesel Locomotive
GP30 Diesel Locomotive
Owner's Manual
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lionel GP30

Summary of Contents for Lionel GP30

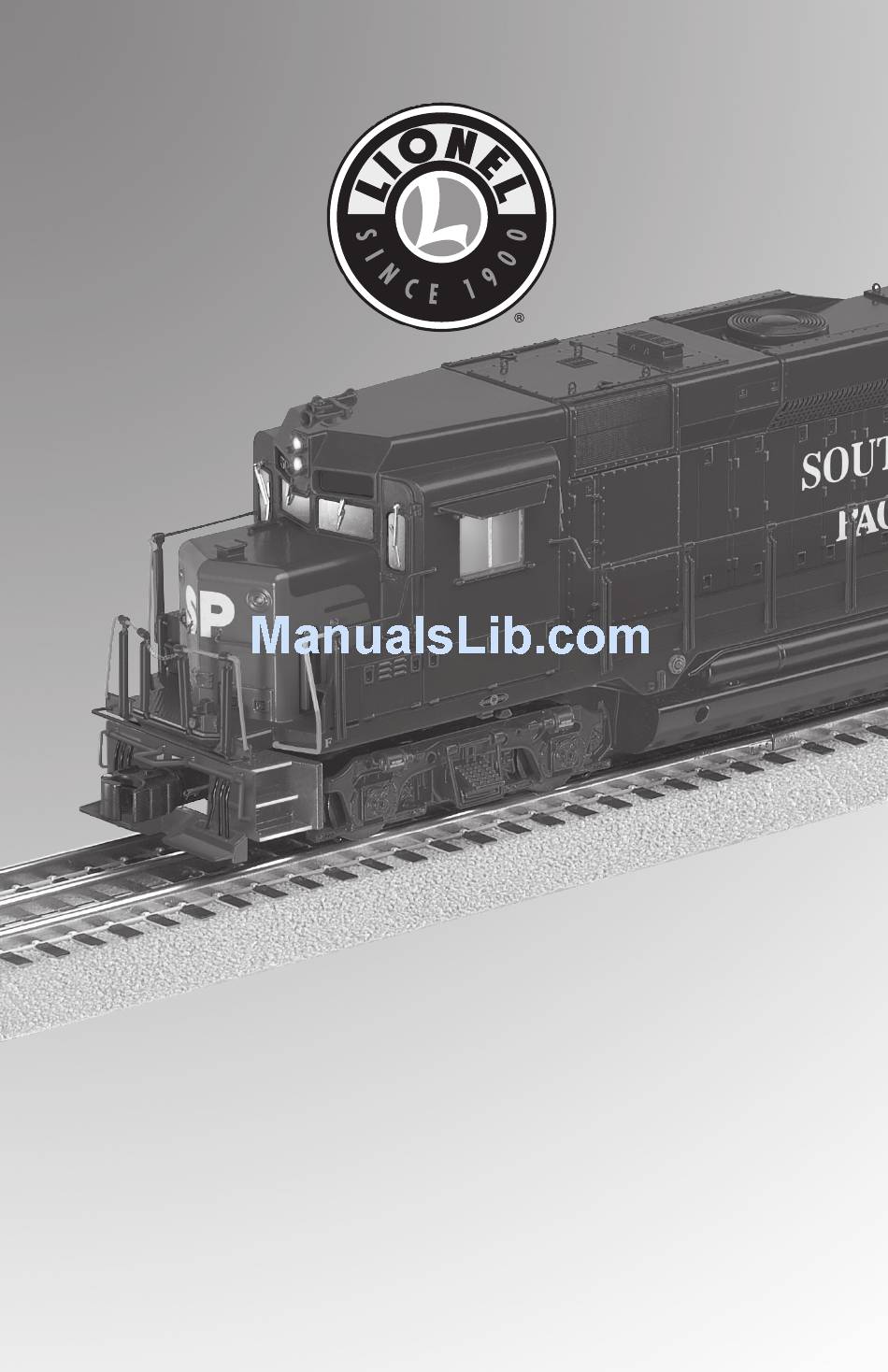

  • Page 1 73-4602-250 10/11 Rev. 1 Lionel Conventional Lionel Conventional GP30 Diesel Locomotive GP30 Diesel Locomotive Owner’s Manual Owner’s Manual...
  • Page 2 • Die-cast metal trucks • Operating headlight • Operating front and rear couplers • Powerful maintenance-free motors with momentum flywheel • Traction tires • Engineer figure • Minimum curve: O-31 The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. Lionel ® , LEGACY ™ , FasTrack ™...

  • Page 3: Table Of Contents

    Running your locomotive Coupling Reverse unit procedure Conventional RailSounds operations Operating the conventional RailSounds sound system Installing a Lionel sound activation button Maintaining and servicing your locomotive Lubricating your locomotive Replacing your locomotive’s LEDs Replacing your locomotive’s traction tires Notes...

  • Page 4: Running Your Locomotive Running Your Locomotive

    Refer to page 5 for information on coupling the cars. Power up your locomotive with your transformer. Your locomotive is designed to operate on 8-18 volts alternating current. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. Do not power your locomotive with direct-current (DC) transformers. Note! The locomotive was designed for use with alternating-current (AC) transformers only.

  • Page 5: Coupling

    Running your locomotive Coupling hen coupling your cars, at least one of the mating couplers must be open as shown at the left in Figure 1. Press down on the lock release to open the coupler, then push the cars toward each other until they lock together.

  • Page 6: Reverse Unit Procedure

    Running your locomotive Reverse unit procedure hen the reverse unit switch is in the RUN position, your locomotive sequences through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on. To “lock” your locomotive into forward operation only, you can deactivate the reverse unit’s sequencing function.

  • Page 7: Conventional Railsounds Operations

    Conventional RailSounds operations Operating the conventional RailSounds sound system hen you power up the locomotive on the track, you will hear the sounds of the locomotive at rest. As the locomotive moves, the RPM sounds automatically increase with the locomotive's speed.

  • Page 8: Installing A Lionel Sound Activation Button

    Conventional RailSounds operations Installing a Lionel Sound Activation Button for conventional opera- tion f your transformer lacks WHISTLE/HORN and BELL buttons, you will need to install Lionel no. 610-5906-001 Sound Activation Buttons (available separately) to activate the locomotive’s whistle and bell sounds.

  • Page 9: Maintaining And Servicing Your Locomotive Lubricating Your Locomotive

    We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do) and avoid getting grease or oil on the locomotive’s wheels, contact rollers, or your track.

  • Page 10: Replacing Your Locomotive's Leds

    Lionel Factory Trained Authorized Service Station. Replacing the traction tires our locomotive is equipped with traction tires (Lionel part no. 6208815206) to increase the tractive effort of your locomotive and allow it to pull more cars at once.

  • Page 11: Notes

    Notes...

  • Page 12: Lionel Limited Warranty Policy & Service

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
