Summary of Contents for HW Group Poseidon2 3266

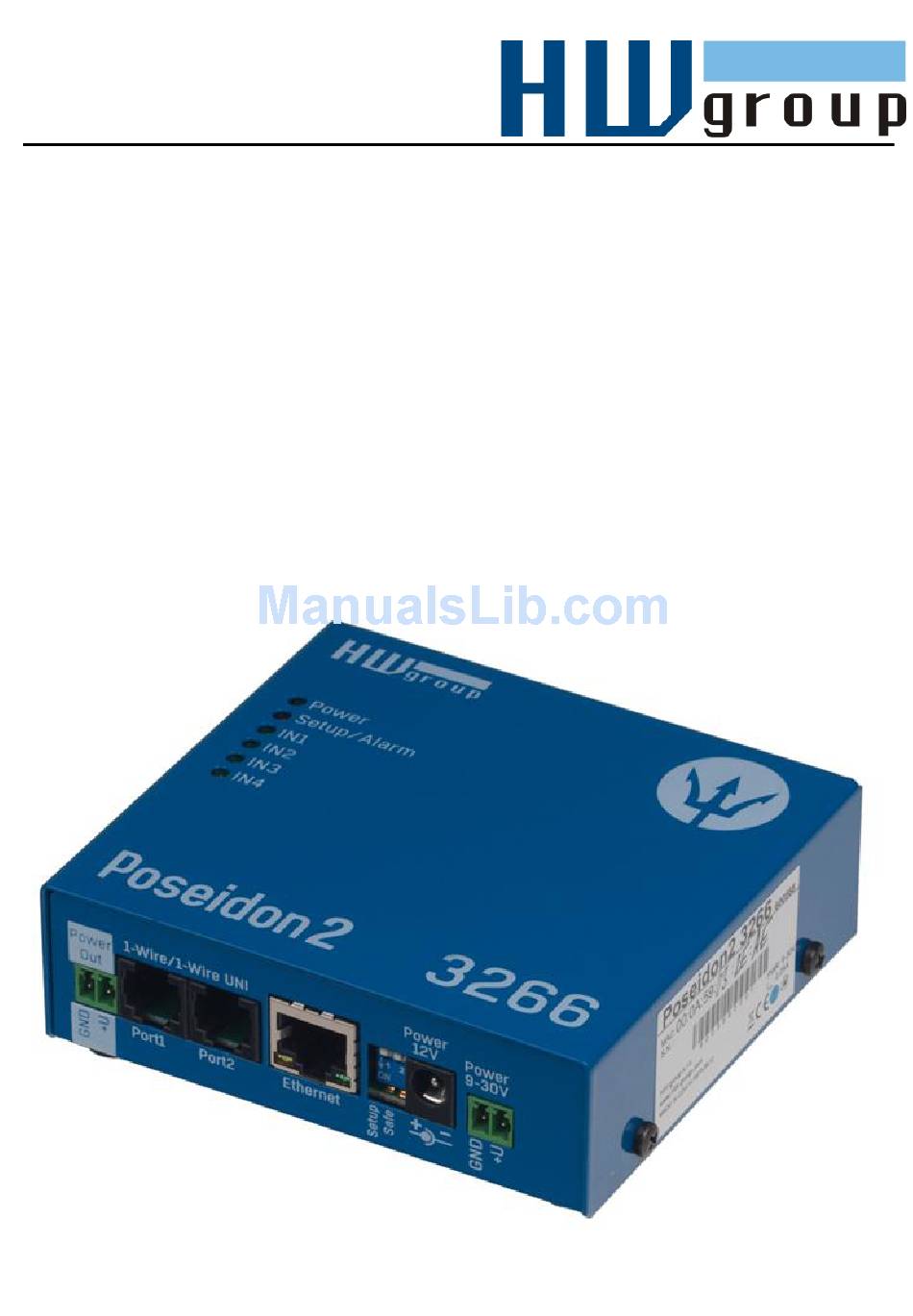

  • Page 1 Poseidon2 3266 MANUAL...
  • Page 2: Safety Information

    Poseidon2 3266 – Manual HW group Safety information The device complies with regulations and industrial standards in force in the Czech Republic and the European Union. The device has been tested and is supplied in working order. To keep the device in this condition, it is necessary to adhere to the following safety and maintenance instructions.
  • Page 3 Poseidon2 3266 – Manual HW group www.HW-group.com...
  • Page 4: Configuring The Ip Address - Udp Config

    Poseidon2 3266 – Manual HW group First steps 1) Connecting the cables  Turn the unit and write down its MAC address that is printed on the label on the side.  Set the switches: DIP1=Off, DIP2=Off.  Connect the unit to the Ethernet (with a patch cable to a switch, cross-over cable to a PC), RJ- 45 port.
  • Page 5: First Steps

    Poseidon2 3266 – Manual HW group First steps Configure the network parameters  IP address / HTTP port (80 by default)  Network mask  Gateway IP address for your network  Device name (optional) Click the Apply Changes button to save the settings.
  • Page 6: Web Interface Of The Device

    Poseidon2 3266 – Manual HW group First steps 4) WWW interface of the device  To open the WWW interface of the device: Enter the IP address into a web browser Click the IP address in UDP Config Click the underlined IP address in UDP SETUP ...
  • Page 7: General Setup

    Poseidon2 3266 – Manual HW group General Setup Device name, e.g. “First floor 1” Three levels of passwords for device security. SNMP 5 destinations for SNMP Traps www.HW-group.com...
  • Page 8 Poseidon2 3266 – Manual HW group E-mail Inserts the specified text at the beginning of the e-mail subject line Sends a test e-mail and shows the connection log Periodic Status Settings  Periodical Status When on, sends an e-mail with device status at the specified intervals. For example every 24 hours (1440 minutes).
  • Page 9 Poseidon2 3266 – Manual HW group IP address of “HWg-SMS-GW” to use for sending text messages (SMS) Recipients' phone no's Log & Time Press to synchronize the time with the specified server www.HW-group.com...
  • Page 10 Poseidon2 3266 – Manual HW group Sensors Scans connected sensors and displays detected sensors Sensor name will be shown Sends a SNMP trap if the “Safe in e-mails, text messages, Range” for this sensor is or SNMP traps exceeded Sends an E-mail if the “Safe Range”...
  • Page 11: Connecting The Inputs

    Poseidon2 3266 – Manual HW group Inputs Enter Digital Input name, ALARM CONTACT STATUS: Reaction to digital inputs: will be shown in e-mails,  Disabled  Active if On text messages or SNMP  Send a SNMP Trap Alarm when the contact...
  • Page 12 Poseidon2 3266 – Manual HW group Portal Message from the portal Enable connection to the remote portal Click to connect to the portal AP (AutoPush) configuration Configures the communication with the portal using the HWg-Push protocol. Poseidon2 is the active party and establishes the connection periodically and/or whenever a change in a sensor value exceeds the configured AutoPush value.
  • Page 13 Poseidon2 3266 – Manual HW group System Uploads new firmware from the PC Communication Monitor This function controls a virtual Digital Input that is available in Inputs as “Com Monitor 1” with an ID of 123. If no communication took place in the specified time using the selected protocols, it sets “Com Monitor 1”...
  • Page 14: Software Applications

    Poseidon2 3266 – Manual HW group Software Applications HWg-PDMS Windows application that logs data from all HW group devices into its internal database. The application runs in the background (NTservice). Data are received from the device over http or e-mail.
  • Page 15 Poseidon2 3266 – Manual HW group PosDamIO Poseidon Damocles I/O is a command-line utility for Windows and Linux that lets you control Poseidon and Damocles units over the XML interface. It can display the states of sensors, inputs and outputs, as well as set an output high or low.
  • Page 16: Specifications

    Poseidon2 3266 – Manual HW group Specifications ETHERNET RJ45 (100BASE-Tx) – 10/100 Mbps network compatible Interface Supported protocols IP: ARP, TCP/IP (HTTP, NTP, SMTP, netGSM, HWg-PUSH), UDP/IP (SNMP) SNMP compatibility Ver.1.00 compatible, partial ver.2.0 implementation Logger Internal memory 250,000 records in flash memory...
  • Page 17: Power Output

    Poseidon2 3266 – Manual HW group Power output Poseidon2 3266 features the PWR OUT terminals for powering connected sensors and detectors. For example a smoke detector. PWR OUT voltage corresponds to the Poseidon 3266 supply voltage! Inputs – Digital (dry contact) inputs Digital input terminals may be connected to voltage-free contacts or the GND pin.
  • Page 18 Poseidon2 3266 – Manual HW group M2M interface The product is ready to be connected with third-party SW applications. For a description of the interfaces (XML format, detailed SNMP description, mapping of Modbus/TCP variables), see the detailed “Poseidon family” manual.
  • Page 19: Restoring Factory Defaults

    Poseidon2 3266 – Manual HW group Updating the firmware over the WEB http://x.x.x.x/upload/ Upload the .hwg firmware file over http to Connection problems etc. must be avoided during file transfer. If the update fails, upload the firmware over RS-232. Firmware in the .HWg format is available at our website, or on the supplied CD.
  • Page 20 Poseidon2 3266 – Manual HW group Contact HW group s.r.o Rumunská 26 / 122 Praha 2, 120 00, Czech republic Tel. +420 222 511 918 Fax. +420 222 513 833 http://www.HW-group.com www.HW-group.com...
