HW Group Poseidon 3262 Starting Manual

Poseidon 3262 – starting guide
Poseidon 3262
Starting Guide – Poseidon 3262
First steps for remote monitoring with Poseidon & GSM

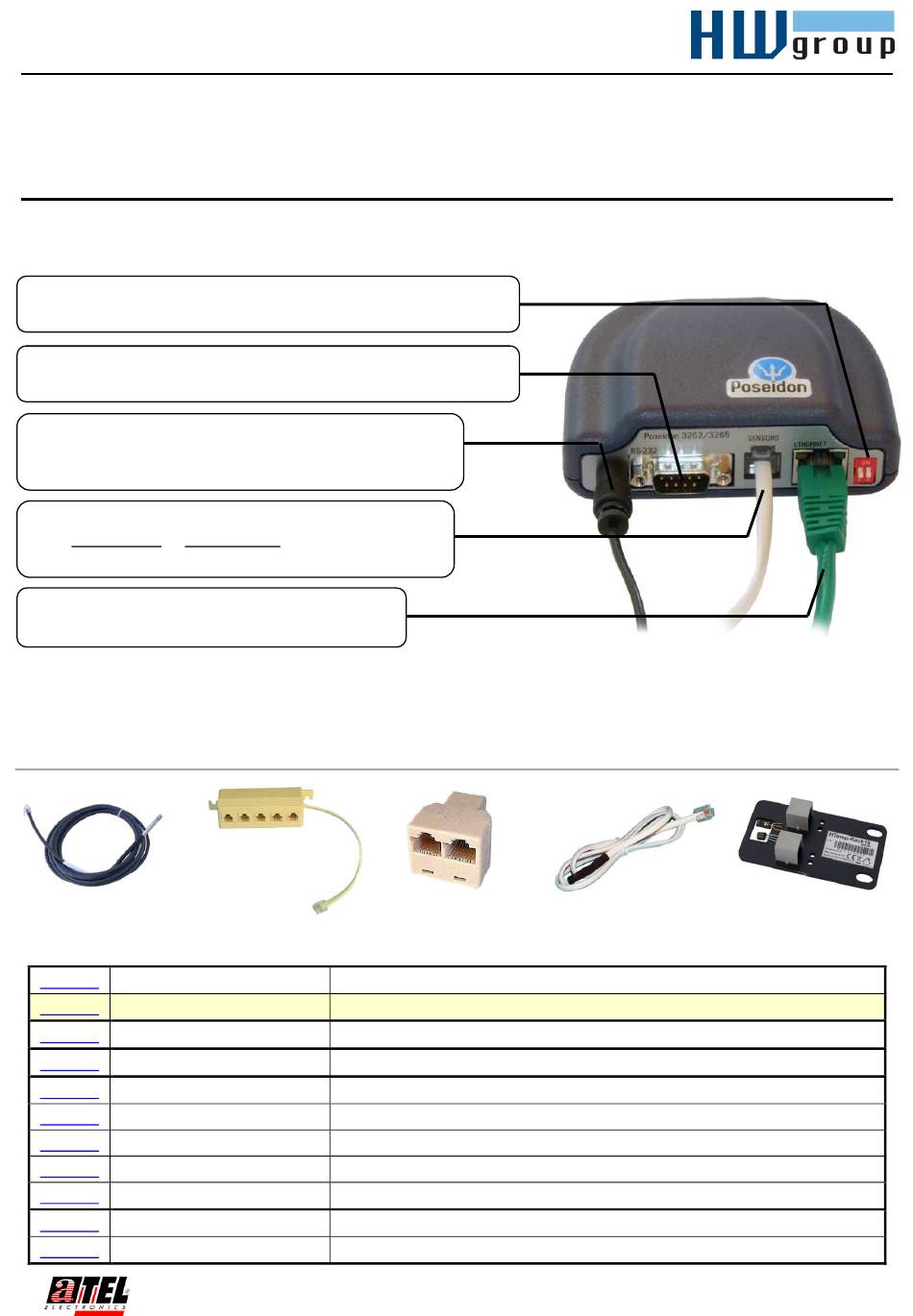

1) Connecting the Poseidon 3262

1.1) Check the DIP switches. For installation, set them as shown
in the picture (DIP1=Off, DIP2=Off).
1.2) RS-232 serial port for connecting a GSM modem or for
configuring the device.
1.3) Connect the power adapter to a mains outlet (230 /

110V) and to the Poseidon power connector. The jack
must be plugged all the way in. The green LED lights up.
1.4) Connect temperature or humidity sensor to the IT
bus (Temp-1Wire or Humid-1Wire – RJ12 jack). The
jack must click in.
1.5) Connect Poseidon to the Ethernet (using a
patch cable to a switch, cross-over cable to a PC)

•
Green POWER LED on the RJ45 socket lights up – power supply is OK
•
Yellow LED on the RJ45 socket blinks – connection to 10 Mbit network is OK
Accessories
Temp-1Wire-Outdoor 3m
600 311
600 166 Poseidon 3262
600 257 Poseidon 3262 Tset
600 242 Temp-1Wire 1m
600 005 Temp-1Wire 3m
Temp-1Wire 10m
600 056
600 311 Temp-1Wire-Outdoor 3m
600 279 Humid-1Wire 3m
600 333 Humid-1Wire 10m
600 330 HTemp-Rack19
600 040 Poseidon T-Box
600 280 Poseidon T-Box2
