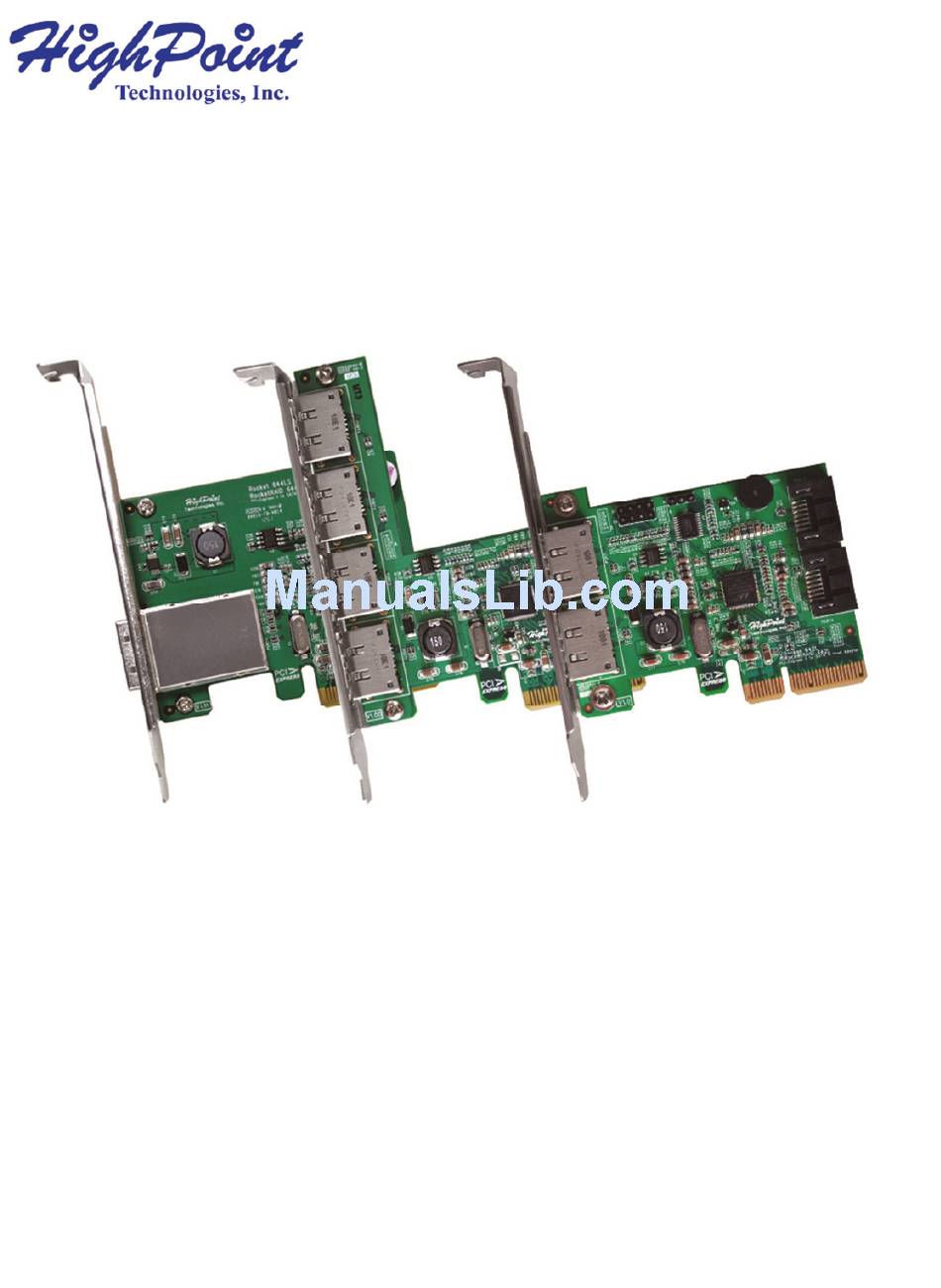

- Page 1 RocketRAID 644L / 644LS / 642L 6Gb/s eSATA PCI-Express 2.0 RAID HBA For Mac Quick Installation Guide v1.1 Jan. 23, 2013...
-
Page 2: Table Of Contents
Table of Contents HighPoint RocketRAID 644L / 644LS / 642L HBA ......3 Kit Contents .................. 3 Board Layout ................4 Hardware Installation ..............5 Using the RocketRAID 642L HBA ..........6 Customer Support ................ 7 FCC Part 15 Class B Radio Frequency Interference Statement ..8... -
Page 3: Highpoint Rocketraid 644L / 644Ls / 642L Hba

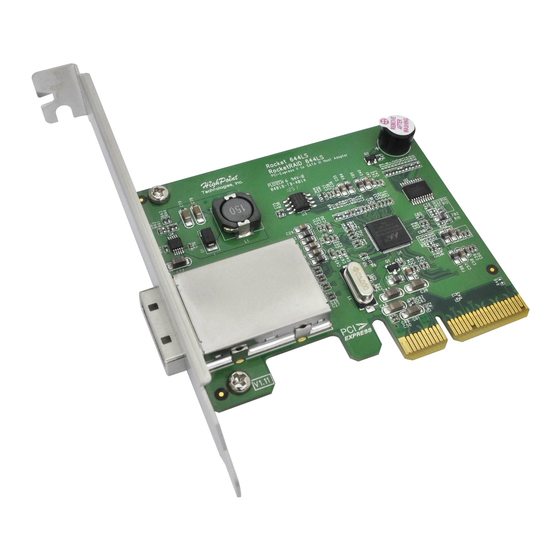

HighPoint RocketRAID 644L / 644LS / 642L HBA HighPoint’s RocketRAID 600L Series HBA’s are the Industry’s most affordable, high-performance, SATA 6Gb/s RAID HBA’s, and are ideal for Mac Pro workstations. These 2nd Generation SATA 6Gb/s host controllers utilize the PCI-Express 2.0 host bus interface,... -
Page 4: Board Layout
Two SATA 6Gb/s cables (RocketRAID 642L only) Board Layout RocketRAID 644L / 644LS / 642L PCB Board Layout... -
Page 5: Hardware Installation
1. Open the system chassis and locate an unused PCI-E x16 slot. 2. Remove the PCI-E slot cover. 3. Gently insert the RocketRAID 644L / 644LS / 642L HBA into the PCI-E slot, and secure the bracket to the system chassis. - Page 6 6. Double-click on the installer package labeled to start the installation process. The Web RAID Management Software (Web GUI) for the RocketRAID 644L / 644LS / 642L will be automatically installed alongside the driver. 7. Follow the onscreen prompts to install the RocketRAID 644L / 644LS / 642L HBA driver and Web RAID Management software.
-
Page 7: Customer Support
Legacy Disk/array. Customer Support If you encounter any problems while utilizing the RocketRAID series HBA, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: http://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. -
Page 8: Fcc Part 15 Class B Radio Frequency Interference Statement
European Union Compliance Statement This Information Technologies Equipment has been tested and found to comply with the following European directives: European Standard EN55022 (1998) Class B European Standard EN55024 (1998) © Copyright 2013 HighPoint Technologies, Inc. All right reserved.
