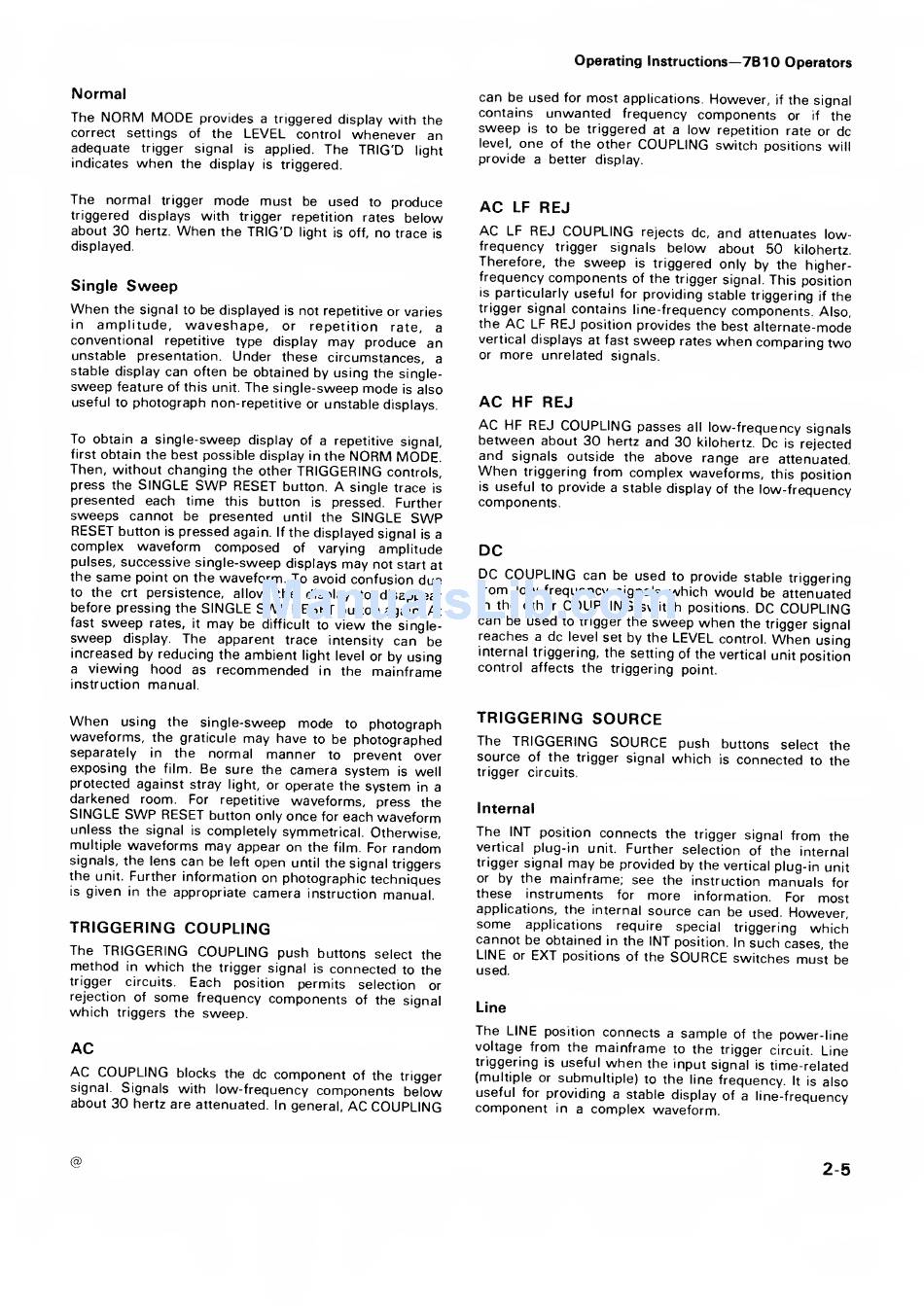

Operating Instructions—
7B10
Operators
Normal
The
NORM MODE
provides
a
triggered display
with the
correct
settings
of
the
LEVEL
control
whenever
an
adequate
trigger
signal
is
applied.
The TRIG'D
light
indicates
when
the display
is
triggered.
The
normal
trigger
mode
must
be
used
to
produce
triggered
displays
with
trigger repetition
rates
below
about
30
hertz.
When
the
TRIG'D
light
is
off,
no
trace
is
displayed.
Single
Sweep
When
the
signal
to
be displayed
is
not
repetitive
or varies
in
amplitude,
waveshape,
or
repetition
rate,
a
conventional
repetitive
type display
may
produce an
unstable
presentation.
Under
these circumstances,
a
stable display
can
often
be obtained by
using the
single-
sweep
feature
of this
unit.
The
single-sweep
mode
is
also
useful to
photograph
non-repetitive
or
unstable
displays.
To
obtain
a
single-sweep
display
of
a repetitive signal,
first
obtain the best possible display
in
the
NORM
MODE.
Then, without changing
the other
TRIGGERING
controls,
press the
SINGLE
SWP
RESET
button.
A
single trace
is
presented each time
this
button
is
pressed.
Further
sweeps
cannot be presented
until
the
SINGLE
SWP
RESET
button
is
pressed
again.
If
the displayed
signal
is
a
complex
waveform
composed
of
varying
amplitude
pulses,
successive single-sweep
displays
may
not
start at
the
same
point
on
the
waveform. To
avoid
confusion
due
to
the
crt
persistence,
allow the
display
to
disappear
before pressing the
SINGLE
SWP
RESET
button
again.
At
fast
sweep
rates,
it
may
be
difficult
to
view
the
single-
sweep
display.
The
apparent
trace
intensity
can be
increased by reducing the
ambient
light level
or
by using
a
viewing
hood
as
recommended
in
the
mainframe
instruction
manual.
When
using
the
single-sweep
mode
to
photograph
waveforms,
the
graticule
may
have
to
be
photographed
separately
in
the
normal
manner
to
prevent
over
exposing the
film.
Be
sure
the
camera system
is
well
protected against
stray
light,
or
operate the
system
in
a
darkened room.
For
repetitive
waveforms,
press the
SINGLE
SWP
RESET
button only
once
for
each
waveform
unless the
signal
is
completely symmetrical. Otherwise,
multiple
waveforms
may
appear on
the
film.
For
random
signals,
the lens
can be
left
open
until
the
signal triggers
the
unit.
Further information
on
photographic techniques
is
given
in
the appropriate
camera
instruction
manual.
TRIGGERING COUPLING
The
TRIGGERING COUPLING
push
buttons
select
the
method
in
which
the
trigger signal
is
connected
to
the
trigger
circuits.
Each
position
permits
selection
or
rejection of
some
frequency
components
of
the
signal
which
triggers
the
sweep.
AC
AC
COUPLING
blocks the dc
component
of
the
trigger
signal.
Signals with
low-frequency
components below
about
30
hertz
are attenuated.
In
general,
AC
COUPLING
can
be
used
for
most
applications.
However,
if
the
signal
contains
unwanted
frequency
components
or
if
the
sweep
is
to
be
triggered
at
a
low
repetition rate or
dc
level,
one
of
the other
COUPLING
switch
positions
will
provide
a better display.
AC
LF
REJ
AC
LF
REJ
COUPLING
rejects dc,
and
attenuates low-
frequency
trigger
signals
below
about
50
kilohertz.
Therefore, the
sweep
is
triggered only
by the higher-
frequency
components
of
the
trigger signal.
This
position
is
particularly
useful
for
providing stable triggering
if
the
trigger signal
contains line-frequency
components.
Also,
the
AC
LF
REJ
position
provides the best
alternate-mode
vertical
displays
at
fast
sweep
rates
when
comparing
two
or
more
unrelated
signals.
AC
HF REJ
AC
HF REJ
COUPLING
passes
all
low-frequency
signals
between
about
30
hertz
and
30
kilohertz.
Dc
is
rejected
and
signals outside the
above range
are attenuated.
When
triggering
from complex waveforms,
this
position
is
useful
to
provide
a
stable display
of
the
low-frequency
components.
DC
DC COUPLING
can
be
used
to
provide
stable triggering
from low-frequency
signals
which would
be attenuated
in
the other
COUPLING
switch
positions.
DC COUPLING
can be used
to trigger
the
sweep
when
the
trigger signal
reaches
a
dc
level
set
by the
LEVEL
control.
When
using
internal triggering,
the
setting
of
the
vertical unit
position
control affects
the
triggering
point.
TRIGGERING
SOURCE
The
TRIGGERING
SOURCE
push
buttons
select
the
source
of
the
trigger signal
which
is
connected
to
the
trigger
circuits.
Internal
The
INT
position
connects
the
trigger signal
from
the
vertical
plug-in
unit.
Further
selection
of
the
internal
trigger signal
may
be provided
by the
vertical
plug-in
unit
or
by the mainframe; see the
instruction
manuals
for
these
instruments
for
more
information.
For
most
applications,
the
internal
source can be
used.
However,
some
applications
require
special
triggering
which
cannot be
obtained
in
the INT
position.
In
such
cases, the
LINE
or
EXT
positions
of
the
SOURCE
switches
must
be
used.
Line
The
LINE
position
connects
a
sample
of
the power-line
voltage
from
the
mainframe
to
the
trigger
circuit.
Line
triggering
is
useful
when
the
input signal
is
time-related
(multiple or
submultiple)
to
the
line
frequency.
It
is
also
useful
for
providing
a stable
display
of
a line-frequency
component
in
a
complex waveform.
