Summary of Contents for spok T52

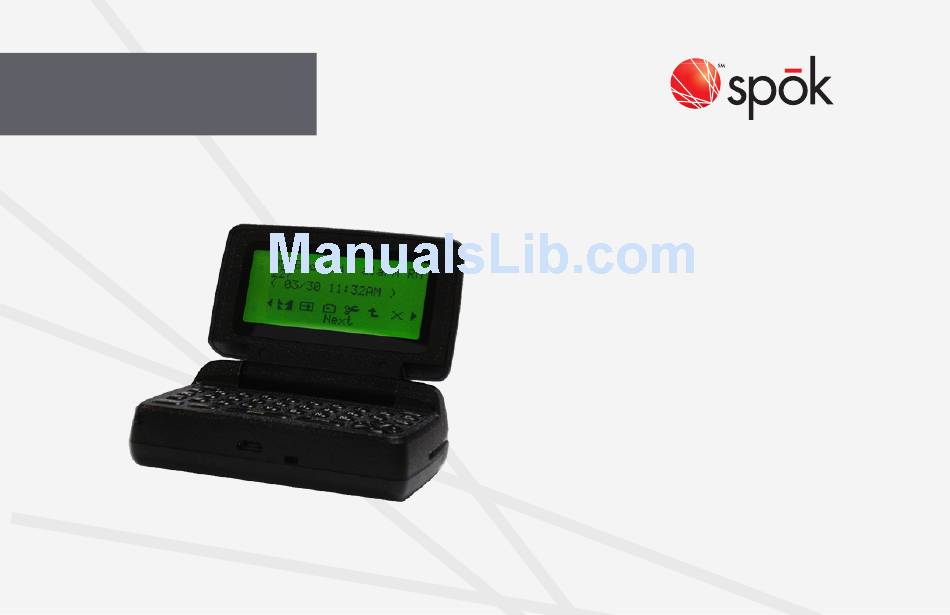

- Page 1 USER GUIDE two-way pager...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Control Buttons ..........3 Setting the Alarm ........18 Getting Started ..........4 Quiet Mode ..........18 Turning Device On ........5 Turning the Transmitter Off .....19 Replacing Battery ........5 Setting Quick Text ........19 Turning Device Off ........6 Setting Private Time ........20 Using the Main Menu .......6 Setting the Screen Saver ......20 Backlight ............7... -
Page 3: Control Buttons
CONTROL BUTTONS Flip Home Clear/Delete Menu Escape/ Navigation Backlight Buttons CAPS Symbol Menu/Space Enter... -
Page 4: Getting Started
GETTING STARTED Houses and protects the LCD screen. Opening the flip awakens the device display and Flip acknowledges a new message alert. Closing the flip puts the screen into sleep mode. Escape/ Used to return to the preceding screen. Also used to turn the backlight on and off. Backlight When pressed, the next character typed is capitalized. -
Page 5: Turning Device On
• Ensure that a AA alkaline battery is properly installed. • Open the lid and press the ENTER key to power on the device. Upon powering on, the T52 will take several seconds to initialize before displaying the Home Screen. -
Page 6: Turning Device Off
TURNING DEVICE OFF • From the Main Menu, press the Navigation button to scroll down to Power Off and press ENTER. • Highlight Yes and press Enter. USING THE MAIN MENU Use the Main Menu for the following features: • Read the received or sent messages •... -
Page 7: Backlight
• In low-light conditions, press and hold ESC to turn on the backlight. • The backlight remains illuminated until the T52 times out and returns to the Standby screen. • To manually turn the backlight off, close and open the flip lid. -
Page 8: Sending A Message
SENDING A MESSAGE This section discusses how to compose a message, select addresses and send a message with the device. Composing a Message From the Main Menu, press the navigation keys, highlight Write and then press Enter. Enter a message. After composing the message, press the Menu key (located at the upper left corner of the keyboard). Menu Options The device will display six menu items. - Page 9 Selecting Addresses Up to twenty addresses from existing contacts can be selected for sending a single message to. • Use Navigation Keys to move the cursor and highlight the desired address. • Press Enter and then use navigation key to select the desired address type. •...
-
Page 10: Reading A Message
READING A MESSAGE • When a Personal message is received, the device displays a pop-up window and alerts according to the InBox Alert setting. (Please see the Setting Alert section of this manual for details on how to set the InBox Alert and the “Setting News/Info InBox”... -
Page 11: Replying To Messages
REPLYING TO MESSAGES For convenience, the device has several pre-programmed reply messages. To reply to a message using one of the pre-programmed replies, proceed as follows. Sending a Pre-Programmed Reply • While previewing or reading a message, press Menu to access the Message Options menu. •... - Page 12 Forwarding Messages • Received messages can be appended to and forwarded from the device. To do so, proceed as follows. • While viewing a message, press Menu to display the Message Options menu. • Press navigation keys to highlight Forward and press Enter. Add text to the message if desired. •...
-
Page 13: Deleting All Read Messages
DELETING ALL READ MESSAGES All read messages in the InBox can be deleted. • While previewing messages, press Menu To display the Message Options Menu. • Press navigation keys to highlight Delete Read and press Enter. DELETING ALL MESSAGES All messages in the InBox can be deleted. •... -
Page 14: Contacts
CONTACTS An individual contact entry may include First Name, Last Name, Wireless Address, Work Email, Home Email, Company, Home Phone, Work Phone, Mobile, Fax, Street, City, State, Zip and Note. In addition, address groups can be defined. Creating a Contact •... - Page 15 Searching the Contacts • Use the Search feature to search the list of Contacts. • Type the first few characters of the Contact’s name to begin the search. • To select the desired Contact, press Enter. Editing a Contact • From the Contacts menu, press navigation keys to highlight the desired Contact and press Enter. •...
-
Page 16: Setting An Alert
SETTING AN ALERT InBox Alert • From the Main menu, press navigation keys to highlight Preferences and press Enter. • Press navigation keys to highlight Alert Setting and press Enter. • Press navigation keys to highlight InBox Alert and press Enter. •... - Page 17 To enable or disable the Reminder Alert feature, proceed as follows. • From the Main menu, press navigation keys to highlight Preferences and press Enter. • Press navigation keys to highlight Alert Setting and press Enter. • Press navigation keys to highlight Reminder Alert and press Enter. •...
-
Page 18: Setting The Alarm
SETTING THE ALARM The alarm can be set for either a specific time and date, or it can be used as a daily alarm. • From the Main menu, press navigation keys to highlight Set Alarm and press Enter. • Use Left/Right keys to select the desired mode (Disable, Once, or Daily). •... -
Page 19: Turning The Transmitter Off
TURNING THE TRANSMITTER OFF Note: When the transmitter is turned off, the device cannot send messages or replies. However, it may still receive messages. • From the Main menu, press navigation keys to highlight Transmitter and press Enter. • Press navigation keys to highlight On or Off as desired. •... -
Page 20: Setting Private Time
SETTING PRIVATE TIME Private Time mode allows a time period to be specified during which the device receives messages and performs all functions without an audible or vibrate alert. • From the Main menu, press navigation keys to highlight Preferences and press Enter. •... -
Page 21: Setting Passcode
SETTING PASSCODE Personal information on the pager can be protected by using the Screen Lock feature. This feature is only available when the pager is provisioned with the message encryption feature. Passcode Set and Clear The options available to set and clear the pager passcode depend on the passcode features enabled by your administrator •... -
Page 22: Message Zoom
MESSAGE ZOOM This feature increases the size of the characters in the message read and write screens for easier viewing. • Enable : 10 Characters 3 lines • Disable : 20 Characters 6 lines • From the Main menu, press navigation keys to highlight Preferences and press Enter. •... -
Page 23: Creating A Signature
CREATING A SIGNATURE The device allows a signature to be created for the message and automatically append it to each message sent. To do so, proceed as follows. • From the Main menu, press navigation keys to highlight Preferences and press Enter. •... -
Page 24: About
ABOUT The About menu item includes information regarding memory, battery and software version. From the Main menu, press navigation keys to highlight Preferences and press Enter. Then, Press navigation keys to highlight About and press Enter. Memory Status • Press navigation keys to highlight Memory Status and press Enter. •... -
Page 25: Care And Maintenance
Cleaning Your T52 To clean your T52 device, use a soft non-abrasive cloth moistened in a mild soap and water solution. Use a second cloth moistened in clean water to wipe the surface clean. DO NOT IMMERSE IN WATER. Do not use alcohol or other cleaning... -
Page 26: Safety Information
(RF) energy. • The communicator (T52) transmitter operates in the frequency range of 896 MHz to 902 MHz, and there receiver operates in the range of 929 MHz to 942 MHz. It utilizes commonly used frequency modulation (FM) techniques. The unit transmits at a power level of max 2W for short periods of time (from 0.078 ~ 0.16 seconds ). -
Page 27: Ul Warning And Caution
UL WARNING AND CAUTION Read this information before using a wearable two-way pager. • This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D or non-hazardous locations only. • Warning – explosion hazard – batteries must only be changed in an area free of ignitable concentrations. •... - Page 28 When communications matter, Spok delivers spok.com © 2016 Spok, Inc. Spok is a trademark of Spok Holdings, Inc. Other names and trademarks may be the property of their respective owners. 8/2016...
