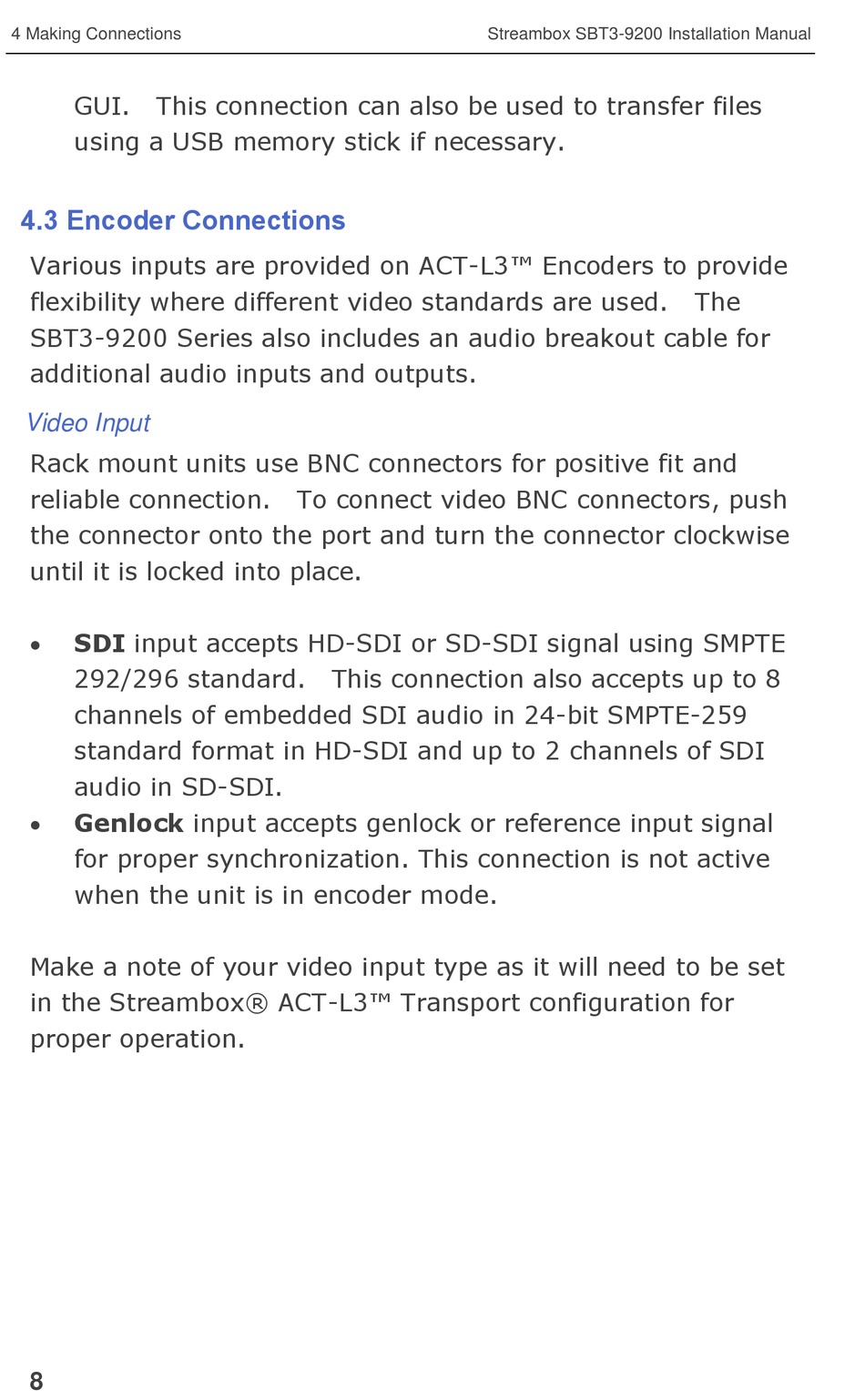

4 Making Connections
GUI. This connection can also be used to transfer files
using a USB memory stick if necessary.

4.3 Encoder Connections

Various inputs are provided on ACT-L3™ Encoders to provide
flexibility where different video standards are used.
SBT3-9200 Series also includes an audio breakout cable for
additional audio inputs and outputs.

Video Input

Rack mount units use BNC connectors for positive fit and
reliable connection.
the connector onto the port and turn the connector clockwise
until it is locked into place.
 SDI input accepts HD-SDI or SD-SDI signal using SMPTE
292/296 standard.
channels of embedded SDI audio in 24-bit SMPTE-259
standard format in HD-SDI and up to 2 channels of SDI
audio in SD-SDI.
 Genlock input accepts genlock or reference input signal
for proper synchronization. This connection is not active
when the unit is in encoder mode.
Make a note of your video input type as it will need to be set
in the Streambox® ACT-L3™ Transport configuration for
proper operation.
