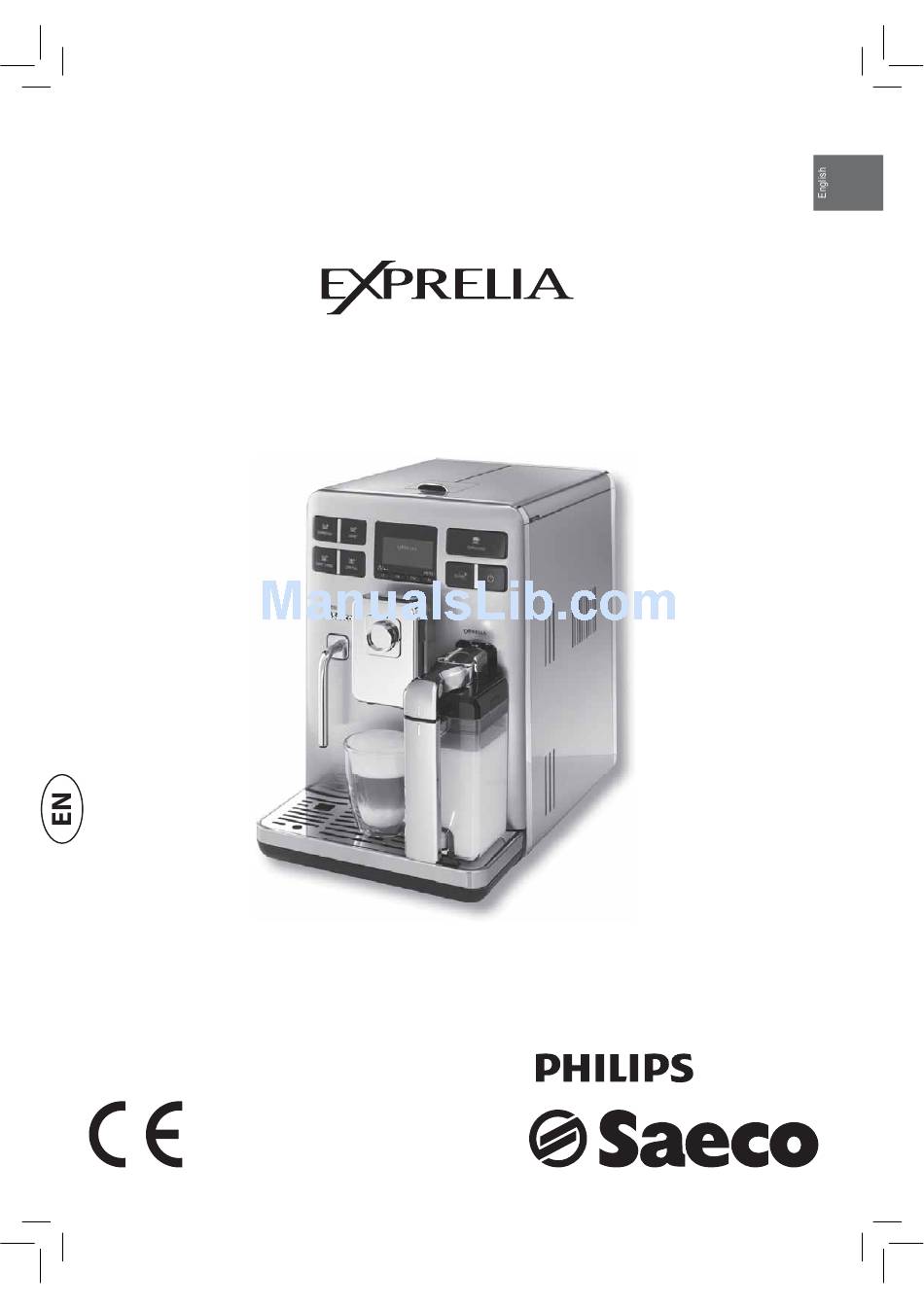

- Page 1 Register your product and get support at www.philips.com/welcome Type HD8854 / HD8856 OPERATING INSTRUCTIONS READ THESE OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THE MACHINE.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in water or other liquid. - Page 3 CAUTION This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine.
- Page 4 CARAFE ASSEMBLY PROCEDURE For correct use of the carafe, refer to the instructions on page 12. The maintenance instructions for the carafe circuits are described on page 34. The disassembly and cleaning instructions for the components are described on page 39. THOROUGHLY CLEAN THE CARAFE AT FIRST USE AND AFTER A LONG PERIOD OF INACTIVITY.
-
Page 5: Table Of Contents
INDEX GENERAL INFORMATION ............. . . 2 MACHINE COMPONENTS &... -
Page 6: General Information
GENERAL INFORMATION TECHNICAL DATA GENERAL INFORMATION HOW TO USE THESE INSTRUCTIONS This coffee machine is suitable for preparing espresso Keep these operating instructions in a safe place and make them coffee using coffee beans and is equipped with a device to dispense steam and hot water. -
Page 7: Machine Components & Accessories Control Panel
MACHINE COMPONENTS AND ACCESSORIES CONTROL PANEL COMPONENTI APPARECCHIO SBS dial 19 Milk carafe Full drip tray indicator 21 Water hardness test strip Grinder adjustment Control panel 23 Descaling solution 10 Milk container couplings 11 Dispensing spout 12 Drip tray + grill + sealed support 27 Cleaning brush 28 Carafe coupling cap CONTROL PANEL... -
Page 8: Installation
INSTALLATION STARTING THE MACHINE inner lid. hopper. inner lid. Replace the inner lid and close the outer lid. Insert the plug into the socket located on the back of the machine and insert into the machine. suitable current. When the correct temperature is reached, the machine performs a priming and rinsing cycle of the internal circuits. -
Page 9: Setting The Language
SETTING THE LANGUAGE LINGUA LINGUA HEATING UP… ITALIANO ITALIANO ENGLISH ENGLISH DEUTSCH DEUTSCH Select the desired language by pressing phase. Wait until it is completed. RINSING STOP machine performs a rinsing cycle of the Wait for this cycle to be completed internal circuits. -
Page 10: First Use - Use After A Period Of Inactivity
INSTALLATION FIRST USE USE AFTER A PERIOD OF INACTIVITY A few simple operations are needed to ensure the quality of your favourite beverages over time. Press the button once or more until the Select the product by pressing the icon is displayed. -
Page 11: Intenza Water Filter
INTENZA WATER FILTER Remove the water fi lter from its packaging, immerse it vertically (with the opening positioned upwards) in cold water and gently press its sides to let the air bubbles out. tank and store it in a dry place sheltered from dust. -
Page 12: Adjustments
ADJUSTMENTS COFFEE STRENGTH SBS SBS – SAECO BREWING SYSTEM MEDIUM COFFEE MILD STRONG COFFEE COFFEE OPTIDOSE ADJUSTS THE AMOUNT OF COFFEE TO GRIND Press the " = mild dose = medium dose = strong dose... -
Page 13: Saeco Adapting System
SAECO ADAPTING SYSTEM COFFEE GRINDER ADJUSTMENT Important Note: Adjustments to the coff ee grinder can be made only when the grinder is being used. This phase takes place during the fi rst part of a coff ee brewing. Press and turn. grinding. -
Page 14: Dispensing Spout Height Adjustment
ADJUSTMENTS DISPENSING SPOUT HEIGHT ADJUSTMENT Note: In some cases the dispensing spout can be removed to allow the use of very large containers. -
Page 15: Stand-By
STANDBY MODE Note: 1 The stand-by mode cannot be activated if the service door is left open. 2 The stand-by activation time can be changed in the "MACHINE MENU" on page 26. 3 When the stand-by mode is activated, the machine performs a rinse cycle of the internal circuits, if necessary. -
Page 16: Milk Carafe Use
MILK CARAFE USE Note: Before using the carafe, make sure it is thoroughly clean and sanitary. If milk is left in the carafe, make sure it is still suitable for food consumption before using it. A = Carafe holes B = Carafe pins refrigerator. - Page 17 DO NOT FORCE THE INCLINATION OF THE CARAFE. place. REMOVING THE CARAFE DO NOT FORCE THE INCLINATION OF THE CARAFE. pull until it releases.
-
Page 18: Coffee Brewing
COFFEE BREWING ESPRESSO / COFFEE / LONG COFFEE ESPRESSO ESPRESSO STOP The machine starts grinding the selected ESPRESSO pressing "STOP". STOP... -
Page 19: Beverage Brewing With Pre-Ground Coffee
BEVERAGE BREWING WITH PREGROUND COFFEE Place 1 cup under the dispensing spout. Select the product desired by pressing the icon appears on the display screen. the corresponding button. INSERT INSERT GROUND COFFEE GROUND COFFEE AND PRESS OK AND PRESS OK A message reminds the user to pour Lift the door and open it. -
Page 20: Cappuccino
CAPPUCCINO PRODUCT BREWING AT THE BEGINNING OF THE DISPENSING PHASE, THE MACHINE MAY PRODUCE SOME SPURTS OF MILK AND STEAM: RISK OF SCALDING! ALWAYS WAIT FOR THE CYCLE TO END BEFORE REMOVING THE CONTAINER. REFER TO THE SECTION "MILK CARAFE USE" (SEE PAGE 12). Rotate the handle upper part of the Select the desired milk product by can select only one milk product at a... -
Page 21: Cleaning Cycle
CICLO PULIZIA: CLEAN starts the automatic cleaning Upon completion of the cleaning cycle cappuccino and place the handle back to the initial position. refrigerator. NEVER SEIZE THE CARAFE HANDLE DURING THE CLEANING CYCLE: RISK OF SCALDING! CLEANING CYCLE Place the container as described on Press the cleaning cycle button. -
Page 22: Special Beverages
SPECIAL BEVERAGES SPECIAL BEVERAGES WARNING: DISPENSING MAY BE PRECEDED BY SHORT SPURTS OF HOT WATER AND SCALDING IS POSSIBLE. THE STEAM/HOT WATER WAND MAY REACH HIGH TEMPERATURES: DO NOT TOUCH WITH BARE HANDS. USE THE APPROPRIATE HANDLE ONLY. SPECIAL BEVERAGES SPECIAL BEVERAGES LATTE MACCHIATO LATTE MACCHIATO... -
Page 23: Latte Macchiato
LATTE MACCHIATO SPECIAL BEVERAGES LATTE MACCHIATO HOT MILK HOT WATER Place the cup. Rotate the upper part of After selecting "LATTE MACCHIATO" press the container handle on the cup. HOT MILK SPECIAL BEVERAGES LATTE MACCHIATO HOT MILK HOT WATER Place the cup. Rotate the upper part of the container handle on the cup. -
Page 24: Hot Water
SPECIAL BEVERAGES HOT WATER DISPENSING WARNING: DISPENSING MAY BE PRECEDED BY SHORT SPURTS OF HOT WATER AND SCALDING IS POSSIBLE. THE STEAM/HOT WATER WAND MAY REACH HIGH TEMPERATURES: DO NOT TOUCH WITH BARE HANDS. USE THE APPROPRIATE HANDLE ONLY. SPECIAL BEVERAGES HOT MILK HOT WATER STEAM... -
Page 25: Beverage Length Quick Programming
BEVERAGE LENGTH QUICK PROGRAMMING BREWING MAY BE PRECEDED BY SHORT SPURTS OF MILK AND STEAM: RISK OF SCALDING! REFER TO THE SECTION "MILK CONTAINER USE". Rotate the upper part of the container Hold the button pressed for 3 seconds to start programming. -
Page 26: Beverage Menu
BEVERAGE MENU MENU BEVERAGE MENU MACHINE MENU Press the MENU button to access the Press the OK button to access the machine main menu. BEVERAGE MENU. BEVERAGE MENU ESPRESSO CAFFE’ CAFFE’ LUNGO Scrolling/Selection button Scrolling/Selection button DEFAULT... - Page 27 CAPPUCCINO COFFEE QUANTITY PREBREWING COFFEE TEMPERATURE COFFEE QUANTITY MILD = mild dose MEDIUM = medium dose STRONG = strong dose PREBREWING COFFEE TEMPERATURE COFFEE LENGTH...
- Page 28 BEVERAGE MENU CAPPUCCINO COFFEE QUANTITY PREBREWING COFFEE TEMPERATURE MILK QUANTITY HOT WATER WATER QUANTITY DEFAULT WATER QUANTITY be dispensed.
-
Page 29: Machine Menu
MACHINE MENU MENU BEVERAGE MENU MACHINE MENU Press the MENU button to access the machine main menu. button. Press the OK button to access the MACHINE MENU. MACHINE MENU GENERAL MENU DISPLAY MENU WATER MENU Scrolling/Selection button Scrolling/Selection button... - Page 30 MACHINE MENU GENERAL MENU GENERAL MENU To change the machine operation settings. TONE ECOMODE starts up to be immediately able to dispense all kinds of STAND-BY The default time value is "after 1 hour". 15 MINUTES Press any button to turn the machine on again. After performing 30 MINUTES again ready for use.
- Page 31 MENU DISPLAY DISPLAY MENU This setting is of fundamental importance for correctly adjusting the LANGUAGE ENGLISH The currently selected language is displayed. BRIGHTNESS To set the correct display brightness according to the room illumination.
- Page 32 MACHINE MENU WATER MENU WATER MENU HARDNESS right moment. Measure water hardness as shown on page 5. ENABLE FILTER needs to be replaced. ACTIVATE FILTER...
- Page 33 MAINTENANCE MAINTENANCE COUNTERS BREW GROUP CARAFE CLEANING Note: This wash cycle is fundamental for a correct maintenance of the carafe. DESCALING This function enables automatic cleaning of the carafe after each dispensing CARAFE CLEAN FACTORY SETTINGS FACTORY SETTINGS Note: By restoring the factory settings, all the personal parameters are lost.
-
Page 34: Maintenance
MAINTENANCE BREW GROUP CLEANING CYCLE WASH CYCLES CANNOT BE STOPPED. DO NOT LEAVE THE MACHINE UNATTENDED DURING THIS OPERATION. PERFORM BREW MAINTENANCE REFILL GROUP CLEANING? WATER TANK COUNTERS BREW GROUP CLEAN CARAFE CLEANING Select the menu option. INSERT GROUP CLEAN TAB Insert the cleaning tablet into the bypass After inserting the tablet, press the "OK"... - Page 35 BOILER DESCALING CYCLE MENU this cycle; it automatically controls the distribution of the descaling solution. In case of confl ict, priority must be given to what is indicated in the operation and maintenance manual over the instructions provided on separately sold accessories and materials. DO NOT LEAVE THE MACHINE UNATTENDED DURING THIS OPERATION.
- Page 36 MAINTENANCE FILL HALF CARAFE PLACE A CONTAINER EMPTY TRAY UNDER WITH WATER. INSERT UNDER HOT WATER & BREW GROUP IN BREW. POSITION CARAFE DISP SPOUT Empty the drip tray placed under the Place a container under the dispensing spout and a container under the hot then replace it on the machine.
- Page 37 STEP 2/2 RINSING PLACE A CONTAINER STEP 2/2 RINSING UNDER HOT WATER & CARAFE DISP SPOUT PAUSE PAUSE Place a container under the dispensing If the containers need to be emptied, spout and a container under the hot press the "PAUSE" button Then, press the "OK"...
- Page 38 MAINTENANCE MILK CIRCUIT MAINTENANCE WASH CYCLES CANNOT BE STOPPED. DO NOT LEAVE THE MACHINE UNATTENDED DURING THIS OPERATION. MAINTENANCE START CARAFE REFILL WASHING? BREW GROUP CLEAN WATER TANK CARAFE CLEANING DESCALING Select the menu option. Press on the sides and lift the lid. machine and its content emptied.
- Page 39 POUR DETERGENT INTO CARAFE & FILL WITH WATER Place a large empty container under the place. dispensing spout. Rotate the upper part of REFILL CARAFE CLEANING FILL CARAFE WATER TANK WITH FRESH WATER CARAFE RINSING Upon completion of the cleaning Place a large empty container under the dispensing spout.
-
Page 40: Cleaning
CLEANING MAINTENANCE DURING OPERATION door. Correctly reinstall all the components. -
Page 41: General Machine Cleaning
GENERAL MACHINE CLEANING WARNING! Never immerse the machine in water. it taking care of the seal area. Reinstall drying it, reassemble and reinsert it in the machine. a dry cloth. -
Page 42: Brew Group Cleaning
CLEANING BREW GROUP CLEANING center. WARNING! Do not wash the brew group with detergents that may compromise its correct operation. Do not wash it in the dishwasher. dry. the supplied lubricant. Make sure the components are in the guides. be in the correct position; to check its DO NOT PRESS THE “PUSH”... -
Page 43: Milk Carafe Cleaning
MILK CARAFE CLEANING This procedure guarantees the perfect sanitation of all components. Note: Pay attention to how the components are assembled. This little shrewdness will facilitate the subsequent reassembling. Disengage the handle by rotating it Press on the sides and lift the lid. machine and emptied for its cleaning. -
Page 44: Milk Carafe Assembly
CLEANING MILK CARAFE ASSEMBLY Pay attention during the assembly phase. In case the components do not smoothly enter in their positions, read the instructions more carefully and repeat the assembly procedure. Note: The inner side of the service door shows a quick guide on how to reassemble the carafe. press until fully inserting it. -
Page 45: Machine Warnings
MACHINE WARNINGS Help Message Displayed How to Reset the Message CLOSE HOPPER DOOR ADD COFFEE INSERT BREW GROUP INSERT COFFEE GROUNDS DRAWER container. EMPTY COFFEE Note: The used grounds drawer must be emptied only when the machine GROUNDS DRAWER requires it and with the machine on. If you empty the drawer with the machine turned off it will not record the emptying operation. - Page 46 MACHINE WARNINGS Help Message Displayed How to Reset the Message spout to be placed into dispensing position. TURN CARAFE INTO BREWING POSITION Press the button "ESC" to cancel the selection. The carafe rinse function has been selected. TURN CARAFE INTO Press the button "ESC"...
-
Page 47: Safety Rules
SAFETY RULES IN CASE OF EMERGENCY IMMEDIATELY UNPLUG THE CORD FROM THE OUTLET. ONLY USE THE APPLIANCE of the appliance by a person responsible for their safety. PRECAUTIONS FOR THE USE OF THE MACHINE CONNECTION TO ELECTRICAL POWER country. INSTALLATION easy reach. - Page 48 SAFETY RULES DANGERS FAILURES CLEANING / DESCALING must not be used for other purposes. REPLACEMENT PARTS For safety reasons, use only original replacement parts and original accessories. WASTE DISPOSAL FIRE SAFETY ADDITIONAL INFORMATION FOR THE CORRECT USE OF THE INTENZA WATER FILTER Do not store it in direct sunlight.
- Page 49 EC 2006/95, EC 2004/108. SAECO INTERNATIONAL GROUP S.P.A AUTOMATIC COFFEE MAKER HD8854 HD8856 to which this declaration relates is in conformity with the following standards or other normative documents : Particular requirements for appliances for heating liquids following the provisions of the Directives: EC 2006/95 , EC 2004/108.
- Page 52 The manufacturer reserves the right to change the features of the product without prior notice. www.philips.com/saeco...
