Summary of Contents for VADA V30-RC

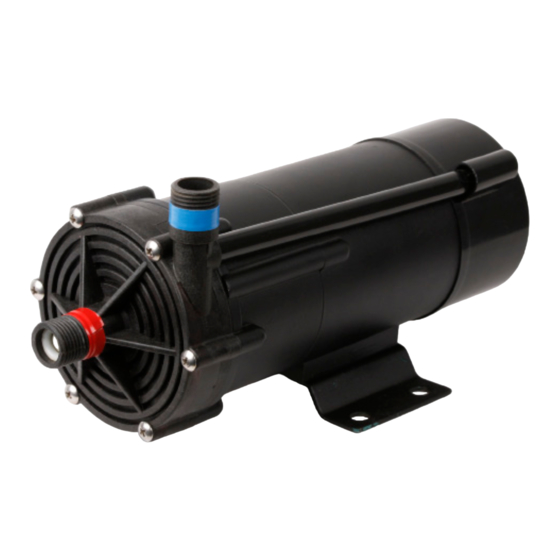

- Page 1 V30-RC Hot Water Pump Instruction Manual...
-
Page 3: Usage Limitations
USAGE LIMITATIONS APPLICATIONS • Type of liquid: clean water with no suspended abrasive material The V30-RC is an ‘on-demand’ recirculating pump. The pump • Maximum liquid temperature: 60 reduces water wastage by returning cold water to the hot water unit •... -
Page 4: Pump Performance
VADA - V30-RC PUMP PERFORMANCE Power Consumption Model Voltage Current (A) R/min Max. Head (m) Max. Flow (L/min) V30-RC 240V (1 phase) 0.18 2800 PUMP DIMENSIONS FIGURE 1. TYPICAL INSTALLATION... -
Page 5: Preparing For Installation
8. Connect ball valves and flexible braided hoses to the remaining threads on the tees and connect to the threads on the V30-RC. Ensure that the hot and cold connections are made to the correct side of the V30-RC. The hot and cold are marked on the unit. Do not strain the fittings on the pump, as this could break the threads. -
Page 6: Troubleshooting Guide
Some stop valves will not allow water to flow in reverse it will be necessary to remove or replace these valves. Also check the in and out points on the V30-RC and ensure that the hot and cold are correctly connected. Check that the unit is installed in the correct direction of flow Hot water is in the cold line when the V30-RC has not been Re check both hot and cold pressures are equal –... - Page 7 The water supply must be turned on and the pump primed before turning on the power. Warning – Operation of the V30-RC without water will damage the unit and void the warranty. Ensure that the water supply is on before operating the V30-RC.
