- Page 1 V110-H Multistage Pump Instruction Manual...
-
Page 2: Product Overview

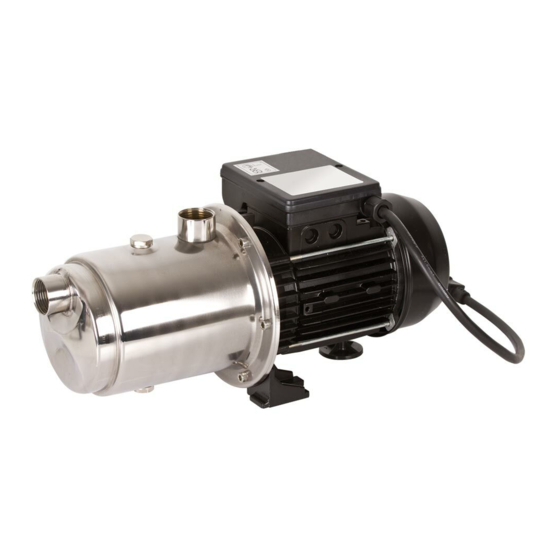

VADA - V110-H PRODUCT OVERVIEW The VADA horizontal multistage centrifugal pumps combine the functional benefits of centrifugal pumps and the practical benefits of self priming pumps. They warrant high hydraulic and suction performances. CONSTRUCTION Pump Casing X5 CrNi 1810 (AISI 304) stainless steel... -
Page 3: Pump Performance
VADA - V110-H TABLE OF HYDRAULIC PERFORMANCE PUMP PERFORMANCE Absorbed Nominal power L/1’ power Model Voltage µF m3/h Discharge head V110-H 1.25 1~230V in meters OUTLET PORT PUMP DIMENSIONS Dimensions (mm) Weight Model Suction Port Outlet Port V110-H 1” F... -
Page 4: Preparing For Installation
VADA - V110-H INSTALLATION Please pay careful attention to the following warnings signs and indications. Only qualified, licensed personnel should install The pump is designed to be used with clean water pump. The electrical installation shall be in in a residential application. Do not use it with... -
Page 5: General Installation
1. Fitting an Auto Pressure Control or Mains Water Switch Over Device If you are using a Vada Auto Pressure Control or a Mains Water Switch Over Device with your pump, connect it either directly to the top of the pump or in a suitable position in line with the delivery piping. -
Page 6: Electrical Installation
A separate power cable which features a weatherproof IEC plug and a standard Australian 10 amp plug. If connecting directly to a power outlet, simply connect the two supplied cords using the IEC socket and plug. If you are installing a Vada Auto Pressure Control or a Mains Water Switch Over Device, connect the IEC socket from the pump to the IEC plug cord on the device. -
Page 7: Service And Maintenance
GENERAL CARE AND MAINTENANCE Under normal conditions VADA pumps do not need any type of maintenance. In order to avoid possible failures, it is advisable to periodically check the pressure supplied and current absorption. A decrease in pressure is a symptom of wear. An increase in current absorption is a sign of abnormal mechanical friction in the pump and/or motor. - Page 8 Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor reserves the right to vary specifications or delete models from their range without prior notification. Dimensions and set-outs listed are correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
