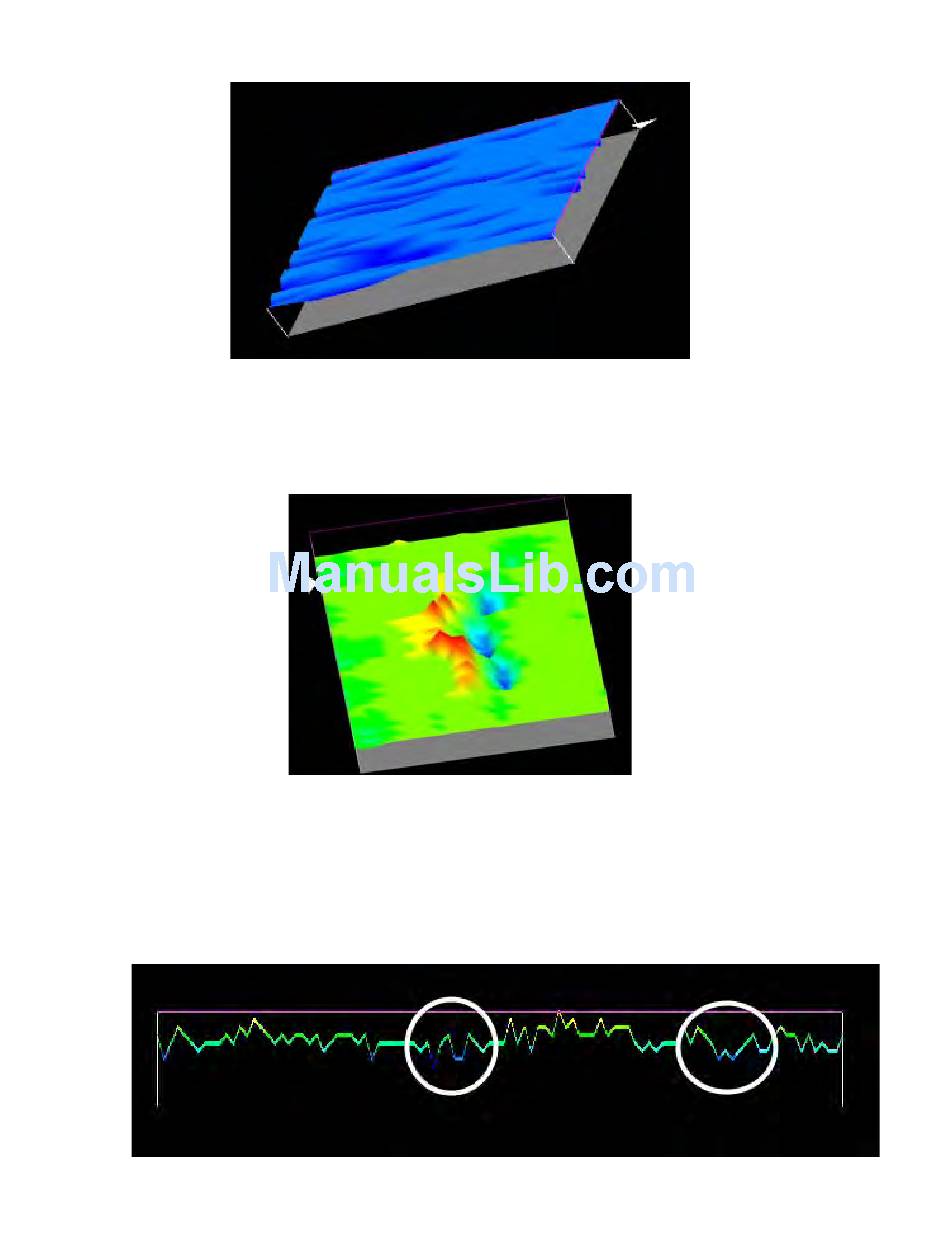

This is an example scan of clear soil. The soil in this scan is free of any anomalies or
surface mineralization.
This scan has three targets. All of the targets are buried under 6 inches of concrete. They
are shown as the blue from the dug holes in the center of the scan, and Red for the metal
content with strong reading. The first and third targets are ferrous metal and the middle
target is nonferrous
.
This tunnel scan shows the location of two tunnels, both circled. When looking for tunnels,
it is important to see both the down side and the up side. Be sure that there is enough
background to see the differences of the tunnels.
