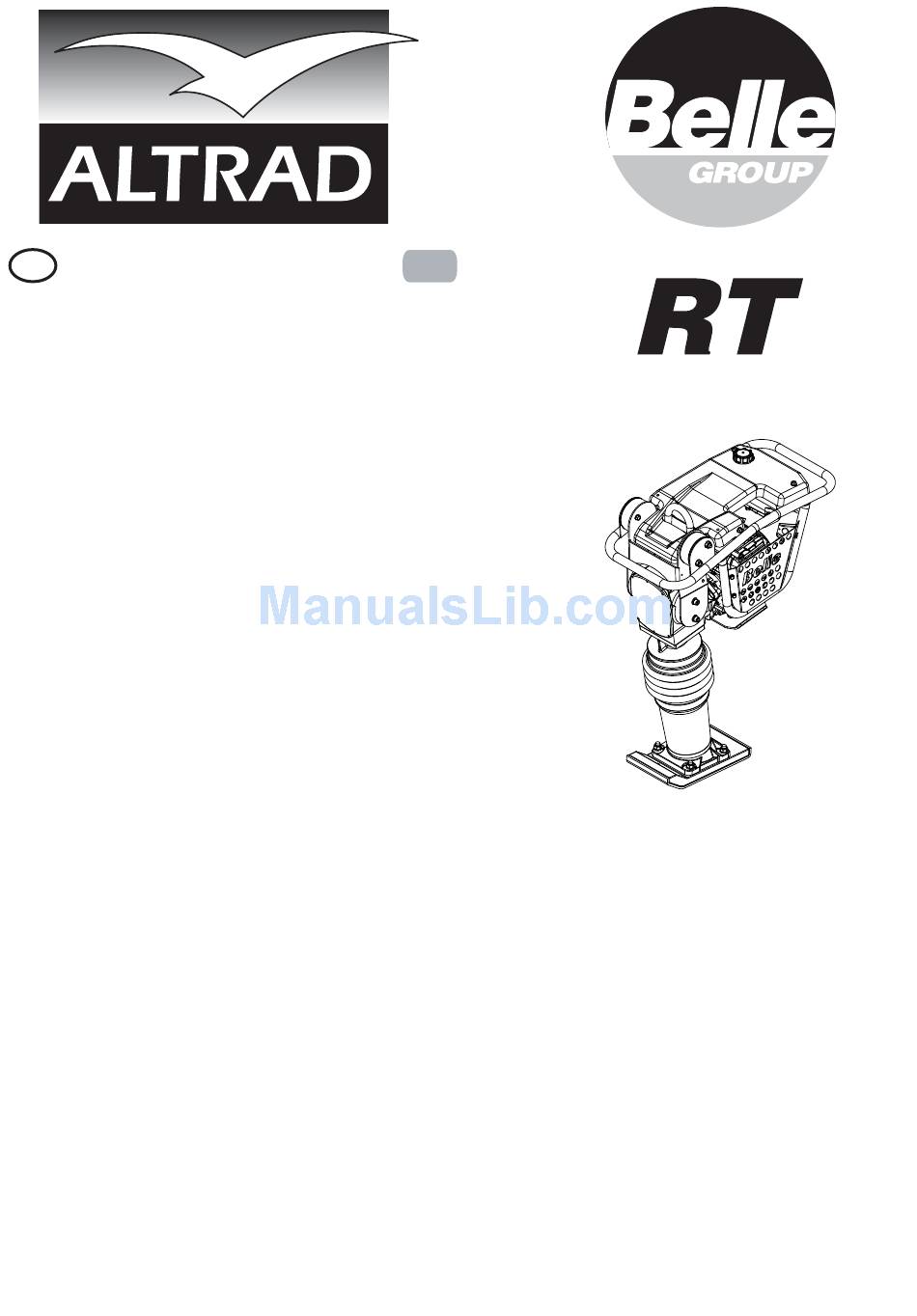

  • Page 1 Operators Manual 870-10013-0 01/10...

  • Page 2: Declaration Of Conformity

    Nous soussignés, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, certifions que si le produit décrit dans ce certificat est acheté chez un distributeur autorisé Belle Group au sein de la CEE, il est conforme aux normes CEE ci-après: 98/37/CE (Cette norme est une codification des normes de la machine d'origine 89/392/CEE), Norme compatible pour l'électromagnisme 89/336/CEE (modifié...
  • Page 3 Teknisk dokumentation vad gäller test av maskiners ljud/bullernivå finns dokumenterad hos Belle-Groups huvudkontor i Sheen, England. Vi, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, bekrefter med dette at det produktet som står beskrevet i denne erklæringen er kjøpt fra en autorisert Belle Group forhandler innen EØF, og at det oppfyller følgende direktiver: 98/37/CE dette direktivet er et sammendrag av det opprinnelige maskindirektivet...

  • Page 4: Table Of Contents

    How To Use This Manual This manual has been written to help you operate and service the RT60 Rammer safely. This manual is intended for dealers and operators of the RT60 Rammer. Foreword The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.

  • Page 5: Decals

    A. Fuel and Transport Decal B. Safety Decal C. Fuel Valve Decal D. Throttle Lever Decal E. RT60 Decal A - Fuel and Transport Decal (Part No. 800-99895) Only use ‘SP95 Unleaded Petrol’. On Site Transport The rammer may be moved vertically by 2 people, or laid only on the Transport Rollers.

  • Page 6: Machine Description

    Crankcase Cover Aluminium Gears Steel Engine Steel and Aluminium Various Parts Steel and Aluminium Technical Data Model RT60 Engine Models Honda GX100 Engine Type 4 Stroke, OHC, Air Cooled Maximum Output 2.3 kW Fuel Type Unleaded Petrol Fuel Tank Capacity 2.0 Litres...

  • Page 7: General Safety

    It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of your RT60, consult your supervisor or Belle Group of companies.

  • Page 8: Health And Safety

    The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, which- ever is fi rst. Please refer to the service section for detailed guidance. If any fault is discovered, the RT60 must not be used until the fault is rectifi...

  • Page 9: Start & Stop Procedure

    NOTICE: The optimum maximum engine revolution has been set at the factory as follows: Model Engine Maximum RPM Optimum Upper Limit RT60 Honda GX100 3,800 +/- 50 4,000 DO NOT alter this setting since irregular vibration or damage to the gear transmission mechanism can CAUTION...

  • Page 10: Operation

    Having carried out the checks listed in the ‘pre-start’ section, you may start the engine. The Belle Group RT60 range of tampers are fi tted with a centrifugal clutch, thisallows the engine to run at idle without driving the crank mechanism.

  • Page 11: Service & Maintenance

    Before any maintenance is carried out on the machine, switch off the engine. If working on a petrol engined machine, disconnect the HT lead from the sparkplug. Always set the RT60 on level ground to ensure any fl uid levels will be correctly read. Only use recommended oils (see chart). Servicing the Engine Service the engine according to the engine manufacturer’s specifi...

  • Page 12: Warranty

    Warranty Your new Belle Group RT60 is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Belle Group warranty is against defects in design, materials an workmanship. The following are not covered under the Belle Group warranty: 1.
  • Page 14 No.1 for Light Construction Equipment Belle Group Head Office Belle Poland sp. z.o.o. Belle Group (GB), Shanghai Office Sheen, Nr. Buxton 96-200 Rawa Mazowiecka Room 213, Zhonghuang Building, Derbyshire. Ul. Mszczonowska 36, 1007 Zhongshan Nan Er Road, SK17 OEU Polska...
