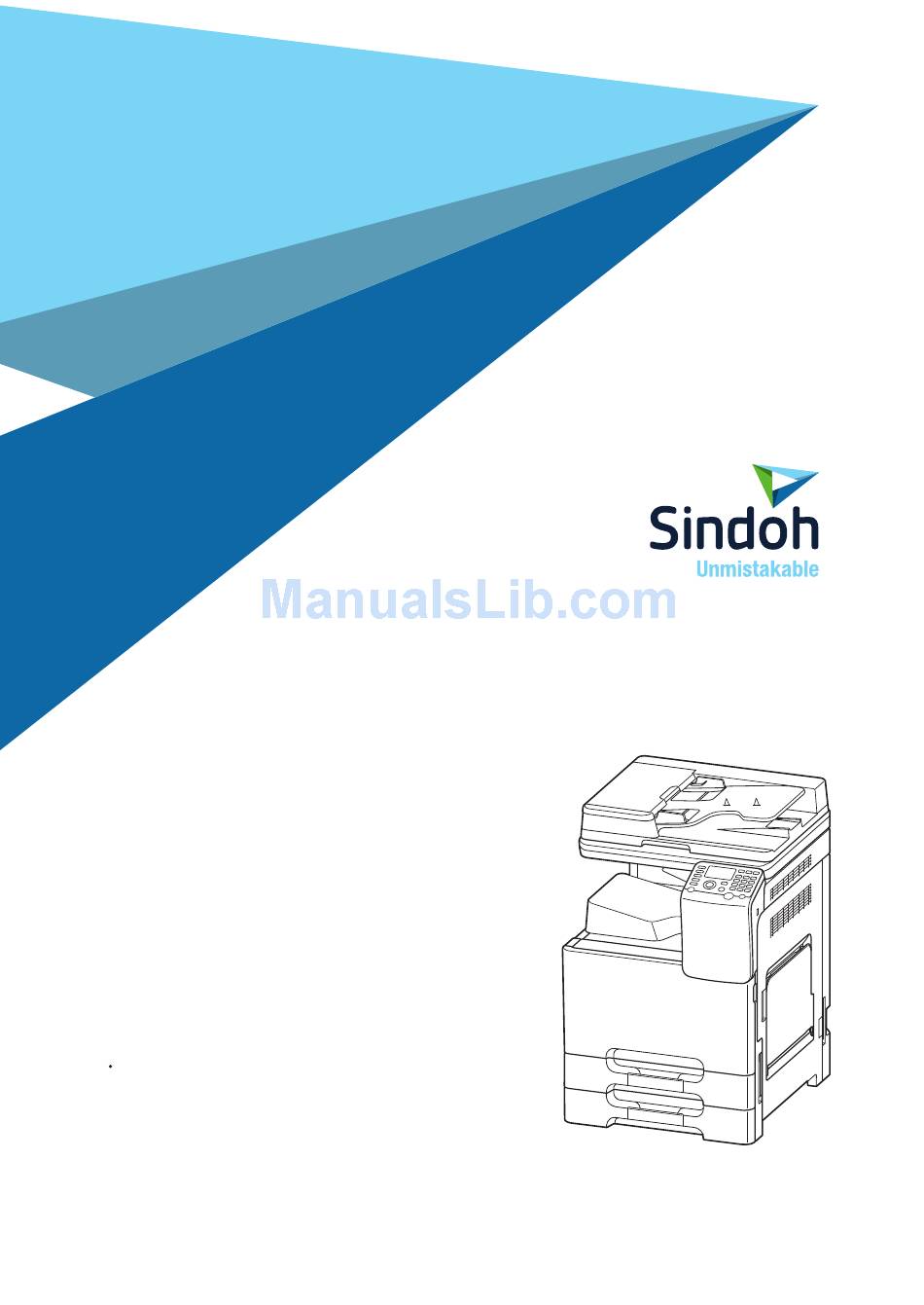

D200 Series
USER MANUAL
Copy Operations
Before using this Product, please read the
USER MANUAL carefully and keep it for
your reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sindoh D200 Series

Summary of Contents for Sindoh D200 Series

  • Page 1 D200 Series USER MANUAL Copy Operations Before using this Product, please read the USER MANUAL carefully and keep it for your reference.
  • Page 2 Guidelines for Safe Use USERS MUST KEEP THE FOLLOWINGS WHEN USING THE MACHINE: WARNING : Negligence of the instructions may cause death or serious injury: Plug the power cord into the wall socket directly. Do not use a extension cord. If the power cable or plug is worn out or damaged, pull the power plug out.
  • Page 3 Before Using the Product Thank you very much for your buying the SINDOH’ s Product. This USER MANUAL specifies the right way to use the Machine and simple repairing in detail to maintain it in optimal state at all times and to contribute to your company’ s office rationalization and efficiency.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1. Copy Operations Copying (basic operation flow) --------------------- 1-2 Specifying the Color and Image Quality for Copying Chapter 2. Enlarging or reducing an image for copying ([Zoom] -------- 2-2 Selecting the Copy Color ([CLR]) -------------------- 2-2 Selecting the appropriate image quality level for the contents of the original ([Orig.
  • Page 5 Chapter 4. Specifying the Size or Type of the Paper to Be Copied Selecting the paper size and paper type ([Paper]) ---------- 4-2 Chapter 5. Specifying the Method to Scan the Original and the Method to Output Copy Specifying the size of the original to be scanned ([Original Size]) --- 5-2 Scanning a number of originals in several batches ([Separate Scan]) -- 5-2 Scanning multiple pages with different size ([Mixed Original]) ----- 5-3 Printing out on a set basis ([Finishing]) ---------------- 5-4...

  • Page 7: Chapter 1. Copy Operations

    D200 Series Copy Operations Copy Operations...
  • Page 8 Copy Operations Copying (basic operation flow) Press the Copy key. Load the original.
  • Page 9 Copy Operations If necessary, configure copy settings. The standard size will be detected automatically. If you fail to set the original size correctly, the image may be cut off. For details on how to specify the original size, refer to 5-2.
  • Page 10 Copy Operations Related setting You can change the default copy settings to suit your environment. To configure settings : Utility-[User Settings]-[Copier Settings]-[Default Copy Settings]...

  • Page 11: Copying (Basic Operation Flow)

    Specifying the Color and Image Quality for Copying D200 Series Copy Operations Specifying the Color and Image Quality for Copying...

  • Page 12: Enlarging Or Reducing An Image For Copying

    Specifying the Color and Image Quality for Copying Enlarging or reducing an image for copying ([Zoom]) Copy an original image enlarged or reduced by an arbitrary zoom ratio. Settings Description [AUTO] Automatically make a copy with the optimal zoom ratio to match the image of the original with the paper size.

  • Page 13: Selecting The Appropriate Image Quality Level For The Contents Of The Original ([Orig. Type])

    Specifying the Color and Image Quality for Copying Settings Description [Full CLR] Print the copy in full color, regardless of whether the scanned original is in color or in black and white. [BW] Print the copy in black and white, regardless of whether the scanned original is in color or in black and white.

  • Page 14: Adjusting The Copy Density ([Density])

    Specifying the Color and Image Quality for Copying Select the current Orig. Type from the main (copy mode) screen by pressing the ▲/▼ key, then press the Select key. Select [MIX], [TEXT] or [PHOTO] by pressing the ▲/▼ key, then press the Select key. Adjusting the copy density ([DENSITY]) Adjust the density of a copy image.

  • Page 15: Adjust The Resolution Depending On The Original. ([Scan Resolution])

    Specifying the Color and Image Quality for Copying Select [Original Direction] from the Other Setting screen by pressing the ▲/▼ key, the press the Select key. Select [Left], [Right], [Top] or [Bottom] by pressing the ◀/▶ key, then press the Select key. Adjust the resolution depending on the original.

  • Page 16: Adjusting The Background Density Of The Original ([Bkgd. Removal])

    Specifying the Color and Image Quality for Copying Adjusting the background density of the original ([Bkgd. Removal]) You can adjust the background density of an original with the colored background such as newspaper or an original made with recycled paper. Select the current Other Setting from the main (copy mode) screen by pressing the ▲/▼...

  • Page 17: Adjusting The Brightness Of An Image ([Brightness])

    Specifying the Color and Image Quality for Copying Adjust by pressing the ◀/▶ key, then press the Select key. Adjusting the brightness of an image ([BRIGHTNESS]) Adjust the brightness of an image. Select the current Other Setting from the main (copy mode) screen by pressing the ▲/▼ key, then press the Select key.

  • Page 18: Adjust The Saturation Of An Image. ([Saturation])

    Specifying the Color and Image Quality for Copying Adjust the saturation of an image. ([Saturation]) Adjust the saturation of an image. Select the current Other Setting from the main (copy mode) screen by pressing the ▲/▼ key, then press the Select key. Select [Saturation] from the Other Setting screen by pressing the ▲/▼...

  • Page 19: Enhance The Text Against The Background. ([Text Enhancement])

    Specifying the Color and Image Quality for Copying Enhance the text against the background. ([TEXT ENHANCEMENT]) Adjust the enhancement of the text against the background. Select the current Other Setting from the main (copy mode) screen by pressing the ▲/▼ key, then press the Select key.

  • Page 20: Adjust Each Color Balance Of An Image. ([Color Balance(Y)]/[Color Balance(M)]/[Color Balance(C)]/[Color Balance(K)])

    Specifying the Color and Image Quality for Copying Adjust each color balance of an image. ([COLOR BALANCE(Y)]/[COLOR BALANCE(M)]/[COLOR BALANCE(C)]/[COLOR BALANCE(K)]) Adjust each color balance of an image. Select the current Other Setting from the main (copy mode) screen by pressing the ▲/▼ key, then press the Select key.

  • Page 21: Chapter 3. Saving The Number Of Print Sheets

    Saving the Number of Print Sheets D200 Series Copy Operations Saving the Number of Print Sheets...

  • Page 22: Copying On Both Sides Of Paper ([Duplex])

    Saving the Number of Print Sheets Copying on both sides of paper ([DUPLEX]) Copy the 1-sided original on both sides of paper, or copy the 2-sided original on both sides or on a single side of sheets of paper. By using both sides of paper for copying, you can reduce paper consumption by half. You can further reduce the amount of paper used by using the Combine function.

  • Page 23: Copying Multiple Pages On The Same Side Of A Single Sheet ([Combine])

    Saving the Number of Print Sheets Set [Orig. Binding Pos.] and [O/P Binding Pos.]. For 1-sided original, select the copy binding direction in [O/P Binding Pos.]. For 2-sided originals, select the original and copy binding positions in [Orig. Binding Pos.] and [O/P Binding Pos.].
  • Page 24 Saving the Number of Print Sheets Settings Description [4in1 Horizontal] A four-page original is reduced and copied horizontally on the same side of a single sheet of paper. [4in1 Vertical] A four-page original is reduced and copied vertically on the same side of a single sheet of paper.

  • Page 25: Copying The Front And Back Sides Of A Card On The Same Side Of A Single Sheet Of Paper ([Id Card Copy])

    Saving the Number of Print Sheets Press the Select key. Press the Back key to go back to the main (copy mode) screen. Select the current Combine by pressing the ▲/▼ key, then press the Select key. Select [2IN1] from the Combine screen by pressing the ▲/▼ key, then press the Select key. To copy a four-page original horizontally on the same side of a single sheet of paper, select [4in1 Horizontal], and to copy it vertically, select [4in1 Vertical].
  • Page 26 Saving the Number of Print Sheets Place a card on the Original Glass. When placing a card on the Original Glass, align it to the left back of the Original Glass. However, the copied card is located 13/16 inch (20 mm) from the top and left edges of a sheet;...
  • Page 27 Specifying the Size or Type of the Paper to Be Copied D200 Series Copy Operations Specifying the Size or Type of the Paper to Be Copied...

  • Page 28: Selecting The Paper Size And Paper Type ([Paper])

    Specifying the Size or Type of the Paper to Be Copied Selecting the paper size and paper type ([Paper]) Select the size and type of the paper for copying. You can also change the size and type settings of the paper loaded in paper trays. Settings Description [AUTO]...
  • Page 29 D200 Series Copy Operations Specifying the Method to Scan the Original and the Method to Output Copy...

  • Page 30: Specifying The Size Of The Original To Be Scanned ([Original Size])

    Specifying the Method to Scan the Original and the Method to Output Copy Specifying the size of the original to be scanned ([Original Size]) Select the size of the original to be scanned. Settings Description [AUTO] Select size automatically in accordance with the original size. [Standard Sizef] Select the original size to scan the original in the standard size such as the metric or inch size.

  • Page 31: Scanning Multiple Pages With Different Size ([Mixed Original])

    Specifying the Method to Scan the Original and the Method to Output Copy Select the current Separate Scan from the main (copy mode) screen by pressing the ▲/▼ key, then press the Select key. Select [ON] by pressing the ▲/▼ key, then press the Select key. Press the Start key.

  • Page 32: Printing Out On A Set Basis ([Finishing])

    Specifying the Method to Scan the Original and the Method to Output Copy Printing out on a set basis ([Finishing]) You can select whether to sort the output sheets or group them when printing multiple sets of copies. Sort Group Settings Description [Sort]...
  • Page 33 Direct Input Screen Machine Model Notice to the User This Machine is a Business (A-grade) electromagnetic conformity machine, A-grade Machine and the seller and the (Business Broadcasting & user should pay attention to this point. Communication Equipment) The Machine is aimed at being used in the area out of home.
