Back Panel �������������������������������������������������������������������������������������������������������8 - TC-Helicon voicelive rack Basic Manual

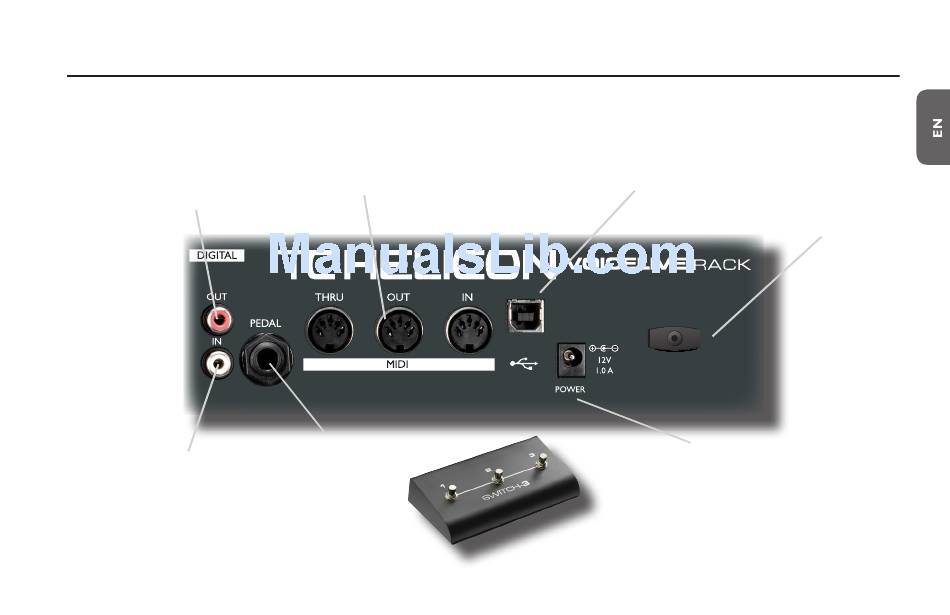

S/PDIF output always
available. Full Mix or
Vocal & Guitar (LR)
configured in Setup
menu.
S/PDIF digital input can Connect optional TC-Helicon
be fed dry to analog mix Switch 3 footswitch here for
outs or used as vocal and additional control per preset
instrument (LR) inputs for or globally.
effect processing.
Hardware MIDI ports allow remote
harmony and preset control from
MIDI keyboards etc. Ensure USB
Control is set to Off in Setup menu
to use this input.
USB I/O connects to a
computer for audio I/O and
system functions such as
preset backup and version
updates.
Connect supplied AC
adaptor here.
Back Panel
AC cable strain
relief minimizes
shutdowns due to
cable pulling.
9
