Back Panel - TC-Helicon voicelive rack Basic Manual

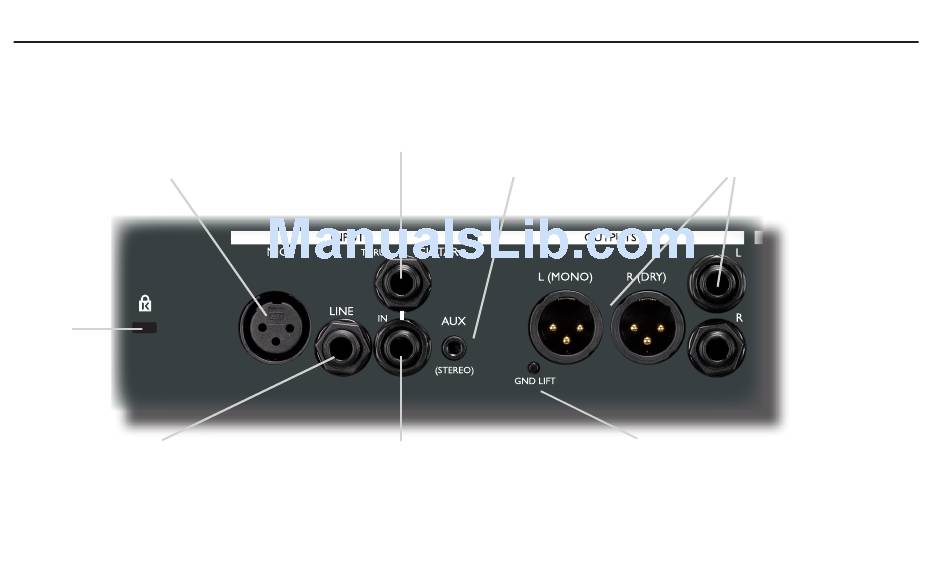

Back Panel

Connect dynamic or
condenser mic here.
Input gain and phantom
power on/off located in
Setup menu.
Attachment
port for
Kensington ®
lock
Connect TRS balanced
or unbalanced cable
from mixer here.
8
Passes dry guitar signal
to an amplifier or PA.
Connection here will
remove guitar from the
main mix.
A guitar connected here can
guide Harmony and Hardtune
effects. If Thru is not connected,
guitar is mixed to main outputs
with dedicated effects.
Auxiliary input from
mp3 player can be
mixed to outputs and
be used to guide Har-
mony and Hardtune.
If ground buzz is heard in
your PA, push the Ground
Lift in. Otherwise leave
it out.
Main outputs are balanced and
default output is stereo. Mono and
dual mono modes are configured in
Setup menu.
