Page 1: Installation Guide

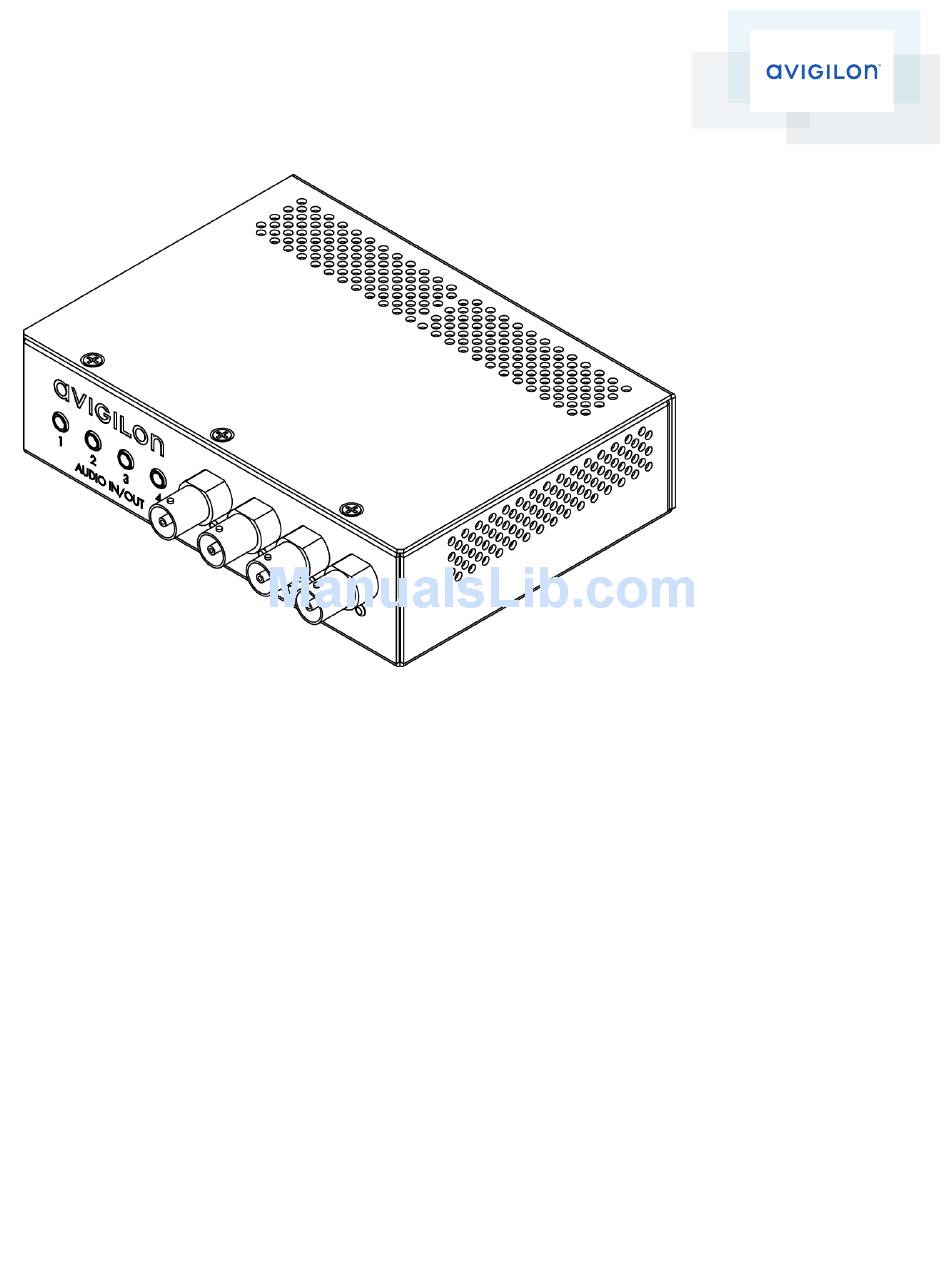

Installation Guide Avigilon™ Analog Video Encoder Model: ENC-4P-H264... -
Page 2: Important Safety Information
Do not expose to rain or moisture. For indoor use only. If used outdoors, an approved outdoor mounting adapter or enclosure is required. Consult with Avigilon for more information. Installation must be performed by qualified personnel only, and must conform to all local codes. -
Page 3: Regulatory Notices
Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. - Page 4 © 2011 - 2016, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, and ACC are trademarks of Avigilon Corporation. Other product names mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark.
-
Page 5: Table Of Contents
Table of Contents Overview Front View Rear View Installation Required Tools and Materials Package Contents Installation Steps Mounting the Encoder Connecting Cables Assigning an IP Address Accessing the Live Video Stream For More Information Cable Connections Connecting External Power Connecting to External Devices Connecting Microphones and Speakers LED Indicators Reset to Factory Default Settings... -
Page 6: Overview
Overview Front View 1. Audio I/O connector Accepts a mini-jack connector (3.5 mm). 2. Video input status LEDs Provides information about the status of the analog video signal. The LED turns on when a video signal has been detected. 3. Video inputs Four BNC inputs for connecting analog video devices. -
Page 7: Rear View
Rear View 1. Power connector block Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only required when Power over Ethernet is not available. 2. Ethernet port Accepts an Ethernet connection to a network. Server communication and image data transmission occurs over this connection. -
Page 8: Installation
Required Tools and Materials Small slotted screwdriver with 5/64” or 2 mm blade width — for connecting power when not using Power over Ethernet. Package Contents Avigilon™ H.264 Video Encoder Terminal Block Installation Steps Complete the following steps to install the camera:... -
Page 9: Connecting Cables
Circuit Overloading — Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern. -
Page 10: Accessing The Live Video Stream
Live video stream can be viewed using one of the following methods: Web browser interface: http://<IP address>/ Network video management software application (for example, the Avigilon Control Center software). NOTE: The default camera username is admin and the default camera password is admin. -
Page 11: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the device needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The device can be powered from 12 V DC or 24 V AC. -
Page 12: Connecting Microphones And Speakers
1. 3.3 VDC @200 mA max — 3.3 VDC output. May be used to power small relays in conjunction with the relay outputs. 2. Ground 3. Input 1 — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. - Page 13 1. Audio IN 2. Audio OUT 3. GND Connecting Microphones and Speakers...
-
Page 14: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 15: Reset To Factory Default Settings
Reset to Factory Default Settings If the encoder no longer functions as expected, you can choose to restore the encoder to its factory default settings. Use the firmware revert button to reset the encoder. Figure 4: The firmware revert button on the rear of the encoder. 1. -
Page 16: Setting The Ip Address Through The Arp/Ping Method
Setting the IP Address Through the ARP/Ping Method Complete the following steps to configure the encoder to use a specific IP address: 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. 2. Open a Command Prompt window and enter the following commands: a. -
Page 17: Specifications
Specifications Encoder Video Input BNC connector Audio Input/Output Line-level signal, TRS mini-jack (3.5 mm) Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF compliance version 1.02, 2.00, Profile S (www.onvif.org) Password protection, HTTPS encryption, digest authentication, WS authentication, user Security access log IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, Streaming Protocols... - Page 18 UL 60950-1 Safety CSA 60950-1 IEC/EN 60950-1 FCC Part 15 Subpart B Class B EN 55022 Class B IC ICES-003 Class B Electromagnetic EN 61000-6-3 Emissions EN 61000-3-2 EN 61000-3-3 KN 22 EN 55024 Electromagnetic EN 61000-6-1 Immunity KN 24 Specifications...
-
Page 19: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
