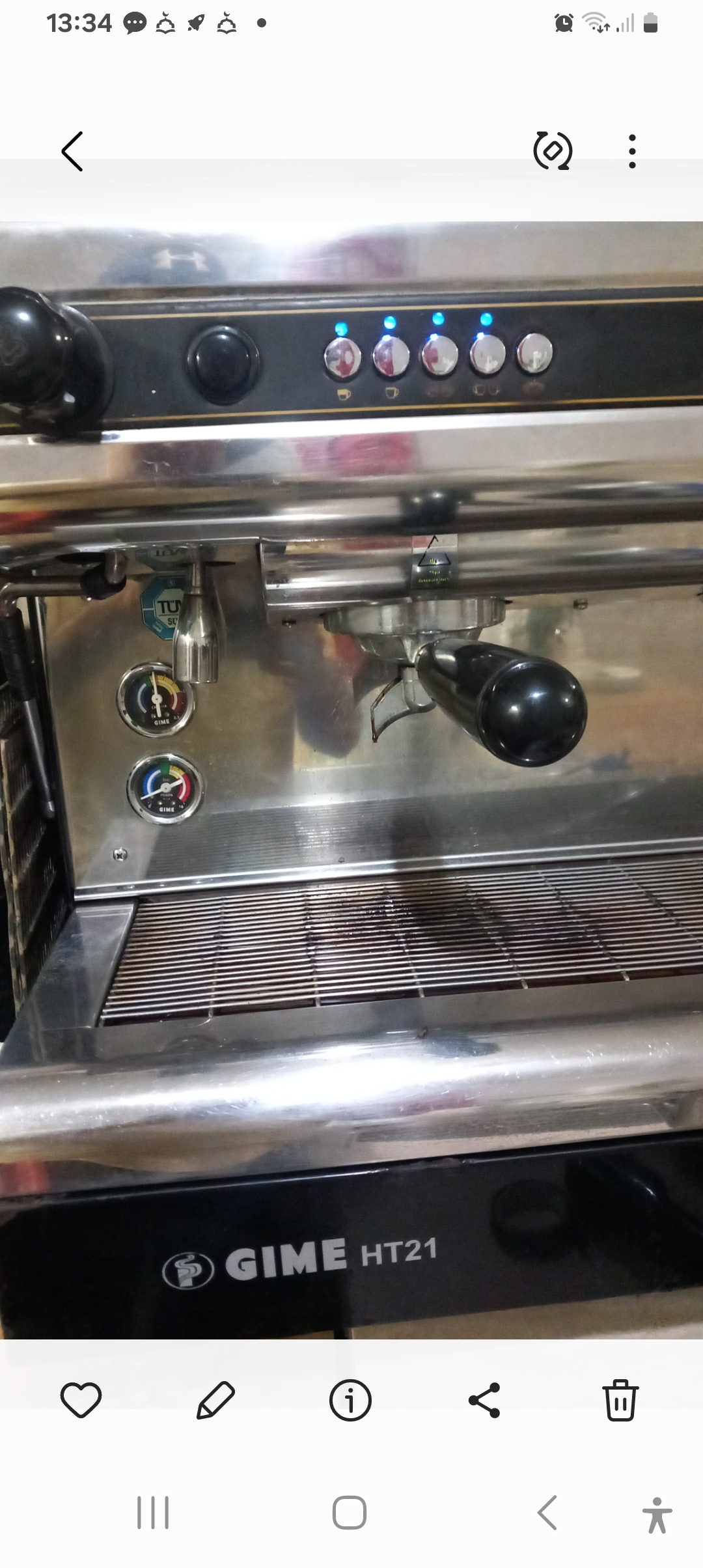

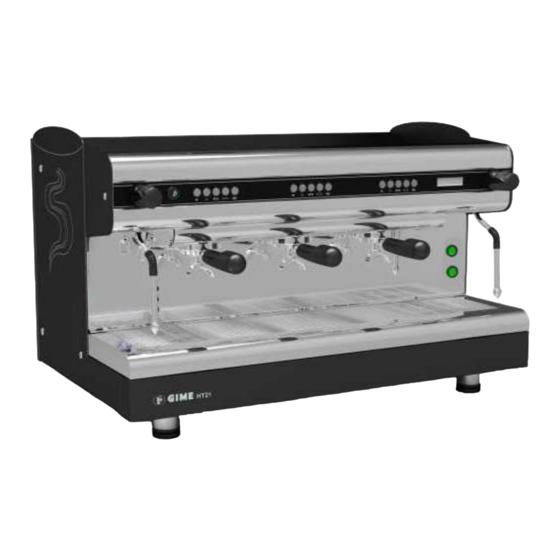

Manuale d’Uso (pagine 2 a 19) Espresso Coffee Machine User Manual (page 20 – 37) Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
SMONTAGGIO, RIMESSAGGIO E SMANTELLAMENTO DELLA MACCHINA ........ 19 DICHIARAZIONE DI CONFORMITÀ CE ....................19 Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Page 3
CE – CONFORMITY (FOR EUROPEAN COMMUNITY COUNTRIES) ..........36 SCHEMA ELETTRICO – WIRING DIAGRAM ..................37 Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Protezione del corto cortocircuito in centralina. Temperatura scalda tazze regolabile mediante tastiera multifunzione. Time out pompa. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
In nessun modo devono essere usati cavi di collegamento elettrico danneggiati. I cavi elettrici non devono passare sopra punti taglienti che li potrebbero danneggiare. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Riscaldatore piano superiore della macchina da caffe: Termostato di sicurezza a riarmo automatico. Gestione elettronica della temperatura massima d’esercizio. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Scarico: assicurarsi che l’acqua scende bene e che non ci siano ostruzioni! Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Ricordarsi di aprire (e chiudere a fine lavoro) sempre l’acqua di rete e di accendere (e spegnere a fine lavoro) l’interruttore esterno per l’alimentazione elettrica della macchina. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Pulizia della carrozzeria Usare un panno morbido, pulito ed umido. Non usare detergenti! Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.

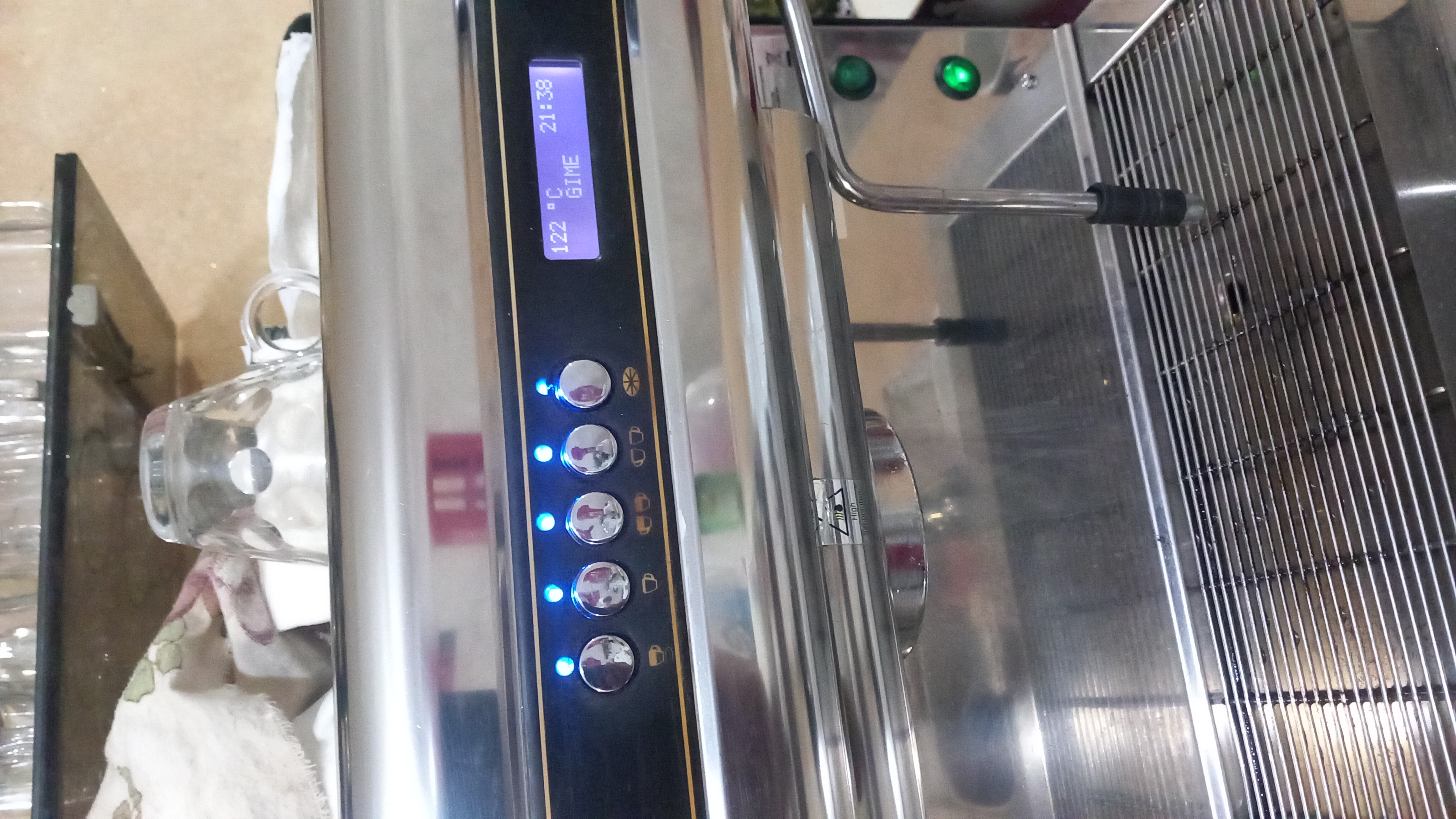

Per portare la macchina dallo stato di IDLE OFF allo stato di funzionamento normale è sufficiente ripremere i tasti asti K5GR1 e K3GR1. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Quando abbiamo finito le operazioni di programmazione, premere il tasto K5 per uscire dalla programmazione. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
ATTENZIONE: se non si eseguono tutti i passaggi con il tasto K5GR1, la modifica non sarà mantenuta. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Se non si desidera impostare un giorno di riposo occorre selezionare "------------". È possibile impostare un solo giorno di riposo. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Alla fine della rassegna la pressione del tasto K5GR1 consente l’uscita da questa fase. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Sul display appare: T.ProbeUnconnect Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Page 16
Per azzerare questa segnalazione è sufficiente alimentare la dosatura tenendo premuti contemporaneamente i tasti K3GR1 e K4GR1. Sul display compare l’indicazione… Filter Reset Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Page 17
Per azzerare questa segnalazione è sufficiente alimentare la dosatura tenendo premuti contemporaneamente i tasti K1GR1 e K2GR1. Mantenere premuti in accensione macchina Il display visualizza Service Reset Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Page 18
Nota: l’operazione di azzeramento consumazioni NON AZZERA la lettura dei litri consumati; per tale azzeramento fare riferimento all’apposito paragrafo. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Tutte le operazioni di smontaggio ed eventuale smantellamento della macchina devono essere effettuati da personale tecnico qualificato ed autorizzato. Dichiarazione di conformità CE Si dichiara che le macchine della serie GIME HT 21 sono state costruite nel rispetto delle seguenti normative: DIR. 89/336 EN 55014-1...
Regulation Cup warmer temperature by keypad Touchpad keyboard controlling cup warmer temperature Pump time out Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
If you have questions please contact the manufacturer or the authorized technical service before you install and/or use the machine. The information contained in this manual is necessary for the safe installation and operation of your GIME coffee machine. It should be retained in a safe place for future reference. Copies are available from your local GIME dealer.
Page 22
The machine must be used exclusively with clean fresh drinking water. Save these instructions. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Boiler auto-level water. Cups warmer: Security thermostat automatic rearming. Elettronical management maximum working temperature. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
When the machine is idle and not in use for an extended period of time, it should be emptied completely and stored in an area with temperature above 4°C or 39 °F. This eliminates any possible damage to pipes and boiler. All maintenance must be carried out exclusively by GIME authorized technicians and all spare parts must be original GIME parts.
Remember: when the machine is switched off you must close the inlet water valve from the mains and switch off the external power switch to the mains Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
• Clean the bodywork with a non-abrasive damp cloth. Never use aggressive products or alcohol. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Clean the steam wands / end nozzles right after use with a damp clean cloth. Caution: steam wands become extremely hot and can cause burns! Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Therefore the portion might be reprogrammed to guarantee accurate portions. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Once the temperature value has been set, press K3GR1 again. The new value of the cup wormer temperature is now saved. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
If the automatic activation/&deactivation must be enabled, go the time programming screen and press K1GR1(+) or K2GR1(-) until these words appear on the screen. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Press K5GR1 key to read the cycle of dispensing coffee or tea . When the display shows the indication: Service Xxxxx Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
All the led start flashing (½ ON, ½ OFF) to inform you about the problem. To restore the coffee machine swicht off it. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Page 33
After 1 minute (Time-out flow meter) of permanence of signal absence from the flow meter, the dose is stopped automatically. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Page 34
To clear this message is sufficient keep press the keys K1GR1 and K2GR1 . Keep buttons during switch-on machine When the display shows the indication Service Reset Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Page 35
Note: The consumption reset operation does NOT RESET the reading of consumed litres; refer to the specific paragraph for this operation. Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
EN 55014-2 DIR. 73/23 EN 60335-1 EN 60335-2-75 DIR. 89/392 EN 292/1 EN 292/2 Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
Schema elettrico – Wiring diagram Manuale d’uso per machine da caffè GIME HT21-2013. Con riserva di modifiche. User Manual for GIME HT21-2013 Espresso Coffee Machines. Specifications subject to change without notice.
