Page 1: Water Softener System

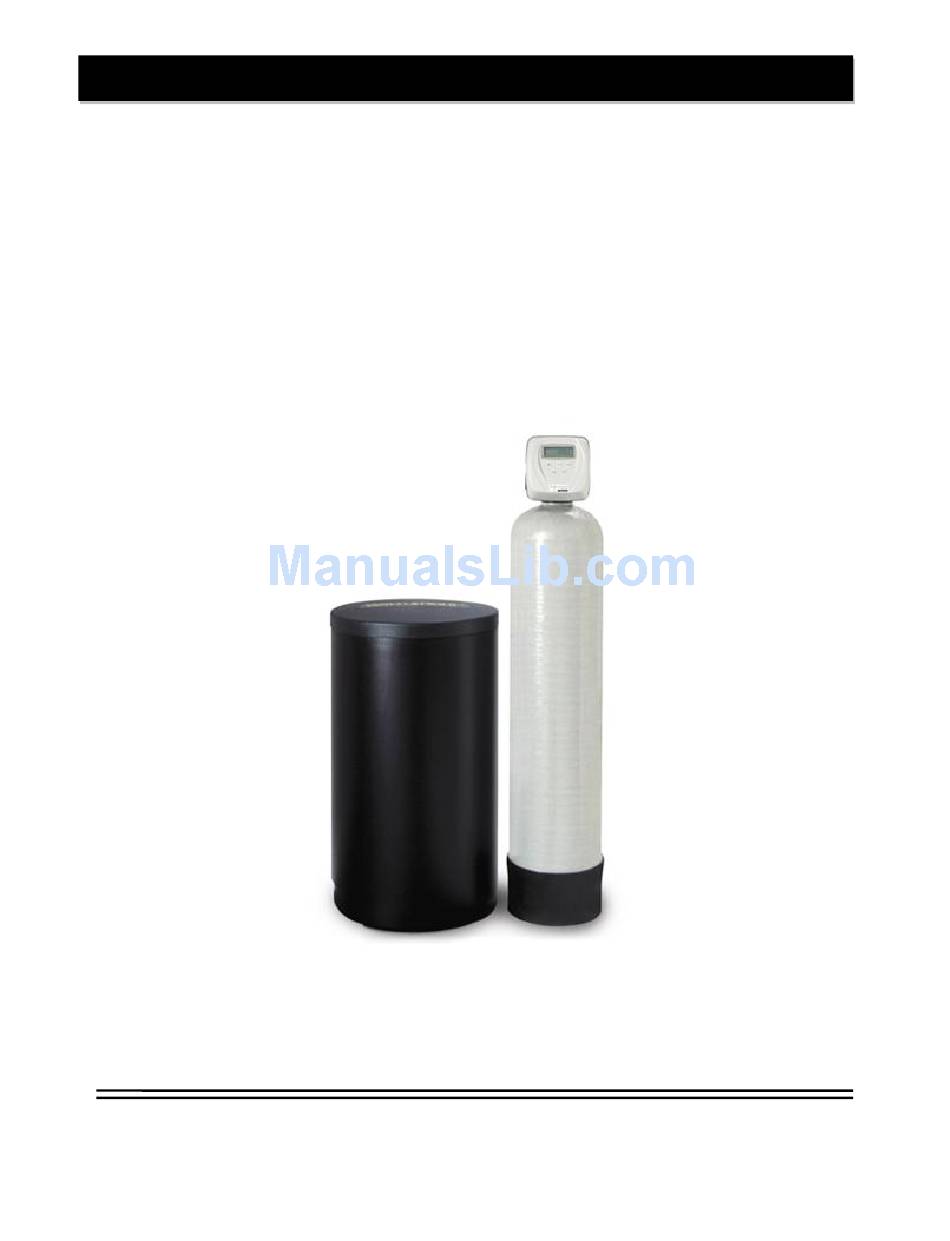

Installation Instructions and Owner’s Manual HE Series Water Softener System First Sales, LLC 12630 US Highway 33 N Churubusco, IN 46723 Phone (260) 693-1972 Fax (260) 693-0602 HE Instruction Manual 150909.docx... -
Page 2: Table Of Contents
TABLE OF CONTENTS Pre-installation Instructions Page 2 General Installation Page 3 Bypass Valve Page 4 Installation Instructions Page 5 Control Valve Programming – Set Time-of-Day Page 7 Control Valve Programming – Initial Settings Page 8 Control Valve Operating Displays Page 11 Troubleshooting Guide Page 12-14 Specifications... -
Page 3: Pre-Installation Instructions
PRE-INSTALLATION Description of the softener The softener system includes a mineral tank (with gravel, distributor and softener resin), brine tank (with salt shelf, brine well, brine tank lid and safety brine valve), and a meter initiated electronic backwashing control valve with bypass and brine line. -
Page 4: General Installation
INSTALLATION GENERAL INSTALLATION & SERVICE WARNINGS The softener is not designed to support the weight of plumbing. Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be used on black "O" Rings, but is not necessary. Avoid any type of lubricants, including silicone, on red or clear lip seals. -
Page 5: Bypass Valve
Bypass Valve The bypass valve is used to isolate the control valve from the plumbing system's water pressure in order to perform control valve repairs or maintenance. The 1" full flow bypass valve incorporates four positions including a diagnostic position that allows a service technician to have pressure to test a system while providing untreated bypass water to the building. -
Page 6: Installation Instructions
Installation Instructions STEP 1: Unpack softener, making sure to remove entire contents of the shipping container prior to disposal. STEP 2: Install bypass valve onto main control valve, before beginning plumbing. Make provisions to bypass outside hydrant and cold hard water lines at this time STEP 3: Shut off all water at main supply. - Page 7 Install softener drain line. Use ½” I.D. polyethylene tubing (DO NOT USE FLEXIBLE VINYL STEP 6: TUBING!) to run drain line from control valve barbed DLFC elbow fitting (Figure 6, Page 5, not shown) to floor drain or sump pit capable of handling the backwash rate of the filter (refer to specifications and flow rate on page 15) or discard the barbed fitting and use 3/4"...
-
Page 8: Control Valve Programming - Set Time-Of-Day
STEP 10: Program control valve. Plug the transformer of the control valve into an uninterrupted electrical outlet (not wired to a switch) and use the buttons on the front of the control valve to adjust the initial settings: Display Panel SET CLOCK REGEN Button... -
Page 9: Control Valve Programming - Initial Settings
B) Enter Programming: The manufacturer has preset the unit so gallons between regenerations are automatically calculated after hardness is entered. 1. Hardness: Press “NEXT” and UP (triangle pointing up) buttons simultaneously for 3 seconds. a. The upper left of the display will show “SET HARDNESS”... - Page 10 STEP 11: Initiate Manual Regeneration (Fill Cycle): (NOTE:, the bypass should be in the bypass position) Press and hold the “REGEN” button 3 seconds or until the word “Fill” appears in the lower right of the display and “REGEN” appears at the middle left of the display. The drive motor will run briefly and count-down timer will appear in the time-of-day position on the display.
- Page 11 Brine Cycle: “BRINE” will appear in the lower right of the display, “REGEN” will show in the STEP 19: middle left of the display and a new count-down timer will flash alternating with the letters “dn”. Allow this cycle to run until the water in the brine tank is drawn below the salt grid and then press “REGEN”...
-
Page 12: Control Valve Operating Displays
Operating Displays 1. General Operation: When the system is operating, one of the three displays may be shown. Pressing next will alternate between displays. One of the displays is always the current time of day. The second display shows the current treated water flow rate through the system in Gallons Per Minute (gpm). The third display shows the current volume remaining in Gallons. - Page 13 TROUBLESHOOTING PROBLEM CAUSES SOLUTIONS A) Loose nut at either end of the brine line B) Brine line inserted into the brine tank 1) Tighten nuts at either end of brine line overflow fitting 2) Verify brine line is installed correctly rather than 3) Verify softener drain line is not connected connected to the...
-
Page 14: Troubleshooting Guide
TROUBLESHOOTING (continued) PROBLEM CAUSES SOLUTIONS A) Clock is not set Softener regenerates B) Power outage 1) Reset softener clock (page 7) at wrong time of day C) Incorrect control 2) Verify control valve programming (page 8) valve programming A) Unit is installed 1) Re-plumb unit with water supply entering Resin in water lines, backwards... - Page 15 TROUBLESHOOTING (continued) PROBLEM CAUSES SOLUTIONS A) Outlet is on a switch Display shows B) Power outage 1) Use an un-switched outlet incorrect time-of-day C) Control valve was 2) Reset time-of-day or time-of-day flashes reset 3) Replace circuit board if needed D) Defective circuit board ERROR CODE:...
-
Page 16: Specifications
SPECIFICATIONS Model Numbers Description HEC26-1 HEC34-1 HE26-1 HE34-1 HE51-1 HE68-1 HE85-1 Media Volume, ft (liters) 0.75 0.75 (21) (28) (21) (28) (42) (57) (71) Capacity, grains (grams) @ Factory Salt – 6lb/ft 20,250 27,000 20,250 27,000 40,500 54,000 67,500 (96 g/L) (1,312) (1,750) (1,312) -
Page 17: Component Parts Breakdown & List
Component Parts Breakdown & List MODEL NUMBER DESCRIPTION HEC26-1 HEC34-1 HE26-1 HE34-1 HE51-1 HE68-1 HE85-1 HEC26-1 Vlv HEC34-1 Vlv HE26-1 Vlv HE34-1 Vlv HE51-1 Vlv HE68-1 Vlv HE75-1 Vlv Control Valve Assy L/BP Assy L/BP Assy L/BP Assy L/BP Assy L/BP Assy L/BP Assy L/BP Mineral Tank... -
Page 18: Control Valve Breakdown
Control Valve Breakdown... -
Page 19: Control Valve Parts List
Control Valve Parts List REF # Part Number Description CV3002CC Drive Assembly CV3186 Power Cord with Transformer CV3003 Meter and Cable Assembly CV3006 Bypass Valve, Less Fittings CV3175CC-01GR Front Cover, Gray CV3107-01 Drive Motor CV108CC Circuit Board CV3004 Drive Cap Assembly CV3135 O-ring, -228 CV3011... -
Page 20: Installation Fitting Assemblies
Installation Fitting Assemblies 3/4" & 1" PVC SOLVENT ELBOW 1" PVC MALE NPT ELBOW Part # Description Part # Description 3/4" & 1" PVC solvent CV3007-01 1" PVC male NPT CV3007 elbow assy elbow assy CV3151 Nut, 1" quick connect CV3151 Nut, 1"... - Page 21 Installation Fitting Assemblies Continued 1" BRASS SHARK BITE 3/4" BRASS SHARK BITE Part # Description Part # Description 1" brass shark bite CV3007-13 3/4" brass shark bite CV3007-12 assembly assembly CV3151 Nut, 1" quick connect CV3151 Nut, 1" quick connect CV3150 Split ring CV3150...
- Page 22 Installation Fitting Assemblies Continued 3/4" QUICK CONNECT Description Part # 3/4" QUICK CONNECT QFNCR4 (*2 required) SERVICE WRENCH - CV3193 Although no tools are necessary to assemble or disassemble the valve, the Service Wrench, (shown in various positions on the valve) is available to aid in assembly or disassembly.
-
Page 23: Quick Reference Guide
Quick Reference Guide...
