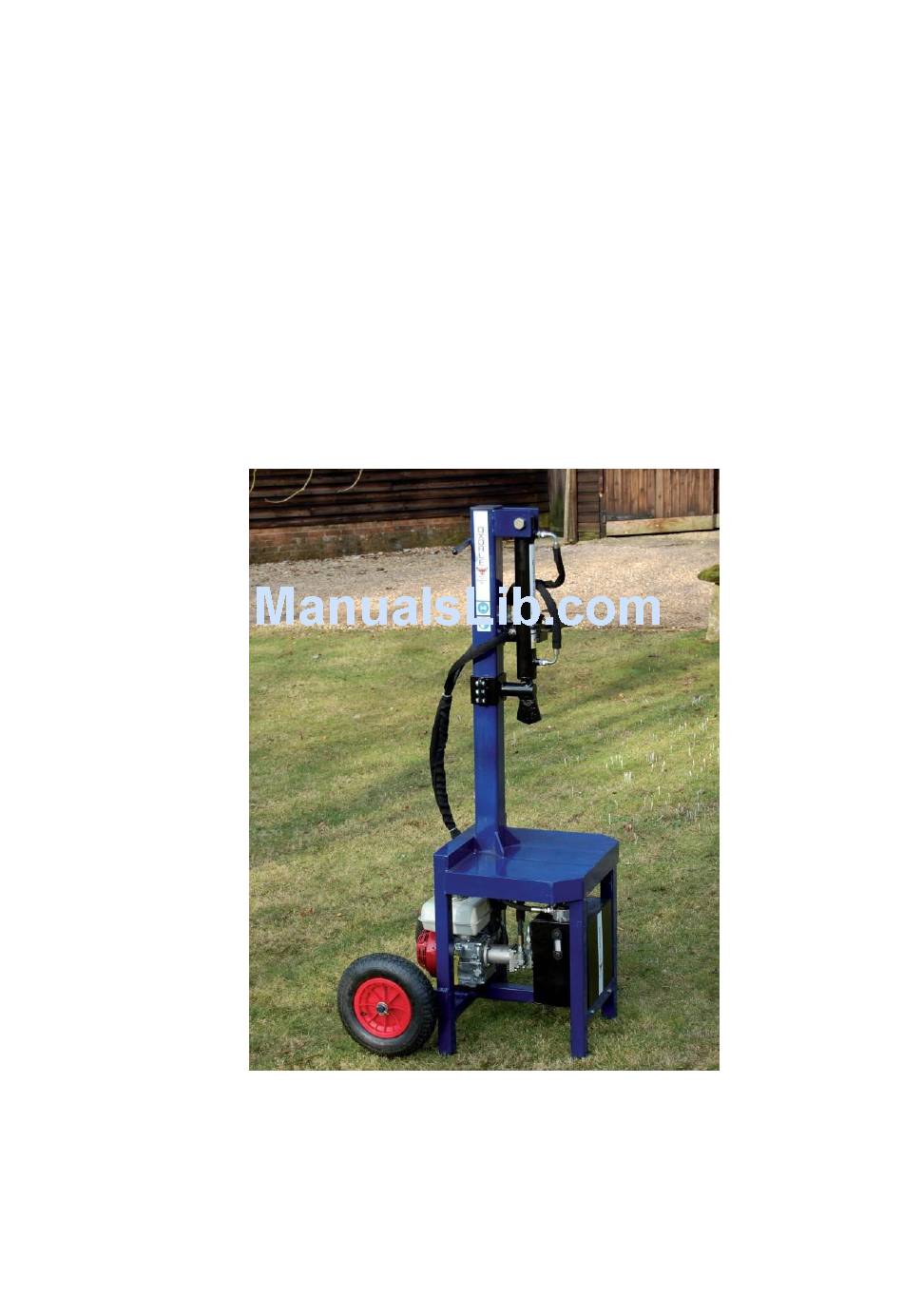

- Page 1 Operating and Maintenance Instructions Keep for future reference SE400 Log Splitter...
-
Page 2: Table Of Contents
Index INDEX............................2 LABELS…………………………………………………………………………………………………….3 SAFETY............................4 QUICK GUIDE including storage and transport…................5 IN DEPTH INSTRUCTIONS......................6 WARRANTY INFORMATION......................11 TECHNICAL SPECIFICATIONS…………………………………………………………………………12 CONTACT DETAILS........................13 WARRANTY REGISTRATION FORM....................14 DECLARATION OF CONFORMITY…………………………………………………………………….15... -
Page 3: Labels
Safety OXDALE PRODUCTS REQUIRES THAT ANYONE OPERATING OR MAINTAINING THE LOG SPLITTER SHALL READ AND UNDERSTAND ALL SAFETY, OPERATION AND MAINTENANCE DATA CONTAINED IN THIS USER MANUAL BEFORE USING THE LOG SPLITTER. The log splitter is powered by a Honda Engine. A copy of the Honda owner’s manual should accompany this instruction manual. -
Page 4: Safety
Safety labels & decals The SE400 log splitter should have the following labels attached. If any safety decals are missing or illegible they should be immediately replaced. • The following safety decals: • The following warning notices: WARNING! "Danger! Keep clear of moving parts!“... -
Page 5: Quick Guide Including Storage And Transport
The SE400 should be stored in the upright vertical position only. • Store in a dry location • Store in a safe location where the machine will not get knocked over • The SE400 should be transported in a vertical position. It should be strapped securely. -
Page 6: In Depth Instructions
In-depth instructions. Before first use. Fill the engine with engine oil and petrol The log splitter has to be supplied / shipped without any oil installed. Before the engine can be started for the first time it needs to be filled with engine oil and petrol. Please see the engine manual for details on filling the oil and petrol. - Page 7 Operating Instructions The log splitter is designed for splitting logs only AND IS FOR SINGLE PERSON USE. It can handle logs no bigger than 450mm high and having a diameter no bigger than 900mm and no smaller than 75mm diameter. Only persons competent to do so and having read in full this manual should use this log splitter.
- Page 8 Lowering the handle will lift the wedge. Pick your log to be split; the log should have been cut square at both ends. This is very important as it will reduce the chance that the log will slip. Position the log under the wedge with the point of the wedge in the centre of the log;...
- Page 9 Post Operating Checks & Maintenance Instructions Switch off the machine before any cleaning or adjustment of the machine takes place. At the end of each day’s work the unit should be cleaned. The removal of wood chips etc. from the unit is advisable as well as removing contaminated grease for the wedge collar.
- Page 10 Greasing. Keep the collar guide of the unit well-greased, this will help the log splitter run more smoothly. Grease the collar guide...
-
Page 11: Warranty Information
Pressure adjustments to the valves must only be carried out by Oxdale authorized dealers. No liability is accepted for damage caused by Oxdale products in so far as they are caused by incorrect repairs or the non-use of original Oxdale replacement parts or in so far as repairs have not been carried out by Oxdale or a pre-authorized specialist, the same applies to auxiliary parts and accessories. -
Page 12: Technical Specifications
Technical Specifications – SE400 Log Splitter Log Splitter Ram Model number Weight 101kg Max pressure 4780 psi / 330 Bar Ram Bore diameter 60mm Ram Stroke 400mm Ram rod diameter 40mm Engine Pump Honda GX200 Saturn Group 2 E-10-N 5.5 at 3600 rpm... -
Page 13: Contact Details
Contact details. Oxdale Products can be contacted using the details below; these details can also be used for ordering spare parts. Oxdale Products Units 20-21, Foxwood Road, Off Sheepbridge Lane, Chesterfield, S41 9RF Tel:-01246 529020 Fax:-01246 812722 Mobile:-07813 111885 Email:- sales@oxdaleproducts.co.uk Our web site can be viewed at www.oxdaleproducts.co.uk... -
Page 14: Warranty Registration Form
………………………………………………………………………… ………………………………………………………………………… Post Code ………………………………………………………………………… Tel No ………………………………………………………………………… ………………………………………………………………………… Email ………………………………………………………………………… Serial No ……………………………SE400…………………………………… Model No Date of Purchase………………………………………………………………………… Please ensure that all details are correct and return to Oxdale Products Units 20-21, Foxwood Road, Sheepbridge Lane, Chesterfield, S41 9RF...
