1. Start mowing the edge of the lawn nearest to the
power point so the cable is laid out on the lawn you
have already cut.
2. Mow twice a week during the growing season, your
lawn will suffer if more than a third of its length is cut at
one time and this may also result in poor collection.
Do Not Overload Your Mower
Mowing long thick grass may cause the motor speed
K
L
fan
Removing, Emptying and Refitting the Grassbox
M
grassbox is
empty
N

Adjusting the Cutting Height

Removing and fitting the Blade and Fan

blade bolt
blade
spacers
grassbox is full
P

How to Mow

to drop, you will hear a change in the motor sound. If
the motor speed drops you may overload your lawn-
mower which may cause damage. When mowing in
long thick grass a first cut with the cutting height set
higher will help reduce the load. See Adjusting the
Cutting Height.
REMEMBER: For best grass collection always mow in a
straight line, do not swing the lawnmower from side to side.
Always handle the blade with care - sharp edges
could cause injury. USE GLOVES. Never use more
than 3 Cutting Height Spacers. Spacers must only
be fitted between the blade and the fan and NEVER
between the blade and the bolt.
1. Remove the blade bolt, and blade as described in
Removing the Blade and Fan.
2. For a Lower Cut - Add spacers to a maximum of 3.
3. For a Higher Cut - Take spacers away.
4. Refit the blade as described in Fitting the Blade and Fan.

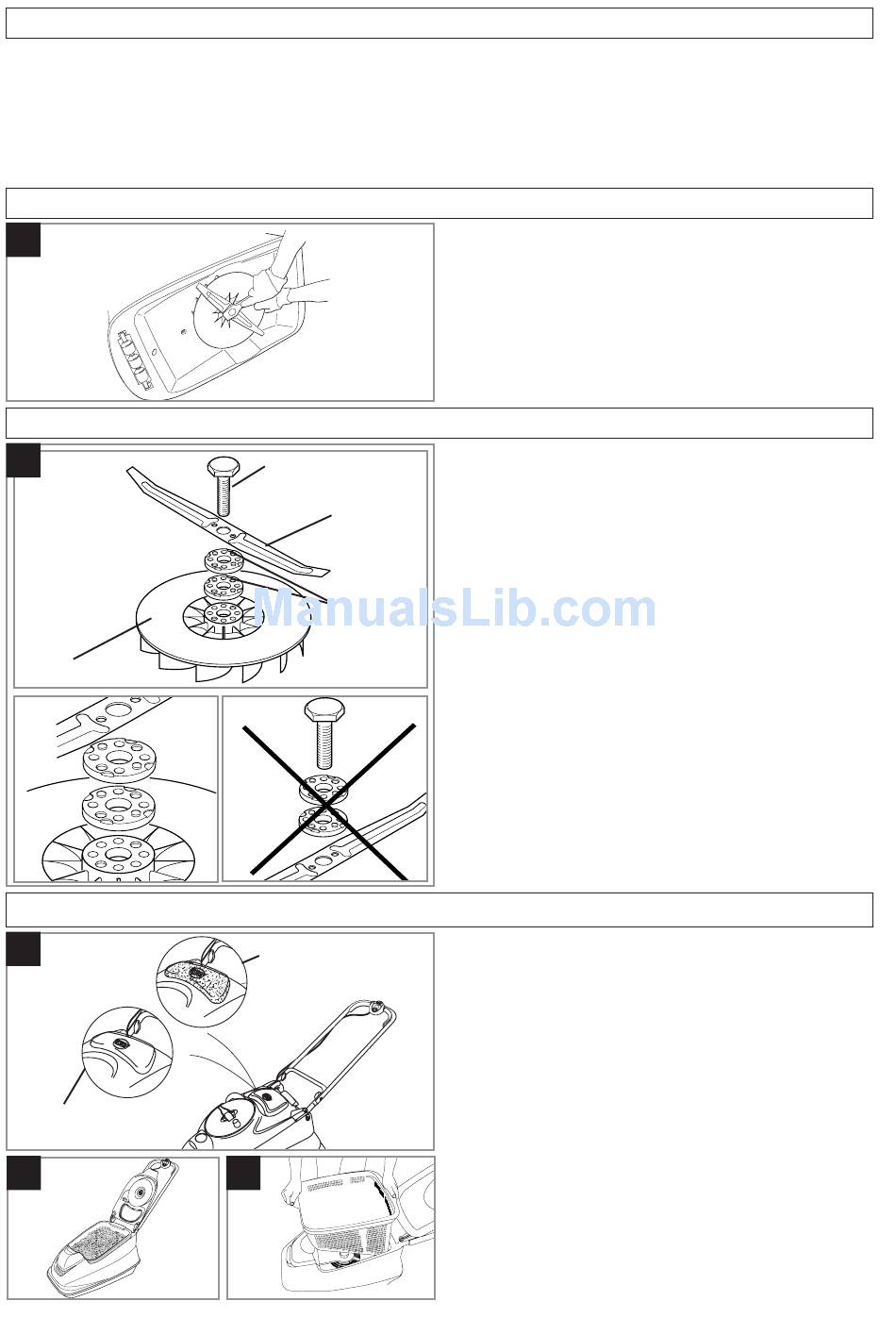

Removing the Blade and Fan
1. To remove the blade bolt, hold the fan firmly and with
the spanner provided loosen the blade bolt by turning
it anti-clockwise (K).
2. Remove the blade bolt, blade, spacers and fan. (L)
3. Inspect for damage and clean as necessary.
• Renew your metal blade after 50 hours mowing or
2 years whichever is the sooner - regardless of
condition.
• If the blade is cracked or damaged replace it with
a new one.
• Never use a blade bolt if the insulated head is
damaged cracked or missing.
Fitting the Blade and Fan
1. Ensure the fan is located correctly.(L)
2. Place the spacers onto the fan ensuring the pegs
have located into the holes.(L)
3. Place the blade onto the spacers ensuring the pegs have
located into the holes on the blade and ensuring the blades
is positioned as illustrated in Figure L.
4. Place the blade bolt through the centre hole of the blade.
5. Tighten down clockwise by hand.
6. Hold the fan firmly and tighten the blade bolt with the
spanner provided.
Grassbox Full
• As the grassbox fills up, grass will be clearly visible
through the window in the lid (M).
• When the window is full it is time to empty the
grassbox.
Emptying the Grassbox
• Stop the lawnmower, as described in 'To Stop your
Lawnmower' and wait until the blade has stopped
rotating, BEFORE lifting the grassbox lid.
1. Lift the grassbox lid and rest against the handles (N).
2. Remove the grassbox using the moulded handle
recesses as illustrated.(See Figure P).
3. Empty grassbox.
4 Replace grassbox and lid carefully.
• Failure to fit the grassbox and grassbox lid
correctly will cause poor collection of grass
clippings.
