Summary of Contents for IKI Pillar IKI 4,5 kW

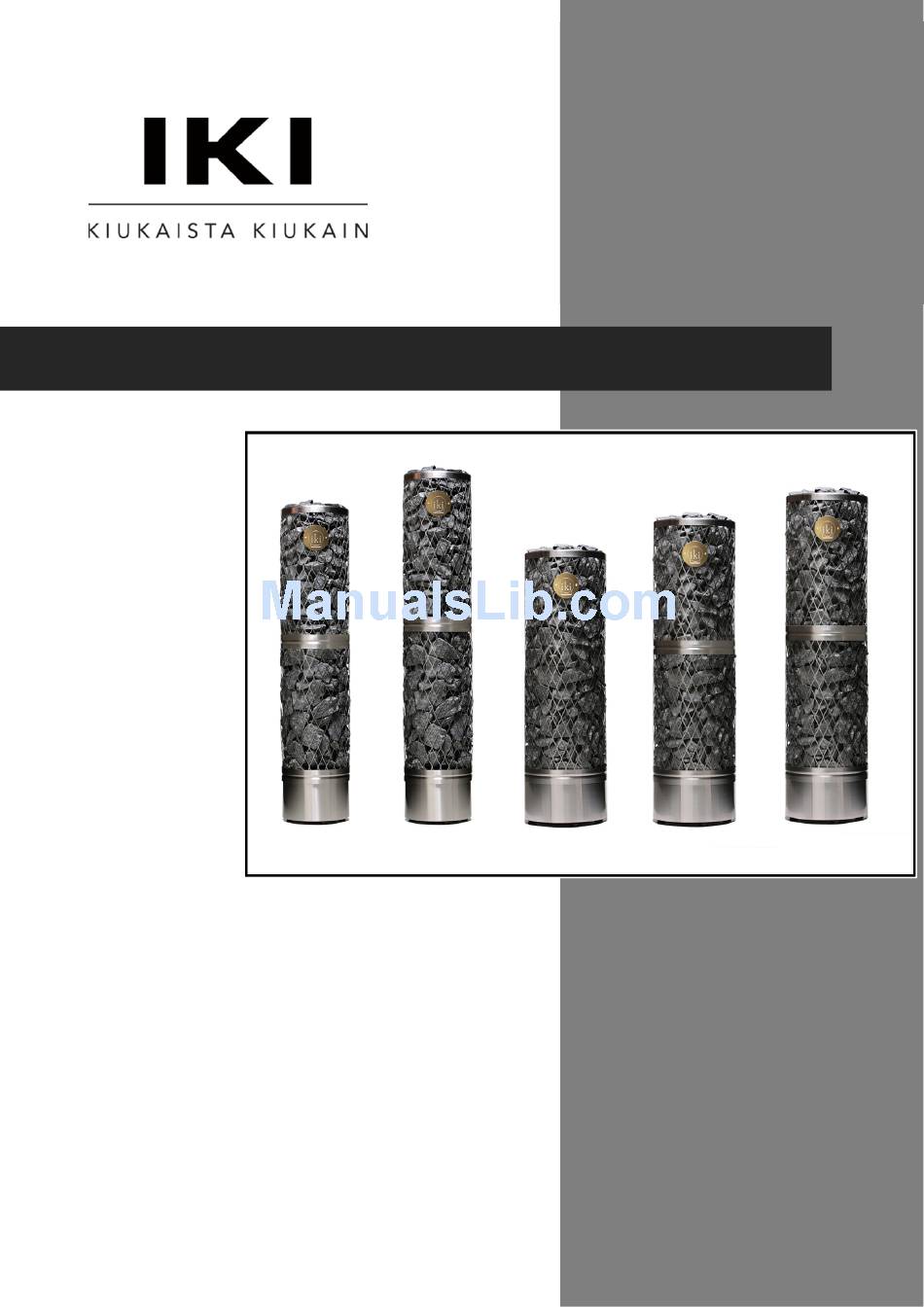

- Page 1 Instructions for installation and use IKI electric heaters 4,5‐12 kW with a separate control unit Pillar IKI 4,5 kW Pillar IKI 6 kW Pillar IKI 7,5 kW Pillar IKI 9 kW Pillar IKI 10 kW Pillar IKI 12 kW 05/2015 ...
- Page 2 The warranty does not cover defects caused by faulty installation or misuse of the heater. YHTEYSTIEDOT Technical support IKI‐Kiuas Oy Vallilan pick up&storage Production (Mon‐Fri 9‐16) Hakaniemenkatu 11 Pälkäneentie 5 Niilontie 10 +358 (0)600 550 133 00530 Helsinki 00510 Helsinki 76150 Pieksämäki vallila@ikikiuas.fi (1,49 €/min + I.c.c.) ikikiuas@ikikiuas.fi tuotanto@ikikiuas.fi tuki@ikikiuas.fi Instructions for installation and use | IKI electric heater with separate control unit Sivu 1 ...
-
Page 3: Table Of Contents
Sisältö Installation of the heater ........................... 3 Connecting the heater to the electrical network .................... 4 Table of heater models ............................ 6 Safety distances .............................. 6 Requirements for water quality ........................ 7 Instructions for use ............................ 7 Trouble‐shooting ............................... 7 Warranty ................................ 8 Quality quarantee / Freight quarantee ...................... 9 Mechanical ventilation ............................ 10 Warnings ................................ 11 Instructions for installation and use | IKI electric heater with separate control unit Sivu 2 ... -
Page 4: Installation Of The Heater
1. Remove the plastic wrapping from around the heater. 2. Choose the place for the heater according to the required safety distances (page 6). 3. Consider the location of the air vent, thermostat and control unit (see instructions for the control unit.) 4. Adjust the legs of the stainless steel base so it is completely level. 5. Remove the base plate from the underside of the heater and connect the five pole electric cable to the connection strip inside the element box according to the circuit connector diagram (page 5). 6. Lead the cable through the junction box on to the conrol unit and affix according to the instructions in the control unit. 7. Test that all the heating elements function properly. If all the resistors heat up, close the element box panel. If problems occur, contact the manufacturer's technical support. 8. Place the lower part of the stainless steel mesh frame around the heating elements, so that it is an equal distance from all the heating elements. Check that the heating elements stand up straight. If they have been bent, carefully straighten them. 9. PILING OF THE STONES: Wash the stones before piling. Detach the two stainless steel mesh frames from one another (excluding the Pillar IKI 7,5 kW heater model). Pile stones to the lower part of the frame. Once the lower part has been filled with stones, reattach the upper part of the frame. Pile stones to the fill the upper part. The heating elements should be carefully covered. Please make sure that elements make NOT contact with each other or with the heater frame. Olivine, olivine‐ dolerite and peridotite stones are recommended, in sizes smaller than 10 cm in diameter. The stones should not be placed too tightly together allowing for free airflow between the stones. In communally or publicly used saunas we recommend the use of ceramic Kerkes stones around the heating elements (www.kerkes.fi). Kerkes stones support and help preserve the resistors and they do not disintegrate prematurely due to high temperature changes. Note that the use of soapstone and natural stones is allowed only on the outer edges and on the top of the heater. 10. We recommend the use of safety railings around the heater. However, the stainless steel mesh frame does not over‐heat the way ordinary steel‐cased heaters do. 11. The surface of the stones sinks in a little after the heater is in use. Frequently check that the heating elements do not become exposed. If this should happen, pile in more stones. The disintegration of the stones depends on the type of stones and the frequency of use. The condition ... -
Page 5: Connecting The Heater To The Electrical Network
Control unit Refer to the separate instructions for installation provided by the manufacturer of the control unit. Sauna‐room temperature sensor and over‐heat prevention fuse The sensor should be located ‐ to a wall: 10 cm down from ceiling 10‐30 cm from outer edge of heater ‐ to the ceiling: ‐ ‐10‐30 cm from outer edge of heater ‐ minimum of 1000 mm distance from undirected vent for replacement air, or minimum of 500 mm distance from the air vent directed away from the sensor. The temperature restrictor switches off the power if the temperature in the sauna climbs dangerously high (139 degrees Celsius) due to a malfunction. Instructions for installation and use | IKI electric heater with separate control unit Sivu 4 ... - Page 6 3 3x10A 5x2,5S (tai 5x1,5S) 3 3x16A 5x2,5S 3 3x16A 5x2,5S 3 3x16A 5x2,5S double 6 6x10A 2x 5x2,5S (tai 2x 5x1,5S) 3 3x20A 5x6S double 6 6x10A 2x 5x2,5S (tai 2x 5x1,5S) Instructions for installation and use | IKI electric heater with separate control unit Sivu 5 ...
-
Page 7: Table Of Heater Models
Table of heater models Size of Heater Heater Max. amount Wattage Kiuas sauna height diameter of stones Pillar IKI 4,5 kW 3‐6 m³ 120 cm 26 cm 80 kg 4,5 kW Pillar IKI 6 kW 5‐9 m³ 140 cm 26 cm 100 kg 6 kW Pillar IKI 7,5 kW 7‐12 m³ 105 cm 34 cm 140 kg 7,5 kW Pillar IKI 9 kW 8‐16 m³ 120 cm 34 cm 150 kg 9 kW Pillar IKI 10 kW 10‐18 m³ 125 cm ... -
Page 8: Requirements For Water Quality
Hardness: most important substances Precipitates Mn: <0,05 mg/l are manganese (Mn) and lime, i.e. Ca: <100 mg/l calsium (Ca) Chlorinated water Risk to health Forbidden Seawater Fast corrosion Forbidden Instructions for use Before bathing for the first time, heat up the heater once to burn off the protective oil solvents. Be careful to air out the sauna room efficiently afterwards. The heating time is about 45–75 minutes depending on the size of the room and its ventilation. Recommended temperature for IKI stone pillars is 50–70 degrees. Pouring water on the heater increases temperature and humidity. You can control the heat and humidity by pouring the water to different parts of the heater. The temperature should be set to the desired range from the temperature knob in the control unit. Check that the heating elements do not become exposed as the stones shift about due to heat expansion. Check the condition of the stones once a year, and clean and replace as necessary. Do not throw water to the heater when there are people nearby: the steam coming off the heater is burning hot. Do not throw too much water on to the heater. Maximum amount is half a litre at a time. Trouble‐shooting If the heater or sauna room does not heat up, check that: The power is on ... -
Page 9: Warranty
Warranty IKI‐Kiuas Ltd (the manufacturer) assures a warranty to its products as stipulated here, guaranteeing the quality and functionality of the products during the warranty period. The warranty applies to heaters sold and used in Finland. The warranty requires that the buyer follow the instructions regarding the placement of the heater, its installation, use and maintenance as well as those regarding the qualities of the stones used in the heater. The length of the warranty period is 24 month from the day of purchase or from the day of purchase. The warranty period for spa saunas and other public‐use saunas is 6 months, or determined according to the frequency of use. Contact the manufacturer for more details. The warranty for electric heaters requires that: In case of defect or malfunction, the buyer must always contact the manufacturer or sales agent before searching for the cause or attempting to repair it. Any repairs must be agreed upon in writing with the manufacturer. In private apartment use, the heater’s stone space needs to cleaned out and re‐piled at least once a year and weathered stones need to be replaced with new ones. In institutional or professional use, the heater’s stones must be re‐piled at least three times a year during the warranty period. If this is not done, the warranty ceases to apply. In addition, the stones must be changed to new ones at least once a year. Proof, such as the product’s purchase receipt, must be presented at request. The use of ceramic heater stones (other than those form Kerkes) is prohibited. The warranty does not cover dismantlement or reinstallation on sauna benches, removal of sauna stones nor re‐piling them. IKI‐Kiuas recommends using for the lower levels sauna benches that can be moved without using tools to dismantle structures. The warranty for replacement parts is 12 months from the day of purchase. The replacement for the damaged part will be delivered to the sales agent cost free. The installation of the replacement part must be carried out by a mechanic that has been approved by the manufacturer. The manufacturer is not liable to reimburse any costs due to the removal of the faulty part or the installation of the replacement. The faulty part must be returned to the manufacturer at request and at their expense. The manufacturer will issue its freight contacts number for the delivery of the faulty part. Receipt from the reseller or certificate from a manufacturer’s authorized mechanic will function as a warranty certificate. Warranty based on the conditions set by The Electrical Contractors´ Association of Finland STUL. STUL‐warranty applies to electric heaters and control units if agreed upon in writing. In such cases, the conditions STUL has set are attached to these warranty conditions. When the use of STUL warranty has been agreed upon, they supersede these warranty regulations, if contradictory. Limitations to warranty: The product owner must take good care of the product. On receiving the product, the owner is expected to check that it does not show signs of ... -
Page 10: Quality Quarantee / Freight Quarantee
Manufacturer’s actions regarding warranty, continuation of warranty: In receipt of a substantiated warranty claim, the manufacturer will repair or change the product. This is done in the manufacturer’s expense, and the manufacturer is free to select the most cost‐effective alternative. The warranty for replacement parts is outlined above. The replacement part is granted warranty according to specifications. The warranty for a repaired part continues as before. The manufacturer is not liable for reimbursing any expenses, business loss or other direct or indirect harm occurred to the buyer from damages or malfunction. Quality quarantee / Freight quarantee Guarantee of materials. The manufacturer guarantees the durability of the stainless steel parts (resistor platform and frame) in private home use for 10 years. During the warranty period any defects that appear in the heater's raw materials or are production‐based will be repaired free of charge. For example, the use of seawater on the heater is forbidden. Read through the requirements for water quality in the installations instructions. The warranty does not cover colour changes, slipping or hair‐line fractures, characteristic to natural stones, which do not affect the use or the safety of the heater. Damages occurred while shipping must to be recorded in the waybill when the product is received or within 7 days of delivery. Shipping damage must also always be reported to the shipping company’s last contact. The damaged part needs to be stored for inspection. Insurance compensates for the new part, which will be delivered by a public transporter. In all issues concerning warranty contact the store the product was bought from. Instructions for installation and use | IKI electric heater with separate control unit Sivu 9 ... -
Page 11: Mechanical Ventilation
Mechanical ventilation The ventilation in the sauna room needs to be considered. Proper air‐flow allows bathers to enjoy fresh, oxygen‐rich air. The air should fully change 6 times an hour. The supply air inlet should be installed on the wall or the ceiling at about 500 mm above the heater. The supply air inlet vent should be 50‐100 mm in diameter. The outlet vent should be located as far away from the heater as possible, close to the floor. The outlet vent should be twice the size of the inlet vent. NOTE! The sensor for the thermostat should be located at a minimum of 1000 mm distance from undirected vent for replacement air, or minimum of 500 mm distance from the air vent directed away from the sensor. Instructions for installation and use | IKI electric heater with separate control unit Sivu 10 ... -
Page 12: Warnings
Warnings 1. Staying in the hot sauna for long periods increases body temperature, which may be dangerous. 2. Keep away from the heater when it's hot. The stones and outer surface of the heater may burn. 3. Prevent children from getting close to the heater. 4. Do not leave children, handicapped or ill people to use the sauna without supervision. 5. Consult your doctor about any health concerns regarding sauna‐bathing. 6. Consult child welfare clinic about taking little babies to the sauna. 7. Always move carefully in the sauna, as the benches and floors may be slippery. 8. Never go to a hot sauna under the influence of alcohol, medication or narcotics. 9. Never sleep in a hot sauna. 10. Sea‐air and a humid climate may corrode the metal surfaces of the heater. 11. Do not hang clothes to dry in the sauna, as this may cause a risk of fire. Excessive moisture content may also cause damage to the electrical equipment. Instructions for installation and use | IKI electric heater with separate control unit Sivu 11 ... - Page 13 Copyright IKI‐Kiuas Ltd. | We reserve the right to changes Instructions for installation and use | IKI electric heater with separate control unit Sivu 12 ...
