SUB450
¡
HIGH LEVEL
+ – – +
L R
OUT
IN
+
IMPORTANT: CONNECT STRIPED WIRE TO RED ( ) SPEAKER TERMINAL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
LFE Input
Line-Level Inputs
AUTO/On Switch
Subwoofer Level Control
Power Switch
∞
£
SUBWOOFER
LINE LEVEL IN
LEVEL
™
¢
L
LFE
AUTO ON
R
MIN
GREEN: ON
RED: STANDBY
POWER
§
AC 120V~60Hz
FUSE
2.5A/250V
200 Watts
TYPE T
S
UBWOOFER

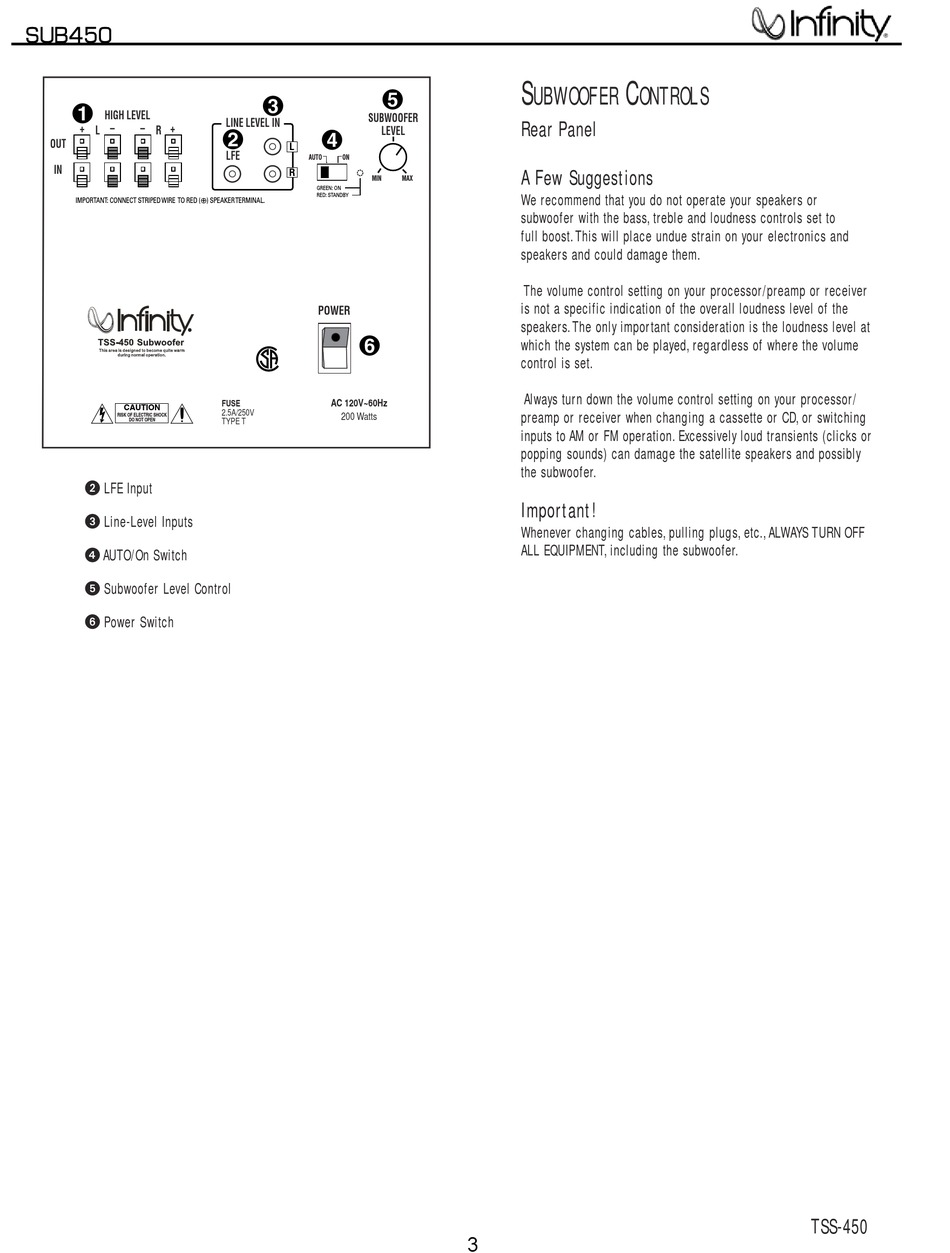

Rear Panel
A Few Suggestions
MAX
We recommend that you do not operate your speakers or
subwoofer with the bass, treble and loudness controls set to
full boost.This will place undue strain on your electronics and
speakers and could damage them.
The volume control setting on your processor/preamp or receiver
is not a specific indication of the overall loudness level of the
speakers.The only important consideration is the loudness level at
which the system can be played, regardless of where the volume
control is set.
Always turn down the volume control setting on your processor/
preamp or receiver when changing a cassette or CD, or switching
inputs to AM or FM operation. Excessively loud transients (clicks or
popping sounds) can damage the satellite speakers and possibly
the subwoofer.
Important!
Whenever changing cables, pulling plugs, etc., ALWAYS TURN OFF
ALL EQUIPMENT, including the subwoofer.
3
C
ONTROLS
TSS-450
