- Page 1 Hyper Bar 252 USER MANUAL...
-
Page 2: Table Of Contents
Index Summary ........................1 Safety Instructions ......................1 Product Dimensions ...................... 2 Product Features ......................3 DMX Operation ......................3 Display Operation Instruction ..................4 Manual Instructions ...................... 4 Master/Slave Operation ....................5 XLR Connection ......................5 Wiring Diagram ......................7 Troubleshooting ...................... -
Page 3: Summary

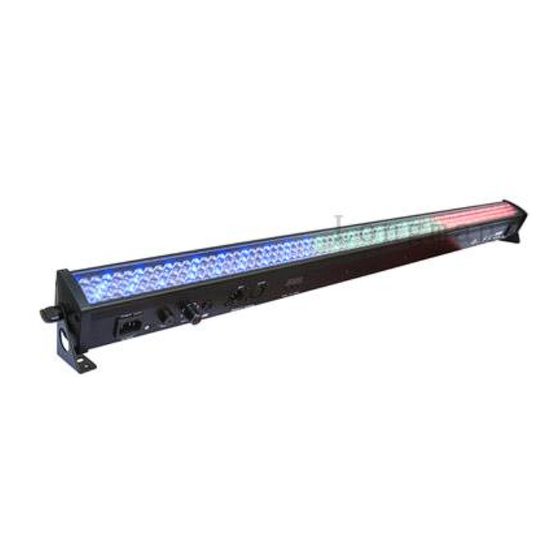

This product uses high power R, G, B LED diodes. Each color can be manipulated independently. It can be operated via built-in programs or by international standard DMX 512 signal. Packing list Hyper Bar 252 Light Bracket 2 pcs T-shaped screw 2 pcs ... -
Page 4: Product Dimensions
●This fixture maybe mounted in any position provided there is adequate room for ventilation. Make sure there are no inflammable and explosive items within 0.5 meters of any surface of this unit. ●Please make sure that this fixture is properly grounded. 3. Dimensions Hyper Bar 252 v1.0... -
Page 5: Product Features
Red dimming (one pixel to another) 10-255 Red general dimming 0-100% Green dimming (one pixel to another) 10-255 Green general dimming 0-100% Blue dimming (one pixel to another) 10-255 Blue general dimming 0-100% 0-255 The first red pixel dimming 0-100% Hyper Bar 252 v1.0... -
Page 6: Display Operation Instruction
”SP”; built-in program speed change model (SP00-SP15, SP00 is the fastest) “SOUF”:sound control with strobe “SOUA”:sound control no strobe “SP00”:built-in speed adjustable SP00-SP15 ”Pr”; Built-in program （Pr00-Pr15 16 programs in all） ”FA00”: gradual change model（FA00-FA15 speed adjustable） Hyper Bar 252 v1.0... -
Page 7: Master/Slave Operation
35 units together. Using 115V AC, link no more than 20 lights! ! ! 9. XLR Cable Connections XLR cable：(DMX Cable) XLR/DMX connections are connected male to female, as shown below: pin 1:ground,pin 2: negative signal, pin 3: positive signal Hyper Bar 252 v1.0... - Page 8 DMX connecting as below: Conversion between 3-pin and 5-pin XLR If the output cable of DMX 512 controller is the 5-PIN, please use a 5-PIN to 3-PIN adapter. 10. Connection Diagram Light connecting picture： Hyper Bar 252 v1.0...
-
Page 9: Wiring Diagram
Check if the power input to the IC board is normal Check if the cable connect to the display is loose Change the main board to see if it is normal. Change the display Hyper Bar 252 v1.0... - Page 10 Check constant current IC is normal or not (compared with the normal IC) Check the switch of this color is normal or not Single color LED's Always bright/not Change the IC control board bright Hyper Bar 252 v1.0...
-
Page 11: Technical Specifications
● Lamp Type： LED(Φ10) ● Lamp Spec：red（108PCS), green（72PCS), blue（72PCS） ● Life span: 50000-100000 hours ● Control mode：stand alone/ master and slaver ● Channel： 13CH ● Beam Angle: 25° ● Anti-electricity intension：1.5KV ● Insulation Resistance：＞２MΩ ● Size:：1000*60*60mm ● Net Weight：2KG Hyper Bar 252 v1.0...
