Quick Start Guide - NewTek TalkShow VS 4000 Quick Start Manual

Input configuration —
Return video and audio to caller
Choose and set up the desired input configuration for
your production workflow, then select the appropriate
input connection and audio connection for each call
channel using the configuration panel in the TalkShow user
Interface. When a Skype call is active, TalkShow will supply
the return video and audio
to caller(s)
A
Input via Network (NewTek NDI
• Plug Ethernet cable(s) into the Ethernet port(s) on
the TalkShow rear panel and connect to the same
network as NDI-enabled production system(s)
• Choose the desired NDI video and audio
source(s) for return A/V signal(s)
B
Input via SDI (with embedded audio):
• Connect SDI cable(s) from production system
output(s) to SDI IN connector(s) on the rear panel
to supply return A/V signal(s) to TalkShow
C
Input via SDI (paired with analog audio):
• Connect SDI cable(s) from production system
output(s) to SDI IN connector(s) on the rear panel
to supply return video signal(s) to TalkShow
• Connect one or more analog audio sources to the
appropriate AUDIO IN connector(s)
panel to supply return audio signal(s) to TalkShow
TalkShow also supports audio networking via the Dante
3
Analog audio connectors support line level balanced input only
4
This Quick Start Guide provides basic instructions so that you can set up your TalkShow quickly and start using it right away. For comprehensive installation and operation instructions, please refer to the
TalkShow User Guide, accessible from the TalkShow User Interface or online at new.tk/dl, and the product User Guide(s) applicable to your workflow.
Actual hardware and screen displays may vary slightly in appearance.
from your production system(s)
3
):
™
on the rear
4
networking protocol from Audinate
™

Quick Start Guide

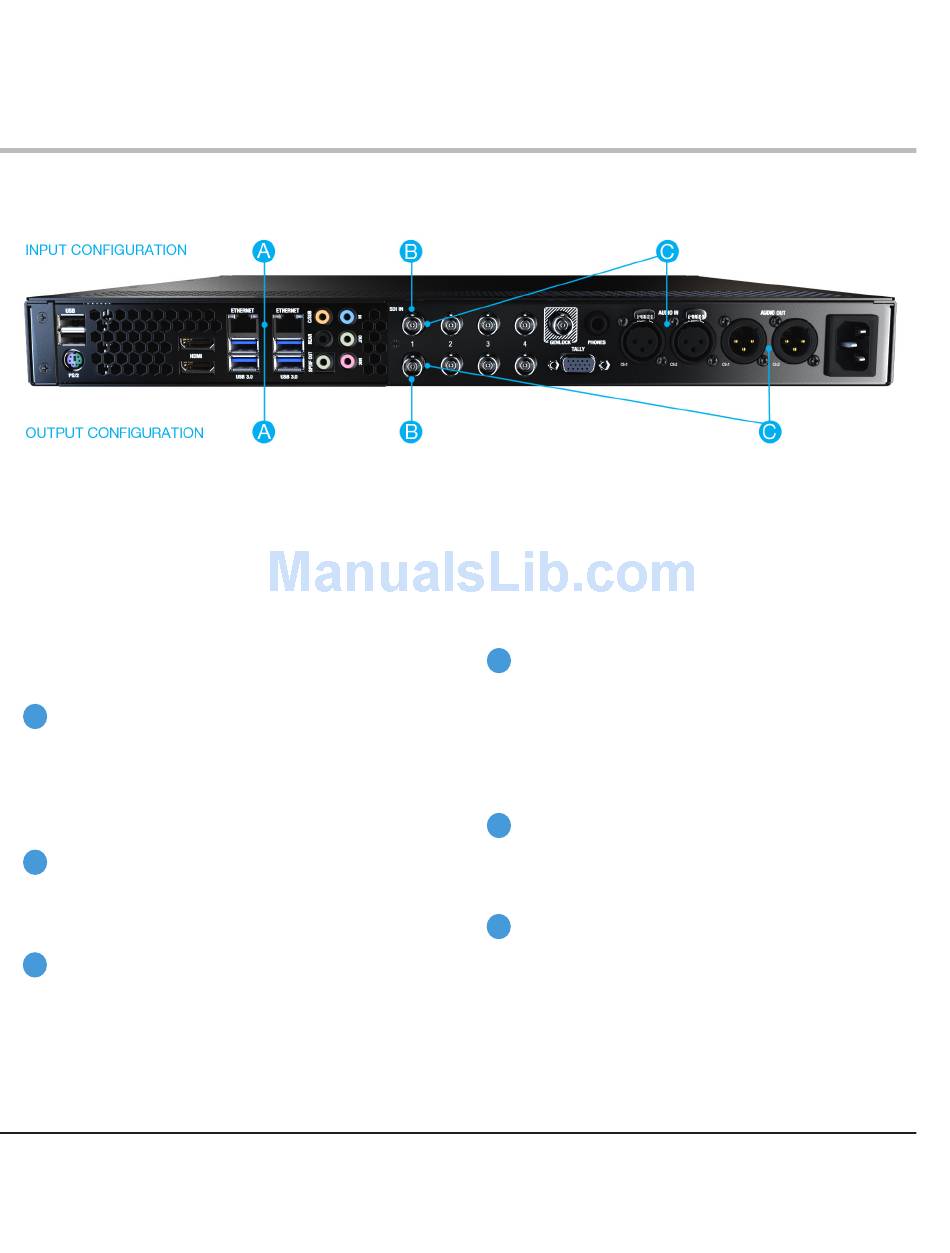

Output configuration —
Receive call video and audio
Choose and set up the desired output configuration for
your production workflow. When Skype call(s) are active,
TalkShow will supply the call video and audio to your
production system(s).
A
Output via Network (NewTek NDI):
• Plug Ethernet cable(s) into the Ethernet port(s) on
the TalkShow rear panel and connect to the same
network as NDI-enabled receiving device(s)
• On NDI-enabled receiving device(s), choose
the TalkShow output channel(s) from the list of
available NDI sources for video, audio, or both
B
Output via SDI (with embedded audio):
• Connect SDI cable(s) to the SDI OUT connector(s)
on the TalkShow rear panel to supply Skype call
video and audio to production system input(s)
C
Output via SDI (paired with analog audio):
• Connect SDI cable(s) to the SDI OUT connector(s)
on the TalkShow rear panel to supply Skype call
video to production system input(s)
• Connect one or more analog audio sources to
the appropriate AUDIO OUT connector(s)
TalkShow rear panel to supply Skype call audio to
audio mixer input(s)
®
on the
4
