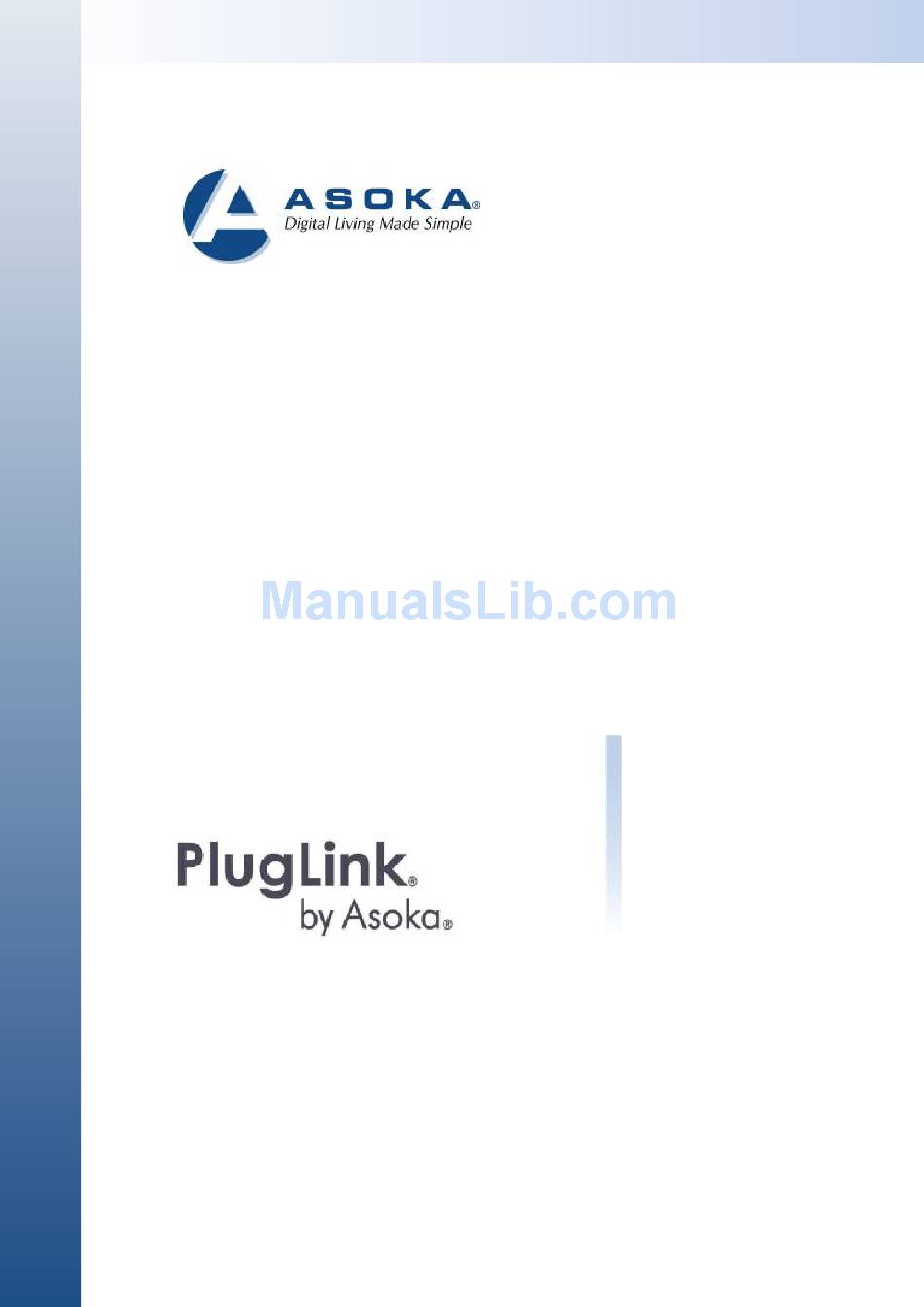

- Page 1 PlugLink HD AV Pass-Through Adapter User’s Guide PL9667-Q1 QUICKFIND LOCATOR Contact Information Getting Help Table of Contents Installation 66‐0384‐01Rev.001...
- Page 2 Asoka USA Corporation. Asoka USA Corporation reserves the right to make changes to this user’s guide at any time without notice and assumes no responsibility for its use. Asoka USA products and services can only be ordered under the terms and conditions of Asoka USA Corporation's applicable agreements.
-
Page 3: Contact Information
Contact Information For more information about the PlugLink HD AV Pass-Thriugh Adapter or any of Asoka’s other leading-edge solutions, please contact us using any of the following methods: Voice calls: We welcome your calls Monday through Friday, from 9:00 am to 5:00 pm Pacific Time at (408) 550-8167. -
Page 4: Table Of Contents
Table of Contents 1 Simple Installation................5 Package Contents....................... 5 Types of Connections ....................5 Simple Connection (Peer to Peer) ................. 6 Simple Broadband Connection ..................6 Other Connections...................... 7 Finding a Suitable Location..................7 Installing the Hardware ....................7 2 Troubleshooting ..................8 A Specifications .................. -
Page 5: Simple Installation
Internet, mp3s, video, and gaming throughout the home or office. This manual describes how to connect your PlugLink HD AV Pass-Thriugh Adapter to a PC or cable/DSL Router. Package Contents PlugLink HD AV Pass-Thriugh Adapter(PL9667-Q1) 6-foot Ethernet cable Quick Installation Guide Installation Resource CD (for advanced users only) -
Page 6: Simple Connection (Peer To Peer)
Simple Broadband Connection The following items are needed to share a Broadband connection with computers: l One (1) PL9667-Q1 device attached to a standard cable, DSL, or wireless router; l One (1) PL9667-Q1 device attached to each computer; 6 of 21... -
Page 7: Other Connections
Other Connections You can also use the PlugLink HD AV Pass-Thriugh Adapter with other Ethernet enabled devices, such as IP Cameras, IP set top box, game consoles, etc. “Up to eight (8) PL9667 can be placed on the same PLC (Powerline Communication) network.”... -
Page 8: Troubleshooting
Troubleshooting Following are solutions to a few situations you might encounter. If you do not find a solution in this chapter, contact Asoka USA Technical Support by phone at (408) 550-8173 or through email at support@asokatech.com. Symptom: I can't connect to anything and there are no lights activated on my PL9667-Q1. - Page 9 5. Open the Power Manager Utility (located on the enclosed CD). 6. Under the Profile button, check if your PL9667-Q1 is displayed (it Will be the first) and see if your other PL9667-Q1 devices can be seen. If you can see other devices under the Profile screen, your PL9667-Q1 device is functioning properly.
-
Page 10: Specifications
Specifications This appendix lists the specifications for your PL9667-Q1. Standards Compliance: •HomePlug® AV • IEEE 802.3, IEEE 802.3x, IEEE 802.3u,IEEE1901 Software Utility Microsoft Windows 98 SE, 2000, ME, XP, Vista ,7 (32bit)and 7(64bit) ® System Requirements: operating systems TCP/IP, CSMA/CA, TDMA (supported in the future) - Page 11 • Operating temperature: 32°F to 113°F (0°C to 45°C) for EU plug Environmental •Operating temperature: 32°F to 95°F (0°C to 35°C) for US plug Specifications: • Operating humidity: 10% to 85% Non-condensing • Storage temperature: -4°F to 158°F (- 20°C to 70°C) • Storage humidity: 5% to 90% Non-condensing Quality of Service: •ToS •...
-
Page 12: B Components
Components Front Panel Use the status lights on the front panel to verify connections. 12 of 21... -
Page 13: Bottom Panel
Blinking Ethernet traffic No Ethernet connectivity Bottom Panel The bottom panel of the PL9667-Q1 contains the following components: RJ-45 Ethernet port The label on the rear panel of the PlugLink HD AV Pass-Thriugh Adapter contains the information listed below. MAC address... - Page 15 Key) network. This unit will remain in this “adder” mode for about 2 minutes. 2. Select another PlugLink HD AV Pass-Thriugh Adapter (Device B) and plug into a second outlet. a. Press the SECURITY button BRIEFLY (1 second) and release. The POWER light should now be blinking green.
- Page 16 3. An adapter can only generate a private key once. To replace a private key, first reset the unit back to its factory defaults by pressing the Firmware Default Reset (FW RST) button for 1 second, then follow the procedure above.
-
Page 17: C Warranty
This warranty extends only to you, the original purchaser and is not transferable to any subsequent purchasers. This warranty does not apply if, in the judgment of Asoka, the product fails due to damage from shipment, handling, storage, accident, abuse, misapplication or misuse,... - Page 18 Prior to returning any defective product, the purchaser or the authorized merchant from whom the purchaser originally bought the product must obtain a Return Material Authorization (RMA) number from Asoka. All defective products should be returned to Asoka with shipping charges prepaid.
-
Page 19: D Fcc Notice
FCC Notice FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 20 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
- Page 21 Asoka USA Corporation 2620 Augustine Drive Suite 230 Santa Clara, CA 95054 USA USA Phone: (408) 550–8167 Fax: (408) 884–2390 www.asokatech.com 66-0384-01Rev.001 21 of 21...
