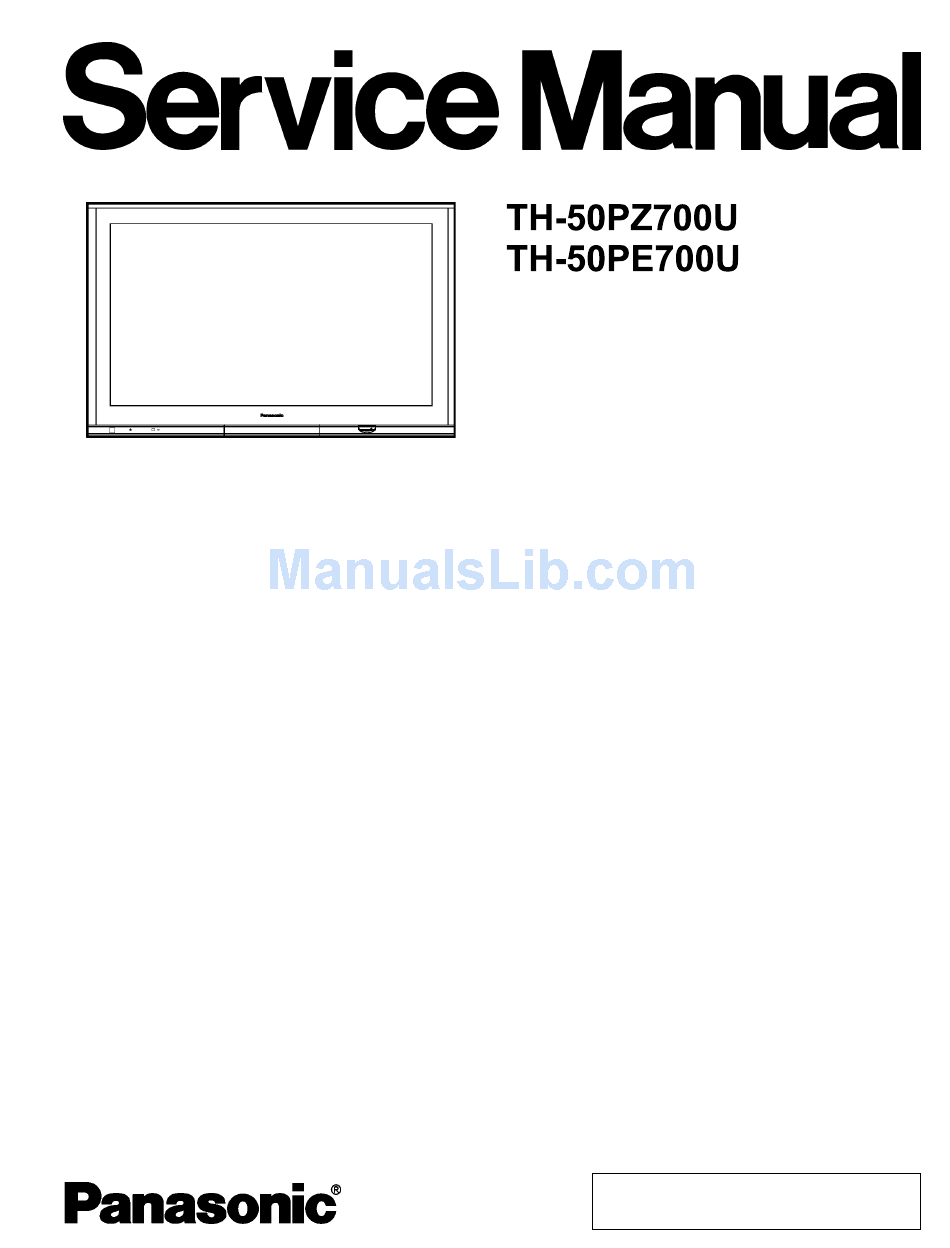

Panasonic TH-50PZ700U Service Manual

Specifications

Power Source
Power Consumption
Maximum
Standby condition
Plasma Display panel
Drive method
Aspect Ratio
Visible screen size
(W × H × Diagonal)
(No. of pixels)
Sound
Audio Output
PC signals
Channel Capability (Digital/Analog) VHF/UHF: 2 - 69, CATV: 1 - 135
Operating Conditions
Connection Terminals
INPUT 1-3
COMPONENT VIDEO
INPUT 1-2
HDMI 1-2 AUDIO IN
AC 120 V, 60 Hz
695 W
0.2 W
AC type
16 : 9
127 cm
43.5 " × 24.4 " × 49.9 " (1,106 mm × 622 mm × 1,269 mm)
2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]
Super Slim SP (2.5 W) × 2
Woofer (13 W) × 2
VGA, SVGA, XGA, WXGA, SXGA
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
Temperature: 32 °F - 104 °F (0 °C - 40 °C)
Humidity: 20 % - 80 % RH (non-condensing)
VIDEO:
S-VIDEO:
AUDIO L-R:
Y:
P , P :
B R
AUDIO L-R:
TYPE A Connector × 2
lThis TV supports "HDAVI Control 2" function.
High Definition Plasma Television
GP10DHU Chassis
RCA PIN Type × 1 1.0 V [p-p] (75 ohm)
Mini DIN 4-pin Y: 1.0 V [p-p] (75 ohm) C: 0.286 V [p-p] (75 ohm)
RCA PIN Type × 2 0.5 V [rms]
1.0 V [p-p] (including synchronization)
± 0.35 V [p-p]
RCA PIN Type × 2 0.5 V [rms]
© 2007 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO.
B19 Canada: B07
Unauthorized copying and
