800 Series Coffee Grinders

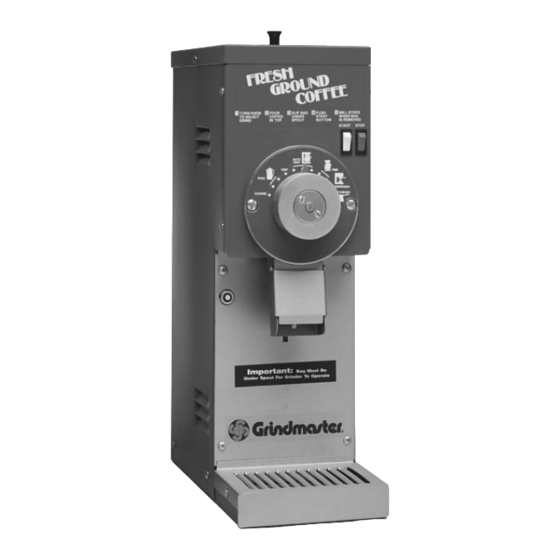

Model 810
Specifications...........................2
Safety Information..................3
Installation...............................3
Operation ................................4
Thank you for purchasing this quality coffee grinder. For your safety and the safety of others, read all
warnings and the operator's manual before installing or using the product. Properly instruct all operators.
Keep training records. For future reference, record serial number here:
GMCW
4003 Collins Lane, Louisville, KY 40245 USA
Phone: 502.425.4776 Toll Free: 800.695.4500
Fax: 502.425.4664
Web: gmcw.com Email: info@gmcw.com
©1995 GMCW
Printed in USA
Models 810, 835, 875, 890
Model 835
Table of Contents
Cleaning & Maintenance ........5
Troubleshooting Guide...........6
Parts Diagram and List ...........7
Wiring Diagram.....................10
Operator Manual
Model 875
GMCW provides the industry's BEST
warranty. Visit gmcw.com for warranty
terms and conditions.
Model 890
0615 Form # GR-380-18
Part # 83427
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grindmaster 810
Summary of Contents for Grindmaster 810
-
Page 1: Table Of Contents
Operator Manual 800 Series Coffee Grinders Models 810, 835, 875, 890 Model 810 Model 835 Model 875 Model 890 Table of Contents Specifications......2 Cleaning & Maintenance ..5 Safety Information....3 Troubleshooting Guide...6 Installation.......3 Parts Diagram and List ...7 Operation ........4 Wiring Diagram.....10 Thank you for purchasing this quality coffee grinder. -
Page 2: Specifications
120V / 920 W / 8A / 1 Ph C-UL US, ETL Sanitation Certification Medium duty grinder with European slicing burrs 890T - 5 lbs. hopper. 120V / 920 W / 8A / 1 Ph C-UL US, ETL Sanitation Certification Grindmaster ® 800 Series Coffee Grinders... -
Page 3: Safety Information
(Check rating plate on back of unit for voltage and amperage requirements.) Do not use an extension cord. 5. Fill hopper with whole bean coffee. 6. Grind a small amount of whole bean coffee 800 Series Coffee Grinders Grindmaster ®... -
Page 4: Operation
Tools required: Phillips screwdriver grinder. The reset button is located on the front panel Large blade screwdriver of the Model 810, 835 and 875. To reset the circuit Pliers breaker, wait two minutes then push in the reset 1. Remove all coffee from the hopper. -
Page 5: Cleaning & Maintenance
If the motor should run and no coffee is dispensed, the 7. (Model 810, 835, 875) Insert a new Shear Shear Disc may have sheared. Should this occur, Disc by aligning the slot in the Shear Drive perform the following operations in the sequence with the slot in the hub of the Feedworm. -
Page 6: Troubleshooting Guide
(Monday through Friday 8 AM - 6 PM EST). Please have the model and serial number ready so that accurate information can be given. Prior authorization must be obtained from GMCW for all warranty claims. GMCW provides the industry’s BEST warranty. Visit our website at GMCW.com for warranty terms and conditions. Grindmaster ® 800 Series Coffee Grinders... -
Page 7: Parts Diagram And List
Parts Diagram and List 800 Series Coffee Grinders Grindmaster ®... - Page 8 82365 83356 88280 Circuit breaker, 10amp for 120VAC [5amp for 86618 [83107] 230VAC] Screw, #10 x 1/2", sems, 86868 86868 tr ph Screw, spout flap 60288 60288 Eyelet, 0.162 ID, rolled 82039 82039 edge Grindmaster ® 800 Series Coffee Grinders...
- Page 9 Screw, #6-32 x 1/4", SS 86993 Relay, Motor Start, 86424 230VAC Finger guard 83297 Screw, #8-32 x 1/2", 86867 86867 Ground Nut, #8-32, KEPS 86810 86810 86810 Harness, wiring 83341 82029 84143 82029 Harness, bag switch 80086 80086 800 Series Coffee Grinders Grindmaster ®...
-
Page 10: Wiring Diagram
Wiring Diagram (continued) 800 Series 230V, 50Hz Wiring Diagrams 800 Series Coffee Grinders Grindmaster ®...
