ARRIS X-Speed 250B Assembling Manual
1. Install the Arm

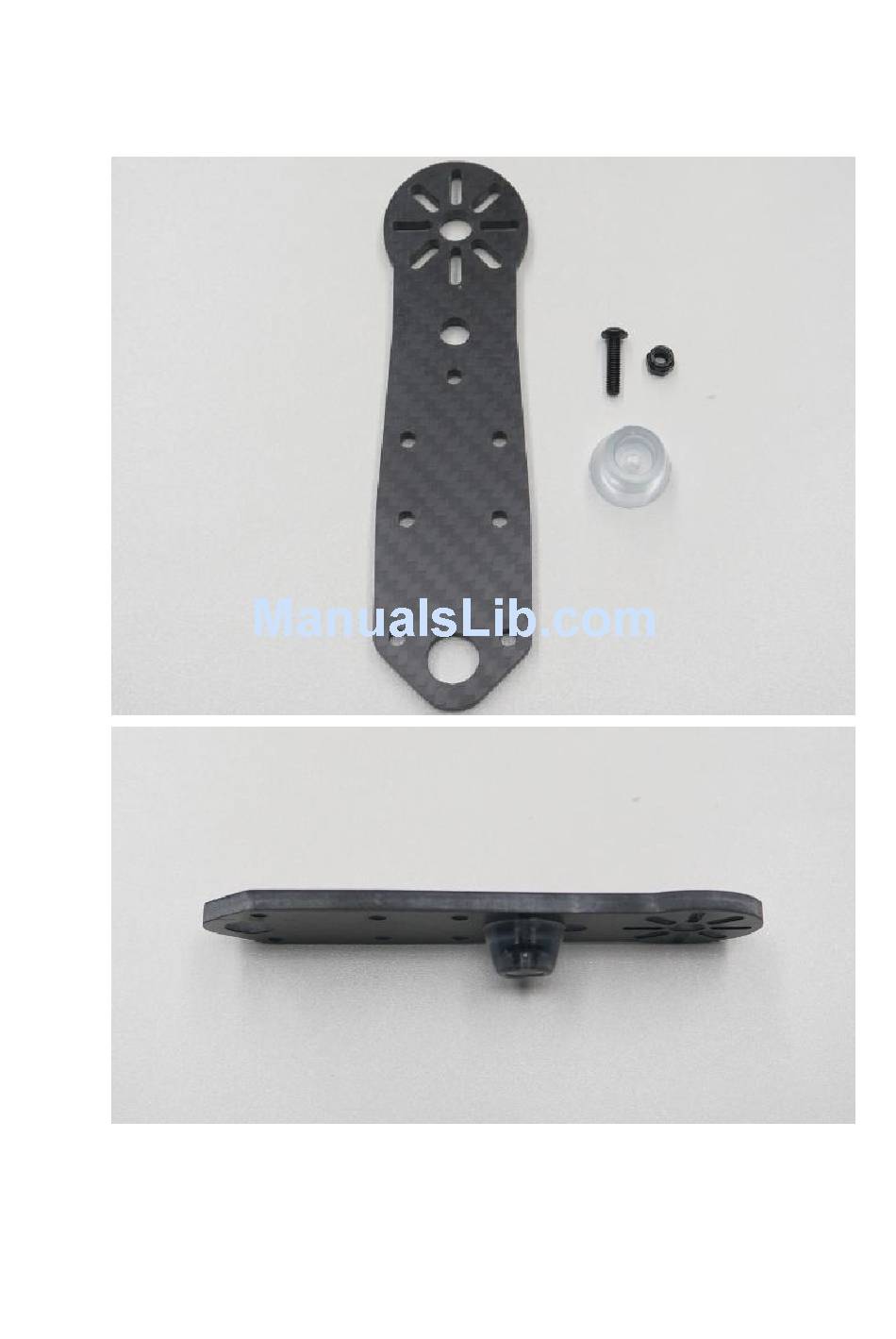

Take the arm and rudder landing gear out from the package. And install the landing gear to the
arm by M3X12 screw and M3 nut.
2. Install the motor and ESC to the arm
Please prepare the motor, ESC and the M2x6 screw.
2.1. Use the M2 x 6 screw to mount the motor to the arm.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Arris X-Speed 250B
Summary of Contents for Arris X-Speed 250B
- Page 1 ARRIS X-Speed 250B Assembling Manual 1. Install the Arm Take the arm and rudder landing gear out from the package. And install the landing gear to the arm by M3X12 screw and M3 nut. 2. Install the motor and ESC to the arm Please prepare the motor, ESC and the M2x6 screw.
- Page 2 This picture below is ARRIS 2204 motor connected with ARRIS 12A ESC.For different motors, it may not the same.
- Page 3 2.2. Install the ESC according to the above picture. 4 arms installed well now 3. PDB Soldering The picture below is the electrical principle chart of the lower plate of the PDB board. The white line refers to the outer shape of the PDB; the yellow circle refers to the soldering point and the green font refers to the definition of the soldering point.
- Page 4 3.1. Here we need two wires: one is cable from the camera package, and the other is the JST male plug wire from the PDB bag. 3.2 Solder the wire to the PDB according to the following picture...
- Page 5 4. Install the main frame Please prepare the lower main plate, damper ball and vibration damper plate...
- Page 6 5. Install the Battery frame and the camera vibration damper system. Here you need M3 x 8 screw, M3 nut and damper ball① Take damper ② and install it.
- Page 7 6. Install the PDB board with Lower plate and Arms Here you need the following parts: M3 x 12 screw, M3 nut and M3 x 35 standoffs...
- Page 9 Install the rest 3 arms by the same method. 7. Soldering the Power Wire The picture below is the electrical principle chart of the lower plate of the PDB board. The white line refers to the outer shape of the PDB; the yellow circle refers to the soldering point and the green font refers to the definition of the soldering point.
- Page 11 Solder the signal wire of the ESC...
- Page 12 Here we use the Dupont cable and Futaba plug as example. 8. Install the Aluminum standoffs. 8.1 Standoffs in middle of the frame: Here we need M3 x 12 screws, M3 x 35 aluminum standoffs, 3 x 4 nylon standoffs...
- Page 13 8.2. Standoffs in front and rear. Here we need: M3 x 8 screws, aluminum standoffs M3 x 40, and damper ball②.
- Page 14 9. Install the Flight controller and receiver. Here we take CC3D and the Walkera RX701 receiver as example. 10. Install the FPV camera; here we need M2 x 5 screw.
- Page 15 11. Connect the battery plate with the frame. Here we need M3 x 8 screws. The antenna of the video TX seat could install here too.
- Page 17 Here finished the assembling, and the next step is to adjust the settings in computer.
