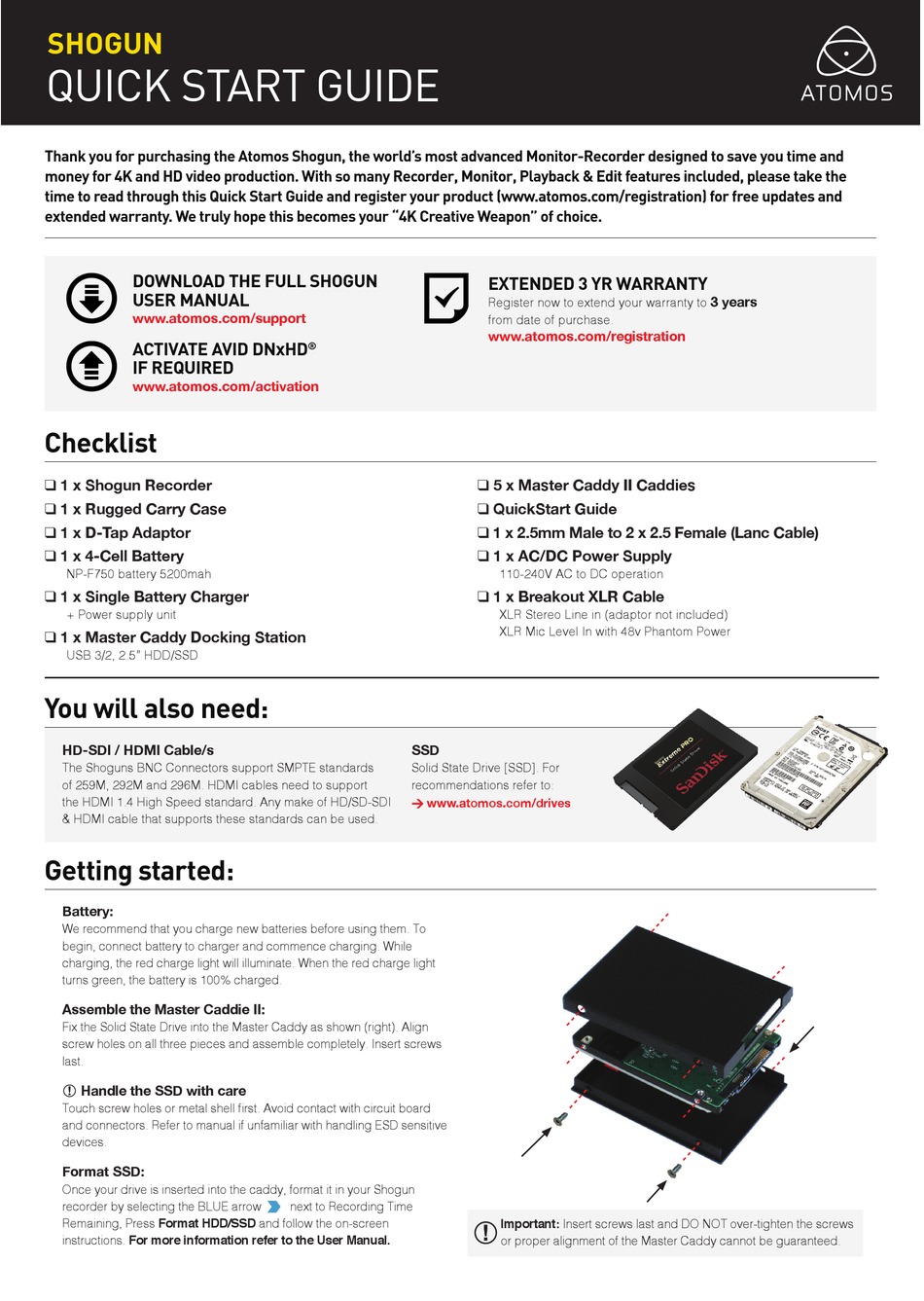

Atomos SHOGUN Quick Start Manual

SHOGUN
QUICK START GUIDE

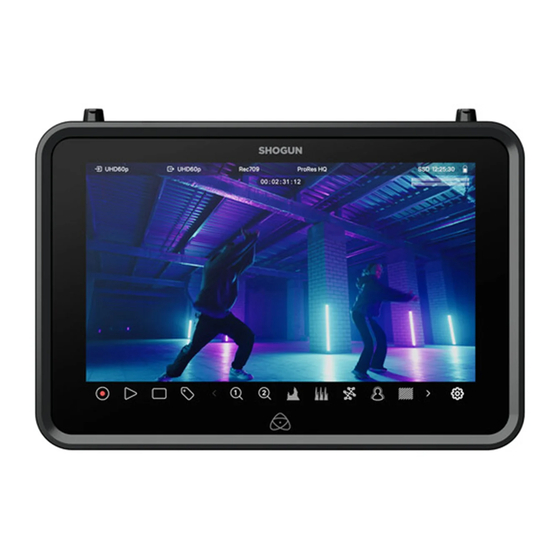

Thank you for purchasing the Atomos Shogun, the world's most advanced Monitor-Recorder designed to save you time and
money for 4K and HD video production. With so many Recorder, Monitor, Playback & Edit features included, please take the
time to read through this Quick Start Guide and register your product (www.atomos.com/registration) for free updates and
extended warranty. We truly hope this becomes your "4K Creative Weapon" of choice.
DOWNLOAD THE FULL SHOGUN
USER MANUAL
www.atomos.com/support
ACTIVATE AVID DNxHD
IF REQUIRED
www.atomos.com/activation
Checklist
q 1 x Shogun Recorder
q 1 x Rugged Carry Case
q 1 x D-Tap Adaptor
q 1 x 4-Cell Battery
NP-F750 battery 5200mah
q 1 x Single Battery Charger
+ Power supply unit
q 1 x Master Caddy Docking Station
USB 3/2, 2.5" HDD/SSD

You will also need:

HD-SDI / HDMI Cable/s
The Shoguns BNC Connectors support SMPTE standards
of 259M, 292M and 296M. HDMI cables need to support
the HDMI 1.4 High Speed standard. Any make of HD/SD-SDI
& HDMI cable that supports these standards can be used.

Getting started:

Battery:
We recommend that you charge new batteries before using them. To
begin, connect battery to charger and commence charging. While
charging, the red charge light will illuminate. When the red charge light
turns green, the battery is 100% charged.
Assemble the Master Caddie II:
Fix the Solid State Drive into the Master Caddy as shown (right). Align
screw holes on all three pieces and assemble completely. Insert screws
last.
Handle the SSD with care
Touch screw holes or metal shell first. Avoid contact with circuit board
and connectors. Refer to manual if unfamiliar with handling ESD sensitive
devices.
Format SSD:
Once your drive is inserted into the caddy, format it in your Shogun
recorder by selecting the BLUE arrow
Remaining, Press Format HDD/SSD and follow the on-screen
instructions. For more information refer to the User Manual.
®
SSD
Solid State Drive [SSD]. For
recommendations refer to:
> www.atomos.com/drives
next to Recording Time
EXTENDED 3 YR WARRANTY
Register now to extend your warranty to
from date of purchase.
www.atomos.com/registration
q 5 x Master Caddy II Caddies
q QuickStart Guide
q 1 x 2.5mm Male to 2 x 2.5 Female (Lanc Cable)
q 1 x AC/DC Power Supply
110-240V AC to DC operation
q 1 x Breakout XLR Cable
XLR Stereo Line in (adaptor not included)
XLR Mic Level In with 48v Phantom Power
Important: Insert screws last and DO NOT over-tighten the screws
or proper alignment of the Master Caddy cannot be guaranteed.
3 years
