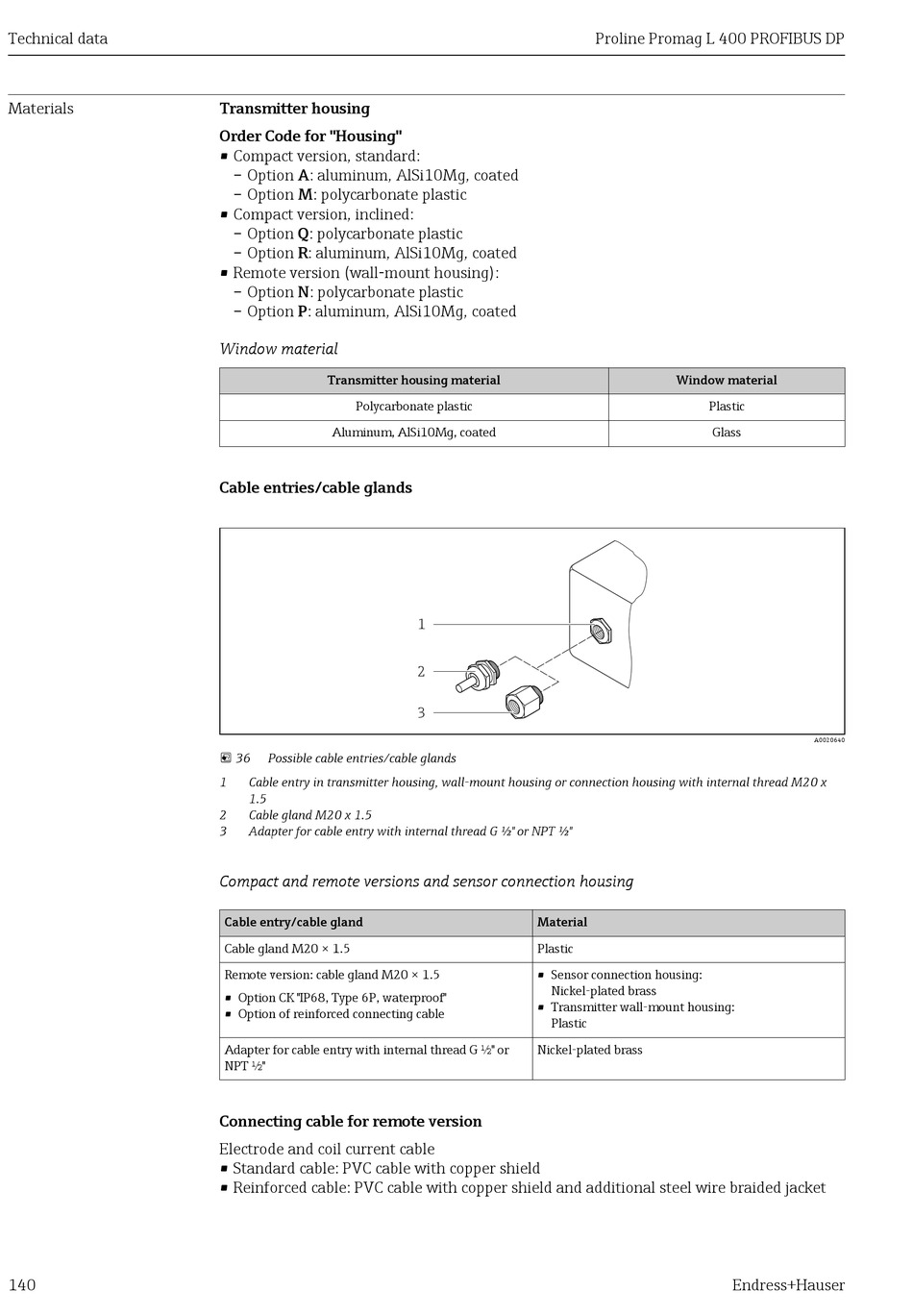

Endress+Hauser Proline Promag L 400 Operating Instructions Manual page 140

Technical data
Materials
140
Transmitter housing
Order Code for "Housing"
• Compact version, standard:
– Option A: aluminum, AlSi10Mg, coated
– Option M: polycarbonate plastic
• Compact version, inclined:
– Option Q: polycarbonate plastic
– Option R: aluminum, AlSi10Mg, coated
• Remote version (wall-mount housing):
– Option N: polycarbonate plastic
– Option P: aluminum, AlSi10Mg, coated
Window material
Transmitter housing material
Polycarbonate plastic
Aluminum, AlSi10Mg, coated
Cable entries/cable glands
 36 Possible cable entries/cable glands
1 Cable entry in transmitter housing, wall-mount housing or connection housing with internal thread M20 x
1.5
2 Cable gland M20 x 1.5
3 Adapter for cable entry with internal thread G ½" or NPT ½"
Compact and remote versions and sensor connection housing
Cable entry/cable gland
Cable gland M20 × 1.5
Remote version: cable gland M20 × 1.5
• Option CK "IP68, Type 6P, waterproof"
• Option of reinforced connecting cable
Adapter for cable entry with internal thread G ½" or
NPT ½"
Connecting cable for remote version
Electrode and coil current cable
• Standard cable: PVC cable with copper shield
• Reinforced cable: PVC cable with copper shield and additional steel wire braided jacket
1
2
3
Material
Plastic
• Sensor connection housing:
Nickel-plated brass
• Transmitter wall-mount housing:
Plastic
Nickel-plated brass
Proline Promag L 400 PROFIBUS DP
Window material
Plastic
Glass
Endress+Hauser
A0020640
