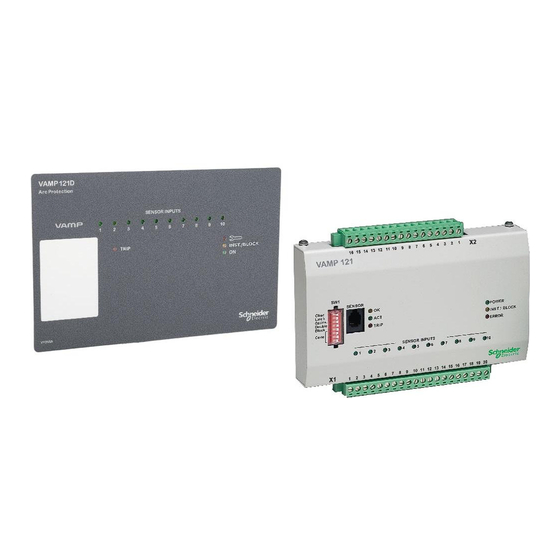

VAMP 121/VAMP 121D
Arc flash protection unit
Publication version: V121/EN M/A017
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 121 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VAMP 121

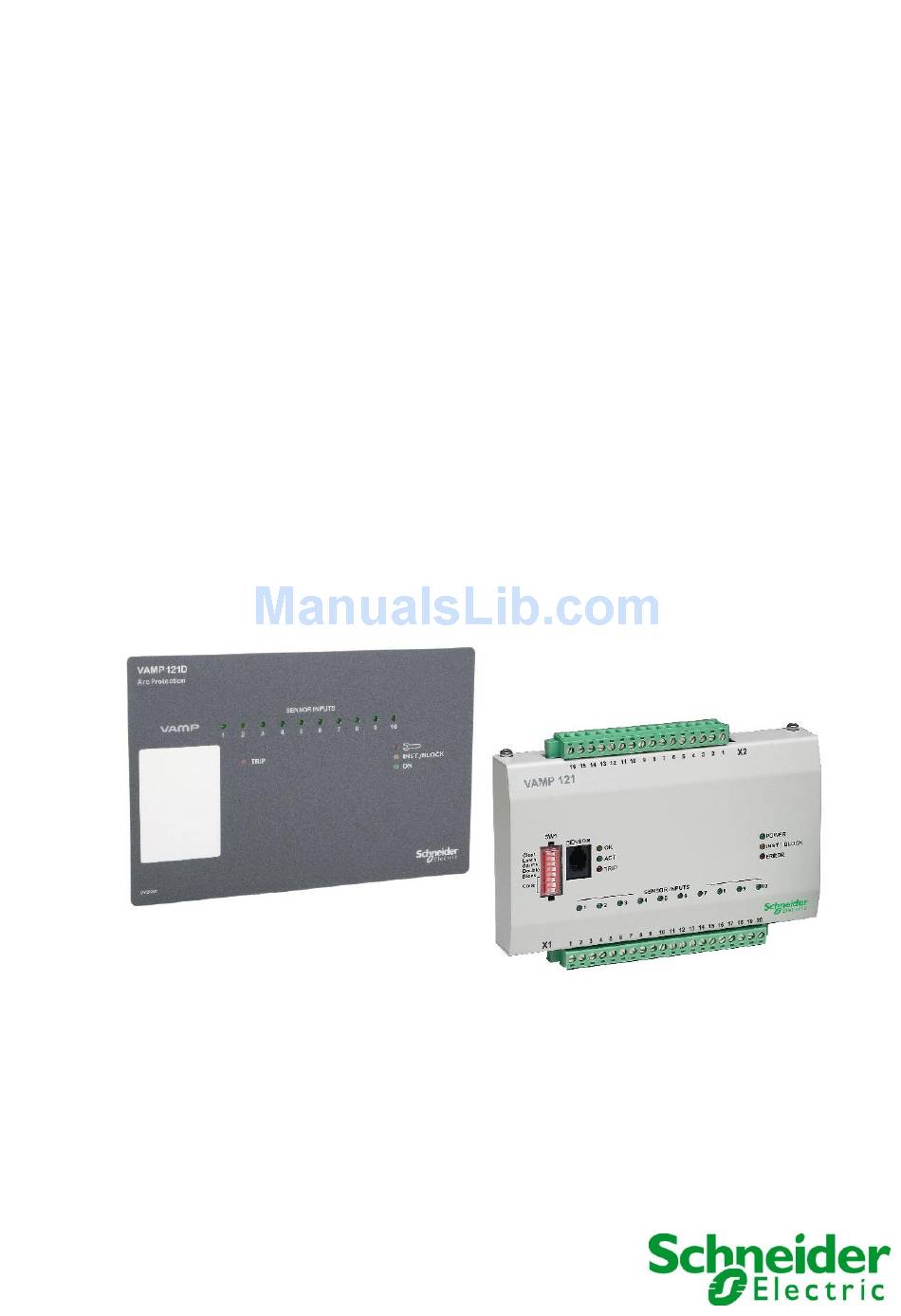

  • Page 1 VAMP 121/VAMP 121D Arc flash protection unit Publication version: V121/EN M/A017 User manual...
  • Page 2 V121/EN M/A017...
  • Page 3: Table Of Contents

    1.1 Arc protection unit VAMP 121(D) Table of contents 1. General ..................4 1.1. Arc protection unit VAMP 121(D) ........4 2. Unit configuration ..............7 3. Sensors ................... 9 3.1. Arc sensor VA 1 DA ............9 3.2. Portable arc sensor VA 1 DP ..........10 4.
  • Page 4: General

    VAMP 121(D) is a “stand alone” system, which gives a compact solution when the application doesn’t require overcurrent measurement. It is possible to connect 10 arc sensors, of the type VA 1 DA, to the VAMP 121(D) unit.
  • Page 5 1 General 1.1 Arc protection unit VAMP 121(D) Figure 1.1-2 Arc protection unit VAMP 121D V121/EN M/A017...
  • Page 6 1.1 Arc protection unit VAMP 1 General 121(D) 1. Connection for portable arc sensor (VA 1 DP) 2. Programming switches 3. POWER indicator light, indicates that the supply voltages of each component are in order. 4. INST/BLOCK indicator light, lit when the unit is in a installation or blocked mode.
  • Page 7: Unit Configuration

    2 Unit configuration Unit configuration During the configuration stage user has to determine the VAMP 121(D) functionality. The amount of used arc sensors is configured by moving the install dipswitches to “ON” position. During the configuration stage the user must configure all the following dipswitches.
  • Page 8 2 Unit configuration Figure 2-1. VAMP 121(D) dipswitch operations Dipswitches 6-8 (Code switches, see Figure 2-1):  When switch nr 8 is OFF, the binary input (X2:7(-), X2:8(+)) has a blocking function, see switch nr 5. In the ON position the binary input has a reset function, see switch nr 1.
  • Page 9: Sensors

    3 Sensors 3.1 Arc sensor VA 1 DA Sensors 3.1. Arc sensor VA 1 DA The arc sensor is a light sensitive element, which is activated by strong light. Arc sensors should be mounted in the switch-gear cubicles, in such a way that the light sensitive part (see Figure 3.1-2) covers the protected area as completely as possible.
  • Page 10: Portable Arc Sensor Va 1 Dp

    3.2 Portable arc sensor VA 1 DP 3 Sensors The arc sensor can alternatively be mounted completely in the protected area with the help of a mounting plate VYX 01 (Z- shaped) or VYX 02 (L-shaped). (See Figure 8.5-1). Active part of the sensor Anchoring ...
  • Page 11: Functions

    4 Functions Functions VAMP 121(D) includes an extensive self-supervision. The self- supervision includes internal functions as well as all arc sensors. Figure 4-1. Self-supervision block diagram When an internal fault occurs the self-supervision relay is activated and the ERROR-led is lit.
  • Page 12: Switchgear Application

    5 Switchgear application Switchgear application Every compartment is equipped with an arc sensor. Up to ten sensors can be connected to the VAMP 121(D) unit. The trip relay is electromechanical and can be connected directly to control the circuit-breaker (see specifications).
  • Page 13: Connection Examples

    6 Connection examples Connection examples Figure 6-1. Example of VAMP 121 system components V121/EN M/A017...
  • Page 14: Outputs

    6 Connection examples 6.1. Outputs The VAMP 121(D) unit has an integrated relay output (X2-15,X2- 16) for tripping of the circuit-breaker. Furthermore, one binary output is available (+24V dc) X2-9 (-) X2- 10(+), which becomes inactive (0V) on internal fault (SF) and / or on tripping (configurable).
  • Page 15: Inputs

    6 Connection examples 6.2 Inputs 6.2. Inputs VAMP 121(D) has 10 arc sensor inputs X1:1-20, and one connection for a portable arc sensor (VA 1 DP). All these inputs have continuous self-supervision. Furthermore, one binary input is available for blocking of the output relay e.g.
  • Page 16: Auxiliary Voltage

    250V dc. The output (+24V dc) on the voltage module MINI-PS is connected directly to the terminals X2-1 (+) and X2-2 (-) on VAMP 121(D). If the auxiliary voltage in the switchgear is 24V dc it can be directly connected to the terminals X2-1 (+) and X2-2 (-) on VAMP 121(D).
  • Page 17: Technical Data

    7 Technical data Technical data Auxiliary voltage 24V dc from the MINI-PS In (stby) 30mA IsensAct 20mA Iarc 120mA + (IsensAct x n); n = number of active sensors Tripping contacts Number 250V ac/dc Rated voltage Continuous carry Make and carry for 0.5s Make and carry for 3s Breaking capacity DC, when time constant L/R=40ms...
  • Page 18: Voltage Tests

    7 Technical data Voltage tests Insulation test voltage acc- to IEC 60255-5 2 kV, 50Hz, 1min Impulse test voltage acc- to IEC 60255-5 5 kV, 1.2/50us, 0.5J Mechanical tests 2 – 13.2 Hz ±3.5mm Vibration test 13.2 – 100Hz, ±1.0g Shock/Bump test acc.
  • Page 19: Dimensions

    8 Dimensions 8.1 VAMP 121 Dimensions 8.1. VAMP 121 Figure 8.1-1. Arc protection unit VAMP 121 dimensions V121/EN M/A017...
  • Page 20: Vamp 121D

    8.2 VAMP 121D 8 Dimensions 8.2. VAMP 121D Figure 8.2-1 Arc protection unit VAMP 121D dimensions V121/EN M/A017...
  • Page 21: External Supply Unit / Alarm Relay

    8 Dimensions 8.3 External supply unit / Alarm relay 8.3. External supply unit / Alarm relay Figure 8.3-1 External supply unit and alarm relay dimensions 8.4. VA 1 DA arc sensor Figure 8.4-1 VA 1 DA arc sensor dimensions V121/EN M/A017...
  • Page 22: Mounting Plates For Va 1 Da

    8.5 Mounting plates for VA 1 DA 8 Dimensions 8.5. Mounting plates for VA 1 DA Figure 8.5-1 Mounting plate dimensions. V121/EN M/A017...
  • Page 23: Order Information

    9 Order information Order information When ordering, please state:  Type designation: V121 / V121D  Quantity:  Options (see respective ordering code): Accessories : Order Code Explanation Note VA 1 DA-6 Arc Sensor Cable length 6m VA 1 DA-20 Arc Sensor Cable length 20m VA 1 DP-5...
  • Page 26 Customers Care Center http://www.schneider-electric.com/ccc Schneider Electric 35 rue Joseph Monier 92506 Rueil-Malmaison FRANCE Phone: +33 (0) 1 41 29 70 00 Fax: +33 (0) 1 41 29 71 00 www.schneider-electric.com Publishing: Schneider Electric Publication version: V121/EN M/A017 05/2015...
