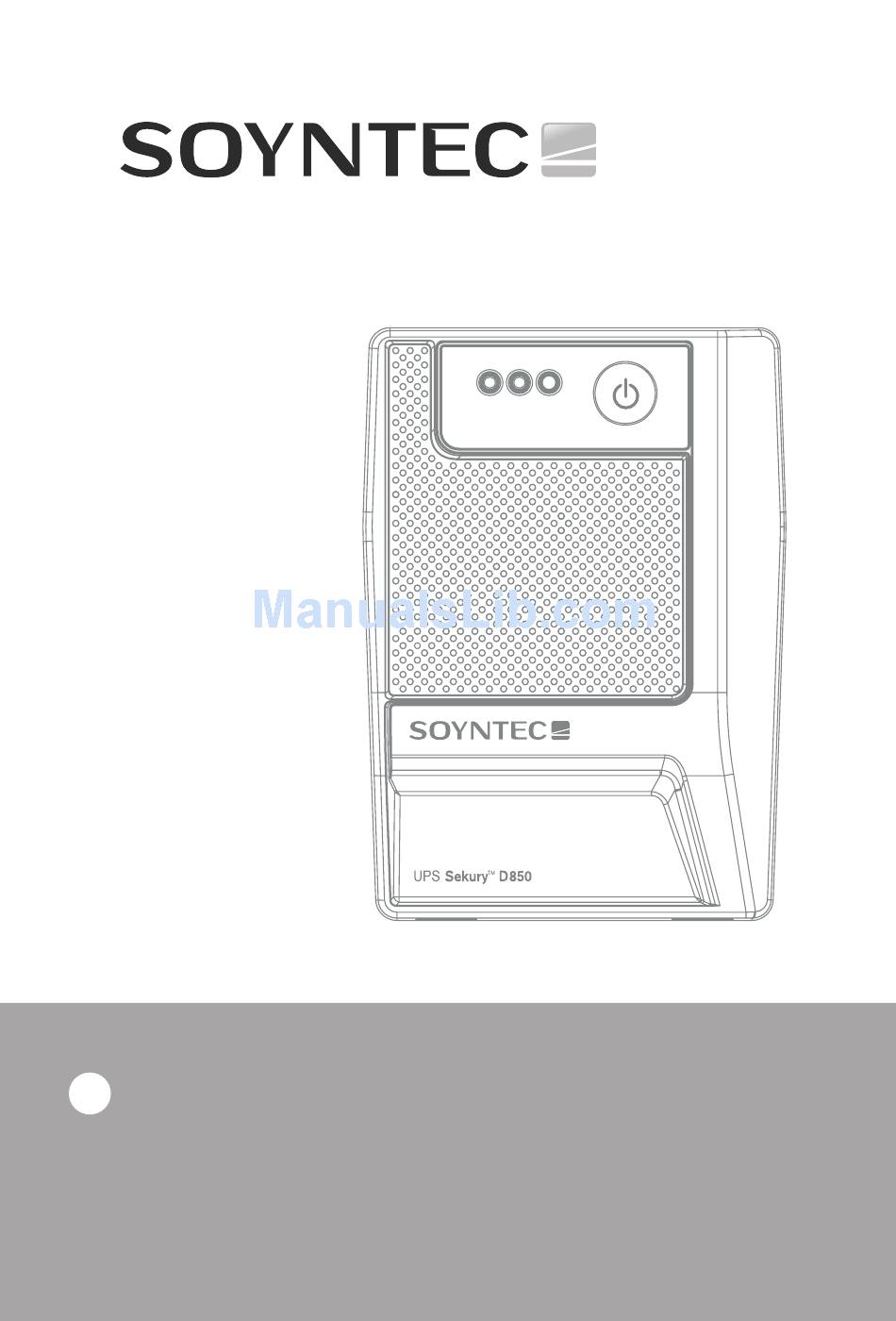

- Page 1 Sekury D850 User Manual SAI/UPS Enjoy the advanced features of this technological product that we have developed with maximum guarantees for you.
- Page 2 Sekury D850. We wish you enjoy using it. The UPS Sekury D850 provides full protection to your computer and peripherals, such as TFT screens, Rou- ters and etc. Moreover, prevents data los generated by blackouts, surge and other electrical disturbances.
-
Page 3: Main Features
3. MAIN fEATURES ≥ Power protection against surge, overvoltage, overload, short-circuit and spikes. ≥ Line interactive technology with microprocessor control. ≥ AVR: Automatic Voltage Regulation. ≥ Telephone / fax / Router protection. ≥ USB connection for computer monitoring. ≥ PC monitoring software. ≥... -
Page 4: Package Contents
4. PACKAGE CONTENTS ≥ UPS Sekury D850. ≥ User manual. ≥ USB cable. ≥ CD-ROM with monitoring software. 5. PRODUCT OVERVIEw FRONT VIEw Power Switch UPS status LED ≥ Normal mode (AC) : green LED on. ≥ Battery Mode: green LED flashing. -
Page 5: Back View
BACk VIEw O U T Protected Schuko outlets AC input Rearm fuse USB port RJ11 connectors for telephone/fax/ Router protection 6. INSTALLATION AND INITIAL SETUP Before installation, please inspect the unit. Make sure that the UPS it’s in perfect conditions and free of any kind of external damages. -
Page 6: Devices Connection
20c m 20c m Connection to mains and charging Plug in the AC input cord to the wall outlet. This unit is shipped from the factory with its internal battery fully charged, however, some charge may be lost during shipping and the battery should be recharged prior to use. -
Page 7: Important Safety Instructions
RJ-11 connection for Router Phone Router surge protection Connect a single Router/phone line into surge-protected “IN” outlet on the back panel of the UPS. Connect from “OUT” port to the computer with another phone line cable. Turn On/Off Turn on the UPS unit by pressing the power switch. Turn off the UPS unit by pressing again the power button. - Page 8 ≥ To reduce the risk of overheating the UPS, do not cover the UPS’ cooling vents and avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces. ≥ To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants.
- Page 9 8. MONITORING SOfTwARE SETUP Please do not connect the UPS to the computer USB port until the software setup process it’s finished. a) Install the monitoring software included in the CD- ROM. b) Follow the on-screen instructions to install the software.
-
Page 10: Troubleshooting
9. TROUBLESHOOTING Problem Possible Cause Solutions Charge the UPS at Low battery. least 8 hours. Replace the battery No LED display on Battery fault. with the same type of the front panel. battery. Press the power The UPS it’s not switch again to turn turned on. -
Page 11: Specifications
10. SPECIfICATIONS Model Sekury D850 CAPACITY 850 VA /480 W INPUT Voltage 220/230/240 VAC Frequency 50 Hz/ 60 Hz Voltage Range 162-290 VAC OUTPUT Voltage 230V AC Frequency 50 Hz +/-1% Transfer Time Typical 2-6 ms Output waveform Modified sinusoidal... -
Page 12: Warranty Procedure
Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods were purchased during a period of 36 months. Batteries are excluded from the 36-month warranty, having a warranty period of 12 months. -
Page 13: Declaration Of Conformity
DECLARATION Of CONfORMITY 19/12/2012 Manufacturer Name: Energy Sistem Soyntec S.A. Address: Pol. Ind. Finestrat, C/.Calpe, 1 - 03509, Finestrat, Alicante (Spain) Tel: 902 388 388 Fax: 902 119 034 NIF: A53107488 We declare under our own exclusive responsibility that the...
