X555UNS/X555UNV Installation Guide
55" LED LCD Display

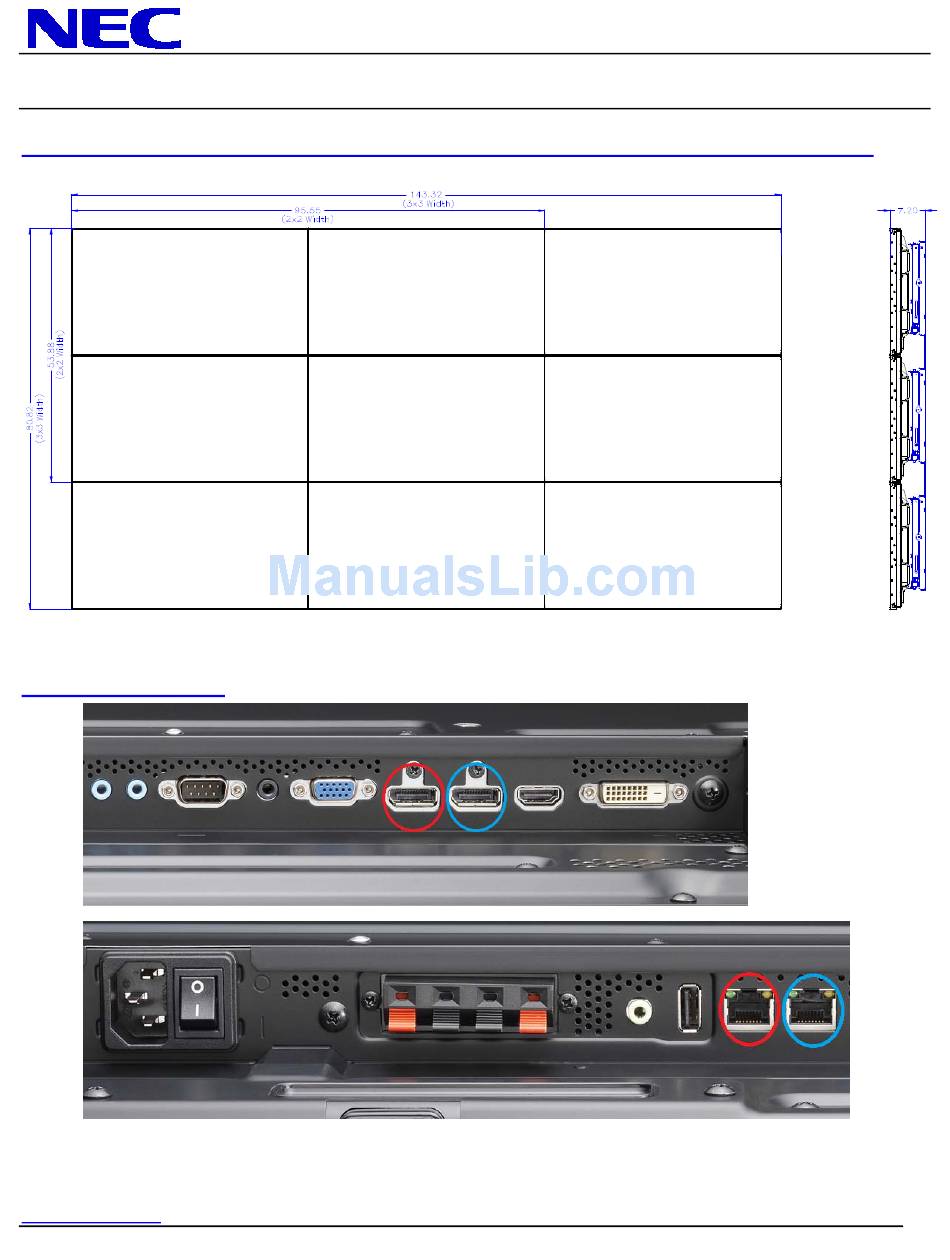

X554UN-TMX4P and X554UN-TMX9P Outer Dimensions with Peerless DS-VW765-LAND
Note: KT-55UN-OF3 Overframe Bezel Kit not pictured
Input Panel (Bottom)
o
Red circles in the above interface connections signify the IN of that particular connector. Blue circles in the above interface
representations signify the OUT for that particular connector
