Summary of Contents for Bartscher 150342
- Page 1 „40x30“ Plus 150342 Original-Gebrauchsanleitung V1/1215...
-
Page 2: Table Of Contents
4.2 Technical specification ..................26 5. Installation and operation ..................27 5.1 Installation ......................27 5.2 Operation ......................28 6. Cleaning ........................30 7. Waste disposal ......................32 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 • This device may only be operated in technically proper and safe condition. • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 5 • The supply cable must be disconnected from the socket only by pulling the plug. • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
- Page 6 WARNING! Risk of burns! To avoid the effects of this risk, follow the safety instructions presented below. • During the operation the hot steam escapes through the steam vent in the glass lid. Avoid contact with the lid during the operation of the device.
-
Page 7: Key To Symbols
1.2 Key to symbols In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage. WARNING! This symbol highlights hazards which could lead to injury. -
Page 8: Proper Use
1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. All technical activities like installation and maintenance must be performed by the qualified service personnel only. The device is not designed for continuous operation in the industrial applications. The device is intended for home use or in similar places such as: →... -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data

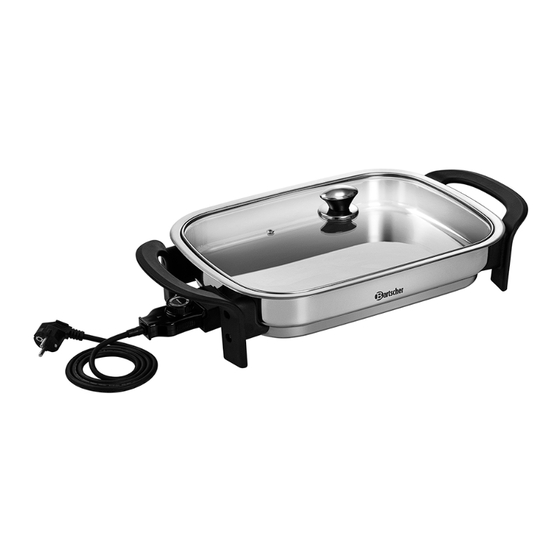

Glass lid Base handle Pan (heating plate) Detachable temperature controller 4.2 Technical specification Name Multi Pan “40x30” Plus 150342 Code-No.: Design: Chrome nickel 18/10, glass lid Capacity: 4 litres Temperature control: variable adjustment, 90 ° C - 210 ° C Power: 2.1 kW / 230 V 50 Hz... -
Page 12: Installation And Operation
5. Installation and operation 5.1 Installation • Unpack the device and remove the packing material. CAUTION! Never remove the nameplate and warning signs from the device. • Put the device on an even, stable, dry and waterproof surface which is resistant to high temperature. -
Page 13: Operation
5.2 Operation • Before the first use, clean the glass lid and temperature controller according to the instructions in section 6 „Cleaning“. • Set the controller dial to „OFF“ position and connect the temperature controller to the device socket. Detachable temperature controller Temperature sensor Socket for connecting the temperature controller... - Page 14 • As the temperature controller is a highly sensitive component, make sure it is protected against falling, hitting or strong shocks. • Before connecting of disconnecting the temperature controller, make sure that the dial is set to „OFF“ position. Failure to observe this instruction may lead to interruption in the device operation or overheating.
-
Page 15: Cleaning
WARNING! Risk of burn! During the operation, the device becomes very hot. Do not touch it with bare hands. Do not place any inflammable materials on the multi pan. • After preparing dishes on the multi pan they may be kept warm, whereas the temperature dial should be set to the lowest temperature. - Page 16 CAUTION! Never use abrasive cleaning agents, e.g. scouring powder, alcohol or alkaline agents, solvents, gasoline, which may damage the surface of the device. Cleaning the multi pan o After the use, always clean the device thoroughly. Leave the device to cool off before cleaning.
-
Page 17: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
